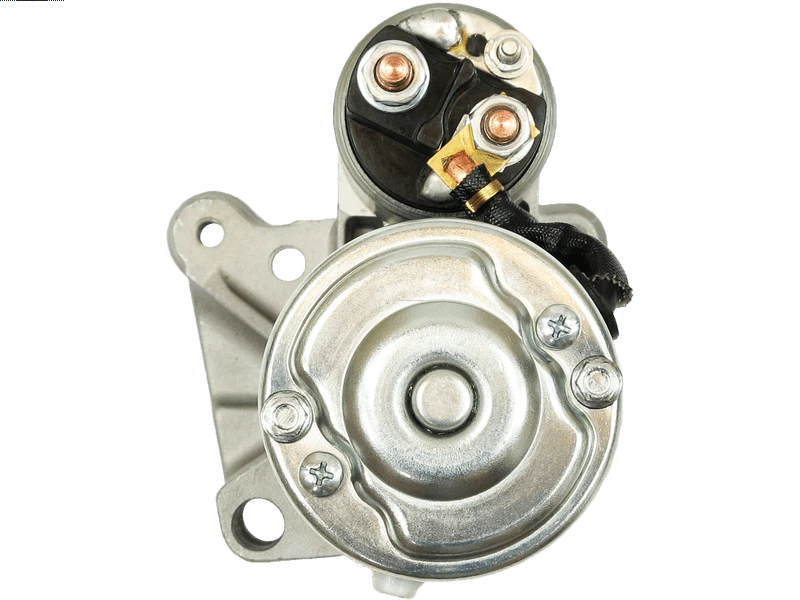

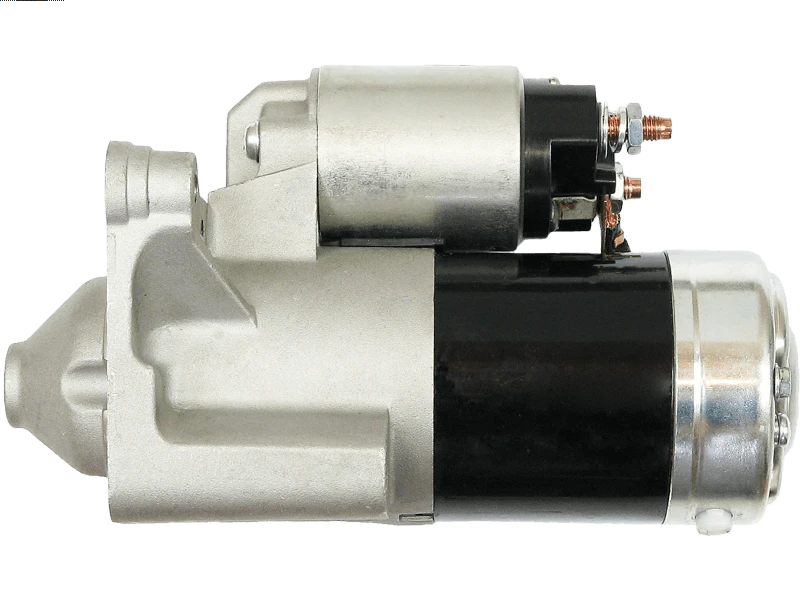

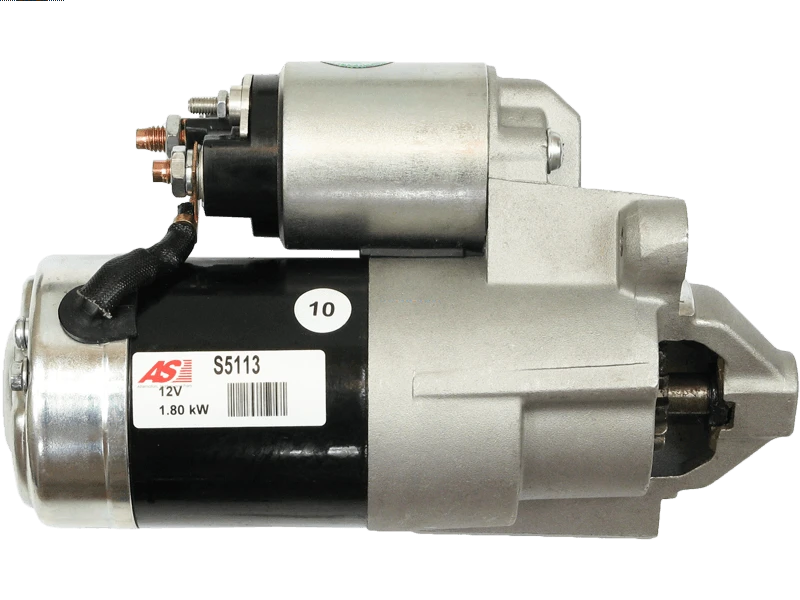

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 251.62 including GST
NZ$ 218.80 excluding GST
or four payments of $62.91
with
Learn More
each
S5113
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M1T85682Associated Numbers
20437011BN 20513072 25-4158 254050 6035110 7700115479 8200096510 AEY2486 CST35110AS CST35110GS EAA-121256 LRS02486 M001T85681 M001T85682 M1T85681 M1T85682 RNLM1T85682 STR71068Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 216 mm |
| Mount Hole Center - Center (O.1) | 22 mm |
| Mount Hole Center - Center (O.2) | 74 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Center - Center (O.4) | 74 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | 12.5 mm |
| Mount Hole Diameter (C.4) | M10x1.5 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | -1 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 65 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT | Laguna 1.9 dCi | [F9Q650] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q670] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q674] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q718] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q750] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q752] | 06.2001-05.2005 |
| RENAULT | Laguna 1.9 dCi | [F9Q754] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi | [F9Q754] | 10.2001-05.2005 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q670] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q674] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q750] | 03.2001-09.2007 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q752] | 06.2001-05.2005 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q752] | 10.2001-05.2005 |
| RENAULT | Laguna 1.9 dCi Grandtour | [F9Q754] | 03.2001-12.2007 |
Reference Information
8200075362 30620657 7711134802 93174002 MT130025 31100-67J00-000 4414332 7700115479 820006446B 6035110.1 8200628419 6035110.0 8200040415 3110067J00 8200676298 254050 1810A048 20437011OE M1T85681 M1T85682 570.546.124.460 CST35110GS 31100-67J00 8200054336 20437011BN 3062065 4411195 8200628426 7700113622 9512644 STRS561 3094 7700116260 8602274 8200583014 3130025 M001T85681 7700116260D M001T85682 S5113 LRS2486 93160655 STR5239 003-130025 25-4158 STX200018R 8200064465B CGB-23955 91167474 7711134792 M1T85981 7711134793 91167270 8200096510 CS1193 112474 11960 23300-AW300 SG0534 23300-AW302 3061819 CST35110AS 7711134934 93169460 254050M 8200331251 93858918 R1040042 8251643 23300-00QAC 8253786 7711134260 STX200019R STX201025 8200064465 LRS02486 MW30620657 MAV371100 STX200018 4414402 STX200019 MITM1T85682 570.546.124 23300-00Q0E STX200015 STR71068 M001T85981 STX200015RVideo/Publications
