S5136 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S5136
Price: 254.57 NZD
Availability: InStock

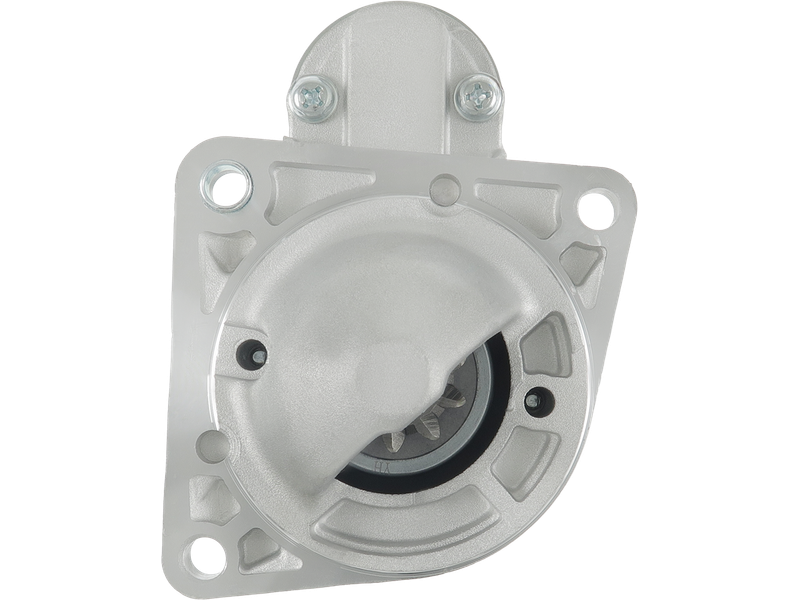

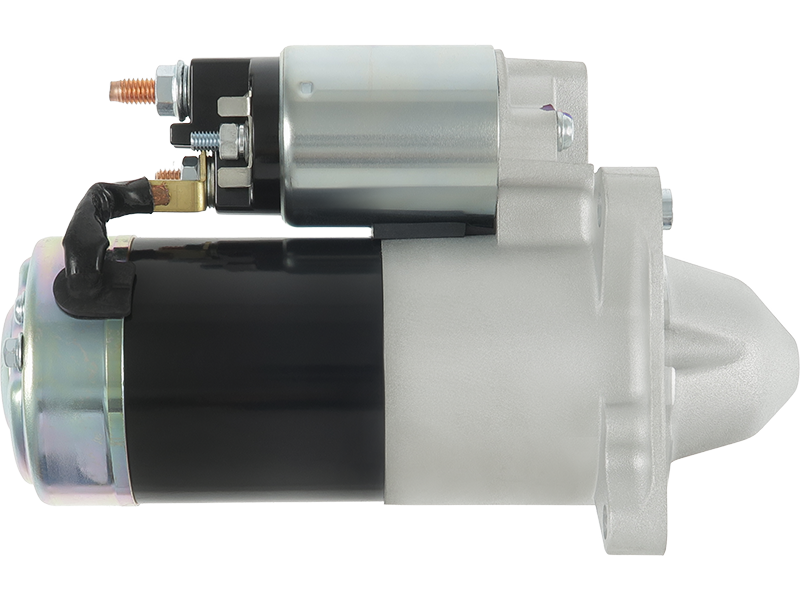

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 254.57 including GST

NZ$ 221.36 excluding GST

UOM:

each

Product Code:

S5136

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001108202 0001108224 0001108234 0001108239 063523626010 0986017790 0986025660 101045 101045B 101045M 101264 101264B 101264M 11.130.997 113931 1202282 201305 201305V 20437781 20510199 220643 25-3454 254091 254091M 3144 33283N 3680 42001071 438368 458212 46473784 46478945 468223543 46823543 500.550.103 51782321 51832954 55192482 55195211 551952110 55353857 6035187 60814911 60817002 6202074 726043 72736001 88212197 8EA012527-771 8EA738026-001 AEY2173 AZE2111 CS1264 CST10425GS CST35187 CST35187AS CST35187ES CST35187GS CST35187OS CST35187RS D7E29 DRS0099 DRS0099N DS1209 DS1209N EAA-121058 EAA-121487 GST30071-A GST30071MI-R IS0997 LRS02283 M001T30071 M001T30072 M001T30073 M1T30071 M1T30072 M1T30073 MITM1T30072 MITM1T30073 MS373 MSN3626 RAS31100 S5136 SG0278 STB1264 STB9264 STR71102 UD02988S

Kilowatt	1.9 kW
Length (L.1)	222 mm
Mount Hole Center - Center (O.1)	118 mm
Mount Hole Center - Center (O.2)	84 mm
Mount Hole Center - Center (O.3)	84 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
Mount Hole Diameter (C.3)	8.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	9. 10 qty
OEM Product	No
Pinion at Rest (B)	9 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	MITSUBISHI
Voltage	12 V

Make	Model	Type	Year
ALFA ROMEO	147 1.9 JTD	[937A2.000]	04.2001-03.2010
ALFA ROMEO	147 1.9 JTDM 16V	[939A7.000]	10.2004-03.2010
ALFA ROMEO	147 1.9 JTDM 8V	[937A3.000]	07.2005-03.2010
ALFA ROMEO	156 1.9 JTD	[937A2.000]	05.2001-05.2006
ALFA ROMEO	159 1.9 JTDM 16V	[937A8.000]	03.2006-
ALFA ROMEO	159 1.9 JTDM 16V	[937A8.000]	09.2005-
ALFA ROMEO	159 1.9 JTDM 16V	[939A8.000]	09.2005-
ALFA ROMEO	159 1.9 JTDM 8V	[937A7.000]	03.2006-
ALFA ROMEO	159 1.9 JTDM 8V	[939A1.000]	03.2006-
ALFA ROMEO	159 1.9 JTDM 8V	[939A1.000]	09.2005-
ALFA ROMEO	159 1.9 JTDM 8V	[939A7.000]	09.2005-
ALFA ROMEO	GT 1.9 JTD	[937A6.000]	05.2008-
ALFA ROMEO	MiTo 1.6 JTDM	[198A2.000]	09.2008-
ALFA ROMEO	MiTo 1.6 JTDM	[955A4.000]	09.2008-
CADILLAC	BLS 1.9 D	[Z19DT]	04.2006-
CADILLAC	BLS 1.9 D	[Z19DTH]	04.2006-
CHEVROLET	Malibu 2.0 D	[LBS]	04.2012-
FIAT	Brava 1.9 JTD	[182B9.000]	09.2000-10.2001
FIAT	Bravo 1.6 Multijet	[198A2.000]	03.2008-
FIAT	Bravo 1.6 Multijet	[198A3.000]	03.2008-
FIAT	Bravo 1.6 Multijet	[955A4.000]	11.2008-
FIAT	Bravo 1.9 JTD	[182B9.000]	09.2000-10.2001
FIAT	Bravo 1.9 Multijet	[937A5.000]	04.2007-
FIAT	Croma 1.9 Multijet	[939A1.000]	06.2005-
FIAT	Croma 1.9 Multijet	[939A7.000]	06.2005-
FIAT	Croma 1.9 Multijet	[939A8.000]	12.2005-
FIAT	Doblo 1.6 Multijet	[198A3.000]	02.2010-
FIAT	Doblo 1.6 Multijet	[263A3.000]	02.2010-
FIAT	Doblo 1.6 Multijet Cargo	[263A3.000]	02.2011-
FIAT	Doblo 1.6 Multijet Cargo	[263A4.000]	02.2010-
FIAT	Doblo 1.9 JTD	[182B9.000]	10.2001-
FIAT	Doblo 1.9 JTD	[223A7.000]	07.2003-
FIAT	Doblo 1.9 JTD	[223B1.000]	07.2003-
FIAT	Doblo 1.9 JTD	[223B2.000]	10.2001-
FIAT	Doblo 1.9 Multijet	[186A9.000]	10.2005-
FIAT	Grande Punto 1.6 Multijet	[955A3.000]	07.2008-
FIAT	Grande Punto 1.9 Multijet	[199A5.000]	10.2005-
FIAT	Grande Punto 1.9 Multijet	[939A1.000]	10.2005-
FIAT	Grande Punto 1.9 Multijet	[939A7.000]	06.2006-
FIAT	Idea 1.6 Multijet	[350A2.000]	05.2008-
FIAT	Idea 1.9 JTD	[188B2.000]	01.2004-
FIAT	Linea 1.6 Multijet	[198A3.000]	06.2009-
FIAT	Multipla 1.9 JTD	[186A9.000]	04.2002-06.2010
FIAT	Palio 1.9 JTD EL	[188A2.000]	09.2001-
FIAT	Punto 1.9 JTD	[188B2.000]	06.2003-
FIAT	Stilo 1.9 D	[192B5.000]	09.2004-
FIAT	Stilo 1.9 JTD	[192A1.000]	01.2003-
FIAT	Stilo 1.9 JTD	[192A1.000]	10.2001-
FIAT	Stilo 1.9 JTD	[192A3.000]	01.2003-
FIAT	Stilo 1.9 JTD	[192A3.000]	02.2002-
FIAT	Stilo 1.9 JTD	[192B5.000]	09.2004-
FIAT	Stilo 1.9 JTD	[937A7.000]	01.2003-
FIAT	Stilo 1.9 Multijet	[192A9.000]	09.2005-
LANCIA	Delta 1.6 Multijet	[198A2.000]	09.2008-
LANCIA	Delta 1.6 Multijet	[944A3.000]	04.2011-
LANCIA	Delta 1.6 Multijet	[955A4.000]	08.2008-
LANCIA	Delta 1.8	[939B1.000]	01.2009-
LANCIA	Musa 1.6 Multijet	[350A2.000]	07.2008-
LANCIA	Musa 1.9 Multijet	[188B2.000]	10.2004-
OPEL	Astra H 1.9 CDTi	[Z19DT]	09.2005-
OPEL	Astra H 1.9 CDTi	[Z19DTH]	09.2004-
OPEL	Astra H 1.9 CDTi	[Z19DTL]	09.2005-
OPEL	Astra H 1.9 CDTi 16V GTC	[Z19DTH]	03.2005-
OPEL	Astra H 1.9 CDTi GTC	[Z19DT]	09.2005-
OPEL	Astra H 1.9 CDTi GTC	[Z19DTL]	01.2006-
OPEL	Astra J 2.0 BiTurbo CDTI	[A20DTR]	12.2012-
OPEL	Astra J 2.0 BiTurbo CDTI Sports Tourer	[A20DTR]	12.2012-
OPEL	Astra J 2.0 CDTi	[A20DTH]	06.2009-
OPEL	Astra J 2.0 CDTi	[A20DTH]	12.2009-
OPEL	Astra J 2.0 CDTi Ecotec	[A20DTH]	10.2010-
OPEL	Astra J 2.0 GTC	[A20DTH]	10.2011-
OPEL	Astra J GTC 2.0 BiTurbo CDTI	[A20DTR]	10.2012-
OPEL	Cascada 2.0 CDTI	[A20DTH]	03.2013-
OPEL	Cascada 2.0 CDTI BiTurbo	[A20DTR]	03.2013-
OPEL	Insignia 2.0 BiTurbo CDTI	[A20DTR]	01.2012-
OPEL	Insignia 2.0 BiTurbo CDTI 4x4	[A20DTR]	01.2012-
OPEL	Insignia 2.0 BiTurbo CDTI 4x4 Sports Tourer	[A20DTR]	01.2012-
OPEL	Insignia 2.0 BiTurbo CDTI Sports Tourer	[A20DTR]	01.2012-
OPEL	Insignia 2.0 CDTi	[A20DT]	07.2008-
OPEL	Insignia 2.0 CDTi	[A20DTC]	07.2008-
OPEL	Insignia 2.0 CDTi	[A20DTE]	07.2013-
OPEL	Insignia 2.0 CDTi	[A20DTH]	07.2008-
OPEL	Insignia 2.0 CDTi	[A20DTH]	07.2013-
OPEL	Insignia 2.0 CDTi	[A20DTJ]	07.2008-
OPEL	Insignia 2.0 CDTi	[A20DTL]	07.2008-
OPEL	Insignia 2.0 CDTi	[A20DTR]	07.2008-
OPEL	Insignia 2.0 CDTi 4x4	[A20DTH]	06.2010-
OPEL	Insignia 2.0 CDTi 4x4	[A20DTR]	05.2009-
OPEL	Insignia 2.0 CDTi 4x4	[A20DTR]	07.2008-
OPEL	Insignia 2.0 CDTi 4x4 Sports Tourer	[A20DTH]	07.2013-
OPEL	Insignia 2.0 CDTi Caravan	[A20DT]	07.2008-
OPEL	Insignia 2.0 CDTi Caravan	[A20DTC]	07.2008-
OPEL	Insignia 2.0 CDTi Caravan	[A20DTH]	07.2008-
OPEL	Insignia 2.0 CDTi Caravan	[A20DTJ]	07.2008-
OPEL	Insignia 2.0 CDTi Caravan	[A20DTL]	07.2008-
OPEL	Insignia 2.0 CDTi Caravan	[A20DTR]	07.2008-
OPEL	Signum 1.9 CDTi	[Z19DT]	04.2004-12.2008
OPEL	Signum 1.9 CDTi	[Z19DT]	08.2005-
OPEL	Signum 1.9 CDTi	[Z19DTH]	04.2004-
OPEL	Vectra 1.9 CDTi		04.2004-
OPEL	Vectra C 1.9 CDTi	[Z19DT]	04.2004-
OPEL	Vectra C 1.9 CDTi	[Z19DT]	10.2005-
OPEL	Vectra C 1.9 CDTi	[Z19DTH]	04.2004-
OPEL	Vectra C 1.9 CDTi	[Z19DTL]	01.2004-12.2008
OPEL	Vectra C 1.9 CDTI	[Z19DT]	04.2004-
OPEL	Vectra C 1.9 CDTi GTS	[Z19DT]	04.2004-
OPEL	Vectra C 1.9 CDTi GTS	[Z19DTH]	04.2004-
OPEL	Vectra C 1.9 CDTi GTS	[Z19DTL]	10.2005-
OPEL	Zafira 1.9 CDTi		04.2004-
OPEL	Zafira B 1.9 CDTi	[Z19DT]	07.2005-
OPEL	Zafira B 1.9 CDTi	[Z19DTH]	07.2005-
OPEL	Zafira B 1.9 CDTi	[Z19DTHJ]	07.2005-
OPEL	Zafira B 1.9 CDTi	[Z19DTL]	07.2005-
OPEL	Zafira C 2.0 CDTi	[A20DT]	10.2011-
OPEL	Zafira C 2.0 CDTi	[A20DTC]	01.2011-
OPEL	Zafira C 2.0 CDTi	[A20DTH]	10.2011-
OPEL	Zafira C 2.0 CDTi	[A20DTL]	10.2011-
OPEL	Zafira C 2.0 CDTi	[Y20DTJ]	10.2011-
OPEL	Zafira C 2.0 CDTi	[Z20DTJ]	10.2011-
OPEL	Zafira C 2.0 CDTi BiTurbo	[A20DTR]	12.2013-
SAAB	9-3 1.9 TiD	[Z19DT]	03.2005-
SAAB	9-3 1.9 TiD	[Z19DTH]	01.2006-
SAAB	9-3 1.9 TiD	[Z19DTH]	03.2005-
SAAB	9-3 1.9 TiD	[Z19DTH]	09.2004-
SAAB	9-3 1.9 TTiD	[A19DTR]	12.2007-
SAAB	9-3 1.9 TTiD	[Z19DTR]	12.2007-
SAAB	9-3X 1.9 TTiD	[A19DTR]	01.2010-12.2012
SAAB	9-3X 1.9 TTiD	[Z19DTR]	01.2010-12.2012
SAAB	9-5 1.9 TiD	[Z19DTH]	01.2006-
SAAB	9-5 1.9 TiD	[Z19DTR]	01.2007-
SAAB	9-5 2.0 TiD	[A20DTH]	05.2010-
VAUXHALL	Astra 1.9 CDTi LE	[Z19DTL]	08.2005-11.2010
VAUXHALL	Astra H 1.9 CDTi	[Z19DTH]	01.2005-
VAUXHALL	Astra H 1.9 CDTi	[Z19DTJ]	01.2005-
VAUXHALL	Astra J 2.0 CDTi	[A20DTH]	01.2009-
VAUXHALL	Astra J 2.0 CDTi BiTurbo	[A20DTR]	01.2011-
VAUXHALL	Astra J GTC 2.0 BiTurbo CDTI BiTurbo	[A20DTR]	12.2012-
VAUXHALL	Astra MK V 1.9 CDTi	[Z19DT]	02.2005-11.2010
VAUXHALL	Astra MK V 1.9 CDTi	[Z19DT]	08.2005-
VAUXHALL	Astra MK V 1.9 CDTi	[Z19DTH]	06.2004-
VAUXHALL	Astra MK V 1.9 CDTi	[Z19DTL]	08.2005-
VAUXHALL	Astra MK V 2.0 CDTi	[A20DTH]	08.2011-
VAUXHALL	Astra MK V 2.0 CDTi Sports Tourer	[A20DTH]	08.2011-
VAUXHALL	Astra MK VI 2.0 BiTurbo CDTi	[A20DTR]	12.2012-
VAUXHALL	Astra MK VI 2.0 CDTi	[A20DTH]	10.2011-
VAUXHALL	Astra MK VI 2.0 CDTi	[A20DTH]	12.2009-
VAUXHALL	Astra MK VI 2.0 CDTi 16V	[A20DTH]	10.2010-
VAUXHALL	Cascada 2.0 CDTi	[A20DTH]	02.2013-
VAUXHALL	Cascada 2.0 CDTi	[A20DTR]	02.2013-
VAUXHALL	Insignia 2.0 Biturbo CDTI	[A20DTR]	03.2012-
VAUXHALL	Insignia 2.0 Biturbo CDTI 4x4	[A20DTR]	03.2012-
VAUXHALL	Insignia 2.0 CDTi	[A20DTC]	07.2008-
VAUXHALL	Insignia 2.0 CDTi	[A20DTH]	07.2008-
VAUXHALL	Insignia 2.0 CDTi	[A20DTH]	07.2013-
VAUXHALL	Insignia 2.0 CDTi	[A20DTJ]	07.2008-
VAUXHALL	Insignia 2.0 CDTi	[A20DTR]	03.2012-
VAUXHALL	Insignia 2.0 CDTi	[A20DTR]	10.2008-
VAUXHALL	Insignia 2.0 CDTi	[A20DTR]	11.2008-
VAUXHALL	Insignia 2.0 CDTI	[A20DTE]	03.2012-
VAUXHALL	Insignia 2.0 CDTi 16V 4x4	[A20DTH]	07.2008-
VAUXHALL	Insignia 2.0 CDTi 4x4	[A20DTH]	07.2013-
VAUXHALL	Insignia 2.0 CDTi 4x4	[A20DTR]	05.2009-
VAUXHALL	Insignia 2.0 CDTi Estate	[A20DTH]	07.2008-
VAUXHALL	Insignia 2.0 CDTi Estate	[A20DTJ]	07.2008-
VAUXHALL	Insignia 2.0 CDTi Sports tourer	[A20DTE]	07.2013-
VAUXHALL	Insignia 2.0 CDTi Sports tourer	[A20DTH]	07.2013-
VAUXHALL	Insignia 2.0 CDTi Sports Tourer	[A20DTC]	07.2008-
VAUXHALL	Signum 1.9 CDTi	[Z19DT]	04.2004-
VAUXHALL	Signum 1.9 CDTi 16V	[Z19DTH]	04.2004-
VAUXHALL	Signum 1.9 Turbo	[Z19DTL]	01.2005-05.2008
VAUXHALL	Vectra C 1.9 CDTi	[Z19DT]	04.2004-
VAUXHALL	Vectra C 1.9 CDTi	[Z19DTJ]	01.2004-12.2008
VAUXHALL	Vectra C 1.9 CDTi	[Z19DTL]	10.2005-
VAUXHALL	Vectra C 1.9 CDTi 16V	[Z19DTH]	04.2004-
VAUXHALL	Vectra C 1.9 CDTi 16V GTS	[Z19DTH]	04.2004-
VAUXHALL	Vectra C 1.9 CDTi GTS	[Z19DT]	04.2004-
VAUXHALL	Vectra C 1.9 CDTi GTS	[Z19DTL]	10.2005-
VAUXHALL	Zafira MK II 1.9 CDTi	[Z19DT]	07.2005-
VAUXHALL	Zafira MK II 1.9 CDTi	[Z19DTH]	07.2005-
VAUXHALL	Zafira MK II 1.9 CDTi	[Z19DTJ]	01.2005-
VAUXHALL	Zafira MK II 1.9 CDTi	[Z19DTL]	07.2005-
VAUXHALL	Zafira MK III 2.0 BiTurbo CDTi	[A20DTR]	01.2013-
VAUXHALL	Zafira MK III 2.0 CDTi	[A20DT]	10.2011-
VAUXHALL	Zafira MK III 2.0 CDTi	[A20DTH]	10.2011-
VAUXHALL	Zafira MK III 2.0 CDTi	[A20DTJ]	10.2011-
VAUXHALL	Zafira MK III 2.0 CDTi	[A20DTL]	10.2011-
VAUXHALL	Zafira MK III 2.0 CDTi	[Z20DTJ]	10.2011-

254091 M1T30073ZZ9 LRS02283 51782321 113931 M001T30071 254091M M001T30073 M001T30072 6202074 STB1264 SG0278 500.550.103.265 DRS0099 12079 51832954 51832953 55353857 20437781BN STM572 46463250 55192482 8EA012527-771 95520320 20437781OE CST35187GS M001T30073ZZ9 500.550.103.138 6035187 M1T30071 M1T30072 M1T30073 LRS2283 M1T30073AM MITM1T30073 MITM1T30072 CGB-53454 3144 S12MH0822A2 500.550.103.130 33283N 500.550.103.370 STR5319 71794530 6035187.1 STRS038 5035073 MAV371870 71792597 55585237 PRSS038 UD02988S 55195211 88212197 46823543 220643 1202488 42001071 25-3454 55358857 STR71102 STX200011 CS1264 336366 60813458 1202282 STX200294 S5136 CST35187AS 468223543 CGB-20099 STX200011R M001T30073AM

S5136
