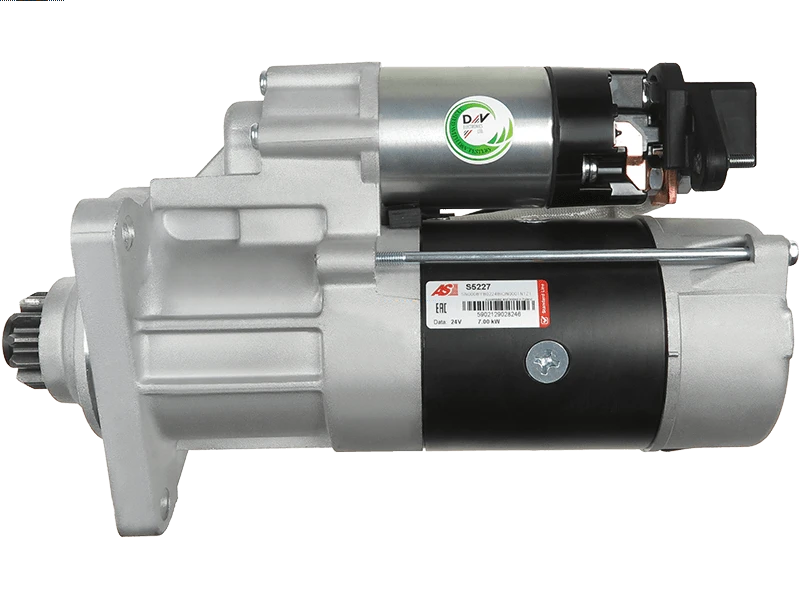

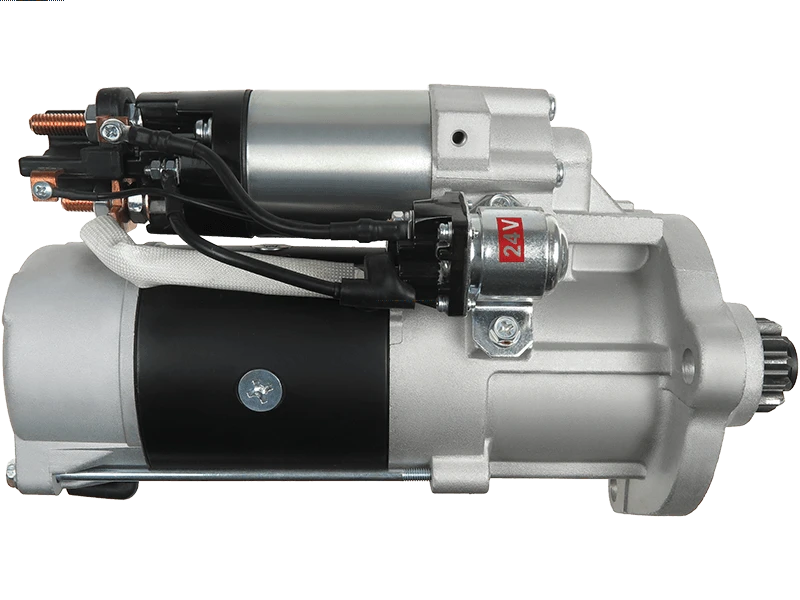

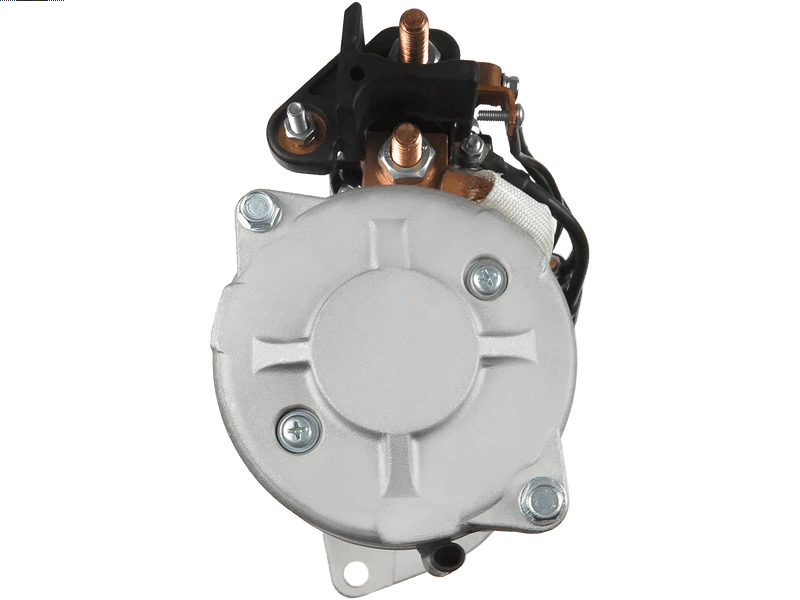

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 835.39 including GST
NZ$ 726.43 excluding GST
or four payments of $208.85
with
Learn More
each
S5227
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M9T83771Associated Numbers
115439 115876 130-90168 1447912 1797880 2008268 20437536OE 220572 254706 254706M 254706P 31264N 45-5028 571468 6035635 8199 911.504.123 CS1550 CST35635 CST35635AS CST35635ES CST35635GS CST35635OS CST35635RS DRS0542 LRS03855 M009T83771 M009T83771AM M105R3527SE M9T83771 M9T83771AM MITM9T83771 STR71232 UD12426SSpecifications
| Kilowatt | 7 kW |
| Length (L.1) | 349 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | P500 15.6 | [DC16.04] | |
| SCANIA | P500 15.6 | [DC16.06] | |
| SCANIA | P500 15.6 | [DC16.09] | |
| SCANIA | P500 15.6 | [DC16.19] | |
| SCANIA | P500 15.6 | [DC16.22] | |
| SCANIA | P560 15.6 | [DC16.05] | |
| SCANIA | P560 15.6 | [DC16.18] | |
| SCANIA | P580 15.6 | [DC16.03] | |
| SCANIA | P620 15.6 | [DC16.08] | |
| SCANIA | P620 15.6 | [DC16.17] | |
| SCANIA | R500 15.6 | [DC16..] | 01.2004- |
| SCANIA | R500 15.6 | [DC16.04] | 04.2004- |
| SCANIA | R500 15.6 | [DC16.04] | |
| SCANIA | R500 15.6 | [DC16.06] | 04.2004- |
| SCANIA | R500 15.6 | [DC16.06] | |
| SCANIA | R500 15.6 | [DC16.09] | 04.2004- |
| SCANIA | R500 15.6 | [DC16.09] | |
| SCANIA | R500 15.6 | [DC16.19] | 04.2004- |
| SCANIA | R500 15.6 | [DC16.19] | |
| SCANIA | R500 15.6 | [DC16.22] | |
| SCANIA | R560 15.6 | [DC16..] | 01.2006- |
| SCANIA | R560 15.6 | [DC16.05] | 03.2008- |
| SCANIA | R560 15.6 | [DC16.05] | |
| SCANIA | R560 15.6 | [DC16.18] | 03.2008- |
| SCANIA | R560 15.6 | [DC16.18] | |
| SCANIA | R580 15.6 | [DC16.03] | 04.2004- |
| SCANIA | R580 15.6 | [DC16.03] | |
| SCANIA | R620 15.6 | [DC16.08] | 03.2008- |
| SCANIA | R620 15.6 | [DC16.08] | |
| SCANIA | R620 15.6 | [DC16.17] | 03.2008- |
| SCANIA | R620 15.6 | [DC16.17] | |
| SCANIA | R620 15.6 | [DT16.08] | 03.2004- |
| SCANIA | R620 15.6 | [DT16.08] | |
| SCANIA | R730 15.6 | [DC16.21] | 01.2010- |
| SCANIA | R730 16.4 | [DC16.21] | 01.2010- |
| SCANIA | R730 16.4 | [DC16.21] |
Reference Information
STM3977 M009T83771 8EA012586-681 M105727 115876 115439 130-90168N 336476 5135149 254706P STR71232 CGB-20542 254706M LRS3855 M009T83771AM DS1652 MAV376350A M105R3527AM UD12426S 45-5028 2969380 M9T83771 ANM12762 STRS383MI GST83771-A 6035635.1 6035635.0 911.504.123.138 8199 1797880 220572 M9T83782 573175 CS1550 STR5197 PRSS383 CST35635GS S24MH0125A2 911.504.123.370 MITM9T83771 254706 911.504.123.130 130-90168 911.504.123.372 130-90168OE 130-90168NOE S5227 2403301 M9T83771AM M009T83782 STRS383 31264N CST35635AS 20437536BN 571231 2008268 20437536OE 911.504.123.380 DRS0542 M105R3527SE 2777872 LRS03855 MAV376350Video/Publications
