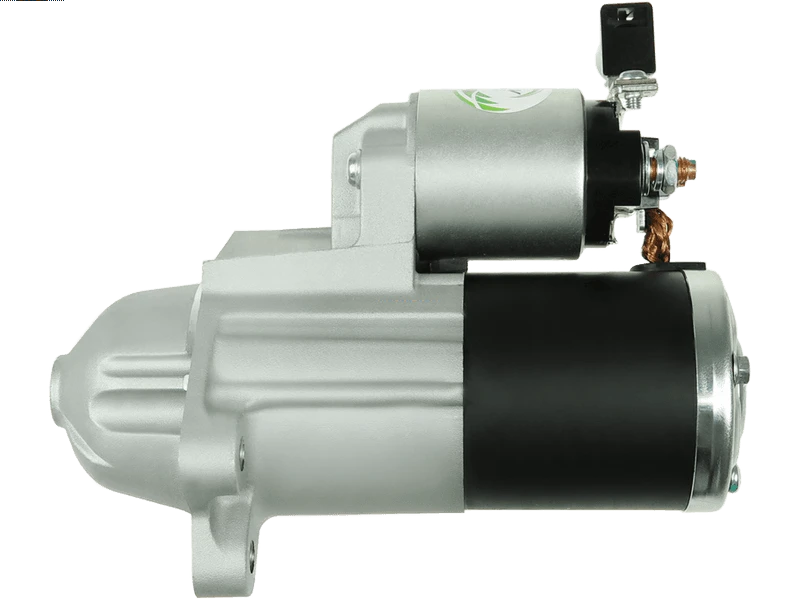

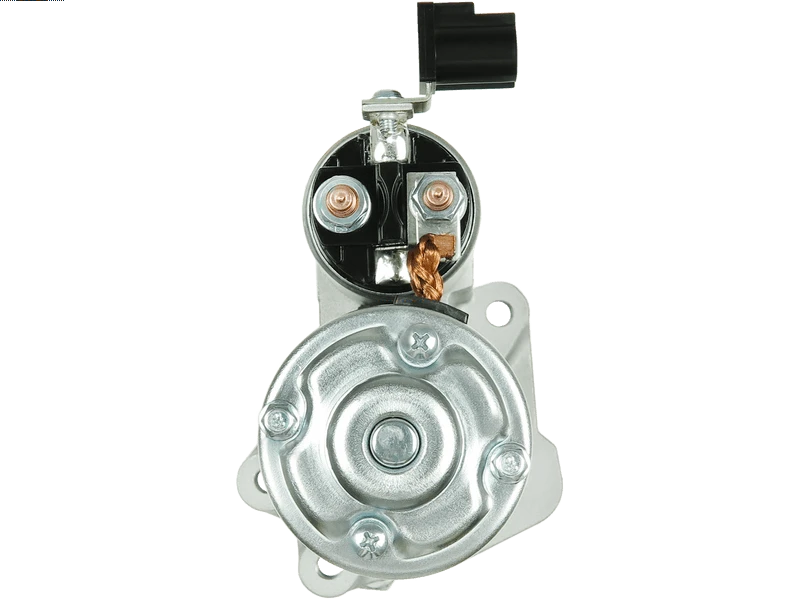

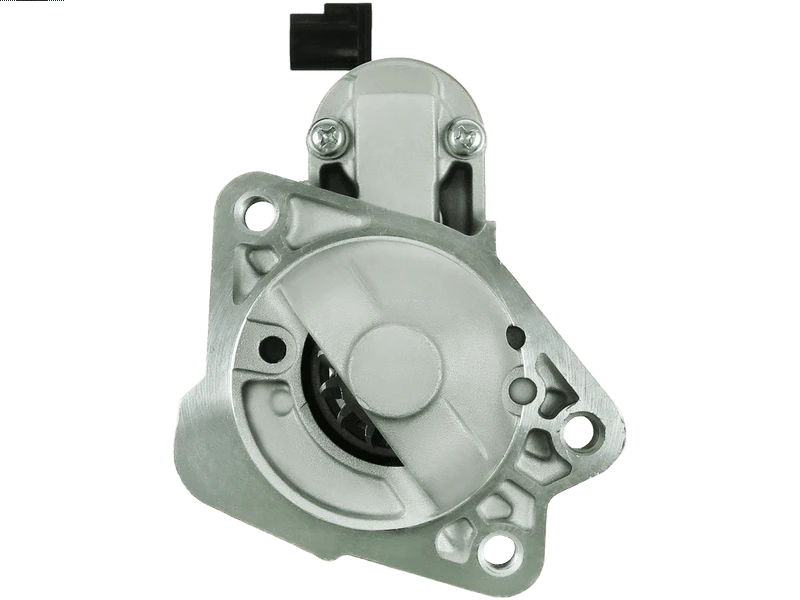

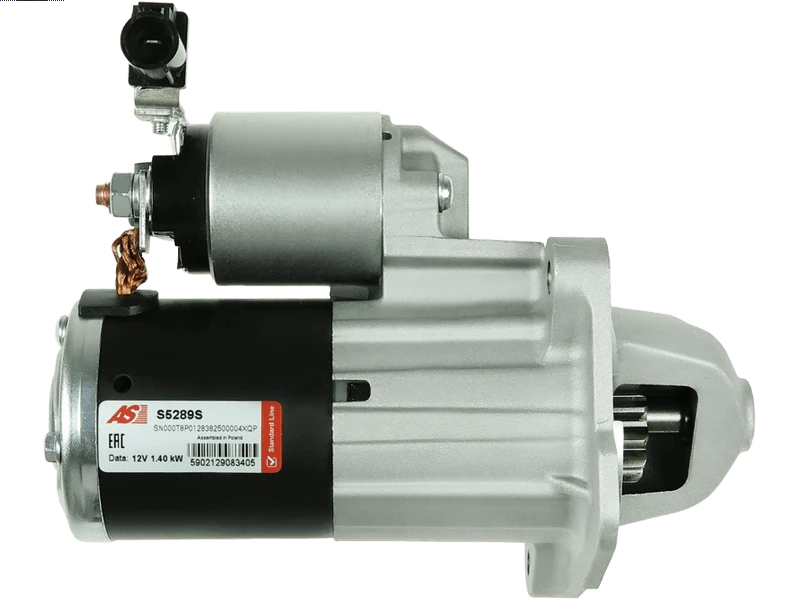

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 272.06 including GST
NZ$ 236.57 excluding GST
or four payments of $68.02
with
Learn More
each
S5289S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
116274 140.503.123 16168 19197N 25-5048 255497 91-27-3492 99037 LRS03884 M000T38271 M0T38271 S-80521 STM6771 UD13978S ZJ45-18-400 ZYF3-18-400Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 206 mm |
| Mount Hole Center - Center (O.1) | 37 mm |
| Mount Hole Center - Center (O.2) | 106 mm |
| Mount Hole Center - Center (O.3) | 100 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 15 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 2 1.5 | [ZY-DE] | 01.2011-12.2015 |
| MAZDA | 2 1.5 | [ZY-VE] | 01.2011-12.2015 |
| MAZDA | 2 1.5 MZR | [ZY05] | 01.2011-12.2015 |
| MAZDA | 2 1.5 MZR | [ZY66] | 01.2011-12.2015 |
Reference Information
91-27-3492 16168 140.503.123 99037 ZJ45-18-400 ZYF3-18-400 116274 19197N 25-5048 LRS03884 M0T38271 STM6771 255497 STR5454 UD13978S S-80521 J5213063 M000T38271 STRE426 STX201368 LRS3884Video/Publications
