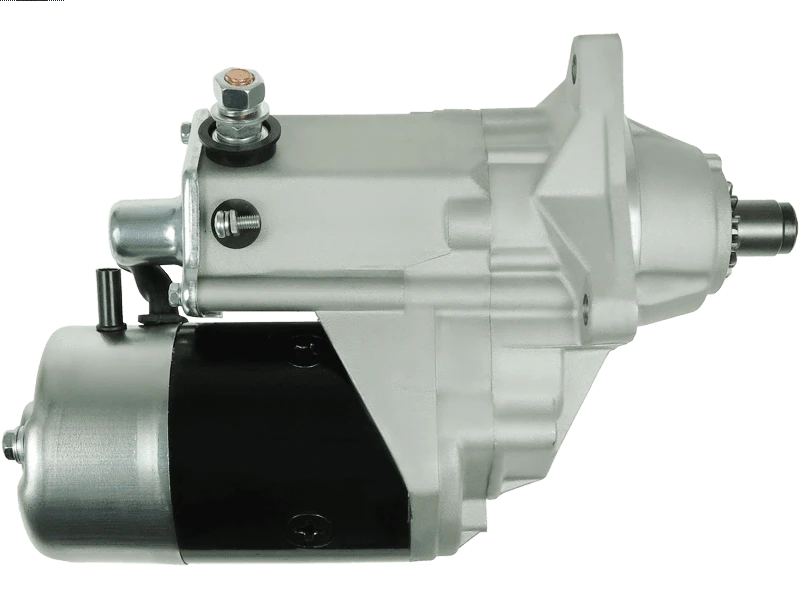

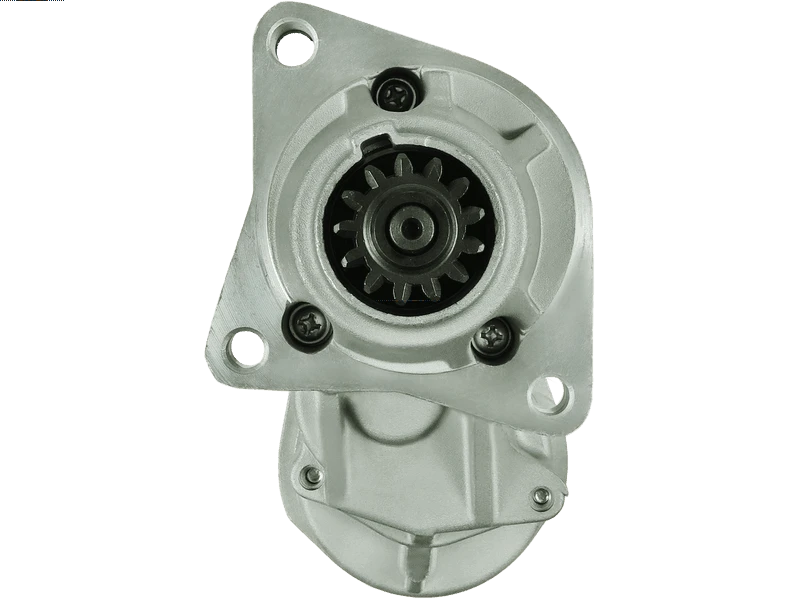

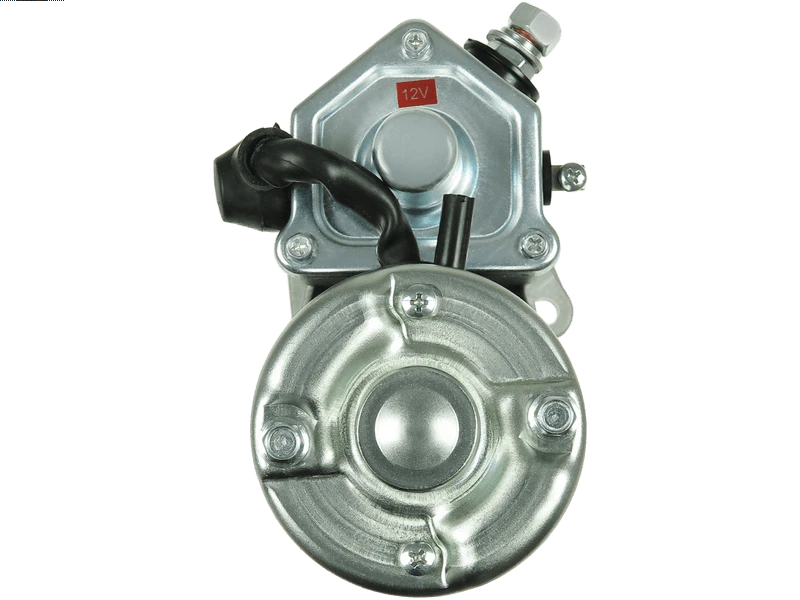

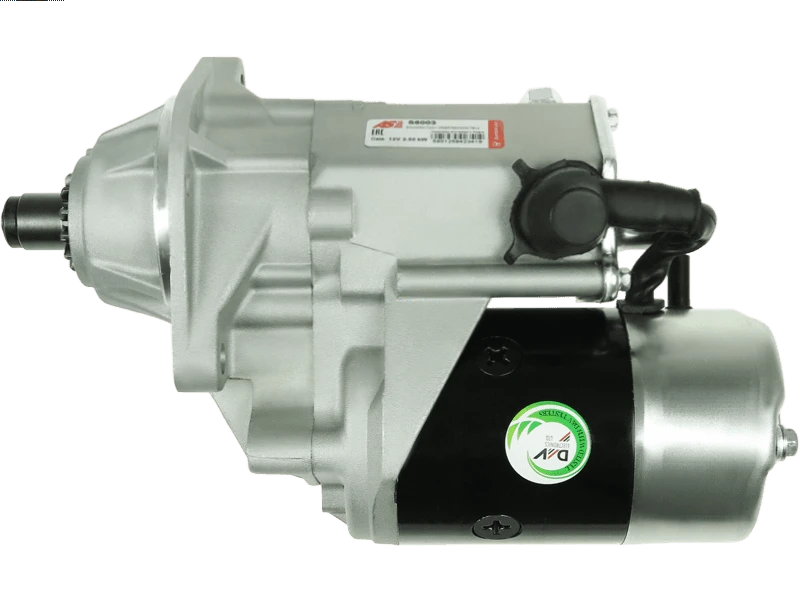

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 451.64 including GST
NZ$ 392.73 excluding GST
or four payments of $112.91
with
Learn More
each
S6003
No stock in NZ
No stock in NZ
Associated Numbers
028000-5880 028000-5881 028000-5882 028000-5883 028000-5884 110627 16658N 2-1726-ND 201012 20432051BN 25-1436 35259620 6040150 8499 88212417 8EA737266-001 AEY1256 CST40150 CST40150AS CST40150ES CST40150GS CST40150OS CST40150RS DRS3539 EAA-121754 JS1012 LRS01256 STN1012 STR70081Specifications
| Kilowatt | 2.5 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 450 C | 01.1989-01.1994 | |
| CASE | 480 CK | 01.1989-01.1994 | |
| CASE | 580 | 01.1982-01.1994 | |
| CASE | 580 C | [188D] | 01.1975-12.1980 |
| CASE | 580 C | [207D] | 01.1975-12.1980 |
| CASE | 580 D | [188D] | 01.1980-12.1983 |
| CASE | 580 D | [207D] | 01.1980-12.1983 |
Reference Information
028000-5883 028000-5882 028000-5884 8499 AEY1256 MAV421500 EAA-121754 110627 CGB-23539 335862 CST40150OS STN1012 STR6166 16658N CST40150ES CST40150GS 116930A1 88212417 CST40150AS 028000-5881 35259620 028000-5880 LRS1256 JS1012 2-1726-ND STR70081 25-1436 STRW060 CST40150RS R39341 LRS01256 CST40150 DRS3539 201012 20432051BN 6040150 8EA737266-001Video/Publications
