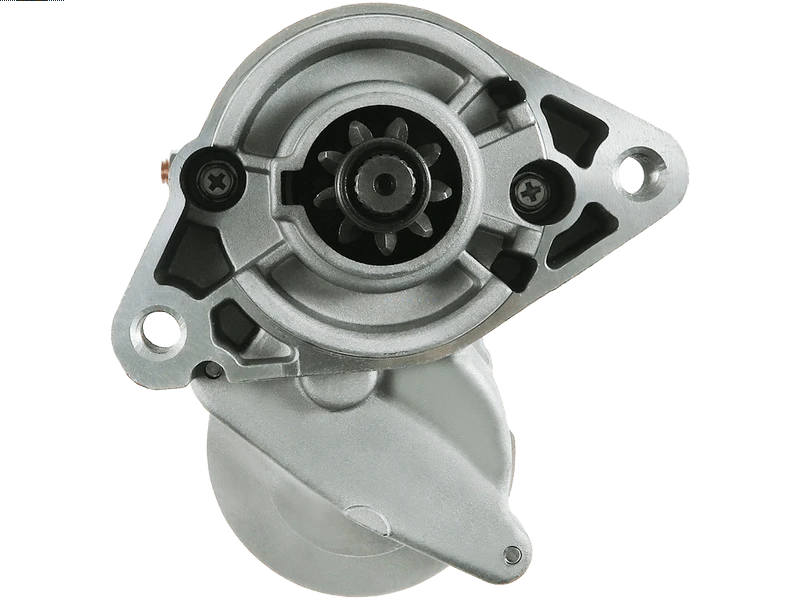

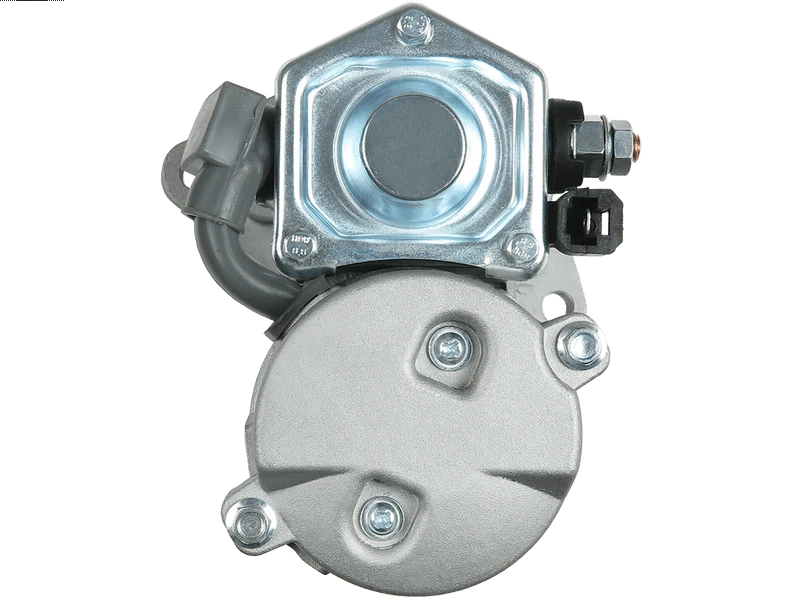

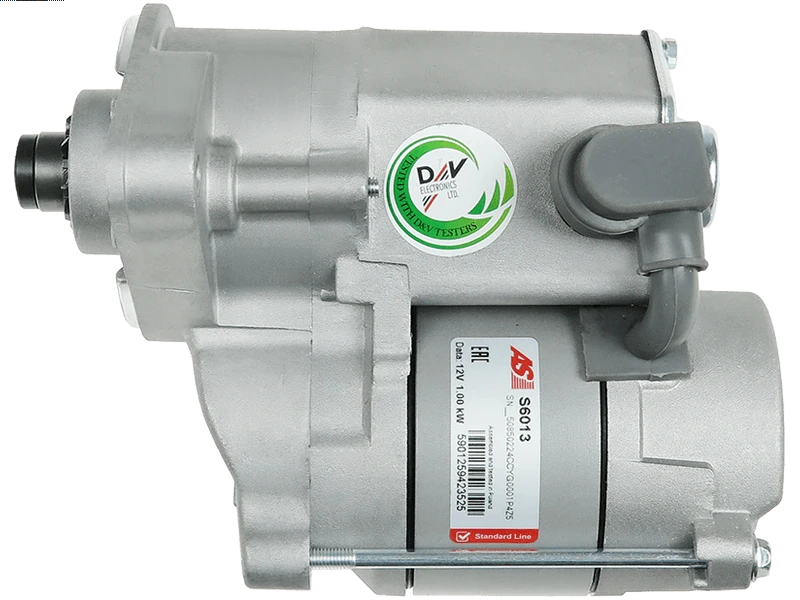

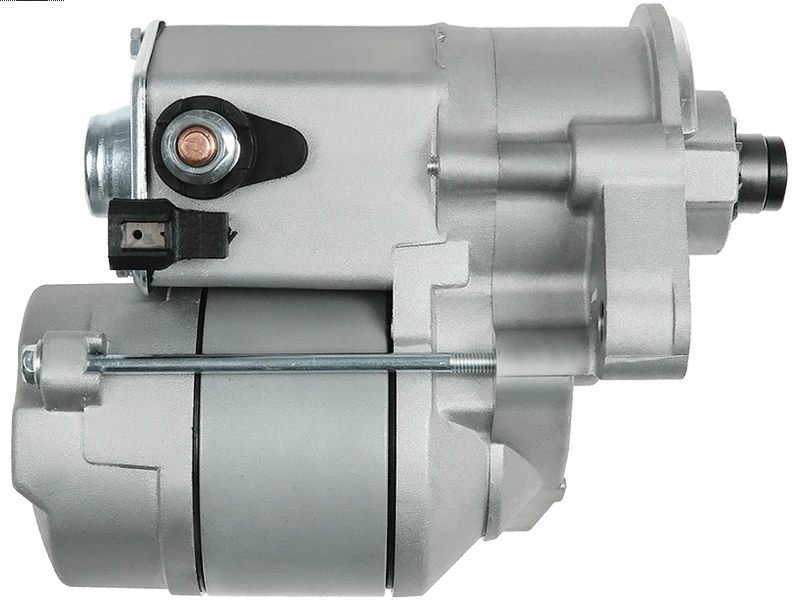

S6013 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1 kW
Length (L.1)	179 mm
Mount Hole Center - Center (O.1)	110 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	18 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DAIHATSU	Rocky 2.0	[3Y]	02.1987-04.1993
TOYOTA	Dyna 1.8 100	(YH81)[2Y]	08.1985-05.1995
TOYOTA	Dyna 2.0	[3Y]	09.1984-08.1987
TOYOTA	Hiace 1.8	(H5G)[2Y]	03.1983-08.1989
TOYOTA	Hiace 2.0	(H5G)[3Y]	06.1984-08.1989
TOYOTA	Hilux 1.8	[2Y]	06.1989-07.1994
TOYOTA	Hilux 2.0	[3Y]	01.1984-12.1986
TOYOTA	Hilux 2.2 4WD	[4Y]	01.1987-12.1989
TOYOTA	Liteace 1.8 Diesel	(M2_G)[1C]	11.1983-08.1985
TOYOTA	Model F 1.8	(YR20)[2Y]	11.1982-08.1984
TOYOTA	Model F 1.8	(YR20)[2Y-C]	11.1982-08.1984
TOYOTA	Model F 2.0	(YR20)[3Y]	08.1988-01.1990
TOYOTA	Model F 2.0	(YR21)[3Y]	08.1984-08.1988
TOYOTA	Model F 2.0	(YR21)[3Y-C]	08.1984-08.1988
VW	Taro 1.8	[2Y]	04.1989-12.1993
VW	Taro 2.2	[4Y]	04.1989-12.1993

Reference Information

2810072010R S6013 9701 128000-0220 28100-05801 28100-72050 28100-72130 STR70022 128000-7090 SS391 STX201355 28100-72010 028000-9260 028000-9261 MTT182 6044104 CST44104AS 20452401BN 8052235 2810072050 J2810072080 EL25148 2810072090 20385 LRS00609 28100-72010-000 28100-72080 190.504.092.000 2810072020 455612 JS385 3T182 28100-72080-000 PRSL799 LRS609 190.504.092.058 190.504.092.055 28100-72030 25-1045 1516967R 66925148 28100-04010 STR6047 VS233 DRS3023 22.5385 128000-3340 J2810072010 128000-1520 110397 MAV441000 190.504.092.266 28100-72060 AES6109 0986014511 8EA726473-001 335235 25-2000 28100-72100 11452 003-T182 MAV461040 2810004010 STRL799
