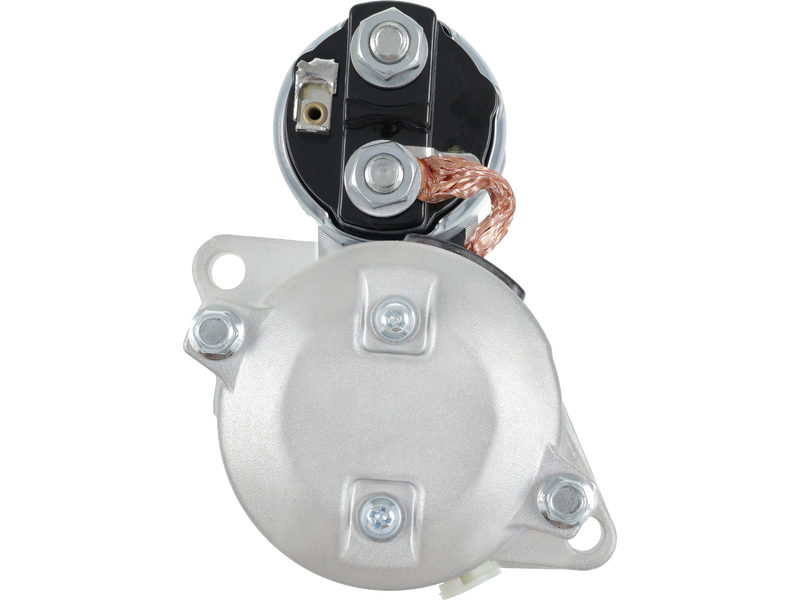

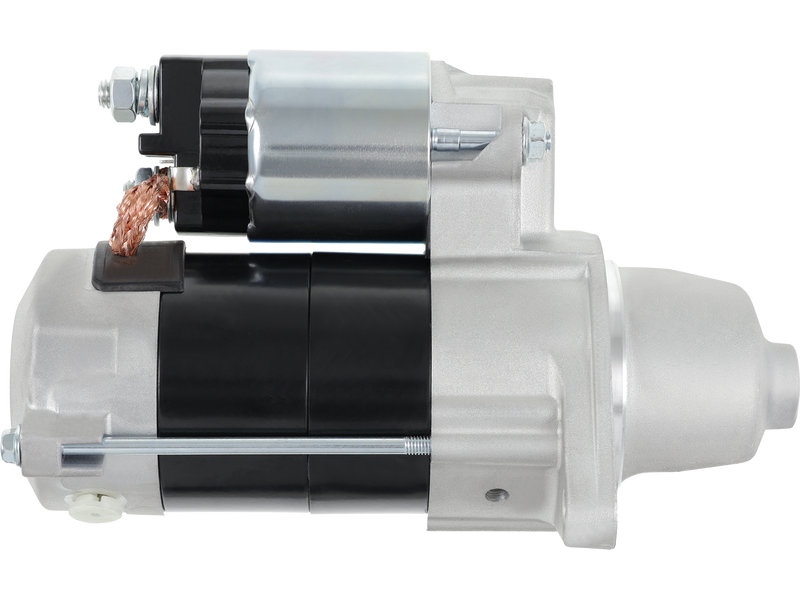

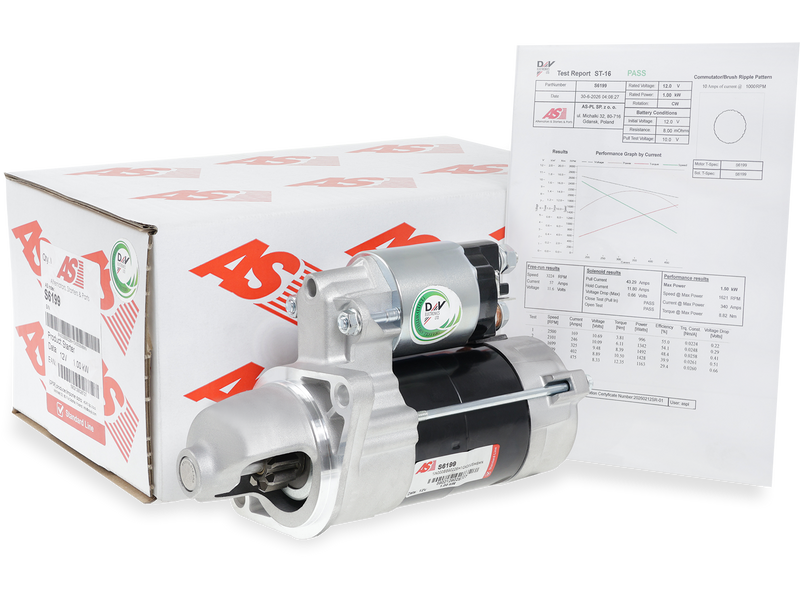

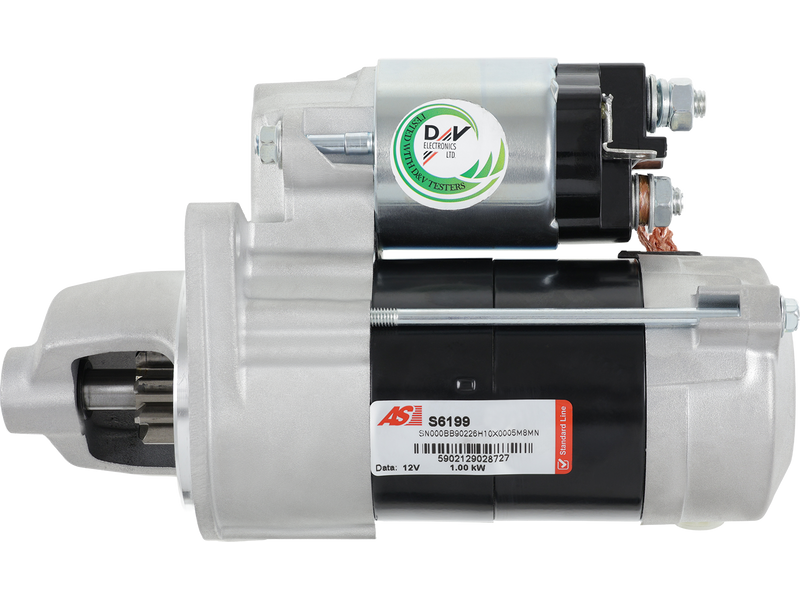

S6199 - Brand new AS-PL Starter motor

Associated Numbers

0986023460 113211 12327 16853-63010 16853-63011 16853-63012 18417N 18417R 190-10113 1G023-63010 1G023-63011 20432661BN 20432661OE 20513059 20730 228000-5400 228000-5401 228000-5910 228000-5911 228000-7090 228000-7091 228000-7092 228000-7480 228000-7481 243-12141 25-3471 255551 255551M 6040166 67980-31151 67980-31152 690.513.092 6A320-59212 8212367 8224 91-29-5554 91-29-5554N 9966 AEY2300 CST40166 CST40166AS CST40166ES CST40166GS CST40166OS CST40166RS DRS0148 EAA-111078 EAA-152760 K3511-81410 K3511-81411 K3511-81412 LRS02300 M000T90881 M000T90882 M0T90881 M0T90882 STR70293 UD12044S

snj244 70-6103gr dxs532

ARROWHEAD ND9722809-540, ND9722809-591, ND9722809-709, ND9722809-748, SND0280, SND0481
CASEIH CLC102648501, CLC103886501
DENSO 228000-5400, 228000-5910, 228000-5911, 228000-7090, 228000-7091, 228000-7480, 228000-7481, 9722809-540, 9722809-591, 9722809-709, 9722809-748
GENIE 23456
J&N ELECTRICAL PRODUCTS 410-52106, 410-52106R, 410-52238, 410-52238R, 410-52396
JANNCO 410-52106R, 410-52238R
KUBOTA 1G023-63010, 1G023-63011, 1G023-63012, 67980-31150, 67980-31151, 67980-31152, 6A320-59210, 6A320-59212, K3511-81410, K3511-81411
LESTER 18414, 18417, 19791
LUCAS ELECTRIC LRS02300
SOCIETA GENERALE RICAMBI 17.81122
0986UR1547 Bosch ruil
105322 FARC
11040508 EuroTec
113211 Cargo
114194 Cargo
12327 EAI
12618417 Alltech
16791 AIM
1685363014 Kubota
18417 Lester
1857104 Cummins
1906016 PIC
1906126 PIC
1G02363010 Kubota
1G02363011 Kubota
2280005400 Denso show
2280005401 Denso
2280005910 Denso show
2280005911 Denso show
2280007090 Denso show
2280007091 Denso
2280007480 Denso show
2280007481 Denso
231233 Cargo
253471 Elstock
31906126A Boston Auto
41052106 JN
4253SP Spidan
42595 Whatcom
573225 Minnpar
6798031150 Kubota
6798031151 Kubota
6798031152 Kubota
690513092 PSH
6A32059212 Kubota
6A32059213 Kubota
718417 NAPA
9018417A Cosmos
910148 EDR
91295554 Wilson
9722809591 Denso
990008 PIC
A76180 ATL
AEY2300 Auto Electro
AKS972 ATK
AKS997 ATK
CM18417N Ace
DEM608941 ADI
DEM608942 ADI
DRS0148 Remy
DSN2075 Denso
DSN2076 Denso
EF18410 EDR
IND2865910 Techno CVC
K351181410 Kubota
K351181411 Kubota
K351181412 Kubota
LRS02300 Lucas
M000T90883 Mitsubishi
M0T90883 Mitsubishi
METS18417 MET
NIE0131151 ADI
NIE015400 ADI
RF929161145 Road Force
RNL2280005910 RNL
S18417 Spider
SN00319R AIM
SND0338 Arrowhead
SR5056X Bosch (USA)
STR6064sa Electrolog
STR6192SA Electrolog
X716791 MPA

Specifications

Kilowatt	1 kW
Length (L.1)	201 mm
Mount Hole Center - Center (O.1)	110 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	18 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	66 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AIXAM	A721 0.4 D	[Z402]	01.2005-
AIXAM	City Sport 0.4 D	[Z402]	01.2008-
AIXAM	Coupe S 0.4 D	[Z402]	01.2012-
AIXAM	Crossline 0.4 D	[Z402]	01.2006-
AIXAM	Crossover 0.4 D	[Z402]	01.2012-
AIXAM	GTO 0.4 D	[Z402]	01.2012-
AIXAM	Mega 600 D	[Z602-E3B]	01.2005-
HUSQVARNA	HUV4421DXP	[D722]	01.2006-
KUBOTA	D782	[21HK]
KUBOTA	Engine	[DM1102]	01.1981-
KUBOTA	Engine	[Z402]
KUBOTA	F2880	[D1305]	01.2008-
KUBOTA	G21	[D782]	01.2008-
KUBOTA	G2160	[D782]	01.2001-12.2008
KUBOTA	G2160-R48S	[D782]	01.2001-12.2008
KUBOTA	GR2100	[D782]	01.2005-12.2007
KUBOTA	GZD21	[D782]	01.2003-
KUBOTA	TG1860	[D722E-GX]	01.1997-
KUBOTA	TG1860	[D722-GX]	01.1998-12.2003
KUBOTA	U10-3	[D722]	01.2003-12.2009
KUBOTA	ZD18	[D722]	01.2001-12.2005
KUBOTA	ZD18F	[D722]	01.2001-12.2005
KUBOTA	ZD21	[D782]	01.2001-12.2005
KUBOTA	ZD21F	[D782]	01.2001-12.2005
TUCHEL	Trac Trio	[Z602-E3B]	01.2006-

Reference Information

CST40166AS S12MH0157A2 91-29-5554 AEY2300 M000T90881 M000T90882 M000T90883 1G023-63010 1G023-63011 1G023-63012 228000-5400 228000-5401 CST40166 114194 STR6064 18417N CST40166RS 18417R ANM12368X DSN2075 5035728 S12DE0122 6040166.0 STN9050 6040166.1 20432661BN 16853-63011 16853-63010 8224 8EA730270-001 RNL228000-5910 255551 16853-63014 16853-63013 16853-63012 67980-31151 67980-31152 MAV421430 LRS02300 MAV421440 690.513.092.786 CST40166OS 113211 690.513.092.261 12327 20432661OE CST40166GS 25-3471 8212367 255551M 246-11105 690.513.092.051 S6199 STRS151 S-8941 228000-7481 228000-7480 JS730 K3511-81412 6A320-59212 K3511-81410 K3511-81411 5040555 690.513.092.058 M0T90884 M0T90882 M0T90883 690.513.092 M0T90881 228000-5910 228000-5911 S12DE0122A2 STM0050 8EA012527-111 0986023460 MAV421660 91-29-5554N UD12044S 190-10113 6A32059213 CGB-33481 STN0050 DRS0148 9966 STR70293 228000-7092 CST40166ES 228000-7091 228000-7090 LRS2300

Video/Publications

S6199
