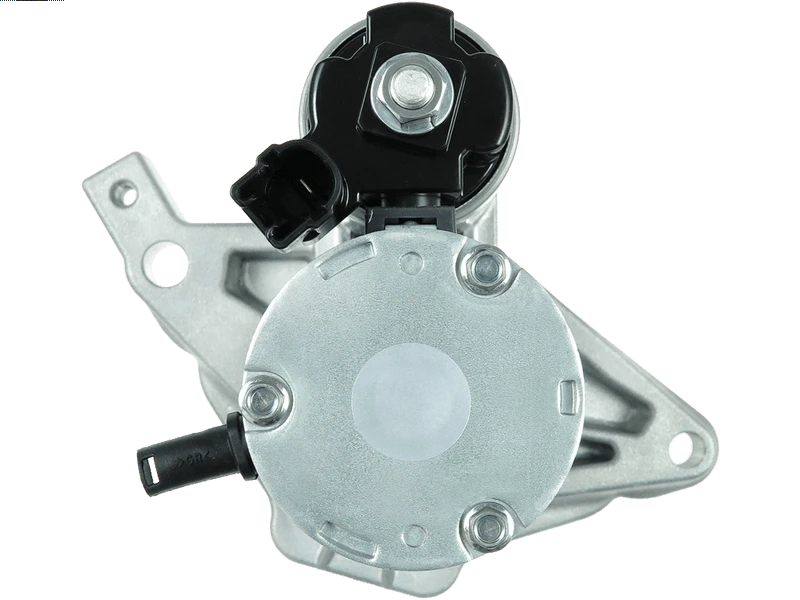

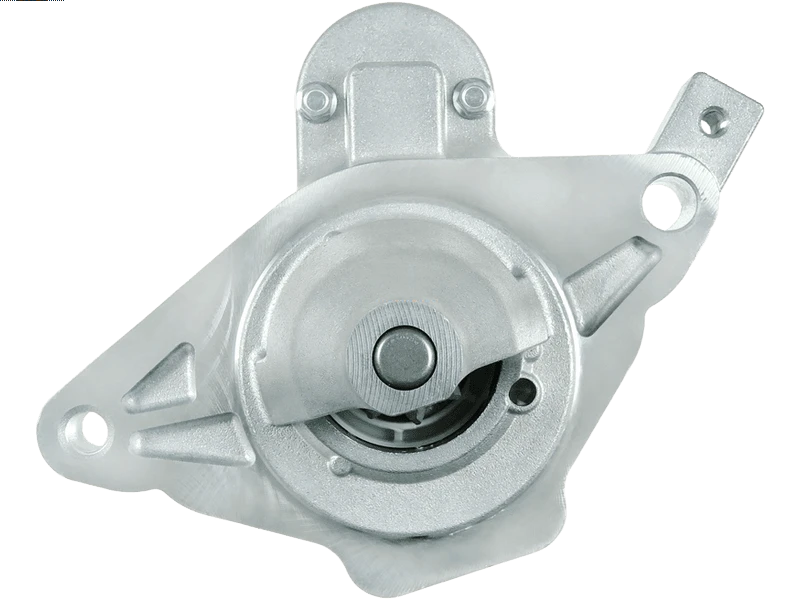

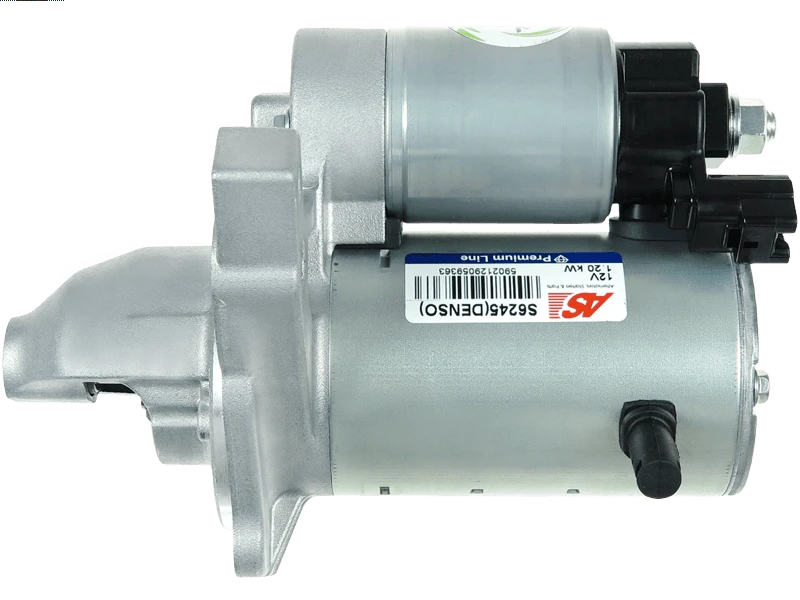

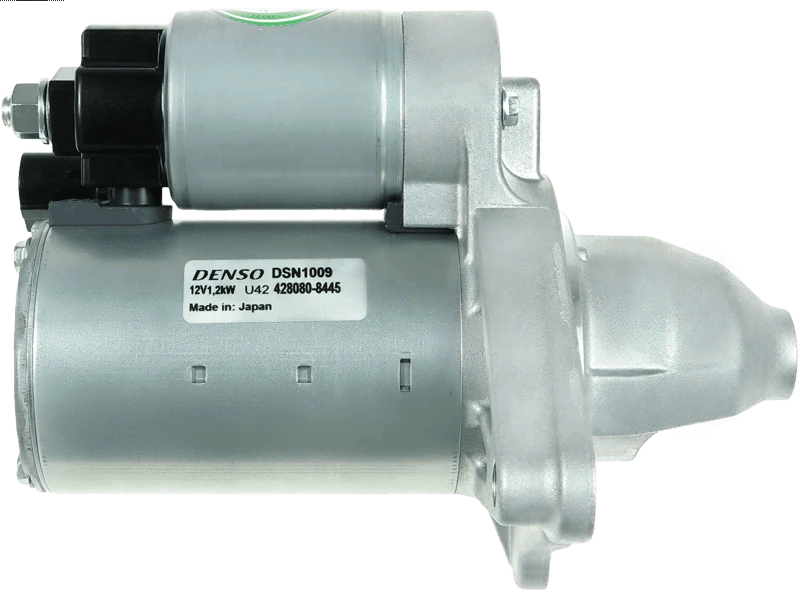

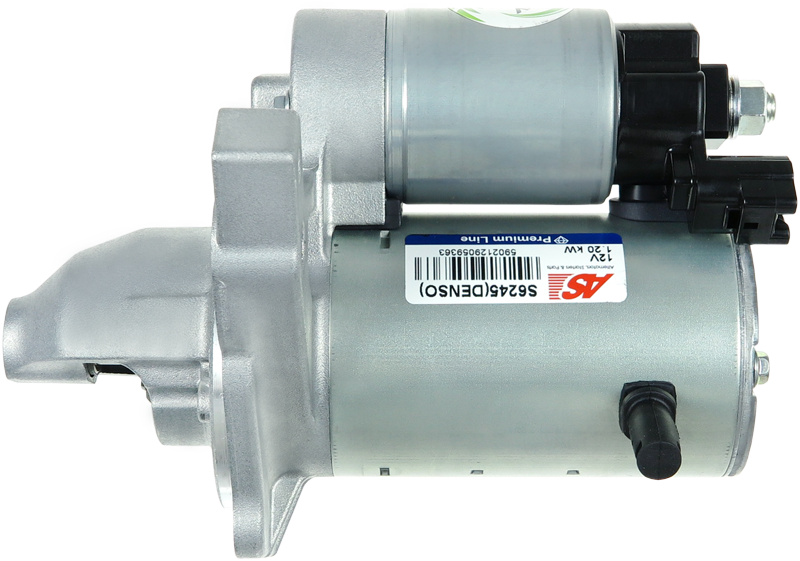

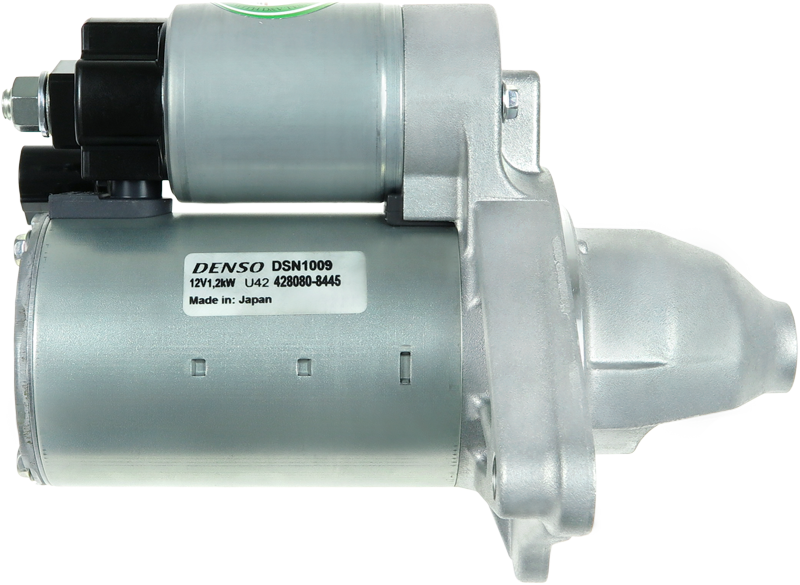

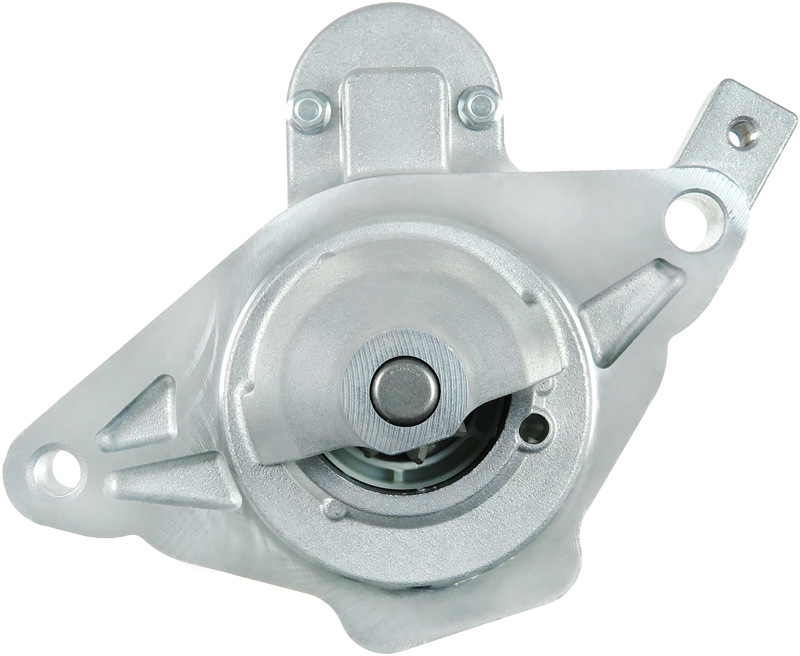

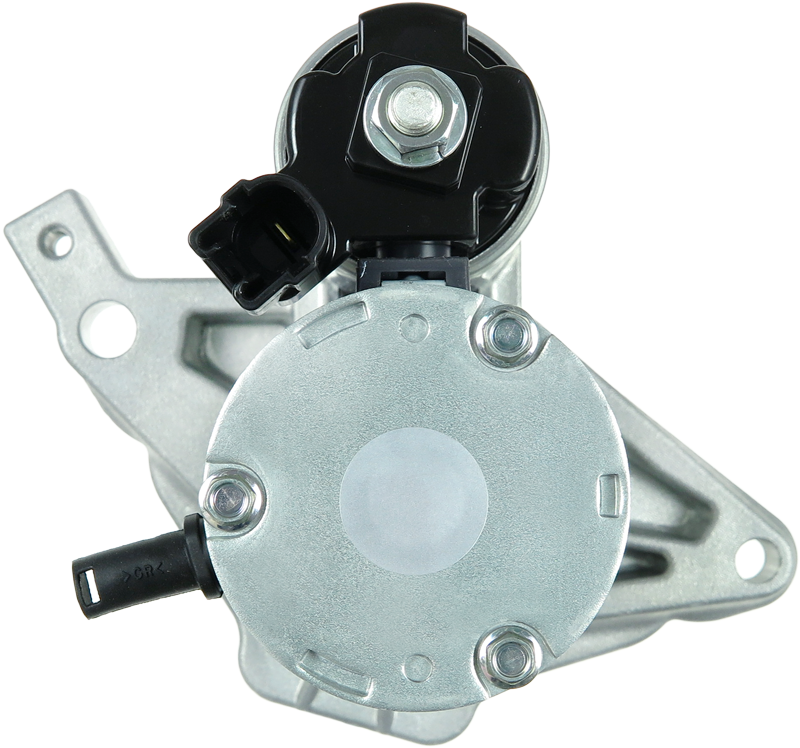

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 644.77 including GST
NZ$ 560.67 excluding GST
or four payments of $161.19
with
Learn More
each
S6042(DENSO)
S6245(DENSO)
1
Associated Numbers
190.925.092 20432992 25-5091 255260D 28100-0Y090 28100-0Y091 28100-0Y100 28100-0Y101 28100-47170 28100-47171 28100-47180 30569-OS 428000-7900 428000-7901 428000-7902 428000-7903 428000-7904 428000-7905 428000-7910 428000-7911 428000-7912 428000-7913 428000-7914 428000-7915 428000-8430 428000-8431 428000-8432 428000-8433 428000-8434 428000-8440 428000-8441 428000-8442 428000-8443 428000-8444 428080-8440 428080-8445 6040299 9655 9664 AEX1156 CST40299 CST40299AS CST40299ES CST40299GS CST40299OS CST40299RS DENDSN1009 DRS1181 DS2291 DSN1009 LRS03928 STN7440 STN8440 UD808765(DENSO)S 116003 CAS Delco Denso KRAUF STN7440BA STN7440ZD STN8440BA STN8440YJ STN8440ZD Toyota 281000Y090 281000Y091 281000Y100 281000Y101 2810047170 2810047171 2810047180 WPS 30569N 11040889 EuroTec Cargo 190925092 PSH 255098 Elstock 4280007900 4280007901 4280007902 4280007903 4280007904 4280007905 4280007910 4280007911 4280007912 4280007913 4280007914 4280007915 4280008430 4280008431 4280008432 4280008433 4280008434 4280008435 4280008440 4280008441 4280008442 4280008443 4280008444 4280008445 Lucas LRS03936 STR6581sa ElectrologSpecifications
| Kilowatt | 1.2 kW |
| Length (L.1) | 184 mm |
| Mount Hole Center - Center (O.1) | 138.5 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 24.5 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.3 | [1NR-FE] | 07.2013- |
| TOYOTA | Auris 1.3 | [1NR-FE] | 10.2012- |
| TOYOTA | Corolla 1.3 | [1NR-FE] | 06.2013- |
| TOYOTA | Verso S 1.3 | [1NR-FE] | 11.2010-10.2016 |
| TOYOTA | Yaris 1.3 | [1NR-FE] | 09.2011- |
| TOYOTA | Yaris 1.3 | [1NR-FKE] | 09.2011- |
| TOYOTA | Yaris 1.3 VVTi | [1NR-FE] | 10.2012- |
| TOYOTA | Yaris 1.5 | [2NR-FKE] | 03.2017- |
Reference Information
9664 CGB-55098 CST40299OS STX210258R CST40299GS STR6581 20432992 28100-0Y100 28100-0Y101 LRS03928 428080-8440 DRS1181 STX210257R 428080-8445 DSN1009 20432992OE CST40299 190.925.092 6040299.1 S12DE0594 S12DE0594A2 30569-OS 255260D DENDSN1009 25-5091 STN7440 LRS3928 UD808765(DENSO)S 428000-8440 28100-0Y090 28100-0Y091 28100-0Y290 428000-8442 DS2291 428000-8441 428000-8444 AEX1156 428000-8443 428000-7914 428000-7915 428000-7910 428000-7911 28100-47180 428000-7912 428000-7913 CST40299RS STN8440 9655 STX210257 STX210258 428000-8434 CST40299ES 428000-8431 428000-8430 428000-8433 CST40299AS 428000-8432 428000-7903 428000-7904 428000-7905 28100-47170 428000-7900 428000-7901 428000-7902 28100-47171Video/Publications
