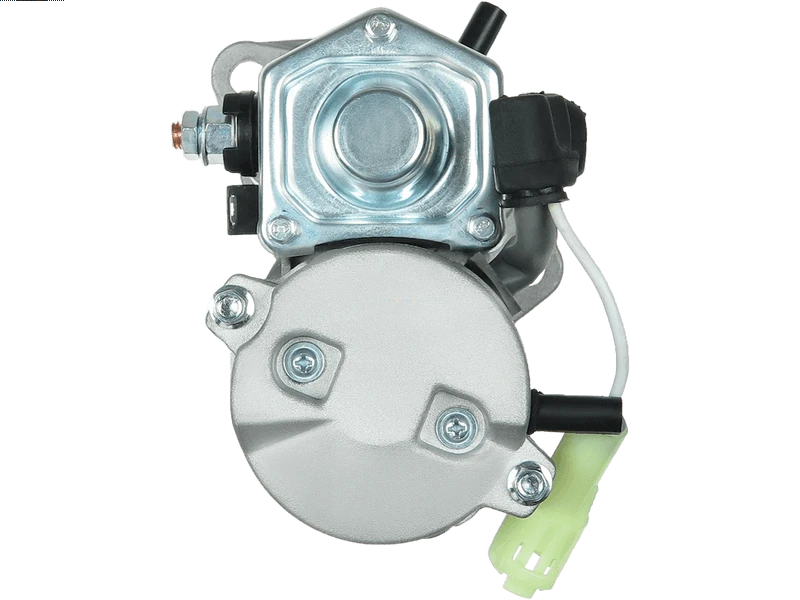

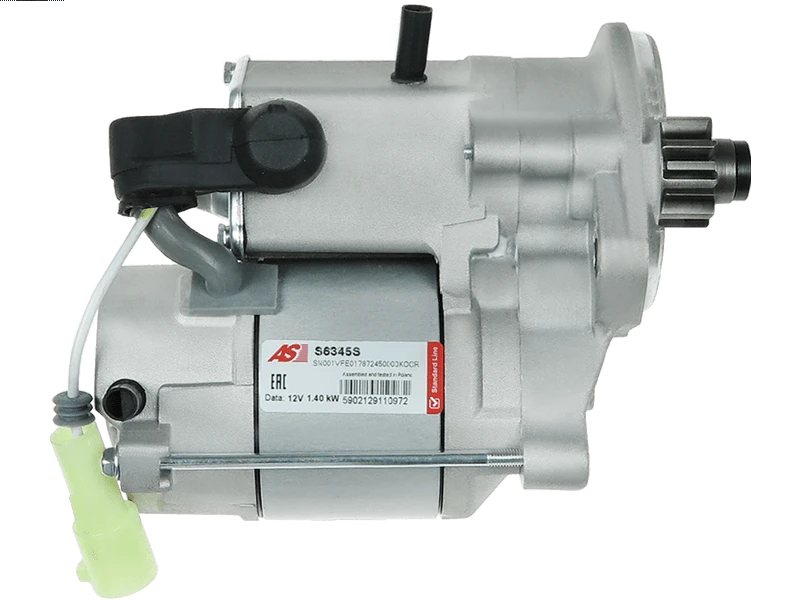

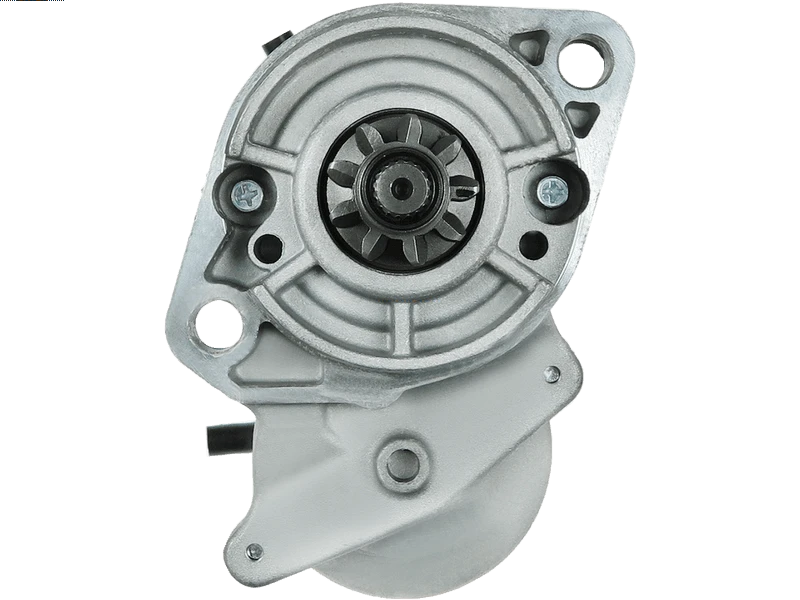

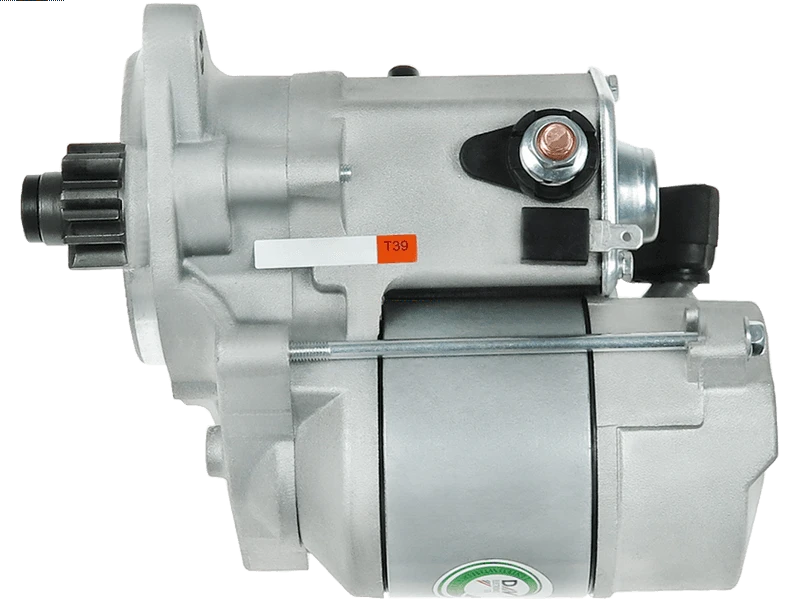

S6345S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	189 mm
Mount Hole Center - Center (O.1)	106 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	25 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CARRIER	Engine	[CT4-114-TV(V1903)]	01.1992-12.1998
CARRIER	Engine	[CT4-134DI(V2203)]	01.1992-12.1998
CARRIER	Engine	[CT4-134-TV(V2203)]	01.1992-12.1998
CARRIER	Extra	[CT4-114]
CARRIER	Extra	[CT4-134(V2203)]
CARRIER	Genesis		01.1995-12.2006
CARRIER	Genesis TM1000	[CT4-134-DI(V2203)]	01.2000-12.2007
CARRIER	Genesis TM900	[CT4-134-DI(V2203)]
CARRIER	Genesis TR100	[CT4-134-DI[V2203)]
CARRIER	Genset	[CT4-134-DI(V22003)]	01.2000-12.2007
CARRIER	Phoenix R-22		01.1995-12.2006
CARRIER	Phoenix Ultra		01.1994-12.2006
CARRIER	Phoenix Xtra		01.1994-12.2006
CARRIER	RG15		01.1995-12.2006
CARRIER	UG15	[CT4-134-DI(V2203)]	01.1995-12.2006
CARRIER	Ultima 53	[CT4-134-DI(V2203)]	01.1996-12.2006
CARRIER TRANSICOLD	Engine	[CT4-114-TV(V1903)]	01.1992-12.1998
CARRIER TRANSICOLD	Engine	[CT4-134DI(V2203)]	01.1992-12.1998
CARRIER TRANSICOLD	Engine	[CT4-134-TV(V2203)]	01.1992-12.1998
CARRIER TRANSICOLD	Extra	[CT4-114]
CARRIER TRANSICOLD	Extra	[CT4-134(V2203)]
CARRIER TRANSICOLD	Genesis		01.1995-12.2006
CARRIER TRANSICOLD	Genesis TM1000	[CT4-134-DI(V2203)]	01.2000-12.2007
CARRIER TRANSICOLD	Genesis TM900	[CT4-134-DI(V2203)]
CARRIER TRANSICOLD	Genesis TR100	[CT4-134-DI[V2203)]
CARRIER TRANSICOLD	Genset	[CT4-134-DI(V22003)]	01.2000-12.2007
CARRIER TRANSICOLD	Phoenix R-22		01.1995-12.2006
CARRIER TRANSICOLD	Phoenix Ultra		01.1994-12.2006
CARRIER TRANSICOLD	Phoenix Xtra		01.1994-12.2006
CARRIER TRANSICOLD	RG15		01.1995-12.2006
CARRIER TRANSICOLD	UG15	[CT4-134-DI(V2203)]	01.1995-12.2006
CARRIER TRANSICOLD	Ultima 53	[CT4-134-DI(V2203)]	01.1996-12.2006
KUBOTA	Engine	[V2202]	01.1991-12.2005
KUBOTA	Engine	[V2203-B]	01.1991-12.2005

Reference Information

111299 UD16993S 16661-63015 16661-63013 25-39135-00RM 16661-63012 10465531 16661-63011 MAV421790 S6345S 246-14120 DSN2151 690.562.092.050 6653920 25-39135-00 93588 228000-0663 S-8675 STR6718 CST40179AS 228000-0664 LRS1332 91-29-5405 9722809066 190-20101 228000-1051 228000-1052 18277N 228000-0660 8EA015642-241 18277R 228000-0661 228000-0662 14297-63011 LRS01332 6040179 1920263011 228000-1050 25-2126 1982163011 3001017 25-39135 690.562.092.261 20432971BN 6662323

Video/Publications

S6345S
