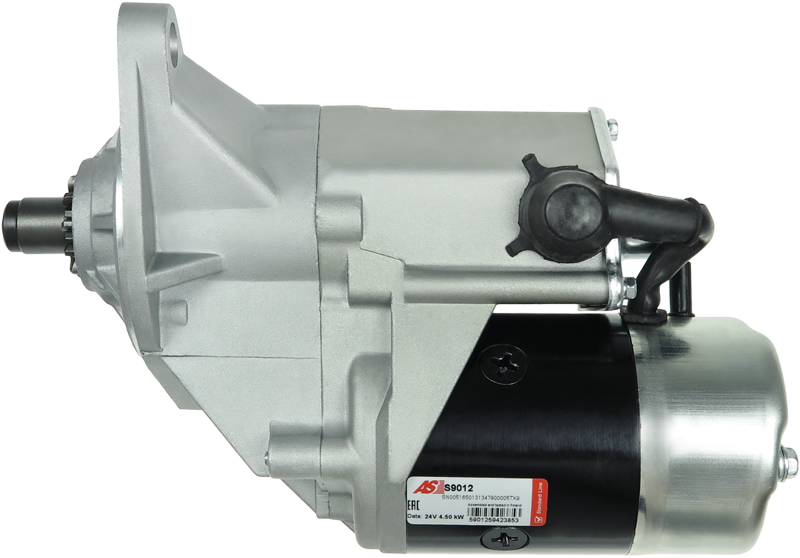

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 422.92 including GST
NZ$ 367.76 excluding GST
or four payments of $105.73
with
Learn More
each
9186 - With Nose cone
S9012
1
Associated Numbers
028000-9760 0350-402-0111 0350-402-0112 0350-402-0113 0350-402-0114 0350-402-0115 0350-402-0116 0350-402-0210 0350-402-0211 0350-402-0327 0350-552-0320 0350-552-0321 0350-552-0322 0350-552-0323 0350-552-0324 0350-552-0325 0350-552-0326 0350-552-0328 11.3130 113130 19955N 20432826BN 255460 28100-1542 28100-1542B 28100-1543 28100-1900 6040628 CST40628AS STR70234 16-105 16-034 dxs4027 0280009760 Denso 0280009763 03504000112 Sawafuji 03504020110 03504020113 03504020116 03504020131 03504020210 03504020211 03504020216 03504020217 03504020220 03504020222 03504020225 03504020250 03504020251 03504020255 03505020020 03505020051 03505020052 03505020053 03505020054 03505020057 03505520210 Cargo 261507112 PSH 281001542 Toyota Hino 281001542B 281001630A 281001691 281001711 281001810A 281001891 281001891B 281001900 281001900A 281001900B 281002010A 281002090B 281002090C 281002090D 281002091B 91306003 Wilson STR6183sa Electrolog STR9803sa S9012 - Without nose coneSpecifications
| Kilowatt | 4.5 kW |
| Length (L.1) | 296 mm |
| Mount Hole Center - Center (O.1) | 151 mm |
| Mount Hole Diameter (C.1) | 15 mm |
| Mount Hole Diameter (C.2) | M14x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 31 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | Various Models |
Reference Information
14725080 0350-402-0111 0350-402-0210 28100-1900 CST40628AS 901695800 28100-1542 255460 0350-402-0116 28100-1543 0350-402-0114 0350-402-0115 0350-402-0112 0350-402-0211 0350-402-0113 20432826BN 028000-9760 MAV426280 281001881 11.313 281001853 19955N S9012 0350-402-0327 0350-552-0323 0350-552-0324 6040628 0350-552-0321 0350-552-0322 0350-552-0320 14423450 STR70234 28100-1542B 0350-552-0328 0350-552-0325 0350-552-0326 281001850 CGB-23760 113130Video/Publications
