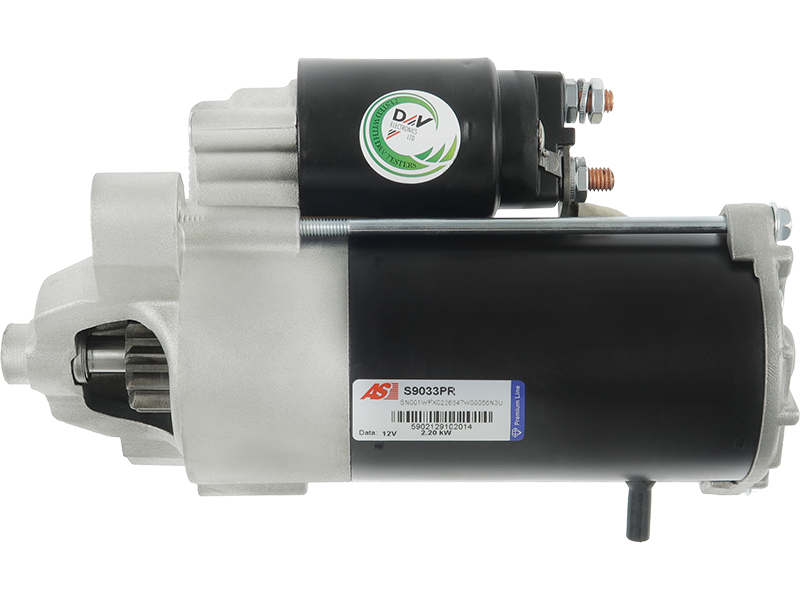

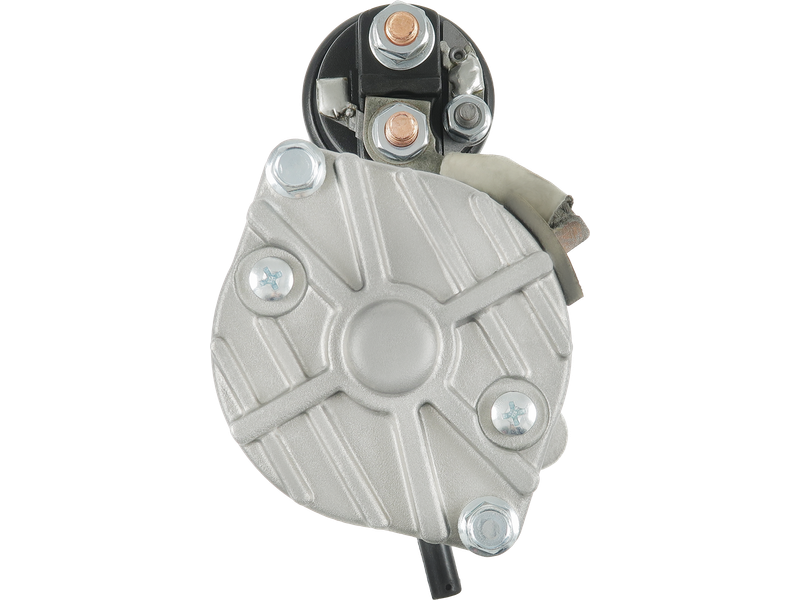

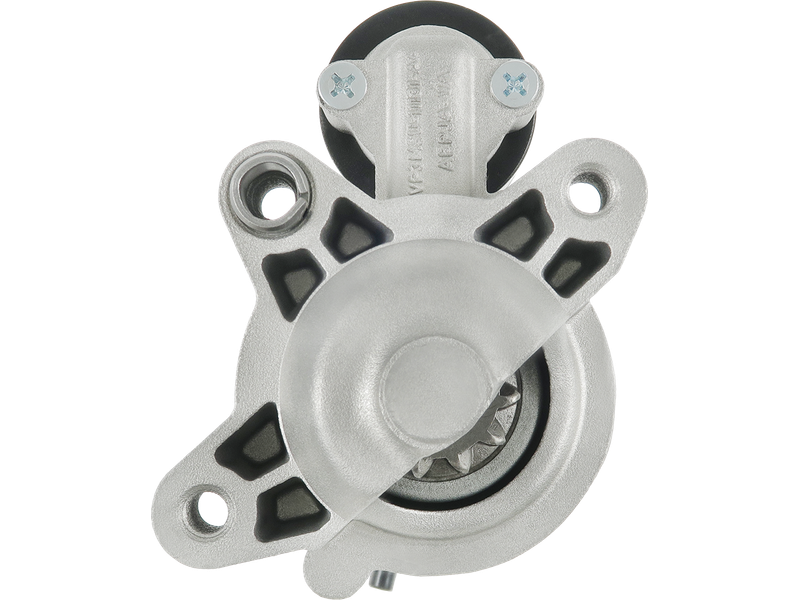

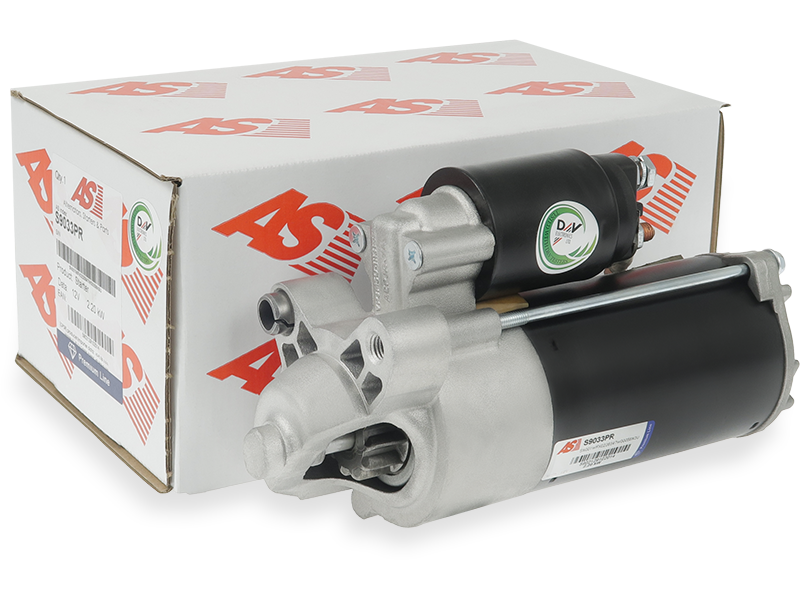

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 260.06 including GST
NZ$ 226.14 excluding GST
or four payments of $65.02
with
Learn More
each
S9033PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063280036010 063721377010 0986023380 101377 101377V 113911 116157 12007 1231963 1233235 1351989 1376305 1385784 1465115 1469721 1756795 20-100-01036 20-100-01052 20450211 220375 25-3345 25-3434 30664494 30667058 30667494 30667874 30795407 3124 32505N 36000221 3M5T-11000-DB 3M5T-11000-DC 42001036 438485 458637 4M5T-11000-FA 4M5T-11000-FB 4M5T-11000-FC 4M5T-11000-FD 590.547.113 6.0142.9 6014112 63280036 6G9N-11000-FA 8603409 8697576 88212622 8EA011611-001 8EA012140-391 8EA738258-281 944280802380 AEU1377 AEY2171 CS1377 CST14112 CST14112AS CST14112ES CST14112GS CST14112OS CST14112RS DRS3969 DRS3969N DS5079 DS5079N EAA-121096 GS001036-A LRS02171 LRS02263 MQS1377 MRS80238 MSN8036 NEU1377 RAS34070 STF1377 STM513 STR61815Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 66 mm |
| Mount Hole Center - Center (O.3) | 66 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | -5.5 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 63 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | C-Max 2.0 TDCi | [G6DA] | 01.2007-12.2010 |
| FORD | C-Max 2.0 TDCi | [G6DB] | 01.2007-12.2010 |
| FORD | C-Max 2.0 TDCi | [G6DD] | 01.2007-12.2010 |
| FORD | C-Max 2.0 TDCi | [G6DG] | 01.2007-12.2010 |
| FORD | Focus 2.0 TDCi | [G6DA] | 01.2004-12.2012 |
| FORD | Focus 2.0 TDCi | [G6DA] | 01.2006-12.2010 |
| FORD | Focus 2.0 TDCi | [G6DB] | 01.2004-12.2012 |
| FORD | Focus 2.0 TDCi | [G6DB] | 01.2006-12.2010 |
| FORD | Focus 2.0 TDCi | [G6DD] | 01.2004-12.2012 |
| FORD | Focus 2.0 TDCi | [G6DD] | 01.2006-12.2010 |
| FORD | Focus 2.0 TDCi | [G6DG] | 01.2004-12.2012 |
| FORD | Focus 2.0 TDCi | [G6DG] | 01.2006-12.2010 |
| FORD | Focus 2.0 TDCi | [IXDA] | 01.2008-12.2011 |
| FORD | Focus C-Max 2.0 TDCi | [G6DA] | 01.2003-12.2007 |
| FORD | Focus C-Max 2.0 TDCi | [G6DB] | 01.2003-12.2007 |
| FORD | Focus C-Max 2.0 TDCi | [G6DD] | 01.2003-12.2007 |
| FORD | Focus C-Max 2.0 TDCi | [G6DG] | 01.2003-12.2007 |
| FORD | Galaxy 2.0 TDCi | [AZWA] | 01.2006-12.2015 |
| FORD | Galaxy 2.0 TDCi | [QXWA] | 01.2006-12.2015 |
| FORD | Galaxy 2.0 TDCi | [QXWB] | 01.2006-12.2015 |
| FORD | Galaxy 2.0 TDCi | [QXWC] | 01.2006-12.2015 |
| FORD | Galaxy 2.0 TDCi | [UFWA] | 01.2006-12.2015 |
| FORD | Kuga 2.0 TDCi | [G6DG] | 01.2008-12.2012 |
| FORD | Kuga 2.0 TDCi | [UKDA] | 01.2008-12.2012 |
| FORD | Kuga 2.0 TDCi 4x4 | [G6DG] | 01.2008-12.2012 |
| FORD | Kuga 2.0 TDCi 4x4 | [UKDA] | 01.2008-12.2012 |
| FORD | Mondeo 2.0 TDCi | [AZBA] | 01.2007-12.2012 |
| FORD | Mondeo 2.0 TDCi | [AZBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [KLBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [LPBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [QXBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [QXBB] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [TYBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [UFBA] | 01.2007-12.2015 |
| FORD | Mondeo 2.0 TDCi | [UFBB] | 01.2007-12.2015 |
| FORD | S-Max 2.0 TDCi | [AZWA] | 01.2006-12.2014 |
| FORD | S-Max 2.0 TDCi | [QXWA] | 01.2006-12.2014 |
| FORD | S-Max 2.0 TDCi | [QXWB] | 01.2006-12.2014 |
| FORD | S-Max 2.0 TDCi | [QXWC] | 01.2006-12.2014 |
| FORD | S-Max 2.0 TDCi | [UFWA] | 01.2006-12.2014 |
| VOLVO | C30 2.0 D | [D4204T] | 10.2006-12.2012 |
| VOLVO | C70 2.0 D | [D4204T] | 01.2008-10.2009 |
| VOLVO | S40 2.0 D | [D4204T] | 01.2004-12.2010 |
| VOLVO | S80 2.0 TDi | [D4204T] | 02.2008-03.2011 |
| VOLVO | V50 2.0 CDi | [D4204T2] | 12.2003-12.2006 |
| VOLVO | V50 2.0 D | [D4204T] | 04.2004-12.2010 |
| VOLVO | V70 2.0 D | [D4204T] | 10.2007-12.2015 |
Reference Information
DRS0161N MAV161120 8697576 NPANSM1257 CS1377 590.547.113.230 DRS3969 MQS1377 063721377010 30667058-A STX200024 GS001036VI-R 1756795 SS001036VI-R 3M5T-11000-DC F042S0H071 458637 AI-80037R 8603409 6014112.1 6014112.0 590.547.113.239 30667494 DRS0156N 331888 590.547.113.235 1469721 1385784 CST14112GS ASM1257 25-3434 LRS02263 3124 STR8015 20-100-01036 SG0389 20450211BN DRS0161 3M5T-11000-DB 3M5T-11000-DA 5014058 220375 PRSS223 VP3M5U-11131-AA 943213771010 AEU1377 MSRC1377 113911 DS1271N 438485 1231963 438400 1465115 RM6G9N-11000-FA 1376305 RM6G9N11000FA 063280036010 8EA738258-281 8EA012140-391 0986023380 RE6G9N-11000-FA 311515 30795407 101377 1233235 DRS3969N 63280036 AI-80037 DS5079 30795404 MSN8036 RE6G9N11000FA 101377M 590.547.113.029 590.547.113.028 101377V 32505N 6.0142.9 LRS2171 RAS34070 STX200024R 20450211OE 3M5TDC 30667058 GS001036-A NEU1377 8EA011611-001 6G9N-11000-FA 2S0034 AEY2171 12007 944280802380 30664494 201019 DS5079N 3M5U-11131-AA 6GN9-11000-FA 25-3345 116157 EZ0359 MRS80238 STR61815 ANM16189X S12VS0036A2 30667874 4M5T-11000-FD 1351989 STF1377 LRS02171 SS001036-A STM513 36000221 8697576-A 590.547.113.020 STRS223 88212622 4M5T-11000-FA LRS2263 4M5T-11000-FB 4M5T-11000-FC S12VS0036 CST14112AS 20-100-01052Video/Publications
