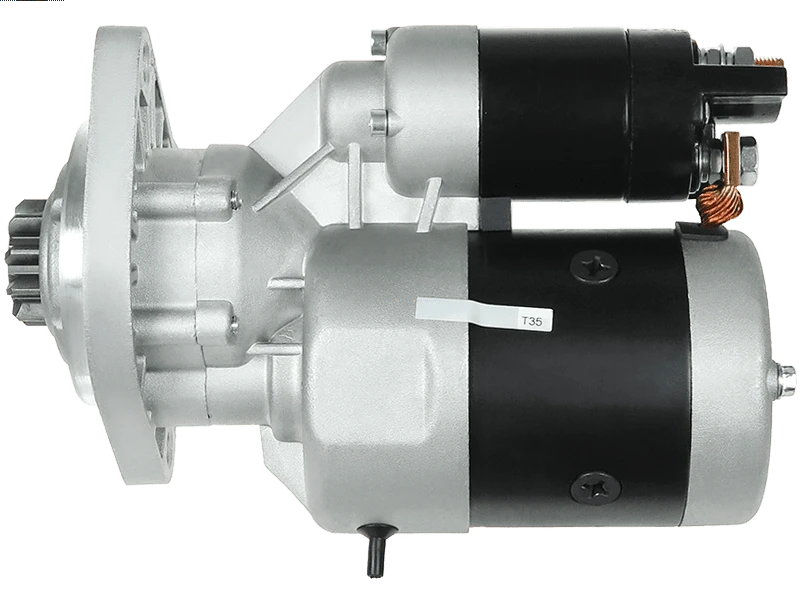

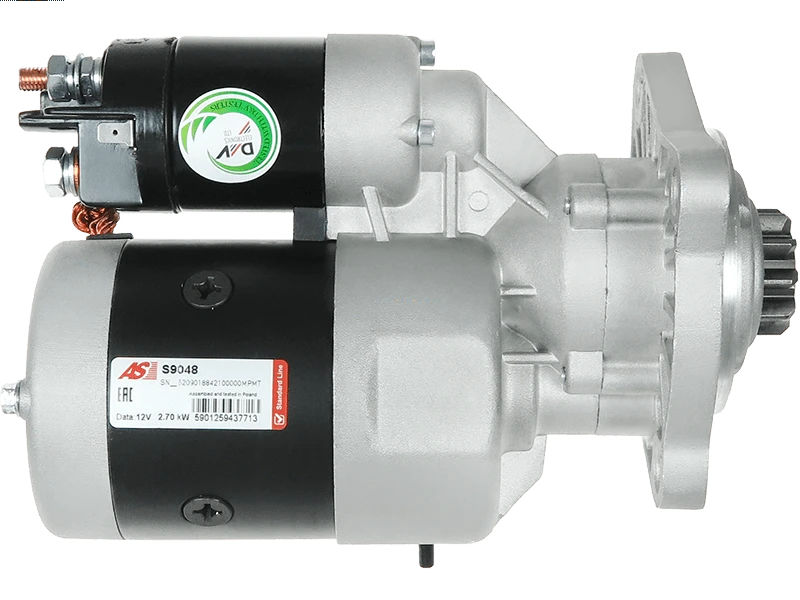

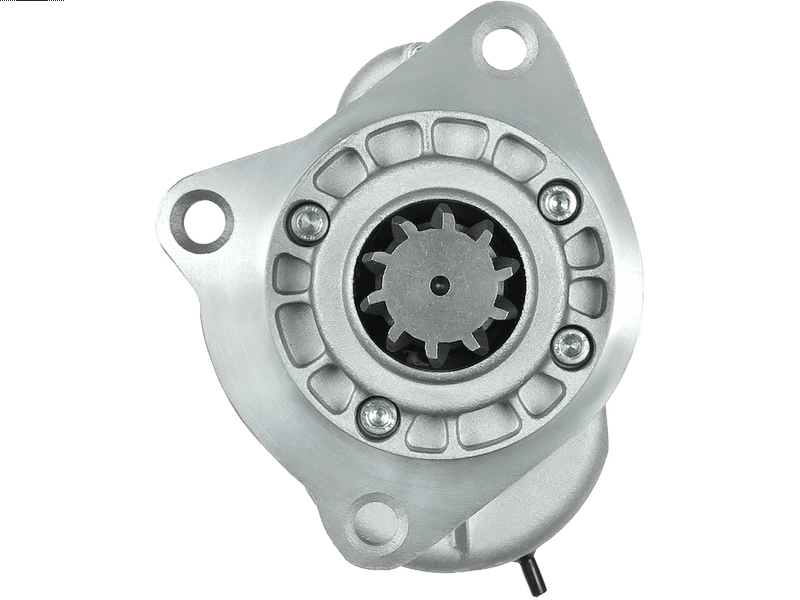

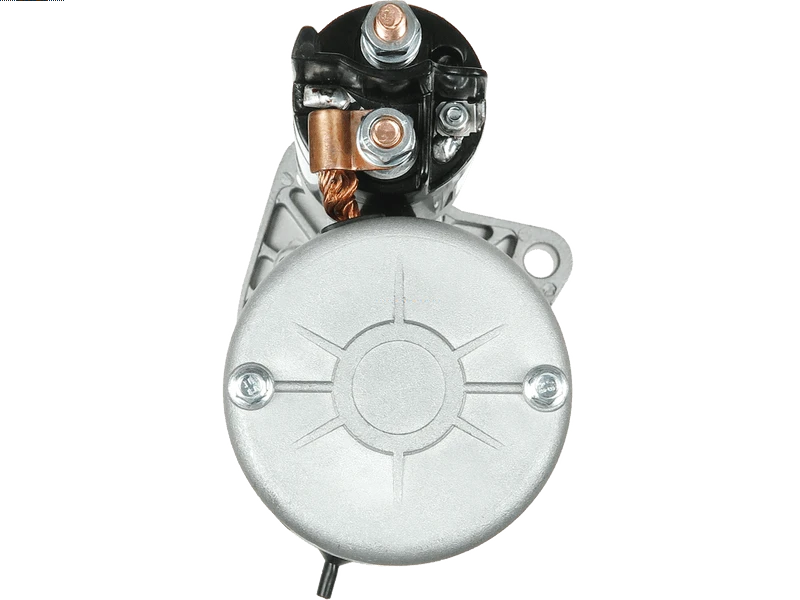

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 356.65 including GST
NZ$ 310.13 excluding GST
or four payments of $89.16
with
Learn More
each
S9048
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142743Associated Numbers
7017954M1 806004000.0 863000.4 9142743 R11.04 R11G STL0948Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 236 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 89 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 88.50 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| URSUS | 1042 3.8 | [4390] | |
| URSUS | 1044 3.8 | [4390] | |
| URSUS | 4502 | ||
| URSUS | 4504 3.8 | [4390] | |
| URSUS | 4512 3.8 | [4390] | |
| URSUS | 4514 3.8 | [4390] | |
| URSUS | 4822 | ||
| URSUS | 4824 | ||
| URSUS | 5312 3.8 | [4390] | |
| URSUS | 5314 3.8 | [4390] | |
| URSUS | 5322 | ||
| URSUS | 5324 | ||
| URSUS | 5712 4.0 | [4410] | |
| URSUS | 5714 4.0 | [4410] | |
| URSUS | 6012 | ||
| URSUS | 6014 | ||
| URSUS | 6612 | ||
| URSUS | 6614 |
Reference Information
| 0001367040 | BOSCH |
| 10201L | KUHNER |
| 10201P | KUHNER |
| 10994L | KUHNER |
| 10994P | KUHNER |
| 110565 | CARGO |
| 111013 | CARGO |
| 11.130.076 | ISKRA / LETRIKA |
| 11.130.200 | ISKRA / LETRIKA |
| 11.130.373 | ISKRA / LETRIKA |
| 11.130.411 | ISKRA / LETRIKA |
| 11.130.509 | ISKRA / LETRIKA |
| 11.130.629 | ISKRA / LETRIKA |
| 11.130.872 | ISKRA / LETRIKA |
| 11.130.904 | ISKRA / LETRIKA |
| 111346 | CARGO |
| 123708007 | JUBANA |
| 1447731 | MASSEY FERGUSON |
| 1447834M91 | PERKINS |
| 1691806R1 | MASSEY FERGUSON |
| 1868285M1 | MASSEY FERGUSON |
| 1868285M2 | MASSEY FERGUSON |
| 1868285M3 | MASSEY FERGUSON |
| 1868285R3 | MASSEY FERGUSON |
| 1868287T | MASSEY FERGUSON |
| 1873A054 | PERKINS |
| 1873A055 | PERKINS |
| 20419831OE | REAL |
| 20500969 | PRESTOLITE |
| 220739 | ERA |
| 234987A1 | CASE |
| 2378A029 | PERKINS |
| 25-0041 | ELSTOCK |
| 25-1022 | ELSTOCK |
| 25-1030 | ELSTOCK |
| 25-1410 | ELSTOCK |
| 25-2228 | ELSTOCK |
| 26274 | LUCAS |
| 26274B | LUCAS |
| 26274E | LUCAS |
| 26274H | LUCAS |
| 26320D | LUCAS |
| 26323 | LUCAS |
| 26323A | LUCAS |
| 26345 | LUCAS |
| 26345A | LUCAS |
| 26345B | LUCAS |
| 26345D | LUCAS |
| 26345E | LUCAS |
| 26358 | JCB |
| 26358A | JCB |
| 26366 | LUCAS |
| 26366A | LUCAS |
| 26366B | LUCAS |
| 26410 | LUCAS |
| 26410A | LUCAS |
| 26410B | LUCAS |
| 26410R | PERKINS |
| 26414 | LUCAS |
| 26414E | LUCAS |
| 26414R | PERKINS |
| 27510 | LUCAS |
| 27510B | LUCAS |
| 27510F | LUCAS |
| 27515 | LUCAS |
| 27515A | LUCAS |
| 27515B | LUCAS |
| 27515E | LUCAS |
| 27519 | JCB |
| 27539 | LUCAS |
| 27539B | LUCAS |
| 27539D | LUCAS |
| 27541 | LUCAS |
| 27565 | LUCAS |
| 27568 | LUCAS |
| 27572 | LUCAS |
| 27572A | LUCAS |
| 27572B | LUCAS |
| 27572D | LUCAS |
| 27572E | LUCAS |
| 27572F | LUCAS |
| 27578 | LUCAS |
| 27583 | LUCAS |
| 27583A | LUCAS |
| 27583B | LUCAS |
| 27583D | LUCAS |
| 27583H | LUCAS |
| 27583J | LUCAS |
| 27590 | LUCAS |
| 27594 | LUCAS |
| 27594A | LUCAS |
| 27598 | LUCAS |
| 27599 | LUCAS |
| 27602 | LUCAS |
| 27606 | LUCAS |
| 27608 | LUCAS |
| 27626A | LUCAS |
| 2873003 | PERKINS |
| 2873004 | PERKINS |
| 2873006 | MASSEY FERGUSON |
| 2873006T | PERKINS |
| 2873A029 | PERKINS |
| 2873A031 | PERKINS |
| 2873B055 | PERKINS |
| 2873B057 | PERKINS |
| 2873B072 | PERKINS |
| 2873B073 | PERKINS |
| 2873D001 | PERKINS |
| 2873D002 | PERKINS |
| 2873D003 | PERKINS |
| 3116683R91 | CASE |
| 3181A032 | PERKINS |
| 323319A1 | CASE |
| 3516094M1 | MASSEY FERGUSON |
| 3519400M1 | MASSEY FERGUSON |
| 3519400M92 | MASSEY FERGUSON |
| 3539390M91 | MASSEY FERGUSON |
| 3542185M91 | LANDINI |
| 3542185M91 | MASSEY FERGUSON |
| 3542185M92 | LANDINI |
| 3542185M92 | MASSEY FERGUSON |
| 3542185M93 | LANDINI |
| 3546391M91 | LANDINI |
| 3546391M91 | MASSEY FERGUSON |
| 3597372M2 | MASSEY FERGUSON |
| 3597372R2 | MASSEY FERGUSON |
| 3763362M91 | MASSEY FERGUSON |
| 3763362M94 | MASSEY FERGUSON |
| 388187A1 | CASE |
| 388187A2 | CASE |
| 3930506R1 | MASSEY FERGUSON |
| 3930509R1 | MASSEY FERGUSON |
| 433316 | VALEO |
| 443115142743 | MAGNETON |
| 538502 | DUCELLIER |
| 54265233 | LUCAS |
| 6005003154 | RENAULT |
| 6005021272 | RENAULT |
| 6005700081 | RENAULT |
| 6021138 | SANDO |
| 66925051 | PRESTOLITE |
| 70179544M1 | MASSEY FERGUSON |
| 7017954M1 | URSUS |
| 706022A1 | MASSEY FERGUSON |
| 714-14300 | JCB |
| 714-29500 | JCB |
| 714/29500-R | JCB |
| 714-40005 | JCB |
| 714/40005 | JCB |
| 714/40159 | JCB |
| 7700011850 | RENAULT |
| 7701031686 | RENAULT |
| 806.004.000.0 | ELMOT |
| 806004000.0 | ELMOT |
| 863.000.4 | ELMOT |
| 863000.4 | ELMOT |
| 863.000.5 | ELMOT |
| 8EA726027-001 | HELLA |
| 8EA737250-001 | HELLA |
| 906.011.000.0 | ELMOT |
| 909971R2 | MASSEY FERGUSON |
| 9142743 | MAGNETON |
| 9144703 | MAGNETON |
| AES2132 | AUTOELECTRO |
| AES9169 | AUTOELECTRO |
| ALTS698 | 3EFFE |
| AZJ0405 | ISKRA / LETRIKA |
| AZJ3117 | ISKRA / LETRIKA |
| AZJ3144 | ISKRA / LETRIKA |
| AZJ3203 | ISKRA / LETRIKA |
| AZJ3305 | ISKRA / LETRIKA |
| AZJ3536 | ISKRA / LETRIKA |
| AZJ3590 | ISKRA / LETRIKA |
| AZJ3598 | ISKRA / LETRIKA |
| CGB-23287 | AINDE |
| CS1033 | HC PARTS |
| CS201 | HC PARTS |
| CS994 | HC PARTS |
| CST21138GS | CASCO |
| D11E137 | VALEO |
| D11E154 | VALEO |
| D11E15H | VALEO |
| DRS3287 | DELCO |
| F032110565 | CARGO |
| F032111013 | CARGO |
| F032111346 | CARGO |
| LRS00173 | LUCAS |
| LRS00232 | LUCAS |
| LRS00969 | LUCAS |
| LRS173 | LUCAS |
| LRS232 | LUCAS |
| LRS969 | LUCAS |
| M100R2015SE | PRESTOLITE |
| MAV271220 | SIOM |
| MAV3630 | SIOM |
| MS 282 | MAHLE |
| MS 345 | MAHLE |
| MS 385 | MAHLE |
| MS 548 | MAHLE |
| MS 615 OF | MAHLE |
| MT68S | MAGNETI MARELLI |
| R11-04 | ELMOT |
| R11.04 | ELMOT |
| R11g | ELMOT |
| R11G | ELMOT |
| S12-73 | HITACHI |
| S12LU0292A2 | SIDAT |
| S13-73 | HITACHI |
| S13-73B | HITACHI |
| S13-74 | HITACHI |
| S5005L | PRESTOLITE |
| STL0948 | KRAUF |
| STR25013 | WOODAUTO |
| STRL027 | 3EFFE |
| STRL825 | 3EFFE |
| STX200560 | STARDAX |
| STX200678 | STARDAX |
| STX200715 | STARDAX |
| STX210083 | STARDAX |
| STX210084 | STARDAX |
| STX210091 | STARDAX |
Video/Publications
