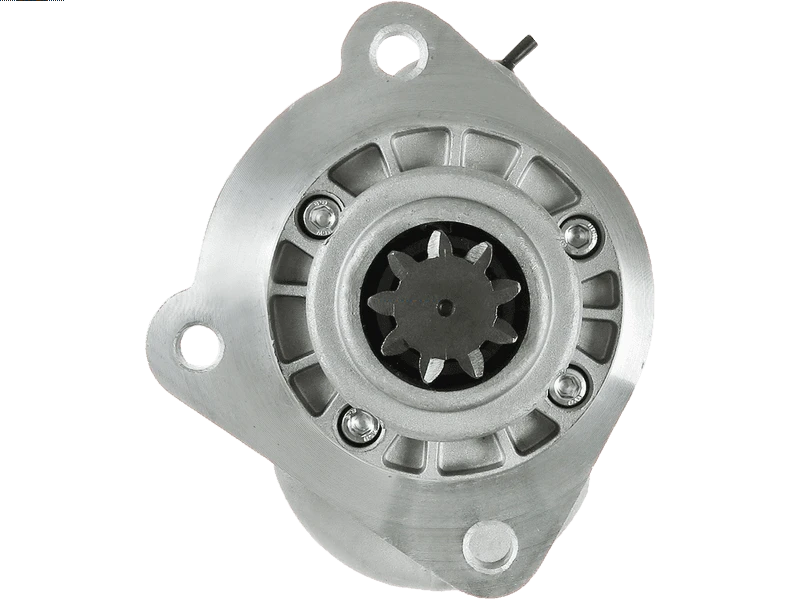

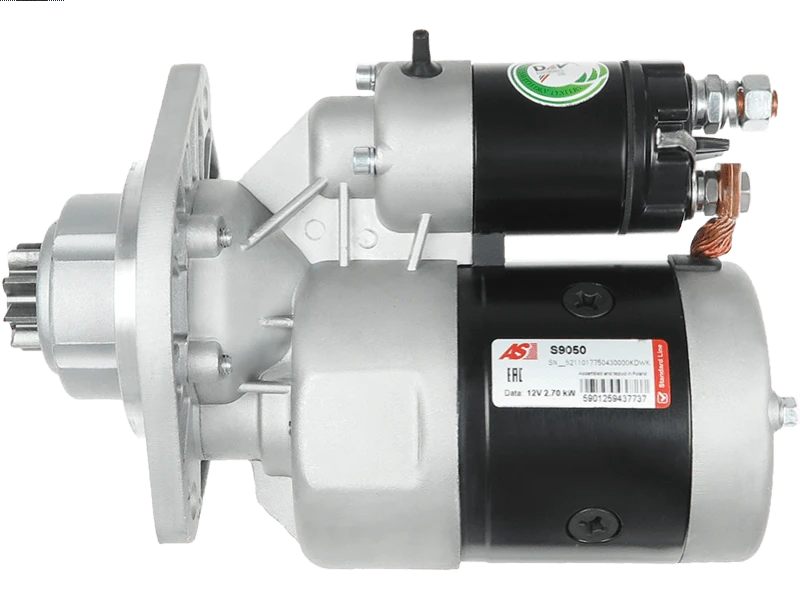

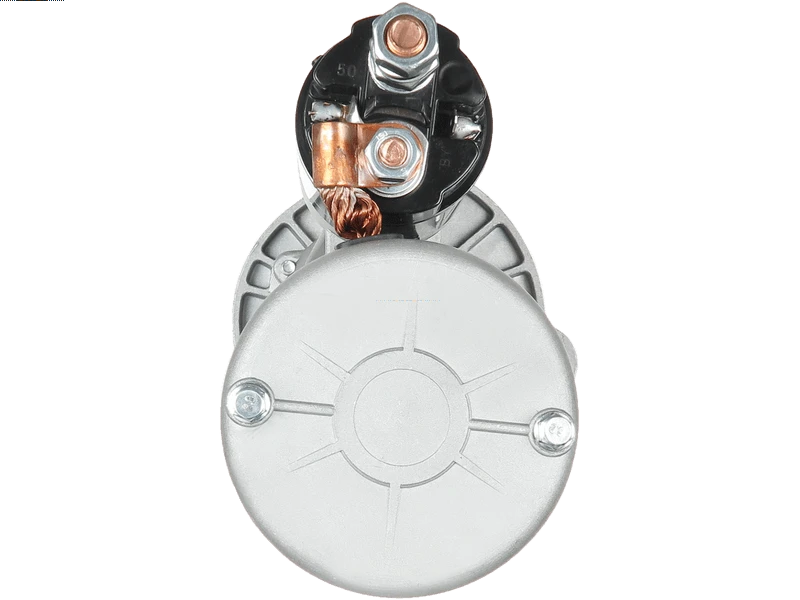

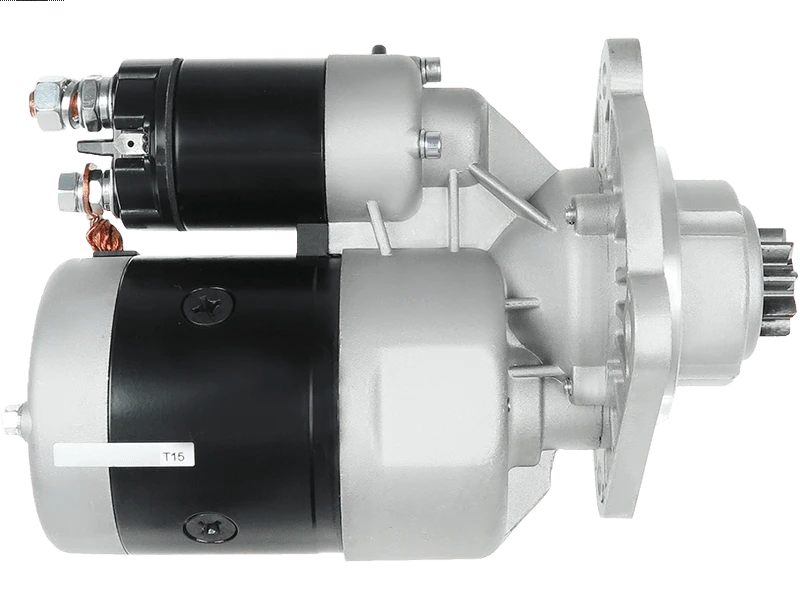

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 356.94 including GST
NZ$ 310.38 excluding GST
or four payments of $89.24
with
Learn More
each
S9050
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142723Associated Numbers
2.62.034 20408901OE 22.3005M 6048109 806003000.0 806008000.0 856.000.0 863.000.1 9142723 CST48109 CST48109AS CST48109ES CST48109GS CST48109OS CST48109RS EAA-111797 MGN9142723 R11-03 R11-08 R11C R11GA RNL142723 S9050 SG9010 STG3723Specifications
| Kilowatt | 2.7 kW |
| Length (L.1) | 233 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | 10.5 mm |
| Mount Hole Diameter (C.3) | 10.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAEWOO | Honker 2.4 | [4CT90-1] | |
| DAEWOO | Lublin 2.4 | [4C90] | 01.1999- |
| DAEWOO | Lublin 2.4 | [4C90] | |
| DAEWOO | Lublin 2.4 | [4CT90] | 01.1999- |
| GAZ | Gazelle 2.4 | [4CT90] | |
| LDV | Convoy 2.4 | [4CT90] |
Reference Information
CST48109AS CST48109ES R11-03 S9050 22.3005M RNL142723 20408901OE 6048109 MGN9142723 2.62.034 SG9010 CST48109 806008000.0 CST48109OS CST48109RS 863.000.1 R11-08 9142723 R11GA R11C STG3723 CST48109GS 806003000.0 856.000.0Video/Publications
