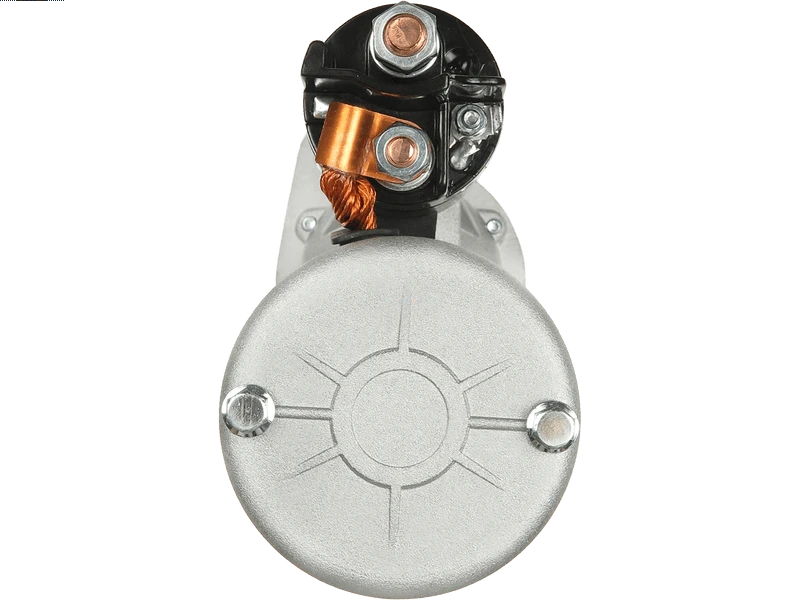

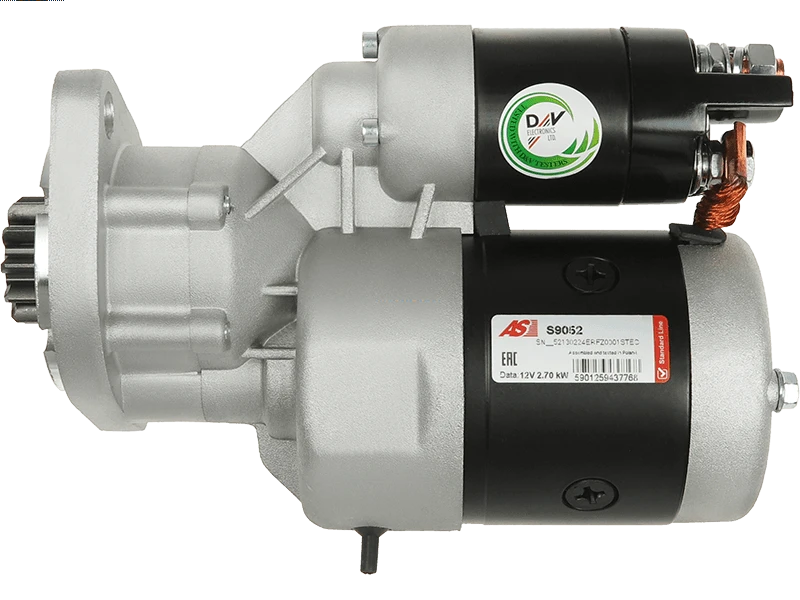

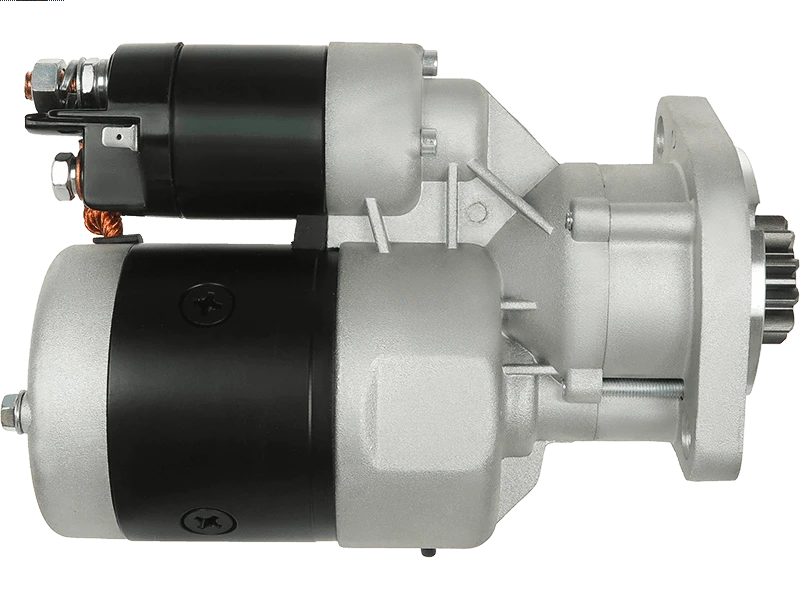

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MAGNETON
Price:
NZ$ 365.15 including GST
NZ$ 317.52 excluding GST
or four payments of $91.29
with
Learn More
each
S9052
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
9142602Associated Numbers
0001314011 0001354010 0001354090 0001362022 0001362035 10996 10996B 10996I 10996M 11.130.521 201100 207090002 254362 296190300 296190800 296193600 296193700 51262017011 6226486 63217106 63217138 63217163 66925126 8EA737245-001 9142602 AZJ3149 CS996 DRS3353 IS0521 S9052 STR50170Specifications
| Kilowatt | 2.7 kW |
| Length (L.1) | 233 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MAGNETON |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HURLIMANN | H 305 | [1000.3A] | |
| HURLIMANN | H 306 | [1000.3A] | |
| HURLIMANN | H 307 | [1000.3AT] | |
| HURLIMANN | H 358.4 | [1000.3A] | |
| HURLIMANN | H 361 | [1053PA] | |
| HURLIMANN | H 476 V | [1000.3WT] | |
| HURLIMANN | XA 606 | [1000.3W] | |
| HURLIMANN | XA 656 | [1000.3WT] | |
| HURLIMANN | XN 706 | [1000.3A] | |
| HURLIMANN | XN 707 | [1000.3WT] | |
| LAMBORGHINI | 554-50 | [1000.3A] | |
| LAMBORGHINI | 564-60 | [1000.3A] | |
| LAMBORGHINI | 574-60 | [1000.3A] | |
| LAMBORGHINI | 574-70 | [1000.3A] | |
| LAMBORGHINI | 660 AGILE | [1000.3A] | |
| LAMBORGHINI | 660-F | [1000.3A] | |
| LAMBORGHINI | 660-V AGILE | [1000.3A] | |
| LAMBORGHINI | 660-V DT | [1000.3A] | |
| LAMBORGHINI | 664-60 | [1000.3W] | |
| LAMBORGHINI | 770 | [1000.3WT] | |
| LAMBORGHINI | C 352 | 07.1974-08.1976 | |
| LAMBORGHINI | C 503 | 04.1973-06.1976 | |
| LAMBORGHINI | C 554 | [1003PA] | |
| LAMBORGHINI | C 603 3.1 | [FL1053] | 04.1973-06.1976 |
| LAMBORGHINI | C 603 L 3.1 | [FL1053] | 04.1973-06.1976 |
| LAMBORGHINI | C 664 | [1053PA] | |
| LAMBORGHINI | GRIMPER 555 | [1000.3A] | |
| LAMBORGHINI | GRIMPER 560 | [1000.3A] | |
| LAMBORGHINI | R 235 | 09.1972-06.1976 | |
| LAMBORGHINI | R 550 | ||
| LAMBORGHINI | R 574-60 | ||
| LAMBORGHINI | R 660 | ||
| SAME | Argon | [1000.3A] | |
| SAME | Argon | [1000.3AT] | |
| SAME | Delfino | 04.1976- | |
| SAME | Dorado | [1000.3A] | |
| SAME | Frutteto 2 60 DT 3.0 | [1000.3A] | 05.1991- |
| SAME | Golden | [1000.3A] | |
| SAME | Rock | [1000.3A] | |
| SAME | Saturno | 03.1972-06.1976 | |
| SAME | Sirenetta 35 | 04.1976- | |
| SAME | Solar 50 | [983LA] | |
| SAME | Solar 55 | [1003PA] | |
| SAME | Solar 60C | [1053PA] | |
| SAME | Vigneron 62 DT | ||
| STEYR | 40 | [WD405] |
Reference Information
63217138 CGB-27661 STR10221 3D207 MTD170 10996M 003-D207 MAV121540 0001314011 10996I 6226486 220930 0001354010 296190300 201100 66925126 IS0521 10996B 296190800 3D170 0001354090 0001362022 10996 220228 003-D170 STR50170 MS 63217106 AZJ3149 63217163 S12BH0287A2 8EA737245-001 MAV5080 207090002 254362 S9052 CS996 296193700 296193600 300 STRL111 11.130.521 9142602 220197 MTD207 CGB-23325 51262017011 DRS3353Video/Publications
