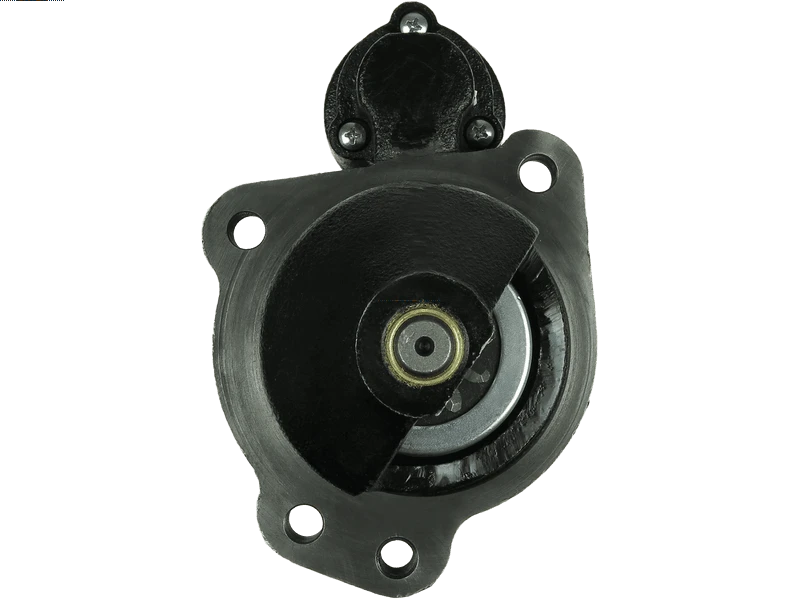

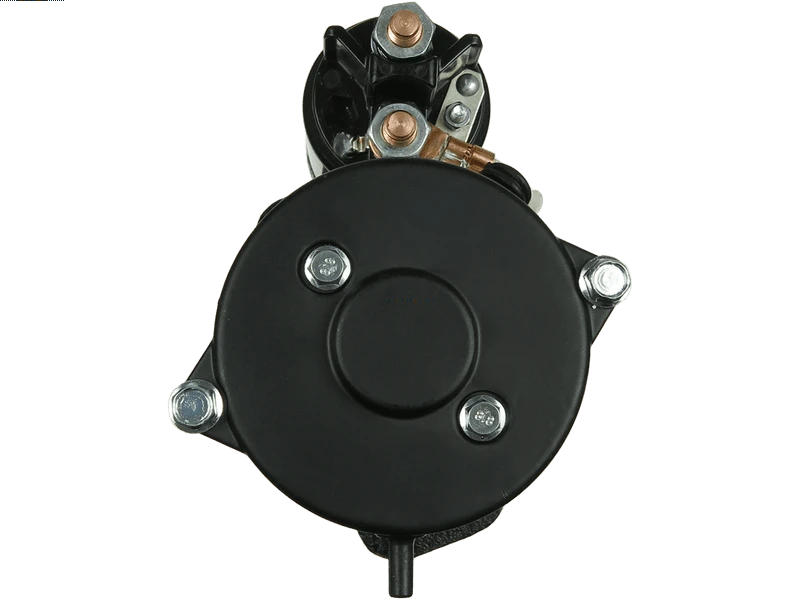

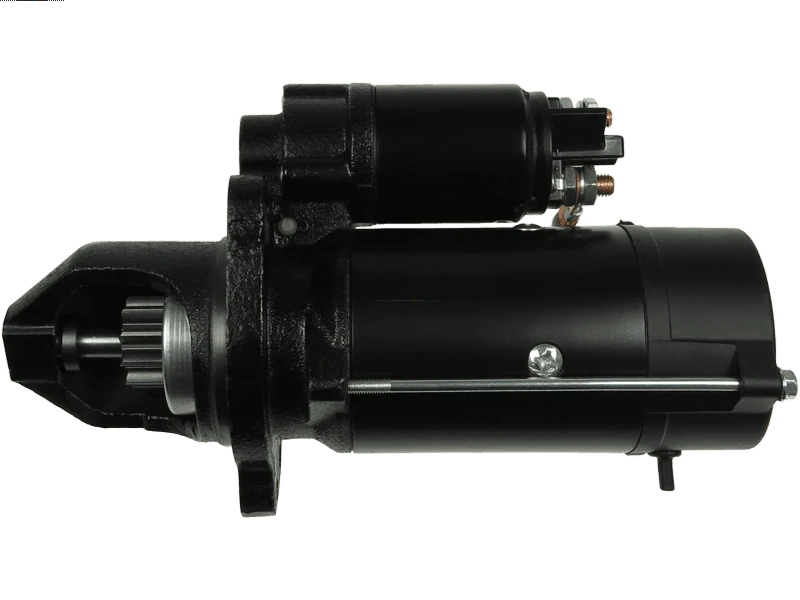

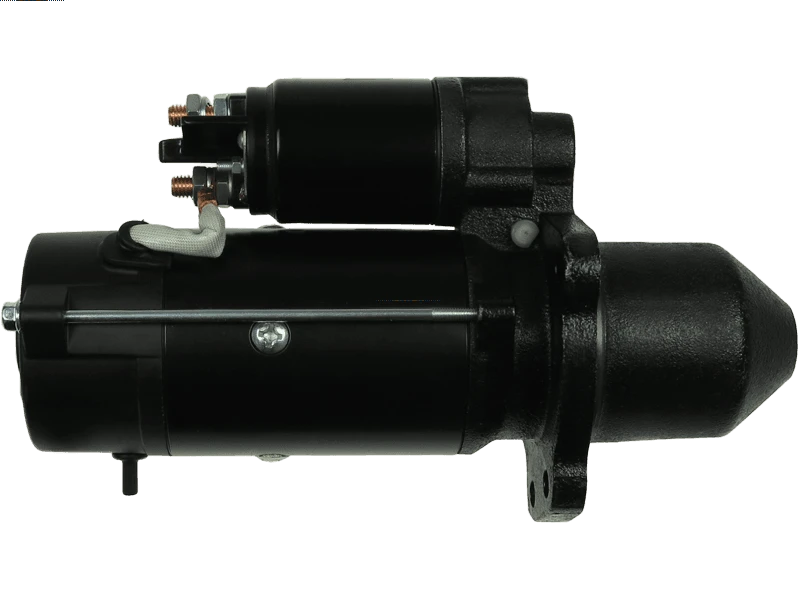

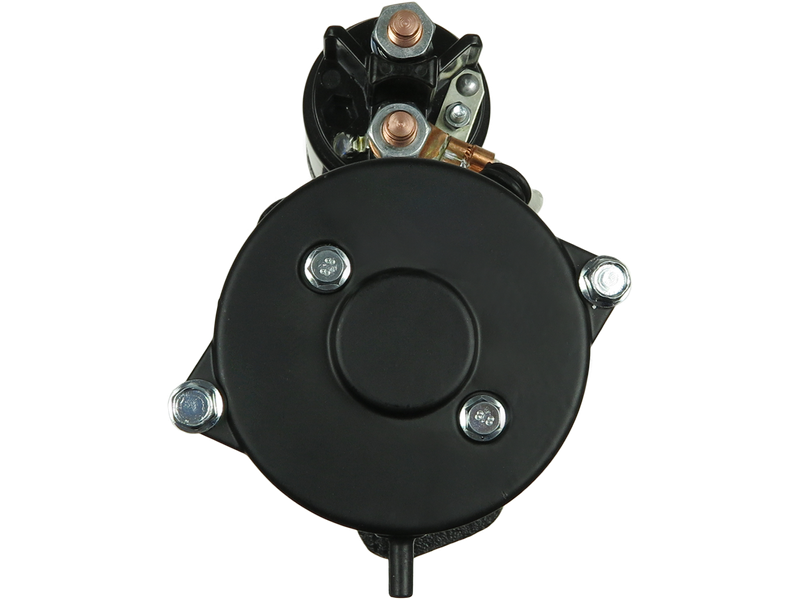

S9070 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S9070
Price: 463.91 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

ISKRA / LETRIKA

Price:

NZ$ 463.91 including GST

NZ$ 403.40 excluding GST

or four payments of $115.98 with
Learn More

UOM:

each

Product Code:

S9070

Quantity In Stock Nationally:

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001362324 10-14194S 10461450 10461451 10465049 10465050 11.130.794 11.131.060 11.131.092 11.131.375 1107866 1109198 1109263 1113281 1113282 113454 12301341 18195 182-30104 18483N 1903103M91 1903117M91 1998330 228000-6400 254669 260-23120 30-3123383 3042511 3185C37G01 323-674 323-684 323442 323443 347198 35259630 4274 450732R91 517533M93 579937M91 596493R92 646218 6651258 6651664 91-01-4310 91-23-6508 910886 AL70852 AZF4522 AZF4541 AZF4550 AZF4597 EAA-121510 IS1063 LETIS1063 MS94 RE105298 RE501766 RE501767 RE505744 RE507639 RE508322 RE509903 RE540136 RE60171 RE60239 RE70728 S5011L SE501850 SE502631 STR60621 UD11315S 6010343.0 CST10343AS

Kilowatt	4.2 kW
Length (L.1)	322 mm
Mount Hole Center - Center (O.1)	124 mm
Mount Hole Center - Center (O.2)	30.5 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Center - Center (O.4)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	M12x1.75 mm
Mount Hole Diameter (C.3)	11 mm
Mount Hole Diameter (C.4)	11 mm
No./Mount holes	4 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
OEM Product	No
Pinion at Rest (B)	47 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Make	Model	Type	Year
BELL	310SG	[4045]	01.2000-
BELL	315SG	[4045]	01.2000-
BOBCAT	2000	[4-154]	01.1981-12.1982
BOBCAT	2000 2.5	[PERKINS]	01.1989-
BOBCAT	2000 2.5		01.1989-
BOBCAT	2400	[4-236]	01.1989-01.1992
BOBCAT	2400	[4-236]	01.1989-12.1991
BOBCAT	2400	[PERKINS 4-236]	01.1989-01.1992
BOBCAT	2400	[PERKINS4-236]	01.1989-01.1992
BOBCAT	2410	[4-236]	01.1990-01.2004
BOBCAT	2410	[PERKINS 4-236]	01.1990-01.2004
BOBCAT	2410	[PERKINS4-236]	01.1990-01.2004
BOBCAT	3023	[ISUZU ENGINE]	01.1990-01.1993
BOBCAT	3023	[ISUZUENGINE]	01.1990-01.1993
BOBCAT	641	[DEUTZ F2L511]	01.1989-01.1990
BOBCAT	641	[DEUTZF2L511]	01.1989-01.1990
BOBCAT	641	[F2L511]	01.1989-01.1990
BOBCAT	741	[DEUTZ F2L511]	01.1989-01.1990
BOBCAT	741	[DEUTZF2L511]	01.1989-01.1990
BOBCAT	741	[F2L511]	01.1989-01.1990
BOBCAT	843 2.5	[PERKINS]	01.1989-01.1990
BOBCAT	843 2.5		01.1989-01.1990
BOBCAT	843B	[ISUZU ENGINE]	01.1990-01.1992
BOBCAT	843B	[ISUZUENGINE]	01.1990-01.1992
BOBCAT	853	[ISUZU ENGINE]	01.1991-01.1995
BOBCAT	853	[ISUZUENGINE]	01.1991-01.1995
BOBCAT	853H	[ISUZU ENGINE]	01.1991-01.1995
BOBCAT	853H	[ISUZUENGINE]	01.1991-01.1995
BOBCAT	943	[4-236]	01.1990-01.1994
BOBCAT	943	[PERKINS 4-236]	01.1990-01.1994
BOBCAT	943	[PERKINS4-236]	01.1990-01.1994
BOBCAT	974	[4-236]	01.1989-01.1990
BOBCAT	974	[PERKINS 4-236]	01.1989-01.1990
BOBCAT	974	[PERKINS4-236]	01.1989-01.1990
CLARK	2000 2.5	[PERKINS]	01.1989-
CLARK	2000 2.5		01.1989-
CLARK	641	[DEUTZ F2L511]	01.1989-01.1990
CLARK	641	[DEUTZF2L511]	01.1989-01.1990
CLARK	641	[F2L511]	01.1989-01.1990
CLARK	741	[DEUTZ F2L511]	01.1989-01.1990
CLARK	741	[DEUTZF2L511]	01.1989-01.1990
CLARK	741	[F2L511]	01.1989-01.1990
CLARK	843 2.5	[PERKINS]	01.1989-01.1990
CLARK	843 2.5		01.1989-01.1990
CLARK	843B	[ISUZU ENGINE]	01.1990-01.1992
CLARK	843B	[ISUZUENGINE]	01.1990-01.1992
CLARK	843B		01.1990-01.1992
CLARK	853	[ISUZU ENGINE]	01.1991-01.1995
CLARK	853	[ISUZUENGINE]	01.1991-01.1995
CLARK	853		01.1991-01.1995
CLARK	853H	[ISUZU ENGINE]	01.1991-01.1995
CLARK	853H	[ISUZUENGINE]	01.1991-01.1995
CLARK	853H		01.1991-01.1995
CLARK	943	[4-236]	01.1990-01.1994
CLARK	943	[PERKINS 4-236]	01.1990-01.1994
CLARK	943	[PERKINS4-236]	01.1990-01.1994
JOHN DEERE	210LE		01.1998-
JOHN DEERE	210LE
JOHN DEERE	310		01.1987-01.1992
JOHN DEERE	310E		01.1987-01.1992
JOHN DEERE	310G		01.1987-01.1992
JOHN DEERE	310S		01.1987-01.1992
JOHN DEERE	310SE		01.1987-01.1992
JOHN DEERE	310 SE	[4045T]	01.1995-12.2001
JOHN DEERE	310 SG	[4045T]	01.1995-12.2001
JOHN DEERE	315S
JOHN DEERE	315SE		01.1995-
JOHN DEERE	315SE
JOHN DEERE	315 SE	[4045T]	01.1995-12.2001
JOHN DEERE	315 SG	[4045T]	01.1995-12.2001
JOHN DEERE	3510
JOHN DEERE	3520
JOHN DEERE	4045D
JOHN DEERE	4045D 4.5
JOHN DEERE	4045T
JOHN DEERE	4045T 4.5
JOHN DEERE	410C
JOHN DEERE	410C 4.5	[4045]	01.1987-12.2000
JOHN DEERE	410E	[4045T]	01.1997-12.2000
JOHN DEERE	410E
JOHN DEERE	410 E 4.5	[4045]	01.1996-
JOHN DEERE	410E 4.5	[4045]	01.1987-12.2000
JOHN DEERE	410G
JOHN DEERE	410 G 4.5	[4045]	01.2001-
JOHN DEERE	410G 4.5	[4045]	01.1987-12.2000
JOHN DEERE	485E
JOHN DEERE	486E
JOHN DEERE	488E
JOHN DEERE	6403 4.5	[4045T]	01.2002-01.2005
JOHN DEERE	6603 4.5	[6068T]	01.2002-01.2005
JOHN DEERE	6603 6.8	[6068TP053]	01.2002-01.2005
JOHN DEERE	9470 STS 6.8	[6068HCQ04]
JOHN DEERE	9570 STS 6.8	[6068HCQ05]
JOHN DEERE	Engine 6.10	[6068HCQ05]
JOHN DEERE	Engine 6.11	[6068HCQ07]
JOHN DEERE	Engine 6.12	[6068HYC52]
JOHN DEERE	Engine 6.8	[6068HBM02]
JOHN DEERE	Engine 6.9	[6068HCQ04]
MASSEY FERGUSON	1426	[Caterpillar]	01.1986-01.1989
MASSEY FERGUSON	1426	[Perkins]	01.1989-01.1992
MASSEY FERGUSON	1426		01.1986-01.1989
MASSEY FERGUSON	1426		01.1989-01.1992
MASSEY FERGUSON	1495	[Perkins]	01.1982-01.1985
MASSEY FERGUSON	1495		01.1982-01.1985
MASSEY FERGUSON	MF 60 E		01.1989-01.1992

35259630 11.131.060 10-14194S STR60621 113454 260-23120 RE105298 STX201072 323-684 12301341 450732R91 910886 332072 MAV122280 CGB-23818 91-01-4310 AZF4541 182-30104 STX200383 11.131.375 94 0001362324 1107866 S5011L 517533M93 6651664 323443 30-3123383 323442 11.131.092 RE540136 MS STX200904 1903103M91 347198 1109198 CST10343AS CGB-1633 RE501766 S9070 RE501767 SE502631 STRS640 3185C37G01 596493R92 1998330 646218 6010343 STX201006 6651258 4274 579937M91 91-23-6508 10465050 LETIS1063 RE60239 EAA-121510 STR7930 18195 1109263 RE507639 10461450 1113281 AZF4522 1903117M91 10465049 1113282 11.130.794 RE508322 SE501850 UD11315S 254669 STRF223 MS94 228000-6400 RE70728 RE505744 18483N 323-674 MAV123430 RE509903 10461451 AZF4597 RE60171 AZF4550 IS1063

S9070
