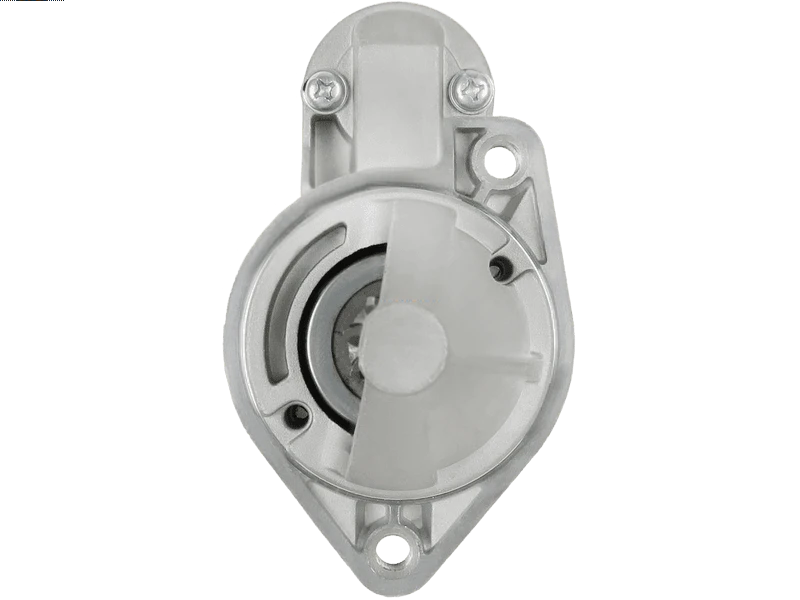

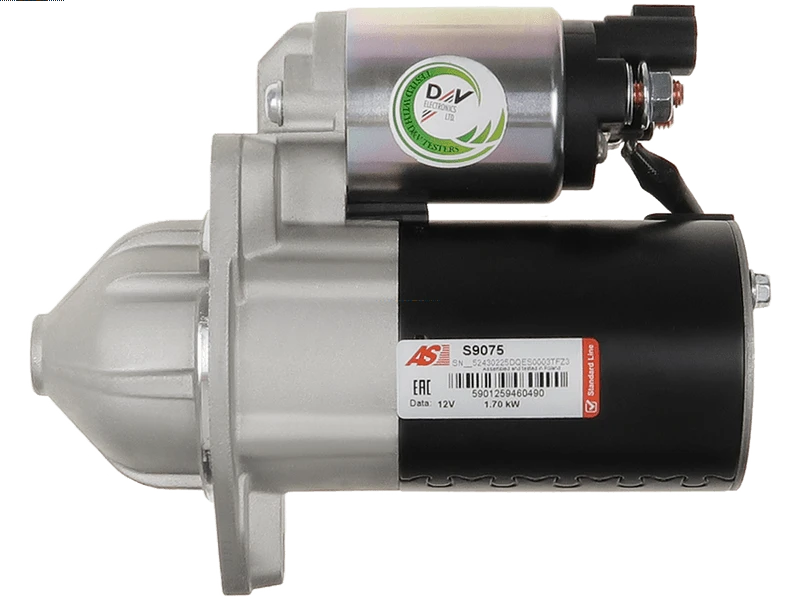

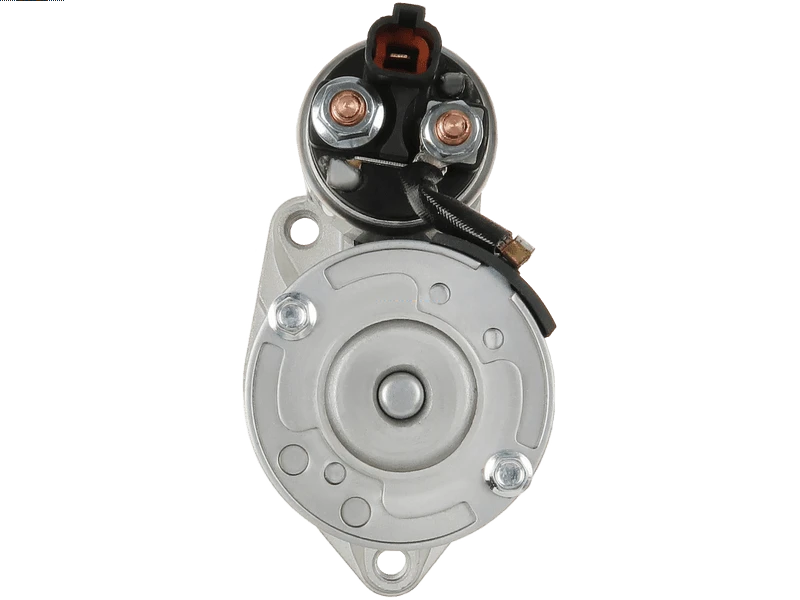

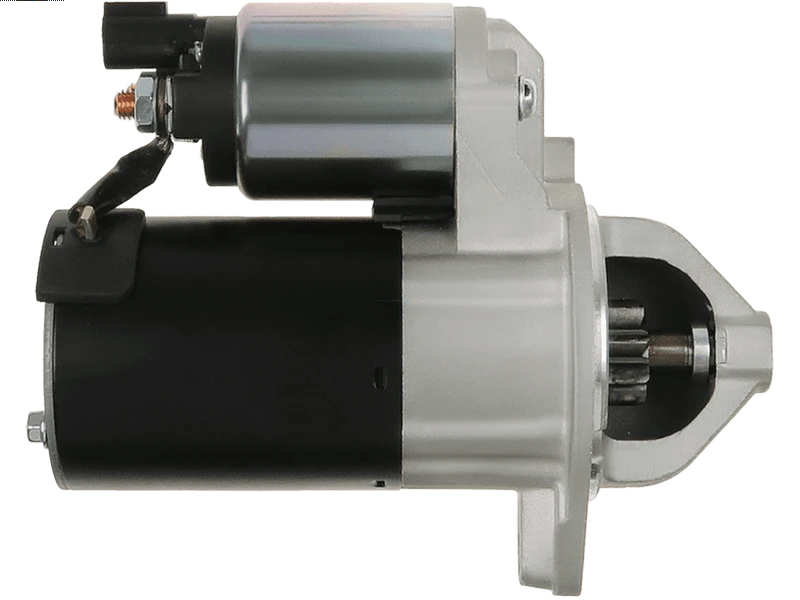

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 254.23 including GST
NZ$ 221.07 excluding GST
or four payments of $63.56
with
Learn More
each
S9075
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
36100-2A300Associated Numbers
113797 1195925 12129 1250295 201365 201365V 20493431OE 20493711OE 25-4202 254598 254598V 33309N 33309R 36100-2A000 36100-2A100 36100-2A300 361002A300 6032117 6032134 8080310 8213178 88213178 9779 AEY2530 CST32117GS CST32134GS DRS0134 DRS0136 DRS0666 DRS0666N EAA-121932 JS1365 LRS02530 S0001250295 S1178M S9075 TM000A33401Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 190 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| No./Teeth (Replaces) | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | i20 1.4 CRDi | [D4FC] | 01.2010- |
| HYUNDAI | i20 1.6 CRDi | [D4FB] | 01.2010- |
| HYUNDAI | i30 1.6 CRDi | [D4FB] | 01.2010- |
| HYUNDAI | iX20 1.4 CRDi | [D4FC] | 01.2011- |
| HYUNDAI | iX20 1.6 CRDi | [D4FB] | 01.2011- |
| KIA | Soul 1.6 CRDi | [D4FB] | 01.2009- |
| KIA | Venga 1.6 CRDi | [D4FB] | 01.2009- |
Reference Information
S0001195925 SMA129A A52-12-55722 10439738 20493711OE J5210530 324069082 10032129OV LES0232 LRS2530 10032167OV 458755 BREF0320986023600 MQS1365 ANM12886 10438765 4799040 943213651010 SG0868RB 201365V H5015318 CST32129AS 644895 10032129AV 460482 SMA129 F032113797 36100-2A100 175ST21 LRS02530 BREF032113797 S12VA0814A2 20493921BN 600243 BST2569 06-10202-SX 33309N 003-M946 CST32117AS 5015318 1195925 T001001060 S12VA0086 10439554 1648215680 254598 1986S01385 ASM1591 6032117.1 20493711BN 6032117.0 TT16345 ST01710 CST32129GS 8EA012 S101676 S101677 36100-2A000 201365 S1178M 193405 526-121 9779 3112008 3112007 6032129.1 6032129.0 S9075 CST32117GS 150.564.082.340 150.564.082.460 S12VA0814 UD21464S 803-07047 220543 25-4202 H521I10 STX201042 EST-4005 0986023600 BN361002A300 SG0868 10032134OV 11010068 AZMT-53-010-1398 063721365010 QRS2690 113797 88213178 12175 TT16345PRO 616468 254598V NPANSM1591 20493921OE 8080310 HY9017 36100-2A300 011-001-000648R 150.564.082.000 106476 150.564.082.360 BREF0321986S01385 11040741 A23600 600275 2S0258 S12VA0086A2Video/Publications
