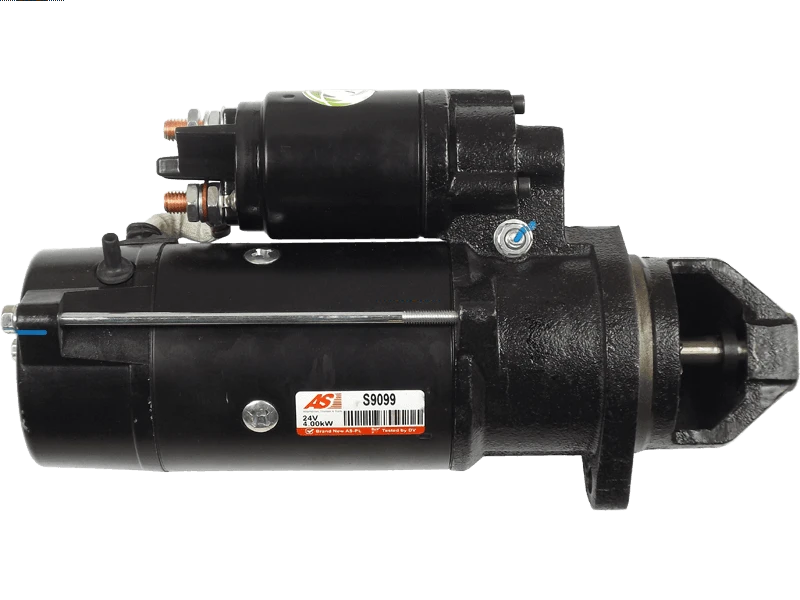

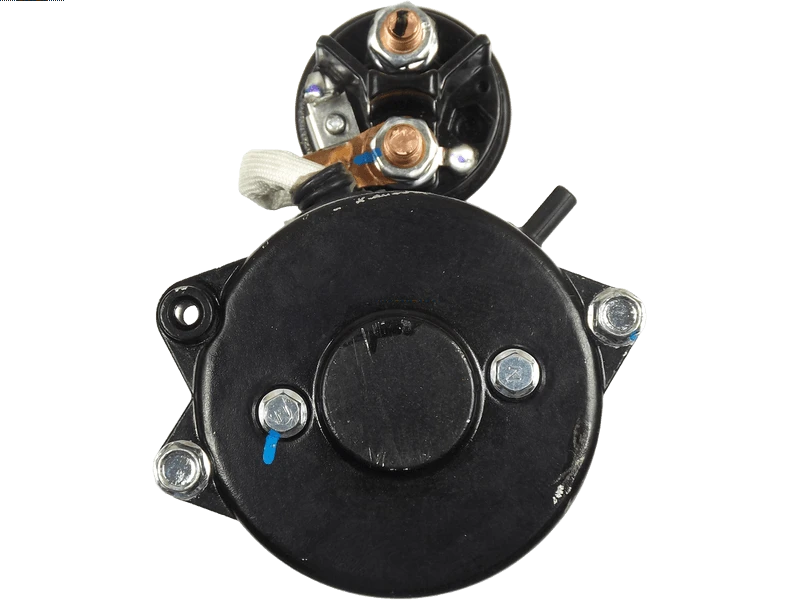

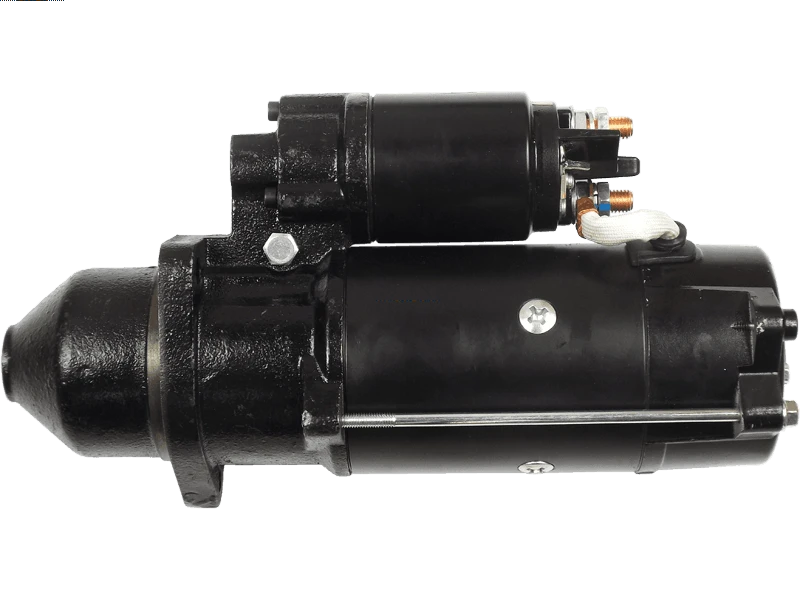

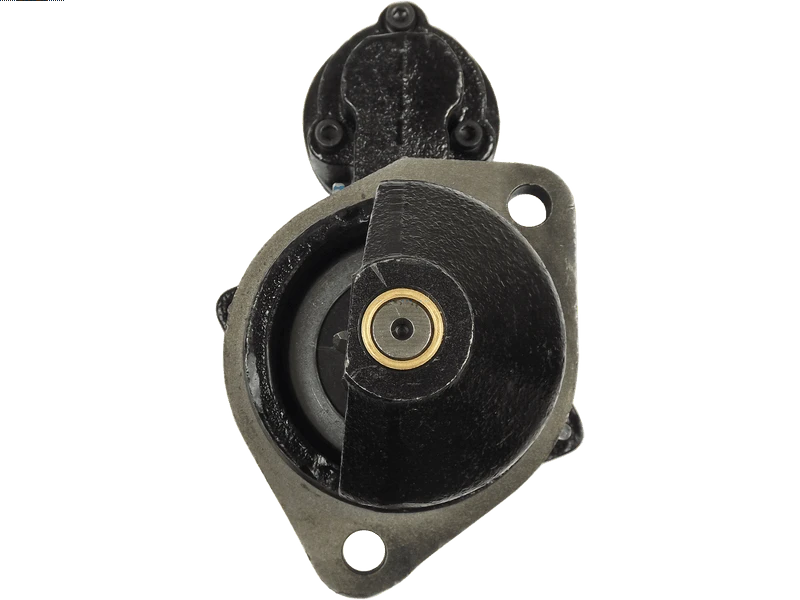

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 482.85 including GST
NZ$ 419.87 excluding GST
or four payments of $120.71
with
Learn More
each
S9099
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.863Associated Numbers
116132 CST10684 CST21605 EAA-121383 45-4402 LRS02729 19083008 MS68 72735696 88213990 30329N SG0550 MAHMS68 STB4220 STI4220 120-20135 182-30142 116132 CST10684 CST21605 EAA-121383 45-4402 LRS02729 19083008 MS68 72735696 88213990 30329N SG0550 MAHMS68 STB4220 STI4220 120-20135 182-30142 0001101110 0001231018 01171750 01181753 01182126 01182390 04300286 063522310180 11.131.607 11.131.863 114220 1181753 1182126 1182390 19724 20401486OE 20419506OE 254308 254308M 260-23219 30329N 511.502.092 6010684 6021605 63522310 AZF4156 AZF4230 CST10684GS CST21605GS DRS0366 DRS0366N IS1236 LETIS1236 MSN2046 S0182 S9099 S9099(LETRIKA) STR50079 UD11166S UNITBOM120-6370Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 322 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AHLMANN | 11 | [BF4M1012EC] | |
| AHLMANN | 11S | [BF4L1012EC] | |
| AHLMANN | 14 | [BF4M1012E] | |
| AHLMANN | 14 | [BF4M1012EC] | |
| AHLMANN | AS 11 | [BF4M1012EC] | |
| AHLMANN | AS 11S | [BF4L1012EC] | |
| AHLMANN | AS 14 | [BF4M1012E] | |
| AHLMANN | AS 14 | [BF4M1012EC] | |
| DEUTZ | 1011 D 2011 L4W | ||
| DEUTZ | BF4M2011 | ||
| DEUTZ | TCD2011 L4 3.6 | [4] | |
| DEUTZ | TD2011-L2 | [TD2011] | |
| DEUTZ | TD2011-L3 2.3 | [TD2011] | |
| DEUTZ | TD2011-L4 3.6 | [TD2011] | |
| DEUTZ | TD2011 L4W- 3.6 | ||
| DYNAPAC | F5CS 2.3 | [BF3M201] | |
| DYNAPAC | PAWERS 2.3 | [Deutz] | |
| KHD | Engine | [BF4M2011] | |
| KHD | Engine | [TD2011] | |
| KHD | Engine 2.3 | [TD2011] | |
| KHD | Engine 3.6 | [TD2011] | |
| VOGELE | Super 1100-2 3.6 | [TCD2011] | |
| VOGELE | SUPER 1100-2 3.6 | [TCD2011] | |
| VOGELE | Super 1103-2 3.6 | [TCD2011] | |
| VOGELE | SUPER 1103-2 3.6 | [TCD2011] | |
| VOGELE | Super 1300-2 3.6 | [TCD2011] | |
| VOGELE | SUPER 1300-2 3.6 | [TCD2011] | |
| VOGELE | Super 1303-2 3.6 | [TCD2011] | |
| VOGELE | SUPER 1303-2 3.6 | [TCD2011] | |
| VOGELE | Super 600 | [BF3M2011] | 07.1990- |
| VOGELE | SUPER 600 | [BF3M2011] | 07.1990- |
| VOGELE | Super 700 | [TCD2011] | 07.1990- |
| VOGELE | SUPER 700 | [TCD2011] | 07.1990- |
| VOGELE | Super 800 | [TCD2011] | 07.1990- |
| VOGELE | SUPER 800 | [TCD2011] | 07.1990- |
| WIRTGEN | TCM 1800 3.6 | [D2011] | |
| WIRTGEN | TCM 950 3.6 | [D2011] | |
| WIRTGEN | W 35 3.6 | [D2011] | 05.2003- |
| WIRTGEN | W 35 DC 3.6 | [D2011] | 02.2003- |
| WIRTGEN | W 50 3.6 | [TD2011] | 05.2003- |
Reference Information
1182126 511.502.092.310 S24BH0015A2 1181753 88213990 UNITBOM120-6370 45-4402 STB4220 182-30142 0001231018 01182390 116132 SG0550 20401486OE 511.502.092 63522310 0001101110 CST10684GS 0001263069 063522310180 MS S0182 19083008 LRS2729 DRS0366N 01171750 511.502.092.280 11.131.607 MAV126840 20419506OE 114220 DRS0366 01182126 454402 01181753 S9099(LETRIKA) 68 511.502.092.010 STR7975 18230142 511.502.092.090 CST21605GS MS68 IS1236 12020135 120-20135 MAHMS68 19724 STI4220 STR50079 254308M 04300286 254308 UD11166S S24BH0015 S9099 1182390 MSN2046 CGB-31018 LETIS1236 72735696 260-23219 30329N 6021605 AZF4230 11.131.863 AZF4156 LRS02729 CST21605 6010684 CST10684Video/Publications
