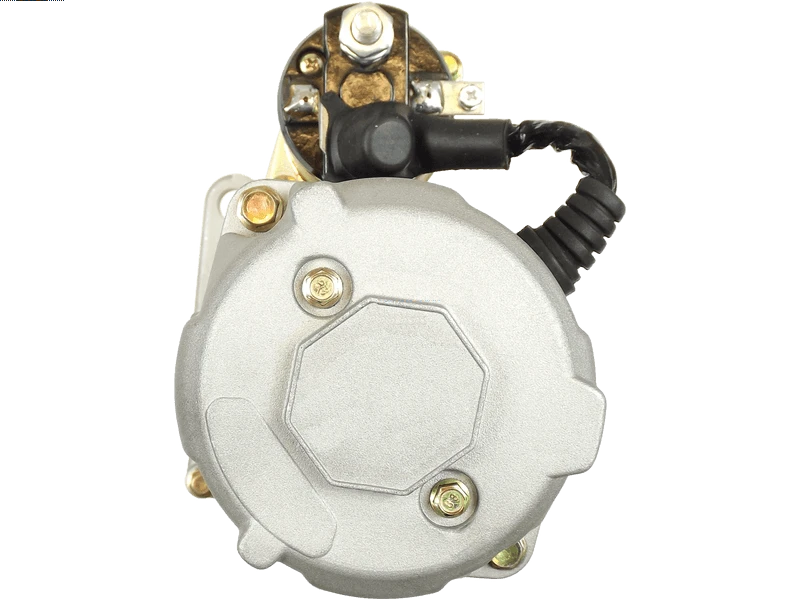

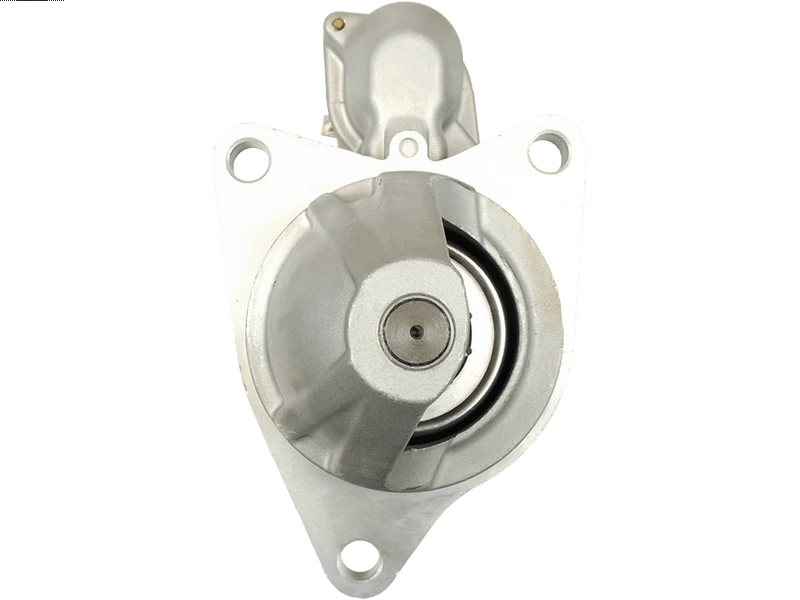

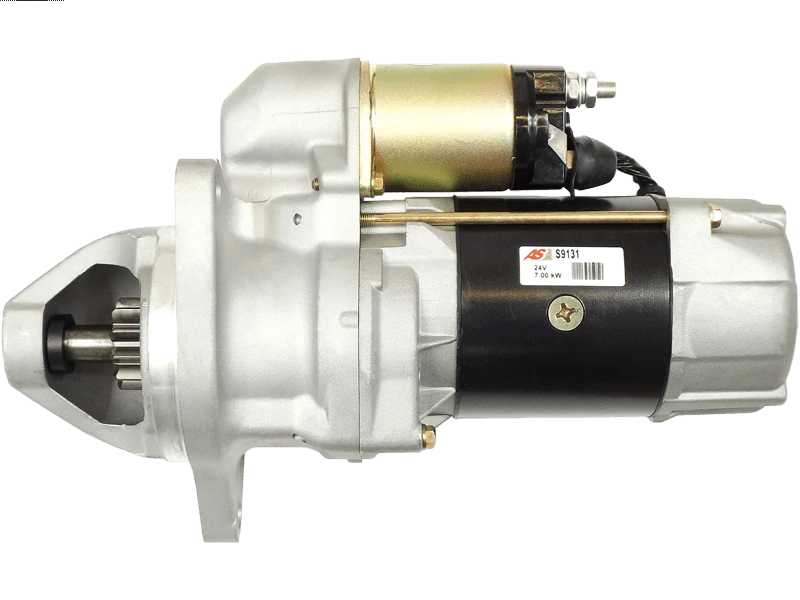

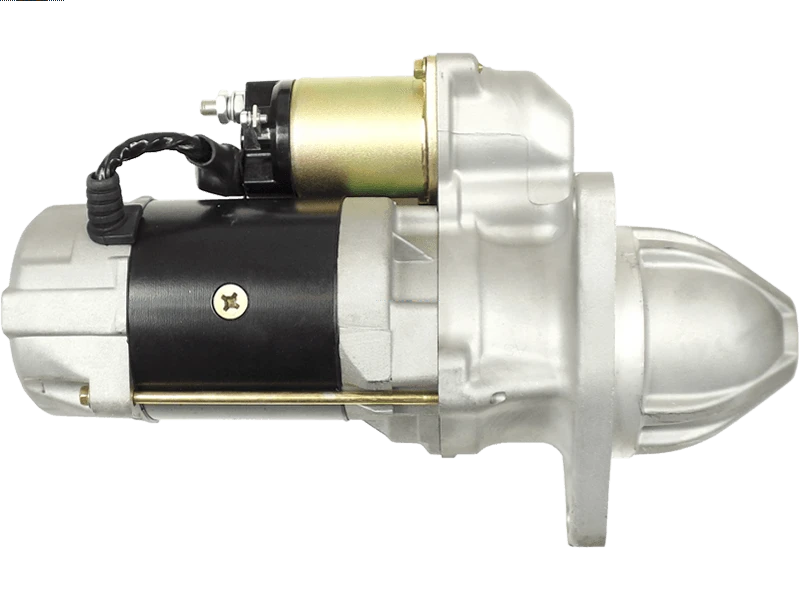

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 676.71 including GST
NZ$ 588.44 excluding GST
or four payments of $169.18
with
Learn More
each
S9131
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
03507020040Associated Numbers
03507020040 200-38205 281001520A UD02171SSpecifications
| Kilowatt | 7 kW |
| Length (L.1) | 405 mm |
| Mount Hole Center - Center (O.1) | 178 mm |
| Mount Hole Center - Center (O.2) | 165 mm |
| Mount Hole Center - Center (O.3) | 120 mm |
| Mount Hole Diameter (C.1) | 16 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| Mount Hole Diameter (C.3) | 16 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 42 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 122 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | Engine | [EK100] | 01.1984-12.1994 |
| HINO | Engine | [EK200] | 01.1981-12.1985 |
| HINO | Engine | [EK200] | 01.1981-12.1995 |
| HINO | Engine | [EM100] | 01.1984-12.1994 |
| HINO | Engine | [EP100] | 01.1984-12.1994 |
| HINO | Excavator | [EX300] | 01.1988-12.1991 |
| HINO | Excavator | [UH07-5] | 01.1987-12.1995 |
| HINO | Excavator | [UH09-7] | 01.1987-12.1995 |
Reference Information
UD02171S STR3106 200-38205 S9131 03507020040 281001520AVideo/Publications
