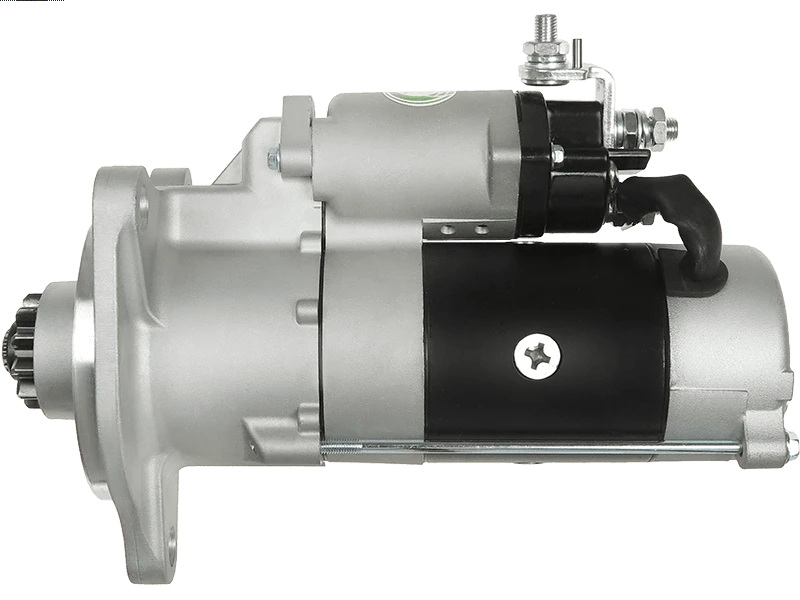

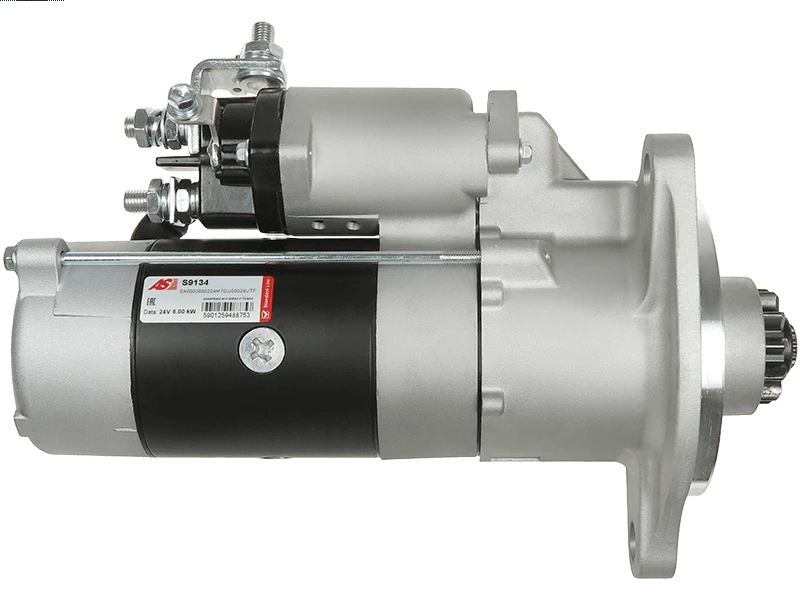

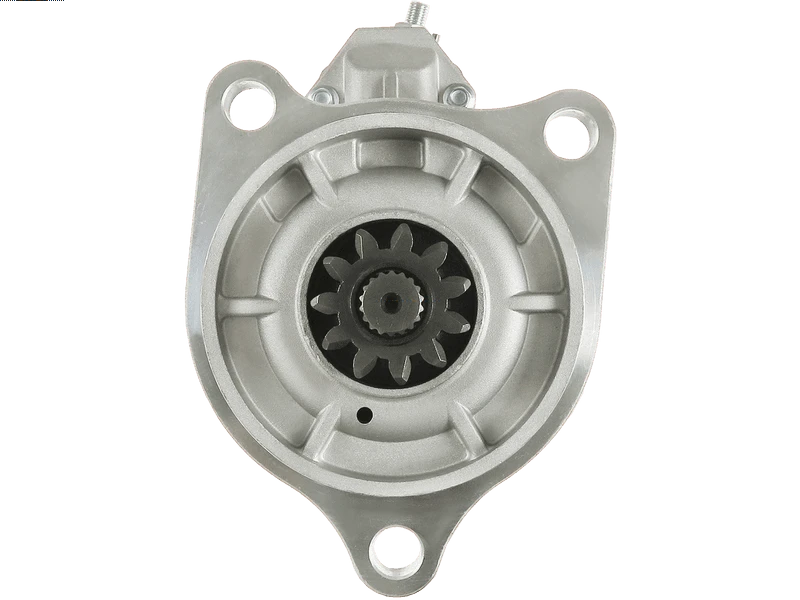

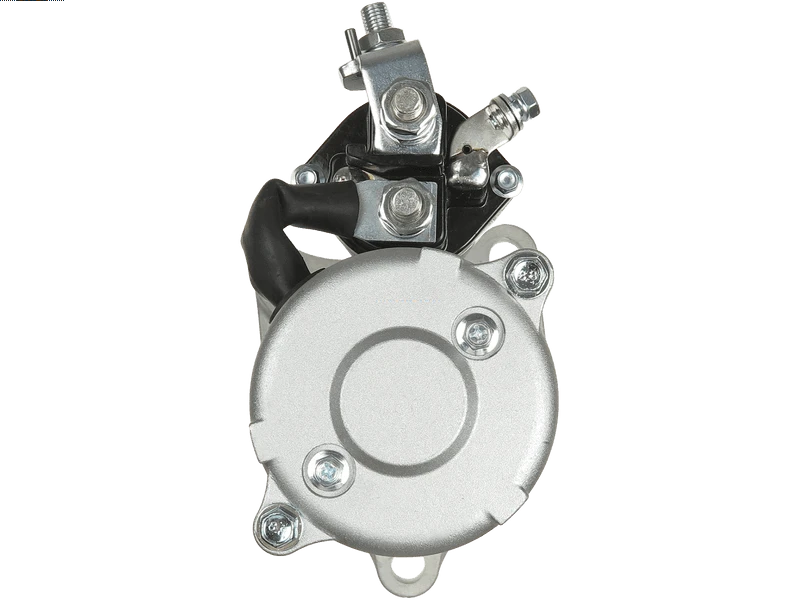

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 824.56 including GST
NZ$ 717.01 excluding GST
or four payments of $206.14
with
Learn More
each
S9134
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
03656020028Associated Numbers
03656020025 03656020028 03656020060 186-35067 247-60205 2810-02875 28100-0296 28100-2875 28100-2875C UD02179SSpecifications
| Kilowatt | 6 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 147 mm |
| Mount Hole Center - Center (O.2) | 152 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | 16 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| Mount Hole Diameter (C.3) | 16 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 43 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 122 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HINO | 700 | [3KC1] | |
| HINO | Engine | [E13C] | |
| HINO | Engine | [K13C] | |
| HINO | Engine | [P11C] |
Reference Information
28100-2875C STRJ626 28100-2875 6037612.0 186-35067 20444216BN 247-60205 MAV396120A 28100-0296 03656020060 CST37612AS 2810-02875 03656020025 UD02179S 03656020028Video/Publications
