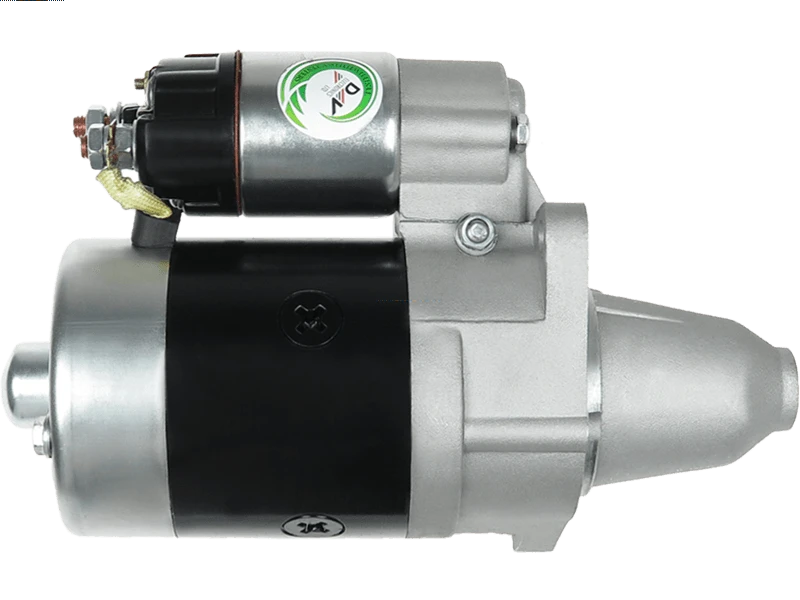

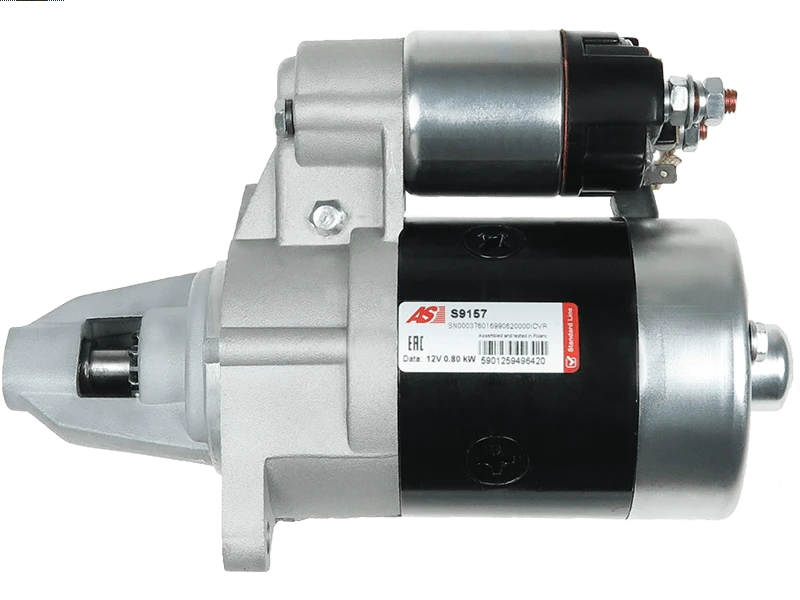

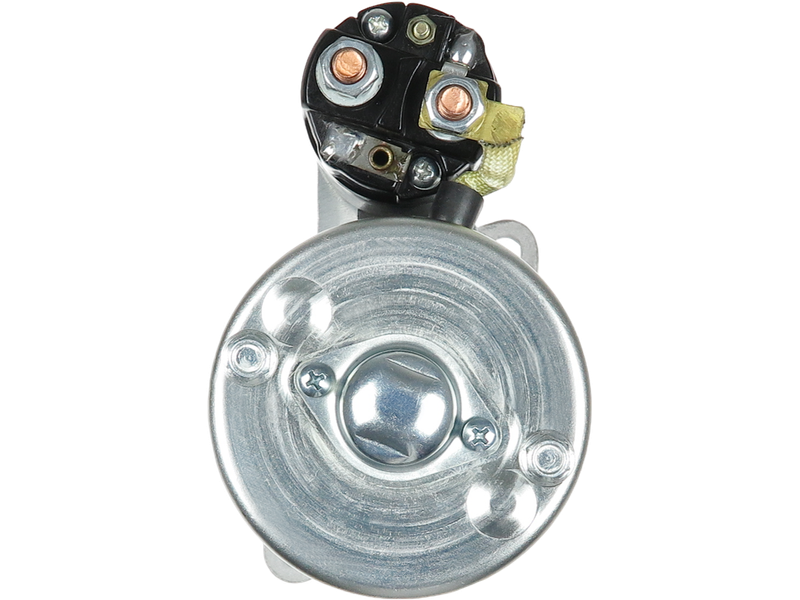

S9157 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.8 kW
Length (L.1)	236 mm
Mount Hole Center - Center (O.1)	110 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	8 qty
OEM Product	No
Pinion at Rest (B)	32 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	65 mm
Unit Type	DAIHATSU
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
DAIHATSU	Hijet 0.8	[CD]	06.1986-12.1989
DAIHATSU	Hijet 1.0	[CB]	06.1986-12.1989
DAIHATSU	Hijet 1.0	[CB41]	12.1992-05.1998
DAIHATSU	Hijet 1.0 4WD	[CB10]	07.1986-10.1990
DAIHATSU	Hijet 1.0 i	[CB42]	07.1994-05.1998
PIAGGIO	Porter 1.0	[CB41]	02.1993-05.1998

Reference Information

20432401BN RNL901JS CST40104AS DS4417 TM000A05201 0001112036 28100-87526 28100-87548 STN0901 220311 PRSS502 0986023790 DRS3307 6040104 31161R 580018 111088 600880 110.507.092.215 3778 25-0173 120-20318 CGB-50173 128000-3621 28100-87510 2810087526 128000-3662 M002T41085 JS901 28100-87526-000 STR6216 28100-87517 LRT00158 28100-87548-000 AA10118400 335751 STRS502 028000-9470 STRS502G MAV421040 STR70018 PRSS502G UD02213S STX200894 M2T41085 MAV421040A
