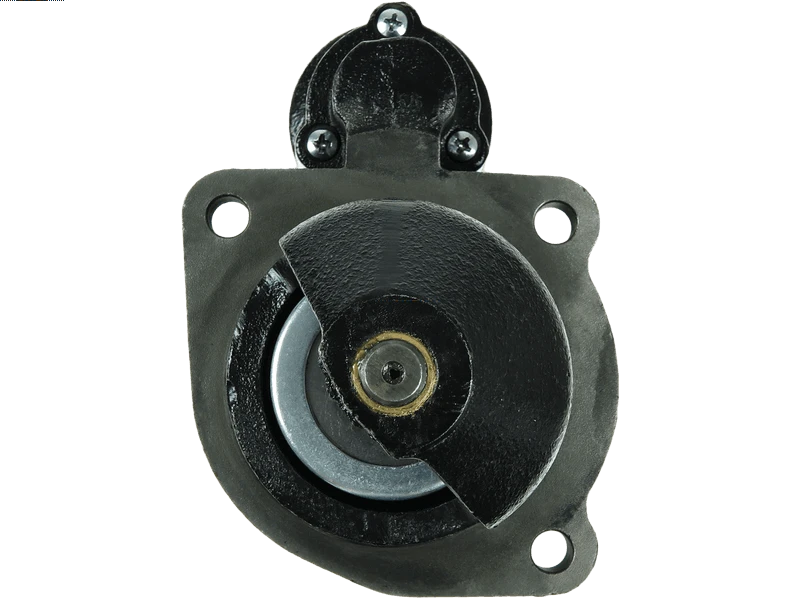

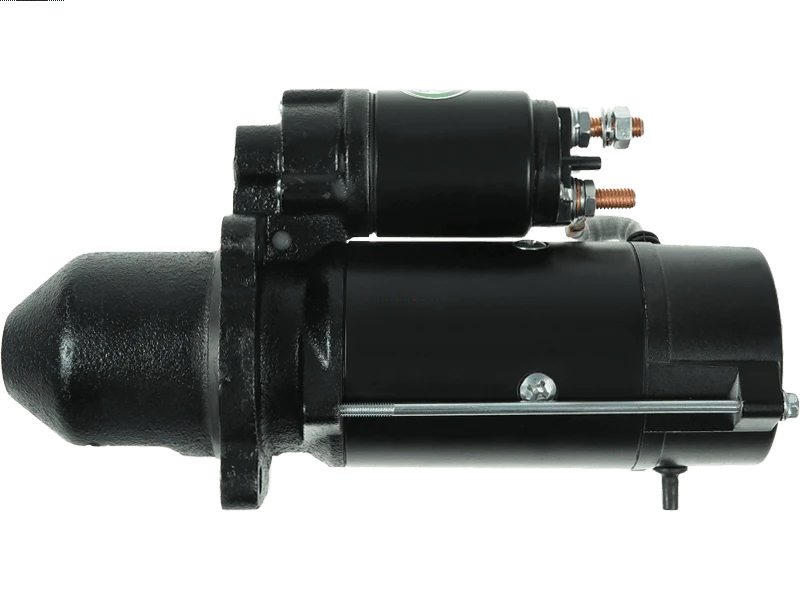

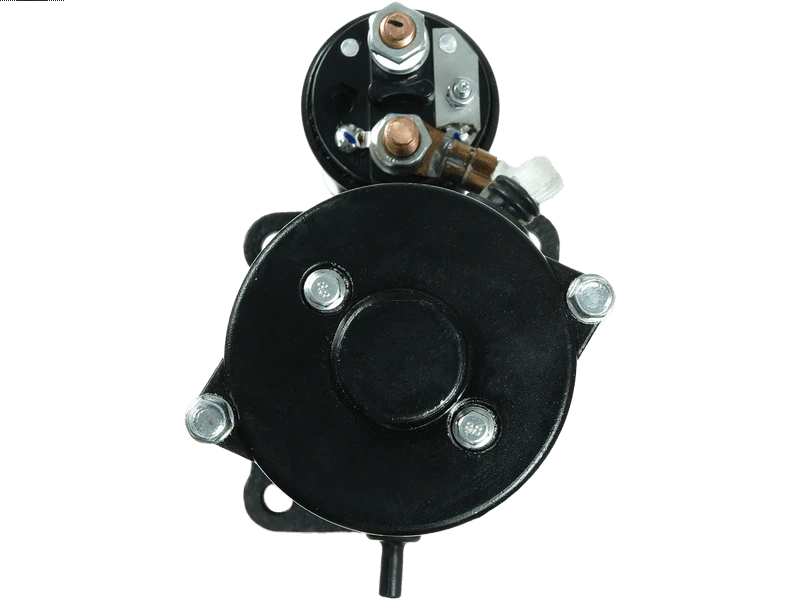

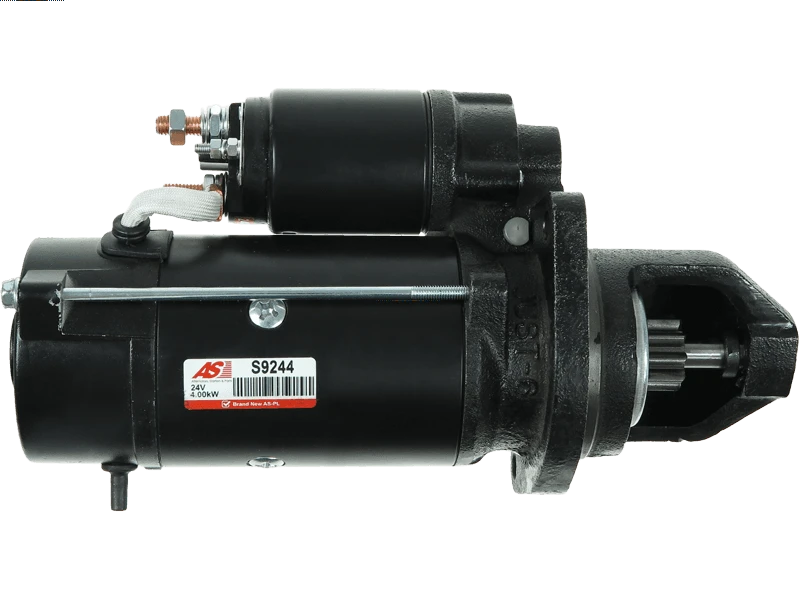

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 578.39 including GST
NZ$ 502.95 excluding GST
or four payments of $144.60
with
Learn More
each
S9244
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.359Associated Numbers
0986023450 10455500 10461283 10461468 10461469 10461486 10479622 10479623 10496884 11.131.359 11131359 1113277 1113291 1113594 1516994R 1998459 1998488 201-28201 23498A 323911 3604677RX 3675204 3675204RX 3909914 3918377 3926932 60857 60857D 60857N 6510R 6582N 860318 91-01-4361 AZF4594 C4929600 IS1140 JB243708623 MAHMS242 MS242 S9244 SG9171 TS-1602 UD12177SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 322 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11.5 mm |
| Mount Hole Diameter (C.2) | 11.5 mm |
| Mount Hole Diameter (C.3) | 11.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | 6BT 5.9 | 01.1994- | |
| CUMMINS | 6BTA-200C 5.9 | ||
| CUMMINS | 6BT C 5.9 | ||
| DRESSER | 510B 3.9 | [4BT] | 01.1990-12.1993 |
| HATZ | Engine 0.7 | [2W35] | |
| KAMAZ | 4308 4.2 3.9 | ||
| KAMAZ | 4308 5.9 | ||
| SAMSUNG | SF130 3.9 | 01.1992-01.1998 | |
| TIMBERJACK | 608 5.9 | 01.1995- |
Reference Information
60857D S9244 10455500 60857N CGB-1602 3604677RX 3926932 10461468 10461469 1998488 4935789 10496884 MAV626000 10479623 1998459 11131359 MS MS242 3909914 STR7968 10461283 242 1113291 23498A 3675204 323911 3918377 TS-1602 JB243708623 STRS195 339007 0986023450 10461486 11.131.359 C4929600 S24DR0092A2 10479622 201-28201 SG9171 6582N 6510R MAHMS242 1113277 220601 60857 1516994R 91-01-4361 UD12177S AZF4594 860318 1113594 3675204RX IS1140Video/Publications
