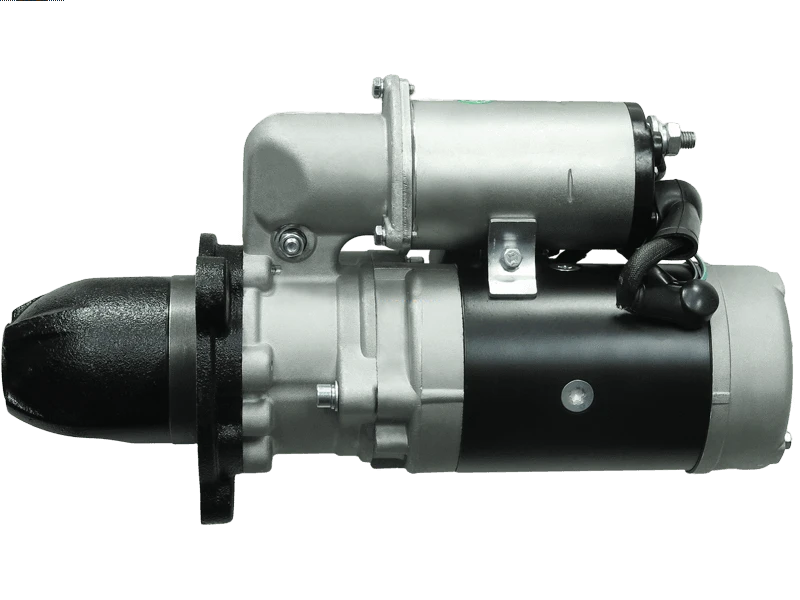

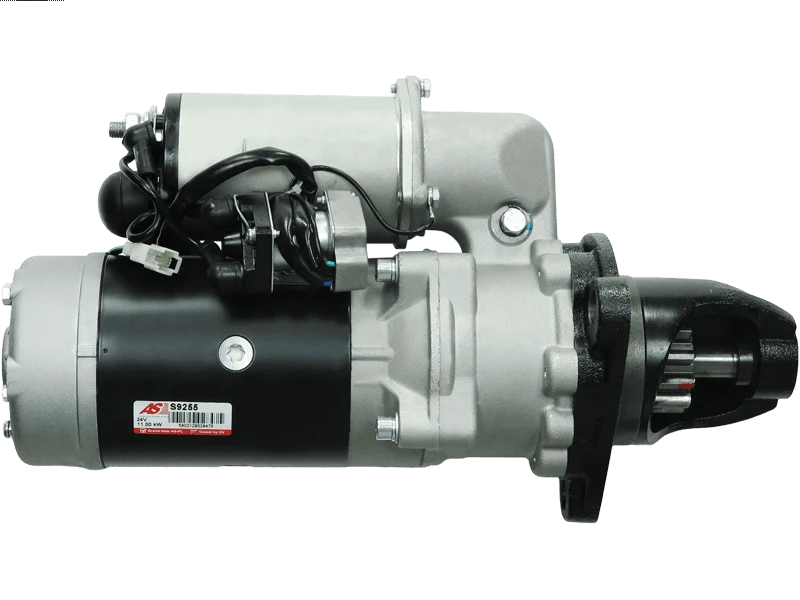

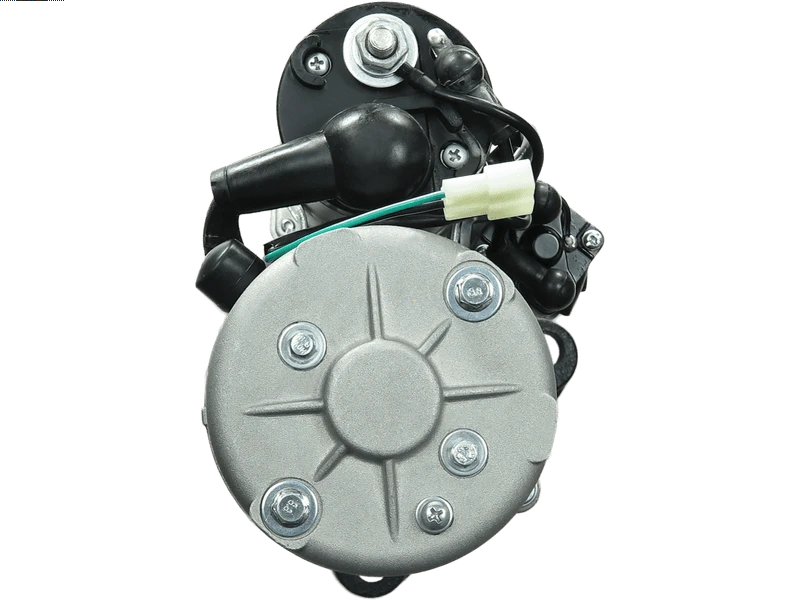

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
NIKKO
Price:
NZ$ 854.00 including GST
NZ$ 742.61 excluding GST
or four payments of $213.50
with
Learn More
each
S9255
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0230008110 0230008111 0230008112 0230008115 0230008490 185-23016 244-11202G 6008138110 6008138130 6008139510 6008139511 6008139512 6008139540 6050640 6050641 91-30-6017 941.518.113 CST50640 CST50640AS CST50640ES CST50640GS CST50640OS CST50640RS CST50641 CST50641AS CST50641ES CST50641GS CST50641OS CST50641RS NIK0-23000-8115 S-80482 S9255 STR75230 UD90322S UNIT BOM 185-303Specifications
| Kilowatt | 11 kW |
| Length (L.1) | 424 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 17 mm |
| Mount Hole Diameter (C.2) | 17 mm |
| Mount Hole Diameter (C.3) | 17 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 46.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | NIKKO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOMATSU | D375 | [SA170B] | 01.1989-12.1999 |
| KOMATSU | D375A | ||
| KOMATSU | Engine | [QSK23] | |
| KOMATSU | HD375A-2 | [SA6D170] | 01.1990-12.2000 |
| KOMATSU | PC1000 | [SA6D170] | 01.1989-12.1991 |
| KOMATSU | PC1250-7 | ||
| KOMATSU | PC1250LC | ||
| KOMATSU | WA600-3 | ||
| KOMATSU | WA600-6 | ||
| KOMATSU | WA600-6-6R | ||
| KOMATSU | WA700-3 |
Reference Information
6050641 6050640 UD90322S 6008139511 6008139512 CST50640GS NIK0-23000-8115 941.518.113 6008138110 6008139540 6008138130 CST50641OS STR8862 CST50640OS STRE119 STR75230 S9255 BOM 230008112 230008111 UNIT S-80482 230008115 CST50641AS 230008490 CST50640AS 230008110 CST50641ES CST50640ES CST50641GS 6008138541 6008139510 185-23016 6008138540 244-11202G 185-303 CST50641 91-30-6017 CST50641RS CST50640RS CST50640Video/Publications
