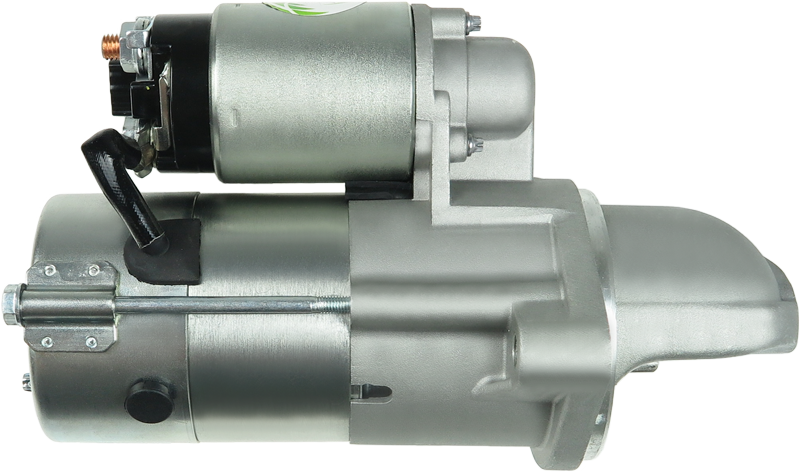

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
HYUNDAI / KIA
Price:
NZ$ 485.24 including GST
NZ$ 421.95 excluding GST
or four payments of $121.31
with
Learn More
each
S1081S
S9256
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
36100-2F000Associated Numbers
115626 12332 150.567.112 20493341 25-4211 254874 31271N 31271N-OS 36100-2F000 36100-2F050 361002F000 6032143 8000269 8000530 88214380 8EA011611-901 90027865 9787 AEY2539 CST32143 CST32143AS CST32143ES CST32143GS CST32143OS CST32143RS DRS0616 DRS0616N DS1726 DS1726N EAA-122824 J5210526 LRS02539 S9256 SG1126 STD2539 STR80179 UD12075SSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 224 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 80 mm |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Grand Santa Fe 2.2 CRDi 4x4 | [D4HB] | 10.2015- |
| HYUNDAI | ix35 2.0 CRDi | [D4HA] | 01.2010- |
| HYUNDAI | ix35 2.0 CRDi | [D4HA] | 01.2012- |
| HYUNDAI | ix35 2.0 CRDi 4x4 | [D4HA] | 01.2010- |
| HYUNDAI | ix35 2.0 CRDi AWD | [D4HA] | 01.2012- |
| HYUNDAI | Santa Fe 2.0 CRDi | [D4HA] | 05.2015- |
| HYUNDAI | Santa Fe 2.0 CRDi | [D4HA] | 09.2012- |
| HYUNDAI | Santa Fe 2.0 CRDi | [D4HA] | 12.2010- |
| HYUNDAI | Santa Fe 2.0 CRDi 4WD | [D4HA] | 09.2012- |
| HYUNDAI | Santa Fe 2.0 CRDi 4x4 | [D4HA] | 12.2010- |
| HYUNDAI | Santa Fe 2.2 CRDi | [D4HB] | 01.2009- |
| HYUNDAI | Santa Fe 2.2 CRDi | [D4HB] | 09.2012- |
| HYUNDAI | Santa Fe 2.2 CRDi | [D4HB] | 10.2015- |
| HYUNDAI | Santa Fe 2.2 CRDi 4WD | [D4HB] | 09.2012- |
| HYUNDAI | Santa Fe 2.2 CRDi 4WD | [D4HB] | 10.2015- |
| HYUNDAI | Santa Fe 2.2 CRDi 4x4 | [D4HB] | 01.2009- |
| KIA | Carnival 2.2 CRDi | [D4HB] | 01.2010- |
| KIA | Sedona 2.2 CRDi | [D4HB] | 01.2010- |
| KIA | Sorento 2.0 CRDi | [D4HA] | 11.2010- |
| KIA | Sorento 2.0 CRDi 4x4 | [D4HA] | 11.2010- |
| KIA | Sorento 2.2 CRDi | [D4HB] | 11.2009- |
| KIA | Sorento 2.2 CRDi 4WD | [D4HB] | 11.2009- |
| KIA | Sportage 2.0 CRDi | [D4HA] | 07.2010- |
| KIA | Sportage 2.0 CRDi | [D4HA] | 08.2010- |
| KIA | Sportage 2.0 CRDi AWD | [D4HA] | 07.2010- |
| KIA | Sportage 2.0 CRDi AWD | [D4HA] | 08.2010- |
Reference Information
10032143AV SKSTR-0330310 RNL36100-2F000 LRS2539 9787 RAS31727 STR2708 ST01717 DRS0616 8EA011611-901 S1351R 150.567.112.415 25-4211 SMA143 UD12075S 1986S00606 STX201075 6032143.1 SG1126 011-001-000108R ANM12836 6032143.0 WG2013464 EX361002F055 TT16347 AC-CBS1522 F032115626 36100-2F055 90027865 CS1522 003-C106 803-07005 SG1126RB 115626 36100-2F050 S102471 3112015 324070112 3112019 3112018 STD2539 2S0311 MAV341430A CST32143GS WOOSTR80179 36100-2F000 CMA-622824 S12HY0214A2 11040812 KI9012 STR80179 ANM12836X SMA143A 88214380 S105254 10032143OV 8080432 8214380 2S0311R 8000530 EST-3023 LRS02539 12332 46KI013 MTC106 S9256 460215 107402 3C106 06-10231-SX 20493341OE J5210526 DRS0616N 254874 31271N 336047 0986026010 STRL672 CGB-20616 20493341BN 150.567.112.390 S102090 CST32143AS IR9901 S-80179 150.567.112.030 A79400 8000269 AZMT-53-010-1274 332ST21 254874D EX361002F000 5060310 QRS2561Video/Publications
