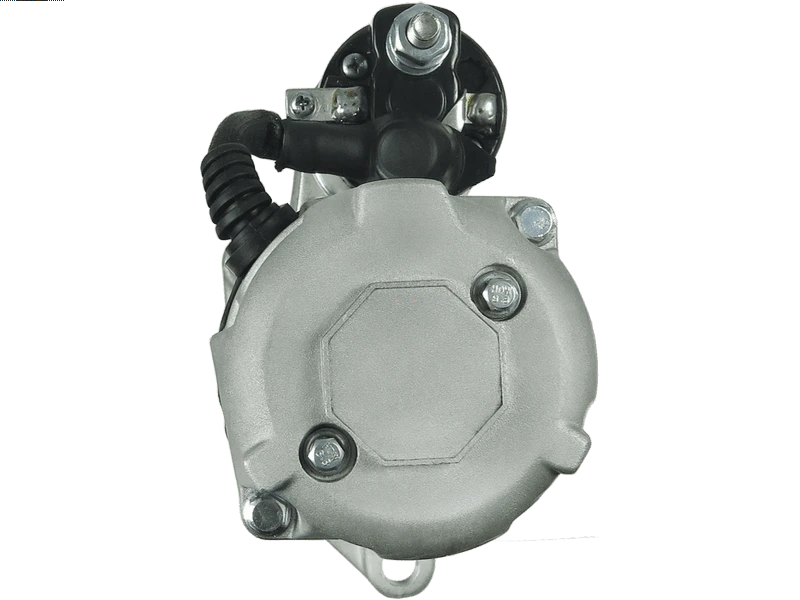

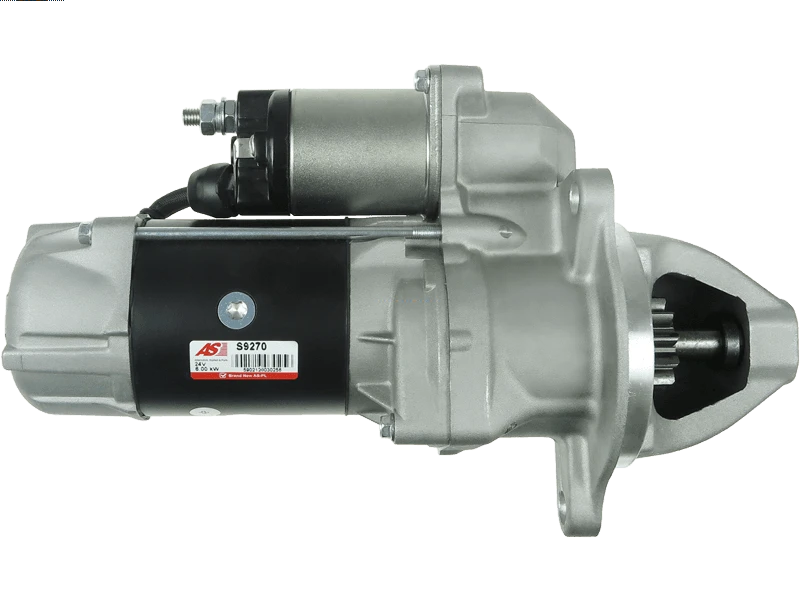

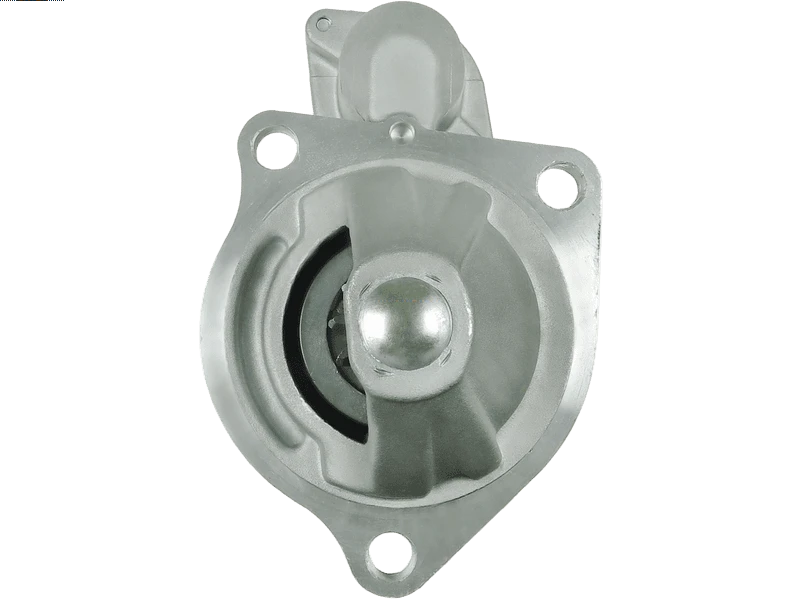

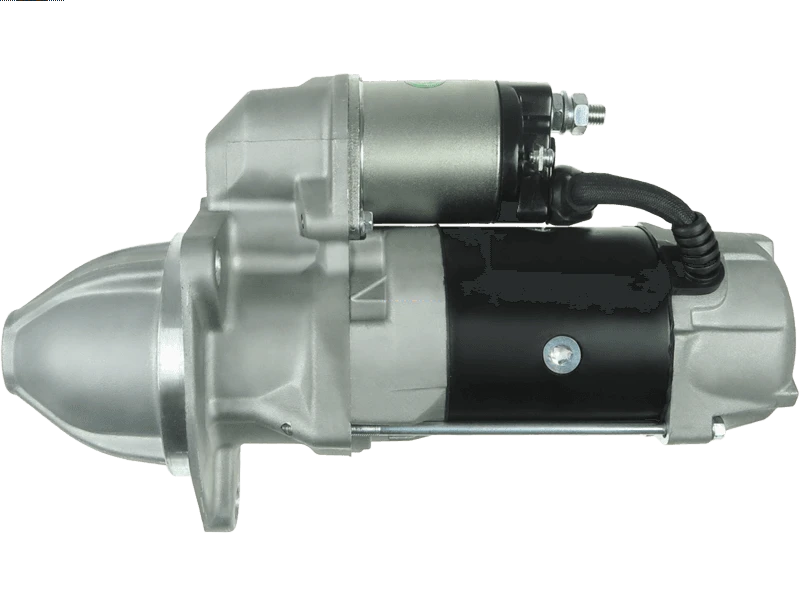

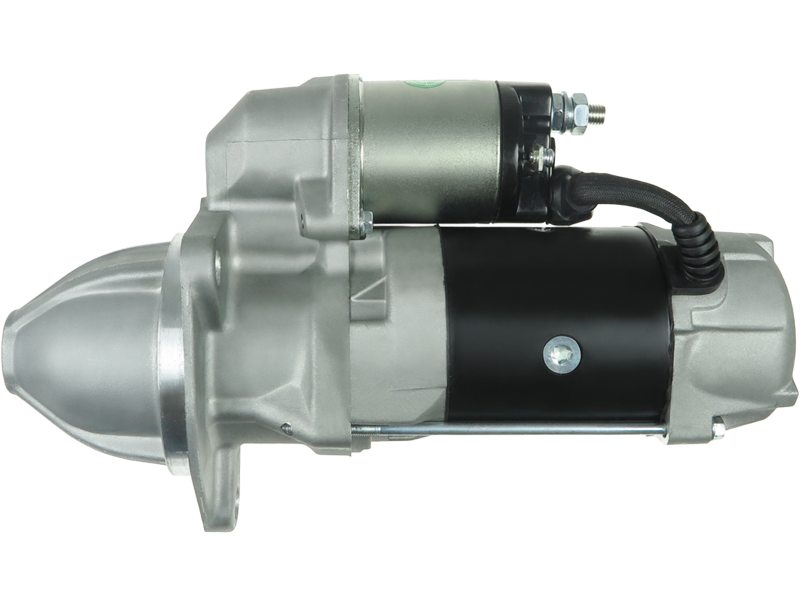

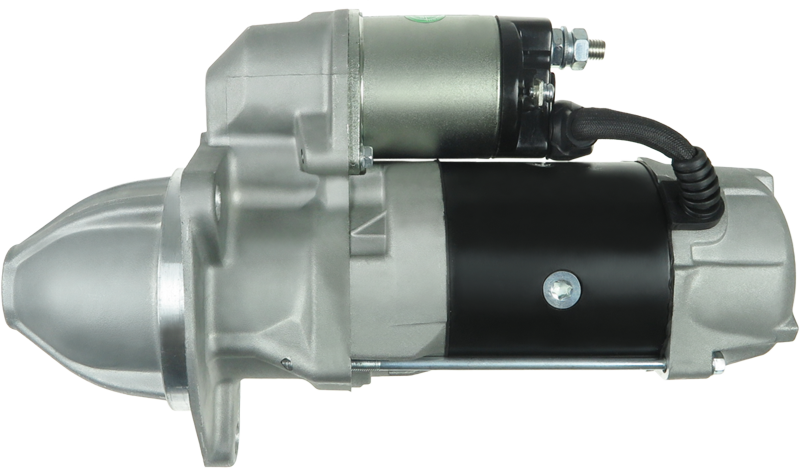

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SAWAFUJI
Price:
NZ$ 634.82 including GST
NZ$ 552.02 excluding GST
or four payments of $158.71
with
Learn More
each
S9270
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0350-602-0230 161.504.113 186-35030 23300-97505 247-60204 UD11115S
SXS714 SNJ155 16943 16-943
031228050 Nissan
031228080 Nissan
03505020092 Sawafuji
03506020090 Sawafuji
03506020091 Sawafuji
03506020230 Sawafuji
03506020320 Sawafuji
03506020321 Sawafuji
161504113 PSH
2330097077 Nissan
2330097505 Nissan
2330097507 Nissan
2330097509 Nissan
2330097516 Nissan
Specifications
| Kilowatt | 6 kW |
| Length (L.1) | 394 mm |
| Mount Hole Center - Center (O.1) | 145 mm |
| Mount Hole Center - Center (O.2) | 153 mm |
| Mount Hole Center - Center (O.3) | 105 mm |
| Mount Hole Diameter (C.1) | 16 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| Mount Hole Diameter (C.3) | 16 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 122 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Engine | [CD54] | |
| NISSAN | Engine | [P-CW54] | |
| NISSAN | Engine | [P-RA53] | |
| NISSAN | Engine | [RF8] |
Reference Information
