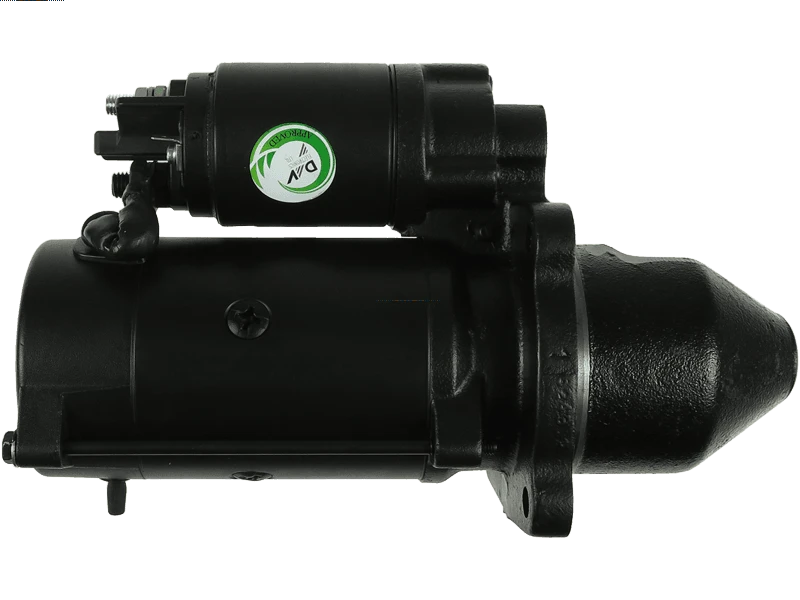

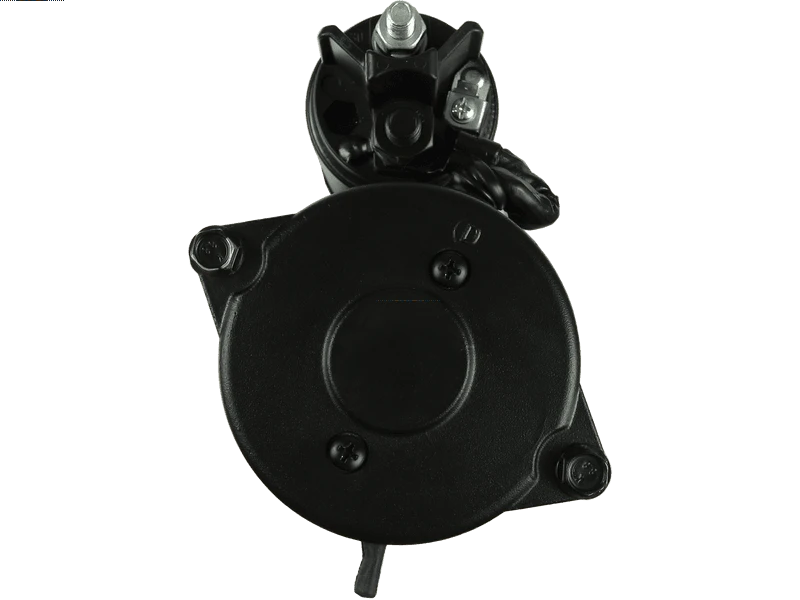

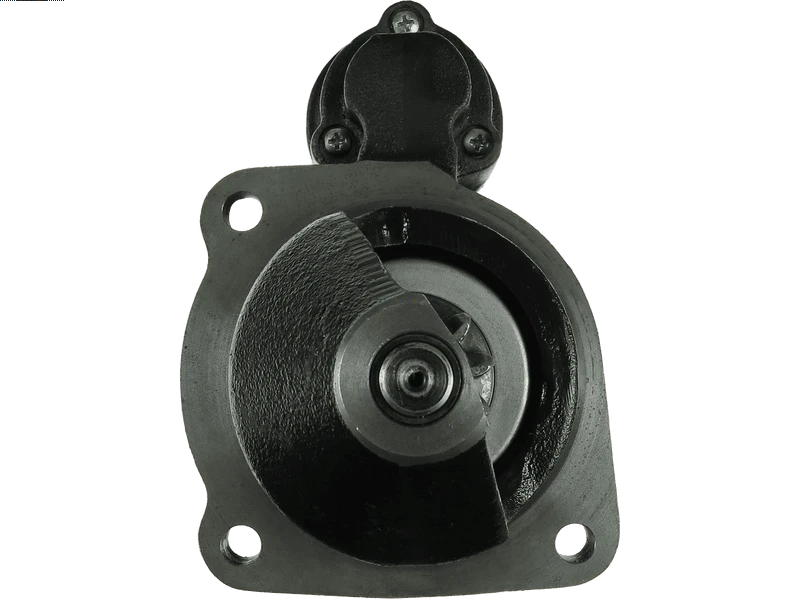

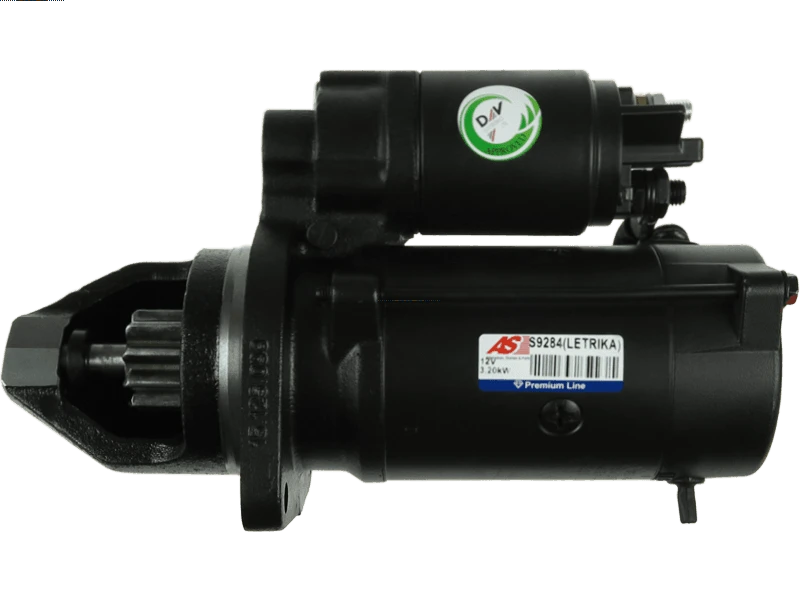

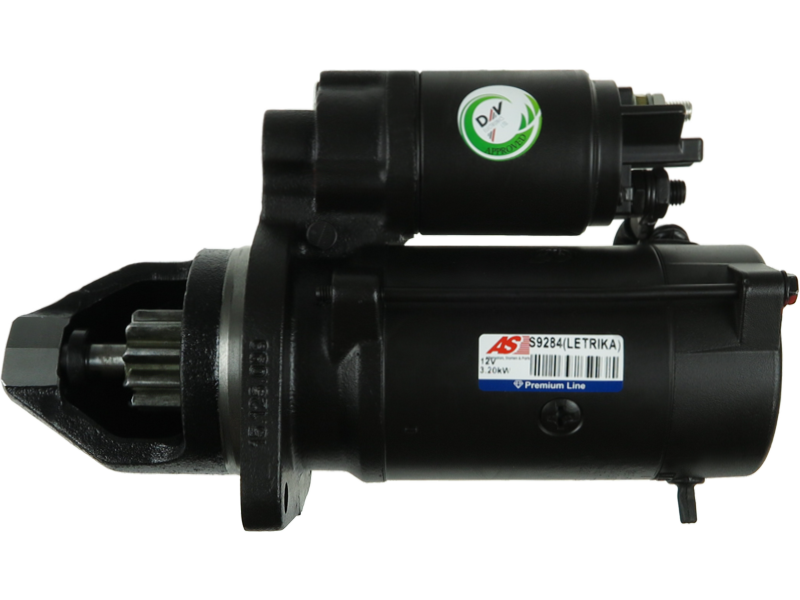

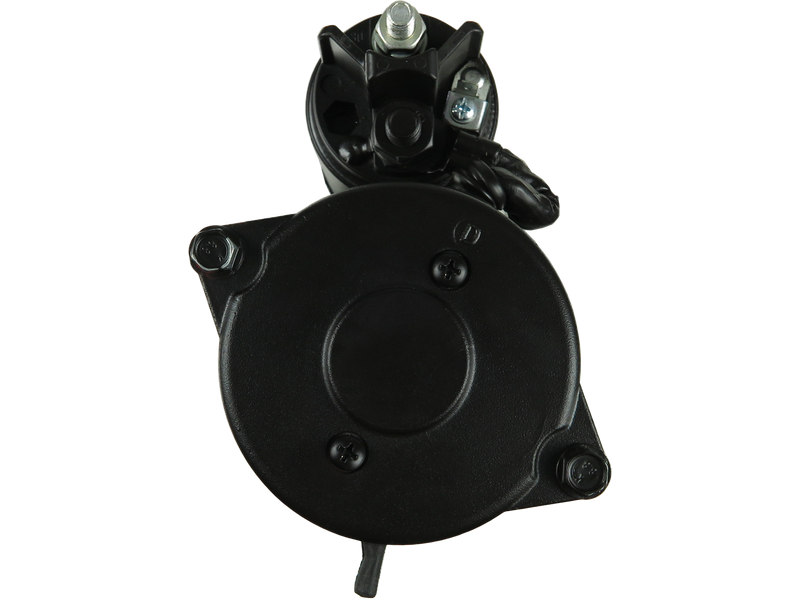

Brand new OEM ISKRA / LETRIKA Starter motor
PREMIUM LINE
Letrika
ISKRA / LETRIKA
Price:
NZ$ 1,236.18 including GST
NZ$ 1,074.94 excluding GST
each
S9284(LETRIKA)
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001354107 0001362310 0001362527 0001367042 10106 10461483 10461607 10461635 10461638 11.132.010 1107867 1109270 1113284 12301335 17077N 1998343 20500240 323-678 3575730 3575730RX 3675130 3675130RX 403300R92 529965R92 537140R95 537140R96 6021171 72735798 AZE4217 CS106 CST21171 CST21171AS CST21171ES CST21171GS CST21171OS CST21171RS IS1315 MAHMS170 MS170 SG9061 UD809661(LETRIKA)SSpecifications
| Kilowatt | 3.2 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 3220 2.9 | [3-179] | 01.1994-01.1997 |
| CASE | 3230 3.4 | [4-206] | 01.1994-01.1997 |
| CASE | 380B | ||
| CASE | 380 B | 01.1987-12.1993 | |
| CASE | 385 | [3-155] | 01.1985-01.1990 |
| CASE | 395 | [3-155] | 01.1991-01.1993 |
| CASE | 4210 3.4 | [4-239] | 01.1994-01.1997 |
| CASE | 4230 4.4 | [4-268] | 01.1994-01.1997 |
| CASE | 4240 4.4 | [4-268] | 01.1994-01.1997 |
| CASE | 485 2.9 | [3-179] | 01.1985-01.1990 |
| CASE | 495 2.9 | [3-179] | 01.1991-01.1994 |
| CASE | 495 XL 2.9 | [3-179] | 01.1991-01.1994 |
| CASE | 585 3.4 | [4-206] | 01.1983-12.1990 |
| CASE | 585 L 3.4 | [4-206] | 01.1983-12.1990 |
| CASE | 585 XL 3.4 | [4-206] | 01.1983-12.1990 |
| CASE | 595 3.4 | [4-206] | 01.1991-01.1994 |
| CASE | 595 XL 3.4 | [4-206] | 01.1991-01.1994 |
| CASE | 685 3.9 | [4-239] | 01.1985-01.1990 |
| CASE | 695 3.9 | [4-239] | 01.1991-01.1994 |
| CASE | 785 | 01.1981-12.1986 | |
| CASE | 785 XL | 01.1981-12.1986 | |
| CASE | 795 | 01.1990-12.1994 | |
| CASE | 885 4.4 | [4-268] | 01.1985-01.1990 |
| CASE | 885 N 4.4 | [4-268] | 01.1985-01.1990 |
| CASE | 885 XL 4.4 | [4-268] | 01.1985-01.1990 |
| CASE | 895 4.4 | [4-268] | 01.1991-01.1994 |
| CASE | 995 4.4 | [4-268] | 01.1991-01.1994 |
| IH | 125 B2 4.0 | [D-239] | 06.1973-12.1986 |
| IH | 2400 GD | [D-179] | 06.1973-12.1986 |
| IH | 2500 GD | [D-239] | 06.1973-12.1986 |
| IH | 3400 | [D-179] | 01.1973-12.1975 |
| IH | 3400 | [D-239] | 01.1973-12.1975 |
| IH | 3400 GD | [D-179] | 07.1969-12.1986 |
| IH | 3500 | [D-239] | 01.1971-12.1980 |
| IH | 3500 GD | [D-239] | 07.1969-12.1986 |
| IH | 3800 | [D-239] | 01.1973-12.1975 |
| IH | 384 | [D-155] | 10.1978-01.1982 |
| IH | 384 | [D-179] | 10.1978-01.1982 |
| IH | 431 4.0 | [D-239] | 02.1973-12.1985 |
| IH | 454 | [D-179] | 01.1973-12.1977 |
| IH | 454 GD | [D-179] | 10.1970-12.1975 |
| IH | 474 | 10.1970-12.1975 | |
| IH | 484 | [D-179] | 01.1978-01.1984 |
| IH | 523 A 3.0 | [D-179] | 06.1965-12.1971 |
| IH | 544 GD 4.0 | [D-239] | 04.1969-12.1970 |
| IH | 544 HS | [D-239] | 01.1972-12.1977 |
| IH | 544 HS 4.0 | [D-239] | 04.1969-12.1970 |
| IH | 553 A 3.0 | [D-179] | 03.1972-01.1974 |
| IH | 574 | [D-239] | 01.1973-12.1975 |
| IH | 574 GD | [D-239] | 10.1970-12.1985 |
| IH | 574 GD 4.0 | [D-239] | 04.1969- |
| IH | 574 HS 4.0 | [D-239] | 01.1970-12.1985 |
| IH | 574 HS 4.0 | [D-239] | 04.1969-12.1970 |
| IH | 584 | [D-206] | 01.1978-01.1984 |
| IH | 633 A | [D-179] | 01.1975-12.1985 |
| IH | 633 E | [D-179] | 01.1975-12.1985 |
| IH | 633 V | [D-179] | 01.1975-12.1985 |
| IH | 664 | [D-239] | 01.1972-12.1977 |
| IH | 674 | [D-239] | 01.1973-12.1975 |
| IH | 684 | [D-239] | 01.1978-01.1984 |
| IH | 743 4.0 | [D-239] | 04.1980-12.1985 |
| IH | 743 XL 4.0 | [D-239] | 07.1981-12.1985 |
| IH | 743 XLA 4.0 | [D-239] | 07.1981-12.1985 |
| IH | 744 4.0 | [D-239] | 02.1974-06.1984 |
| IH | 744A 4.0 | [D-239] | 02.1974-06.1984 |
| IH | 745 S 4.0 | [D-239] | 04.1980-12.1985 |
| IH | 745 XL 4.0 | [D-239] | 07.1981-12.1985 |
| IH | 745 XLA 4.0 | [D-239] | 07.1981-12.1985 |
| IH | 784 | [D-246] | 01.1978-01.1984 |
| IH | 884 | [D-268] | 01.1979-01.1984 |
| IH | TD 7E 4.0 | [D-239] | 09.1973-12.1986 |
Reference Information
CST21171OS 20500240 MS170 0001354107 CST21171 3675130 12301335 0001362527 CST21171GS STR79315 3575730RX 1107867 72735798 CST21171RS S12ML0671A2 MS 540.013.103.350 10461483 1109270 403300R92 10106 10461635 10461638 AZE4217 STR10063 0001362310 MAHMS170 SG9061 0001367042 IS1315 170 529965R92 CS106 CST21171AS 1998343 CST21171ES 540.013.103.312 10461607 540.013.103.311 17077N 3675130RX 540.013.103.010 540.013.103.098 6021171 540.013.103.090 323-678 11.132.010 S12BH0670A2 537140R95 UD809661(LETRIKA)S 537140R96 3575730Video/Publications
