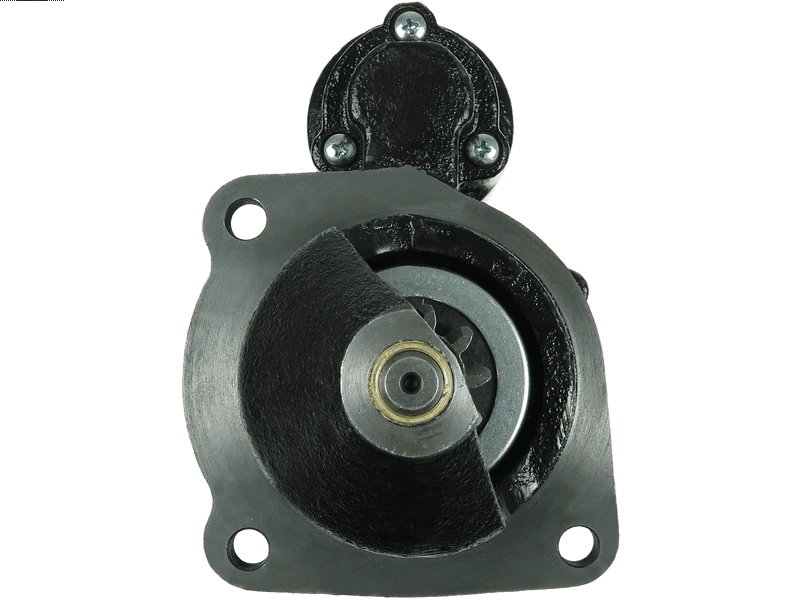

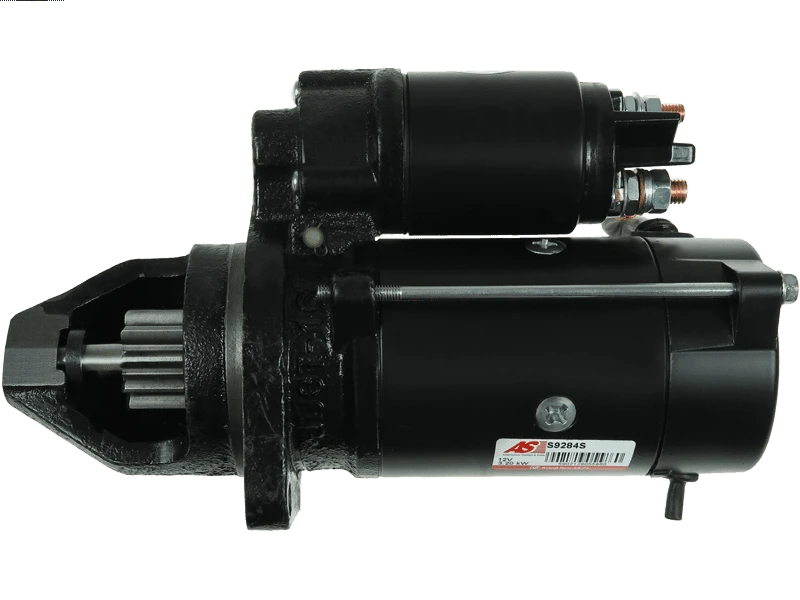

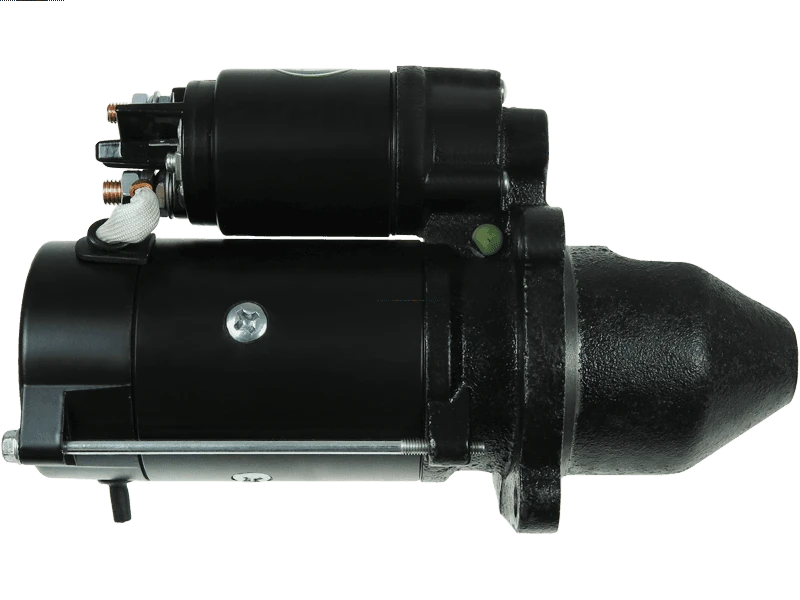

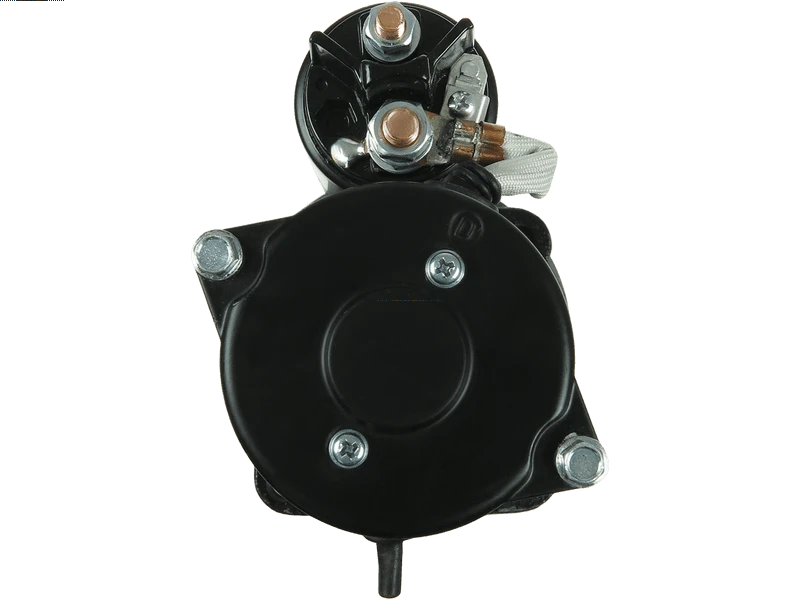

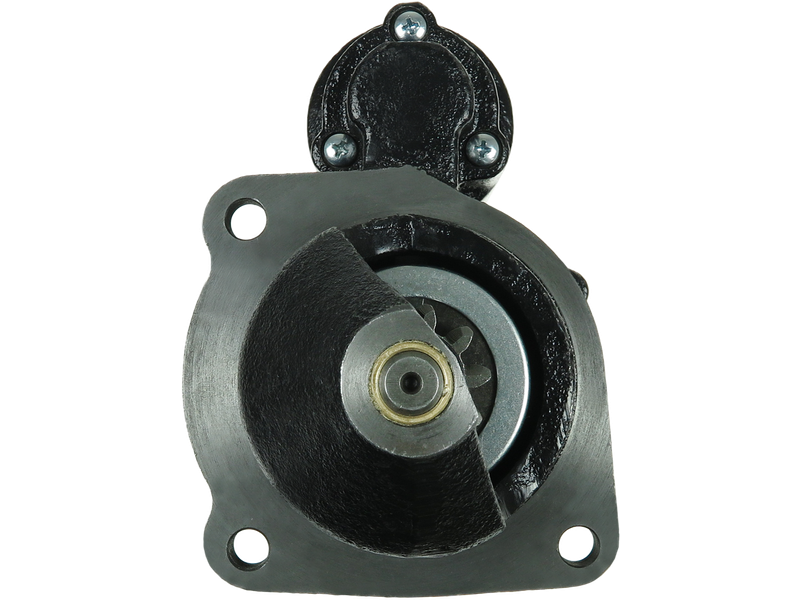

S9284S - Brand new AS-PL Starter motor

Specifications

Kilowatt	3.2 kW
Length (L.1)	286 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
Mount Hole Diameter (C.3)	10.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	48.5 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	ISKRA / LETRIKA
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CASE	3220 2.9	[3-179]	01.1994-01.1997
CASE	3230 3.4	[4-206]	01.1994-01.1997
CASE	380B
CASE	380 B		01.1987-12.1993
CASE	385	[3-155]	01.1985-01.1990
CASE	395	[3-155]	01.1991-01.1993
CASE	4210 3.4	[4-239]	01.1994-01.1997
CASE	4230 4.4	[4-268]	01.1994-01.1997
CASE	4240 4.4	[4-268]	01.1994-01.1997
CASE	485 2.9	[3-179]	01.1985-01.1990
CASE	495 2.9	[3-179]	01.1991-01.1994
CASE	495 XL 2.9	[3-179]	01.1991-01.1994
CASE	585 3.4	[4-206]	01.1983-12.1990
CASE	585 L 3.4	[4-206]	01.1983-12.1990
CASE	585 XL 3.4	[4-206]	01.1983-12.1990
CASE	595 3.4	[4-206]	01.1991-01.1994
CASE	595 XL 3.4	[4-206]	01.1991-01.1994
CASE	685 3.9	[4-239]	01.1985-01.1990
CASE	695 3.9	[4-239]	01.1991-01.1994
CASE	785		01.1981-12.1986
CASE	785 XL		01.1981-12.1986
CASE	795		01.1990-12.1994
CASE	885 4.4	[4-268]	01.1985-01.1990
CASE	885 N 4.4	[4-268]	01.1985-01.1990
CASE	885 XL 4.4	[4-268]	01.1985-01.1990
CASE	895 4.4	[4-268]	01.1991-01.1994
CASE	995 4.4	[4-268]	01.1991-01.1994
IH	125 B2 4.0	[D-239]	06.1973-12.1986
IH	2400 GD	[D-179]	06.1973-12.1986
IH	2500 GD	[D-239]	06.1973-12.1986
IH	3400	[D-179]	01.1973-12.1975
IH	3400	[D-239]	01.1973-12.1975
IH	3400 GD	[D-179]	07.1969-12.1986
IH	3500	[D-239]	01.1971-12.1980
IH	3500 GD	[D-239]	07.1969-12.1986
IH	3800	[D-239]	01.1973-12.1975
IH	384	[D-155]	10.1978-01.1982
IH	384	[D-179]	10.1978-01.1982
IH	431 4.0	[D-239]	02.1973-12.1985
IH	454	[D-179]	01.1973-12.1977
IH	454 GD	[D-179]	10.1970-12.1975
IH	474		10.1970-12.1975
IH	484	[D-179]	01.1978-01.1984
IH	523 A 3.0	[D-179]	06.1965-12.1971
IH	544 GD 4.0	[D-239]	04.1969-12.1970
IH	544 HS	[D-239]	01.1972-12.1977
IH	544 HS 4.0	[D-239]	04.1969-12.1970
IH	553 A 3.0	[D-179]	03.1972-01.1974
IH	574	[D-239]	01.1973-12.1975
IH	574 GD	[D-239]	10.1970-12.1985
IH	574 GD 4.0	[D-239]	04.1969-
IH	574 HS 4.0	[D-239]	01.1970-12.1985
IH	574 HS 4.0	[D-239]	04.1969-12.1970
IH	584	[D-206]	01.1978-01.1984
IH	633 A	[D-179]	01.1975-12.1985
IH	633 E	[D-179]	01.1975-12.1985
IH	633 V	[D-179]	01.1975-12.1985
IH	664	[D-239]	01.1972-12.1977
IH	674	[D-239]	01.1973-12.1975
IH	684	[D-239]	01.1978-01.1984
IH	743 4.0	[D-239]	04.1980-12.1985
IH	743 XL 4.0	[D-239]	07.1981-12.1985
IH	743 XLA 4.0	[D-239]	07.1981-12.1985
IH	744 4.0	[D-239]	02.1974-06.1984
IH	744A 4.0	[D-239]	02.1974-06.1984
IH	745 S 4.0	[D-239]	04.1980-12.1985
IH	745 XL 4.0	[D-239]	07.1981-12.1985
IH	745 XLA 4.0	[D-239]	07.1981-12.1985
IH	784	[D-246]	01.1978-01.1984
IH	884	[D-268]	01.1979-01.1984
IH	TD 7E 4.0	[D-239]	09.1973-12.1986

Reference Information

CST21171OS CGB-25040 20500240 STRL818 MS170 0001354107 CST21171 3675130 12301335 MAV123370 0001362527 CST21171GS STR79315 STR0480 3575730RX 1107867 72735798 CST21171RS S12ML0671A2 MS 540.013.103.350 10461483 1109270 403300R92 10106 10461635 10461638 AZE4217 STR10063 0001362310 MAHMS170 SG9061 0001367042 IS1315 170 529965R92 CS106 CST21171AS UD13627S 1998343 CST21171ES 540.013.103.312 10461607 540.013.103.311 17077N 3675130RX 540.013.103.010 540.013.103.098 6021171 540.013.103.090 323-678 11.132.010 S12BH0670A2 537140R95 537140R96 S9284S 3575730
