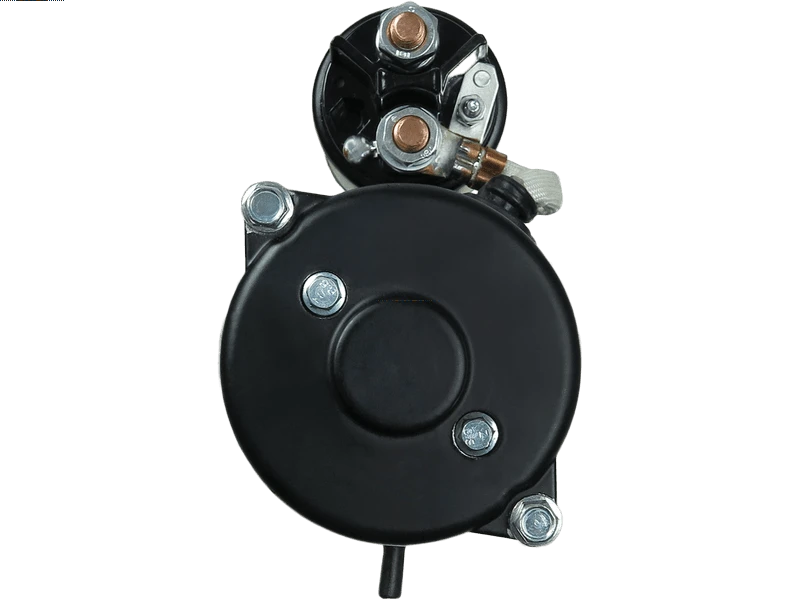

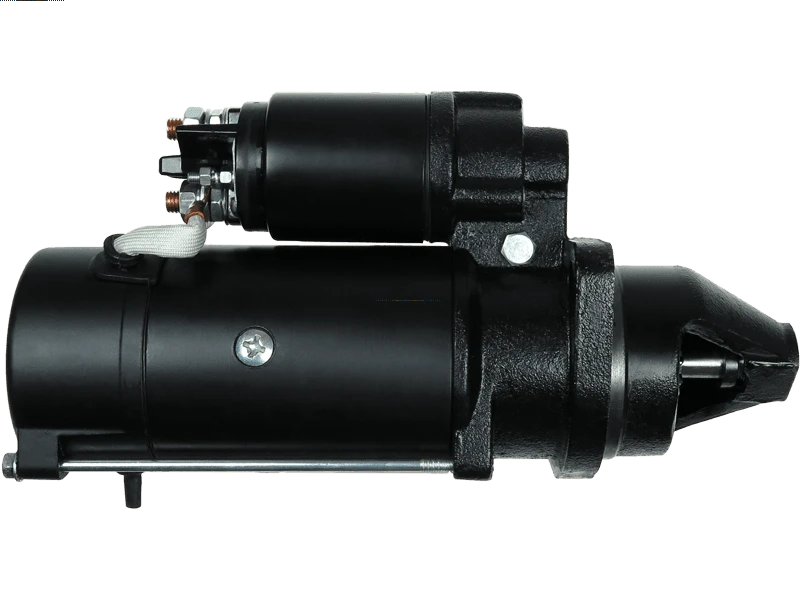

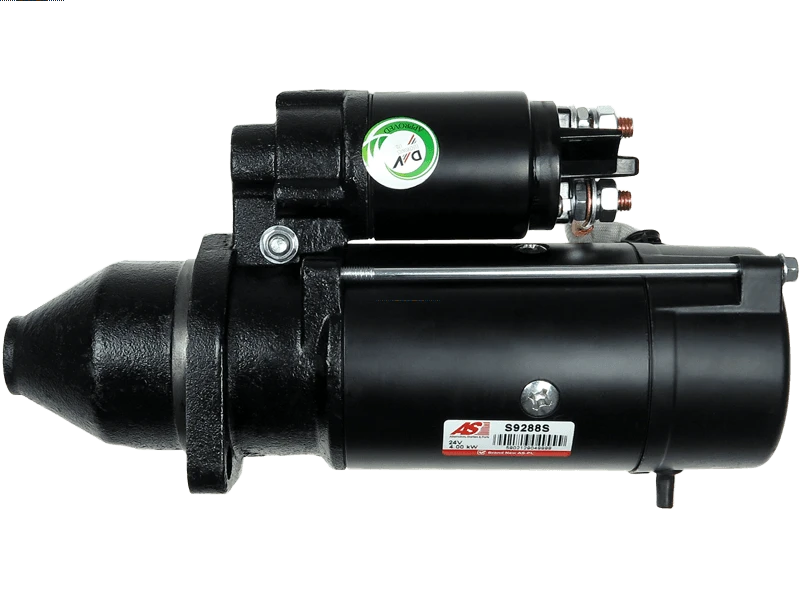

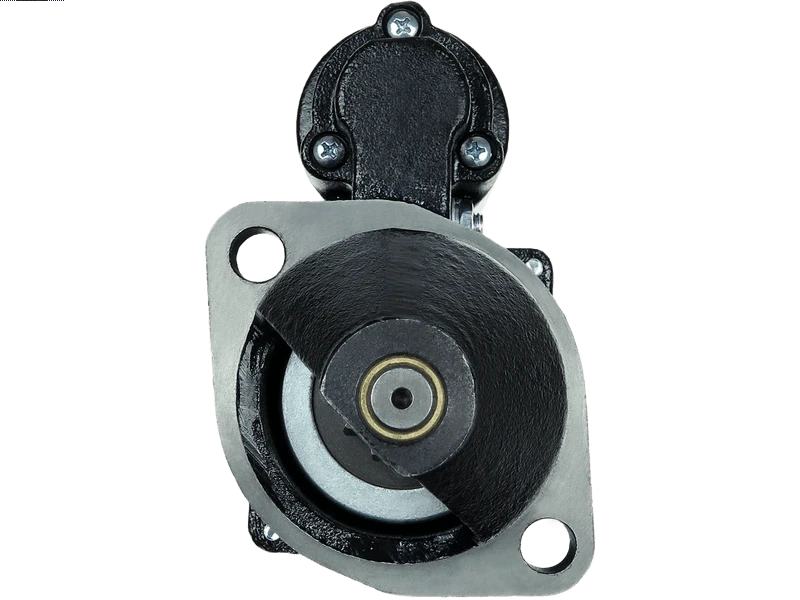

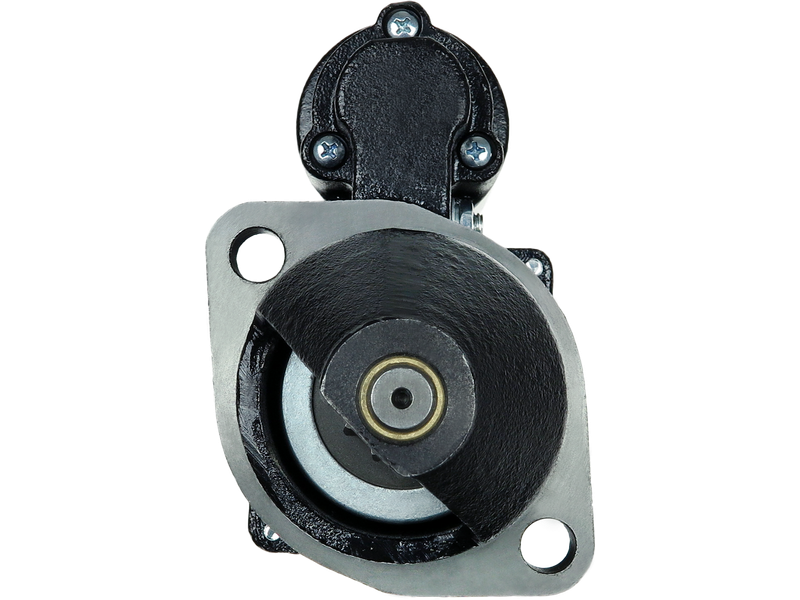

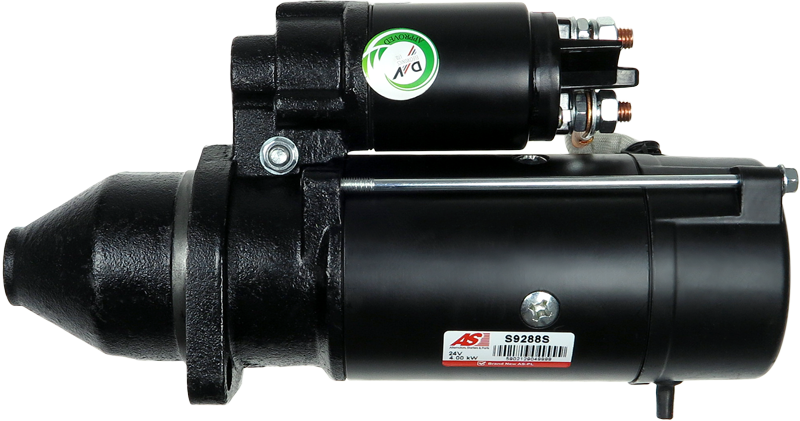

S9288S - Brand new AS-PL Starter motor

Associated Numbers

0-23000-2050 0001368059 02-23-1041 10461444 11.130.662 11.130.797 11.131.274 11.131.376 1113272 120-30364 1998519 255200 260-67225 35259650 6010708 631.001.102 631.504.102 6596N 8477 91-01-4377 AZF4106 AZF4573 AZJ3214 AZJ3326 CST10708 CST10708AS CST10708ES CST10708GS CST10708OS CST10708RS IS1088 MAHMS96 MS96 RE503118 RE51725 RE52120 RE52150 RE522738 RE525799 RE67086 S5007L SE502286 STR20034 TY24303 UD13626S

Specifications

Kilowatt	4 kW
Length (L.1)	322 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	13.5 mm
Mount Hole Diameter (C.2)	13.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	35 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	ISKRA / LETRIKA
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
JOHN DEERE	4039	[3014]
JOHN DEERE	4039DFM	[3014]
JOHN DEERE	4045	[3014]
JOHN DEERE	4045DFM50	[3009]
JOHN DEERE	4045DFM70	[3009]	01.2004-12.2007
JOHN DEERE	4045TFM	[3014]
JOHN DEERE	4045TFM75	[3009]	01.2004-12.2007
JOHN DEERE	CD3029DF	[3014]	01.1990-12.2007

Reference Information

RE52150 MAV123600 AZF4106 RE522738 0-23000-2050 S5007L 260-67225 631.001.102 SE502286 11.131.376 96 6596N MS CST10708 CST10708ES RE525799 CST10708AS MAHMS96 IS1088 RE51725 AZF4573 STRJ675 0001368059 CST10708RS STRJ314 AZJ3214 35259650 6010708 8477 RE503118 TY24303 10461444 91-01-4377 11.130.797 631.504.102 STRL842 02-23-1041 11.131.274 RE52120 CST10708OS 1998519 MAV127080 STR10314 AZJ3326 MS96 RE67086 CST10708GS 1113272 STR20034 11.130.662 255200 120-30364 UD13626S
