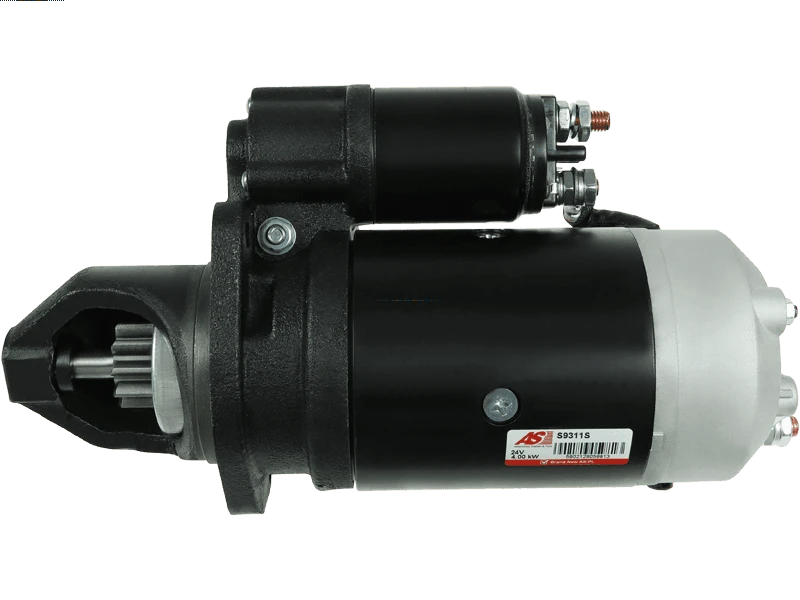

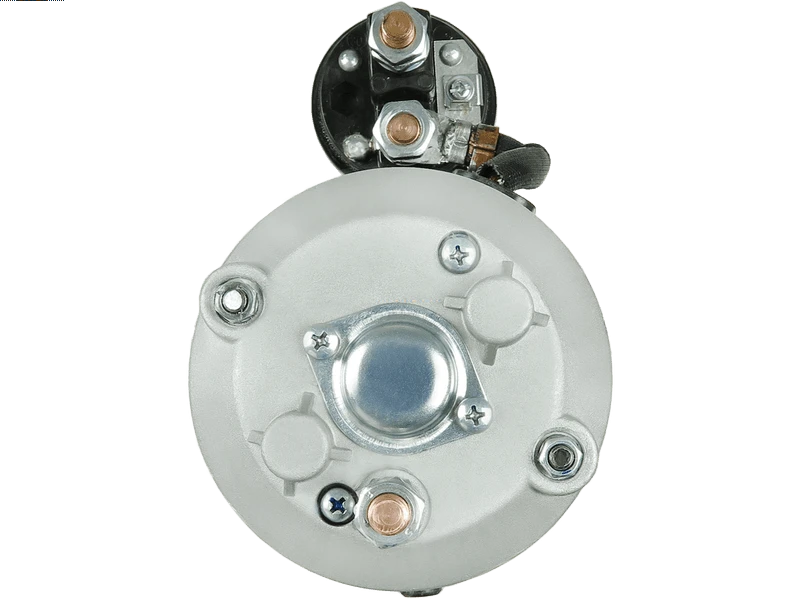

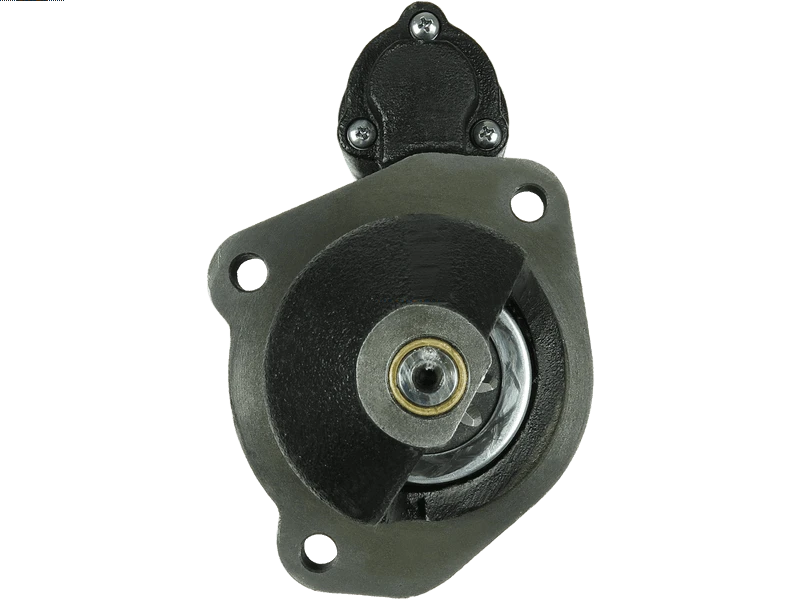

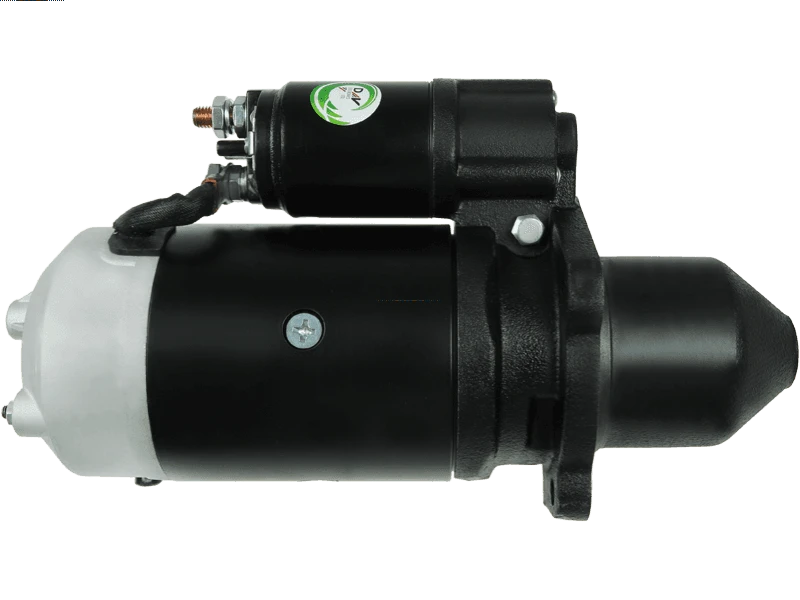

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 556.34 including GST
NZ$ 483.77 excluding GST
or four payments of $139.09
with
Learn More
each
S9311S
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
11.131.388Associated Numbers
11.130.745 11.130.936 11.130.977 11.131.082 11.131.388 182-30129 631.003.103 72735865 8209 91-23-6504 91-23-6504N AZJ3265 AZJ3338 AZJ3350 AZJ3373 AZJ3426 IS0745 MAHMS237 MS237 RE501769 RE503632 RE504915 RE71007 UD13969SSpecifications
| Kilowatt | 4 kW |
| Length (L.1) | 348 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 244H 4.5 | ||
| JOHN DEERE | 444G/H | 01.1994- | |
| JOHN DEERE | 444H LL | 01.1997- | |
| JOHN DEERE | TC44H | 01.1997- | |
| JOHN DEERE | TC54H | 01.1997- | |
| JOHN DEERE | TC62H | 01.1997- |
Reference Information
91-23-6504 91-23-6504N 11.131.082 72735865 AZJ3338 20419136OE IS0745 RE503632 MAHMS237 CST21631GS MAV236310 RE71007 MS237 237 STR7950 182-30129 8209 11.130.977 11.130.936 AZJ3373 AZJ3350 STRF845 AZJ3426 MS RE504915 RE501769 6021631.1 11.131.388 631.003.103 11.130.745 UD13969S AZJ3265Video/Publications
