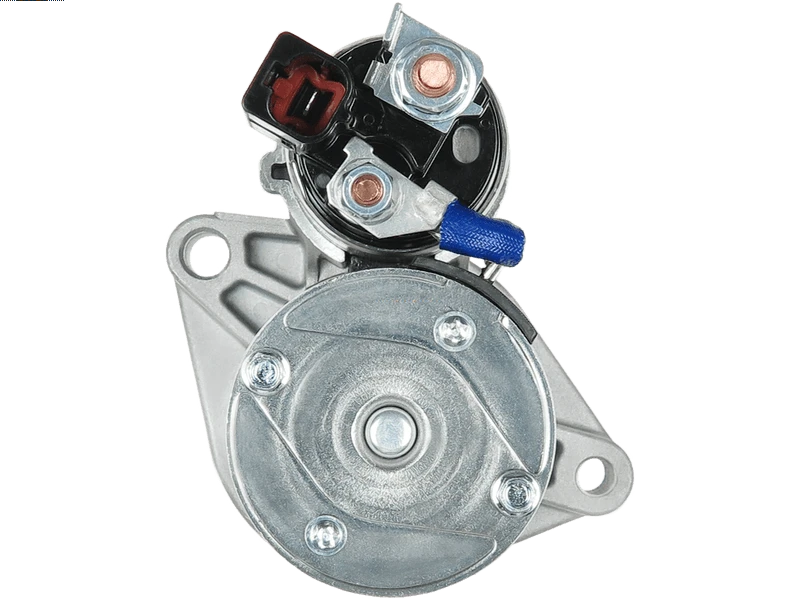

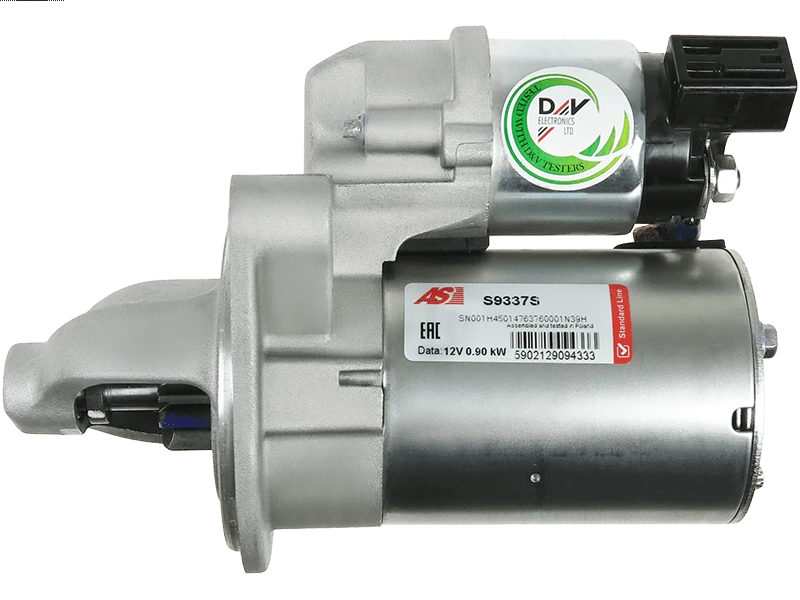

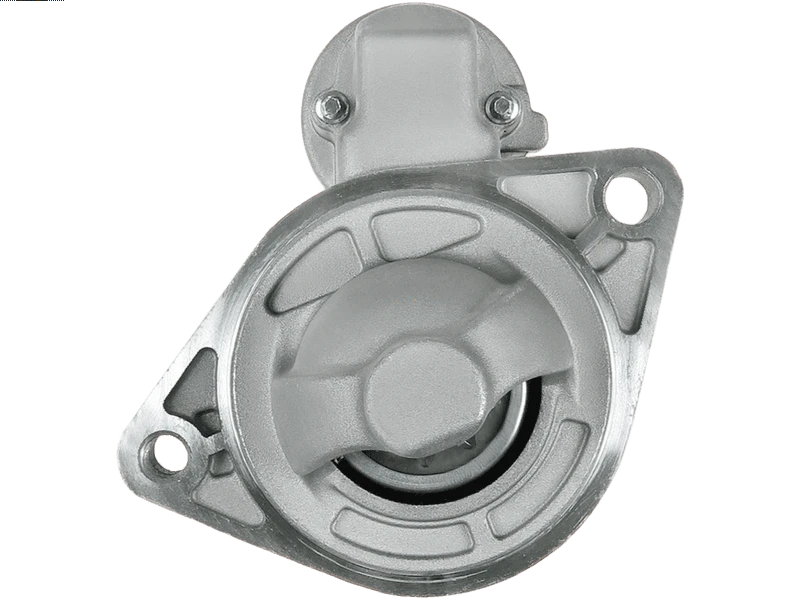

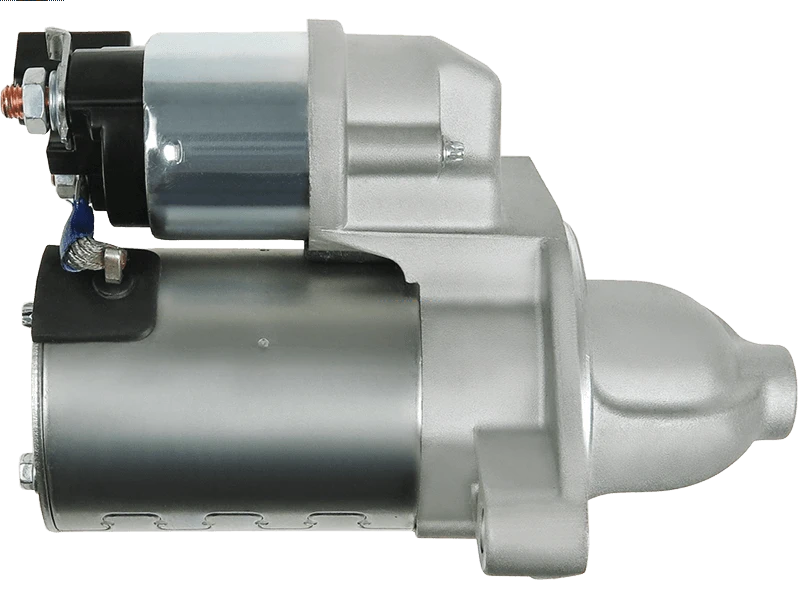

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
SSANGYONG
Price:
NZ$ 280.12 including GST
NZ$ 243.58 excluding GST
or four payments of $70.03
with
Learn More
each
S9337S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1731513001Associated Numbers
1731513001 220785 6046131 930.502.092 A1731513001 CST46131 CST46131AS CST46131ES CST46131GS CST46131OS CST46131RS DRS1043 DS2153 EX1731513001 STD7301 UD15200S S9337SSpecifications
| Kilowatt | 0.9 kW |
| Length (L.1) | 174 mm |
| Mount Hole Center - Center (O.1) | 107.5 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 77 mm |
| Unit Type | SSANGYONG |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SSANGYONG | Tivoli 1.6 | [G16DF] | 04.2015- |
Reference Information
STRJ218 A1731513001 8000728 MAV481310 256415D 930.502.092.030 CST46131GS 25-5506 220785 STR85003 6046131.1 256415 STD7301 1731513001 3588 LRS04344 20460131OE EX1731513001 LRS4344 DRS1043 DS2153 S9337S UD15200S 930.502.092.500Video/Publications
