Associated Numbers
UD20517S 9630 DRS3214 25-1239 31200-P45-G11 31200-P45-GO 31200-POA-003 31200-PT0-003 31200-PT0-005 31200-PT1-P03 31200-PT1-T04 DR4U2 DXK14 20648 LRS00887 SM402-04 SM402-04N 120.511.092 455715 D7RSA10 D7RSA4 STR70210
0986018601 Bosch ruil
0986CN1021 Bosch ruil
0986UN1021 Bosch ruil
0986UR1021 Bosch ruil
0986UR1049 Bosch ruil
112214 Cargo
11753 Stemot
120511092 PSH
128000746 Denso
1280007461 Denso
1280007462 Denso
1280007463 Denso
186184 Valeo
187389 Valeo
2280006680 Denso show
250351 Elstock
251239 Elstock
252430 Elstock
255191 Elstock
31200P43G11 Honda
31200P44G0 Honda
31200P45G01 Honda
31200P45G11 Honda
31200P45S01 Honda
31200P45SG110 Honda
31200P5M004 Honda
31200P5M014 Honda
31200P5M014RM Honda
31200PCA003 Honda
31200PT0003 Honda
31200PT00031 Honda
31200PT0005 Honda
31200PT0025 Honda
31200PT1PO3 Hyundai
31200PTO003 Honda
31200PTO005 Honda
32100P45G01 Honda
455715 Valeo
455716 Valeo
458490 Valeo
91262010 Wilson
91262040 Wilson
91295436 Wilson
944280558870 Magneti Marelli
AHS181 ATK
D6RA811 Valeo
D7RSA10 Valeo
D7RSA4 Valeo
DRS3214 Remy
DRS3704 Remy
DSDEF Honda
F042000052 Bosch
F042006001 Bosch
F042S00052 Bosch
GNU4773 Land Rover
HJS1150 HC
HJS648 HC
JS1150 HC
JS648 HC
LRS01238 Lucas
LRS02096 Lucas
LRS04029 Lucas
LRS887 Lucas
LRT113 Lucas
MSR1127 Magneti Marelli
SM40204 Mitsuba show
SM40205 Mitsuba show
SR1287N Bosch (USA)
SR1287X Bosch (USA)
SR1315X Bosch (USA)
STR70226 Wood Auto
TRS002 TWA
VS348 Valeo
WOOSTR70226 Wood Auto
Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 215 mm |
| Mount Hole Center - Center (O.1) | 121 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |

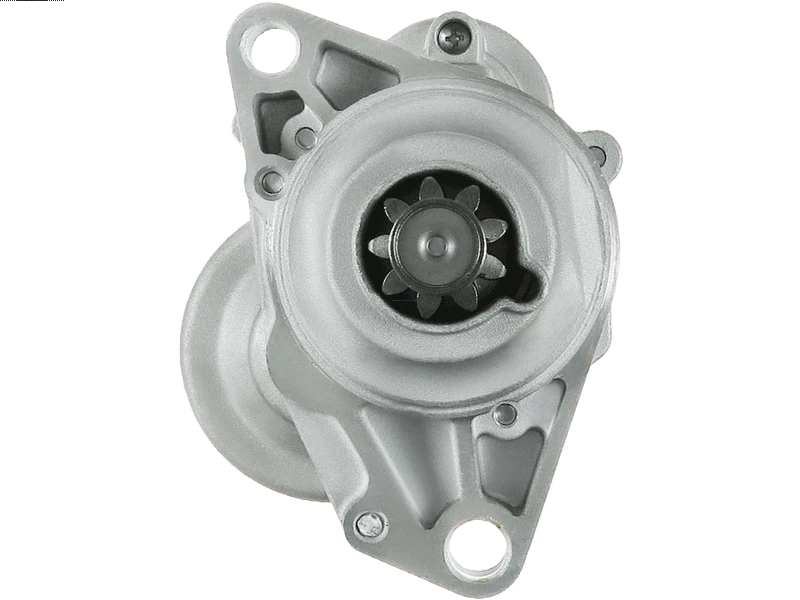

| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Accord 1.8 i 16V | [F18A3] | 01.1994-12.1995 |
| HONDA | Accord 2.0 i 16V | [F20A] | 01.1990-12.1993 |
| HONDA | Accord 2.0 i 16V | [F20Z] | 01.1993-12.1995 |
| HONDA | Accord 2.2 i 16V | [F22A] | 01.1990-12.1993 |
| HONDA | Accord 2.2 i 16V | [F22Z] | 01.1993- |
| HONDA | Accord 2.3 i 16V | [H23A3] | 01.1993-12.1995 |
| HONDA | Prelude 2.2 i 16V | [H22A] | 01.1993-12.1994 |
| ROVER | 618 1.8 Si | [F18A] | 01.1993-12.1996 |
| ROVER | 620 2.0 Si | [F20Z1] | 01.1993-12.1999 |
| ROVER | 621 2.0 Si | [F20Z2] | 01.1993-12.1999 |
| ROVER | 623 2.3 Si | [H23A3] | 01.1993-12.1999 |
Reference Information
D7RSA10 120.511.092.190 MAV4660 DR4U2 31200-POA-003 LRS887 31200-P45-G11 MAV172050 PRSW049 STX200569 ANM15434X STX200406 UD20517S STU0648 31200-P45-G0 STRW049 25-1239 JS648 20648 31200-PT0-005 SM402-04 31200-PT0-003 SM402-05 31200-P45-G01 D7RSA4 10015205RV SM402-04N 228000-6680 31200-P0A-003 BST2418 31200-PT1-T03 455715 DRS3214 31200-PT1-T04 322006092 11753 31200-P45-GO 31200-PT1-P03 LRS00887Video/Publications
