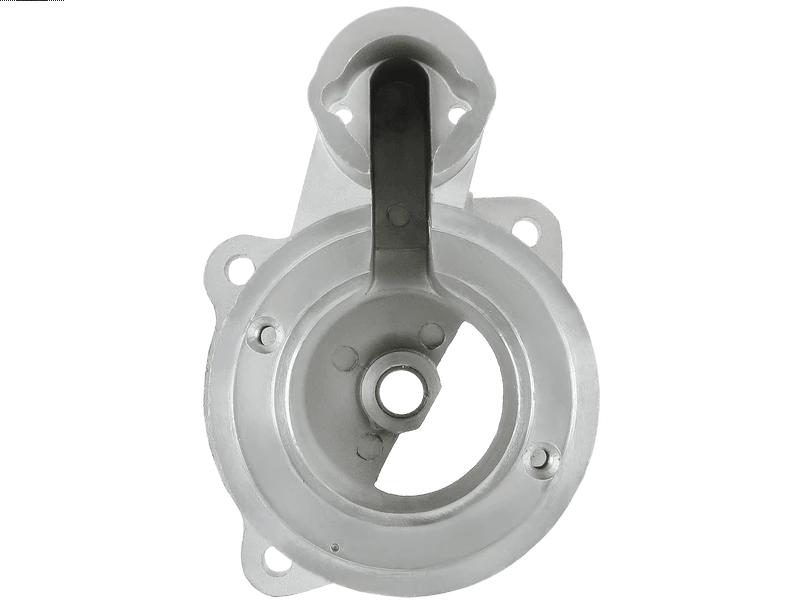

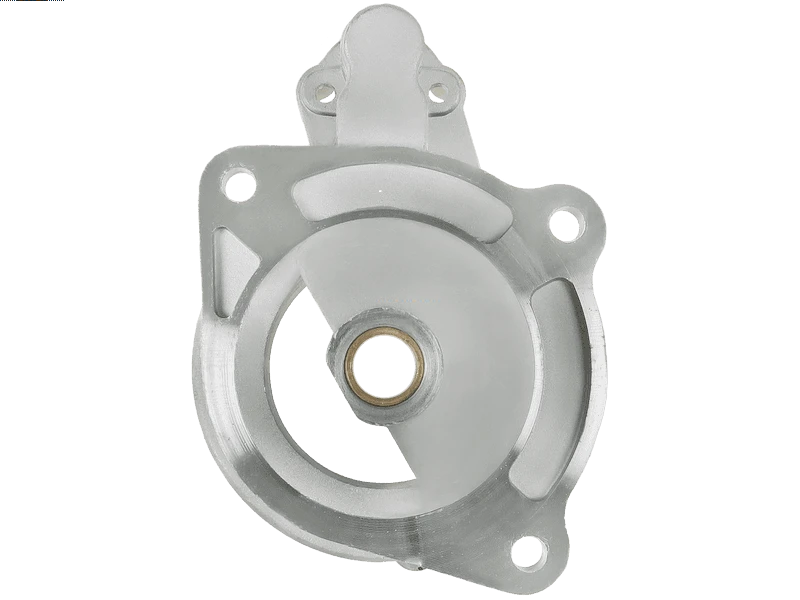

Brand new AS-PL Starter motor D.E. bracket
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 86.58 including GST
NZ$ 75.29 excluding GST
or four payments of $21.65
with
Learn More
each
SBR4006
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
063227569010 26213 26316 26329 26330 26338 26338D 26338F 26339 26339A 26339B 26339D 26339H 26379 26379A 26379F 26395 27500 27528 27569 61924053 NSB520 63227500 63227569 538501 S4004 063227569010 26213 26316 26329 26330 26338 26338D 26338F 26339 26339A 26339B 26339D 26339H 26379 26379A 26379F 26395 27500 27528 27569 61924053 NSB520 63227500 63227569 538501 S4004Specifications

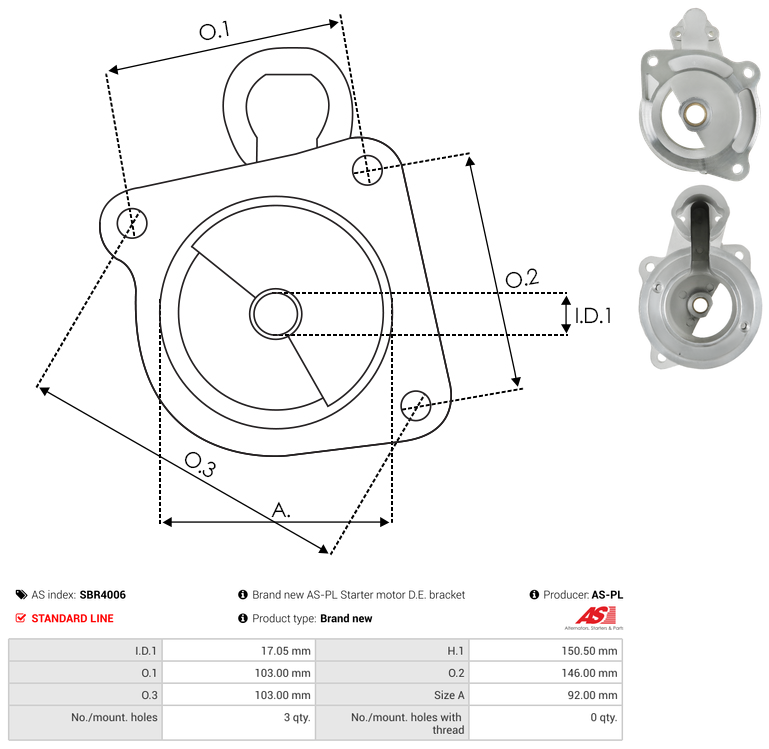

| Height (H.1) | 150.5 mm |
| Inside Diameter (I.D.1) | 17.05 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| OEM Product | No |
| Product Line | Standard Line |
| Product Type | Brand new |
| Spigot Diameter (A) | 92 mm |
| Type | Drive End |
| Unit Type | LUCAS |
Reference Information
UD01651SBR 85541475010 54264664 BDES4021 135764 54264662 SBR0002 SBR0001 85541475 54249109 BKT40957Video/Publications
063227569010 61924053 SBR4006 538501 26379 26213 27569 27500 26339 27528 26316 26338 26338F 26395 63227500 26338D 26330 63227569 26339D 26339B 26329 26339A 26339H 26379A 26379F S4004 NSB520View your shopping basket or Browse other items in Starter Bracket.
