Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 89.76 including GST
NZ$ 78.05 excluding GST
or four payments of $22.44
with
Learn More
each
SD0163
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers

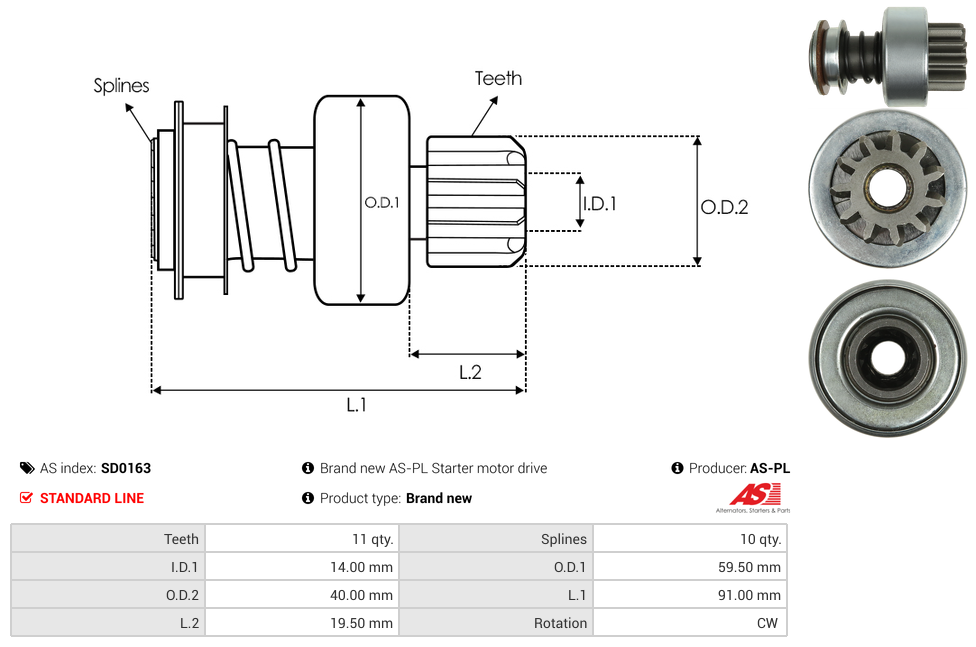

0001364200 0001364201 0001364202 0001364205 B001819102 B001819116 B001819208 1387092 1480550 0001364200 0001364201 0001364202 0001364205 B001819102 B001819116 B001819208 1387092 1480550Specifications
| Inside Diameter (I.D.1) | 14 mm |
| Length (L.1) | 90.4 mm |
| Length (L.2) | 22.3 mm |
| No./Splines | 10 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 60.2 mm |
| Outside Diameter (O.D.2) | 40.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | BOSCH |
Reference Information
CQ2010815 132117 CDR10602 1016090 SDR10602 1582 225149 81016090 42-42-62 SDV38052 19024524 DRV1526 2006209456 SDB2117 2006209450Video/Publications
