Amature Growler
Specifications

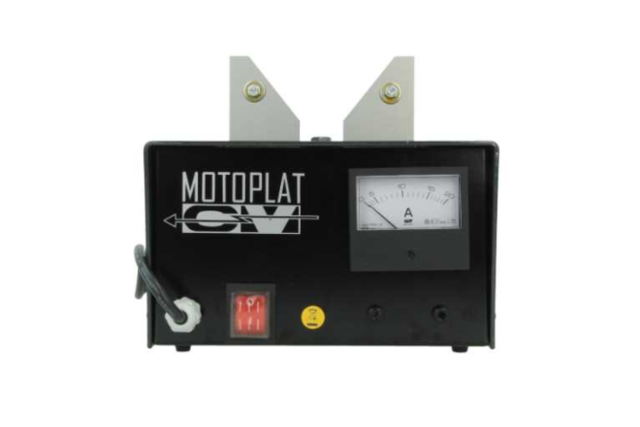

The Motoplat VC-203D armature tester is a sturdy and easy to use device with a 220v single phase voltage supply.

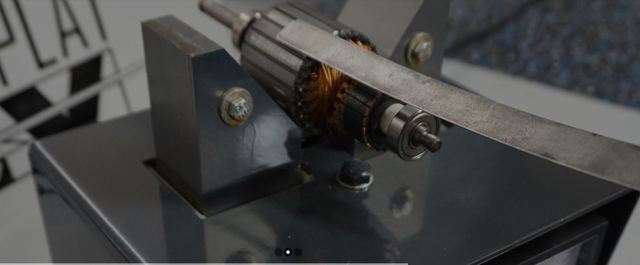

To test the core of the armature, you simply place it on the V-block, rest the supplied metal strip on the core and slowly turn the armature around its axis. Possible short circuits are identified by small vibrations of the metal strip. The faulty collectors are located where the armature slot and the metal strip meet.
Detecting possible short circuits between the commutator segments of the direct current armature can be done with the supplied test probes. Simply rest the two probes on two adjoining commutator segments and slowly turn the armature around its axis. The ammeter shows if there are any problems with the armature.
| Tool Type | Diagnostic Tool |
