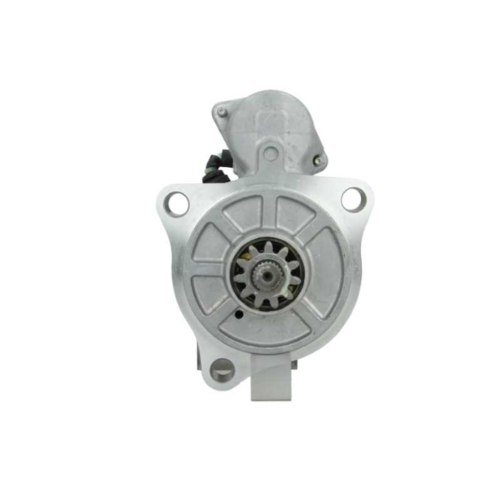

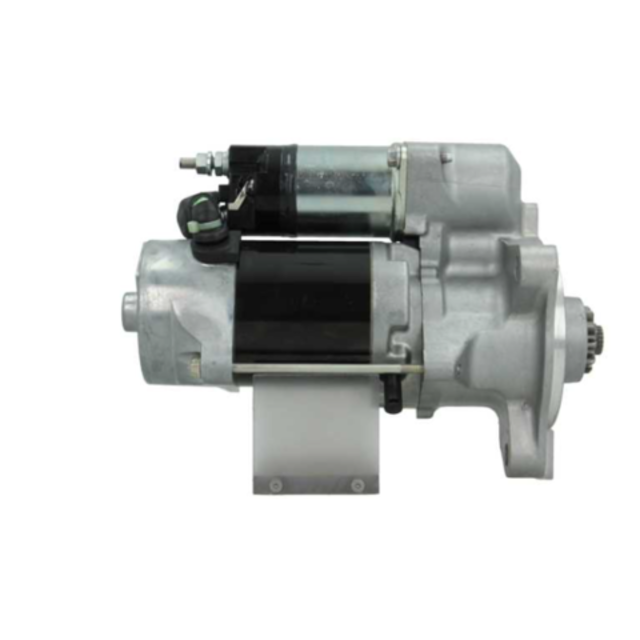

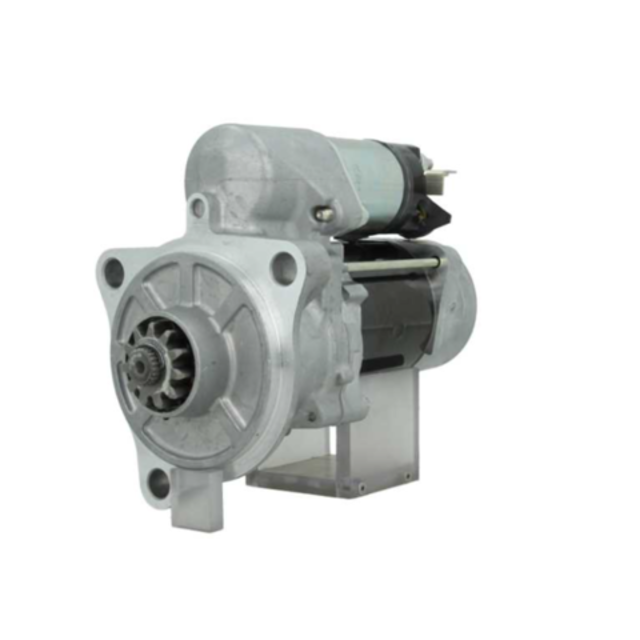

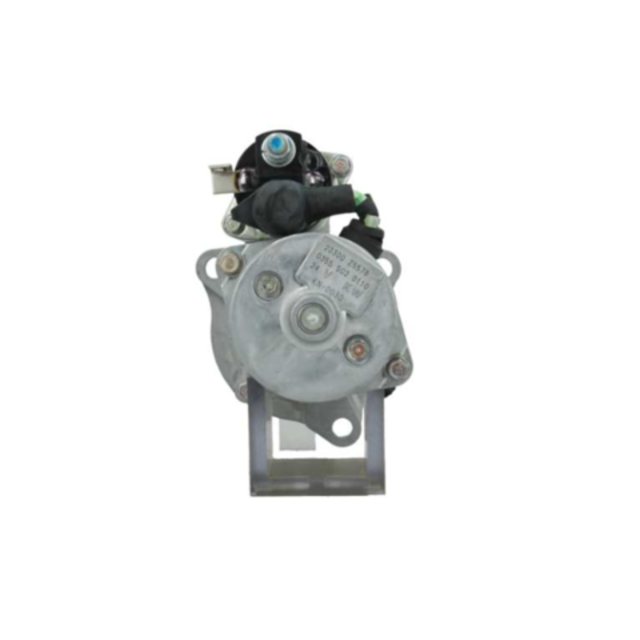

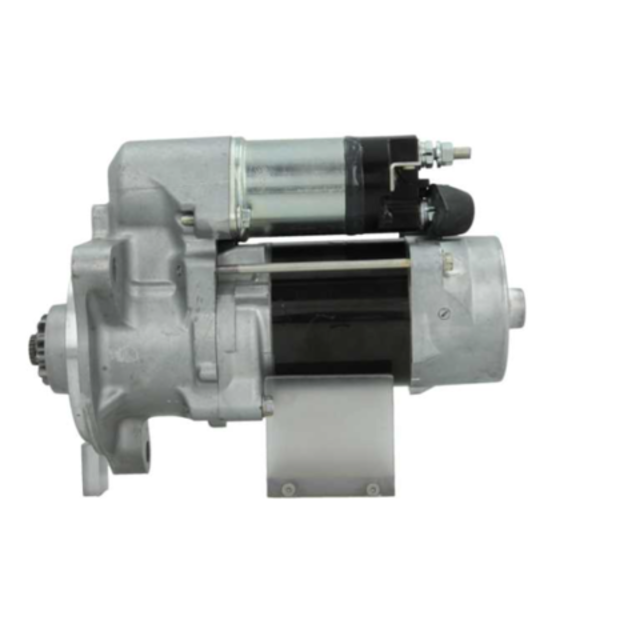

Brand new SAWAFUJI Starter motor
PREMIUM LINE
SAWAFUJI
Sawafuji
Retail Price:
NZ$ 793.50 including GST
NZ$ 690.00 excluding GST
or four payments of $198.38
with
Learn More
each
S9146(SAWAFUJI)
1
Specifications
REPLACES HITACHI VERSION WITH NOSE CONE AND THE DENSO OSGR TYPE
| Kilowatt | 4.5 kW |
| Length (L.1) | 280 mm |
| Mount Hole Center - Center (O.1) | 135 mm |
| Mount Hole Center - Center (O.2) | 109 mm |
| Mount Hole Center - Center (O.3) | 111 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| On Sale Item | Yes |
| Pinion at Rest (B) | 33 mm |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
