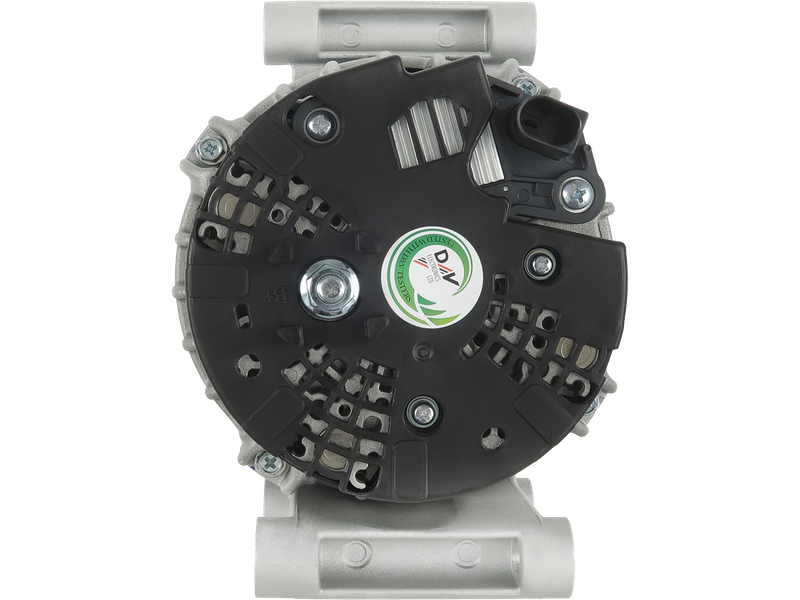

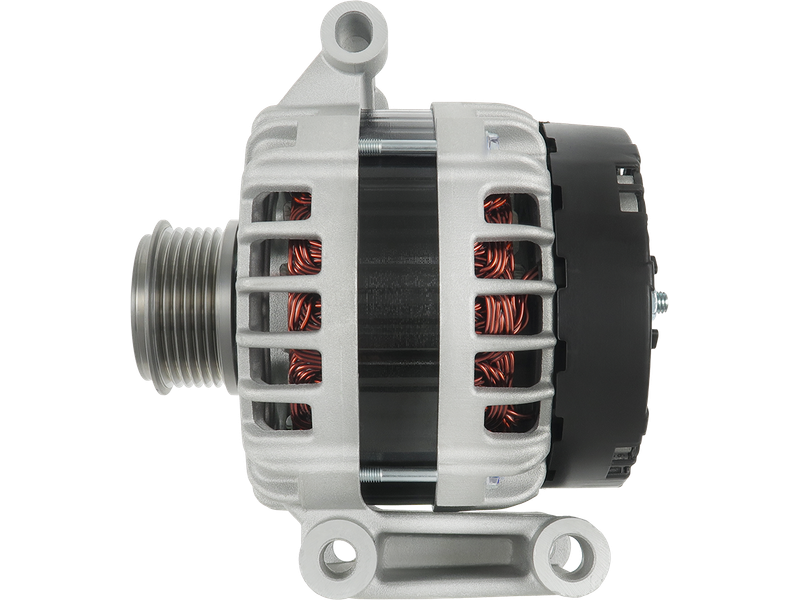

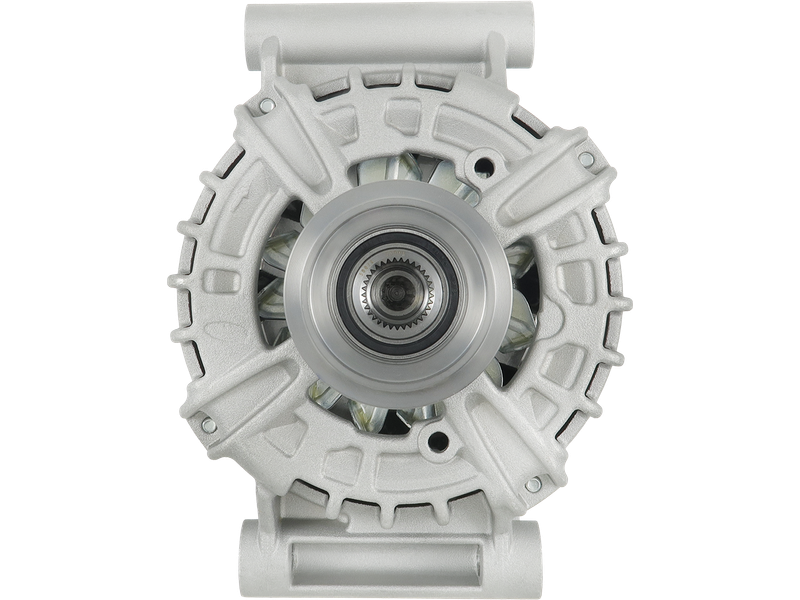

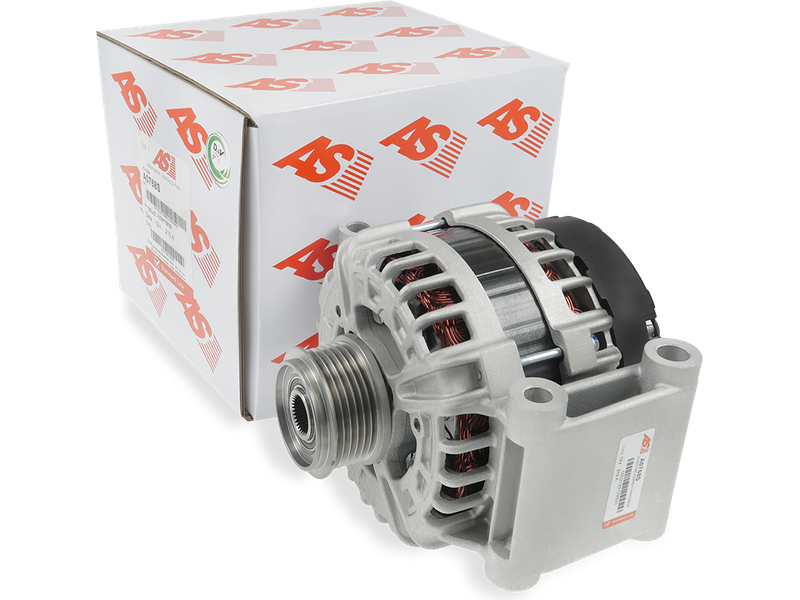

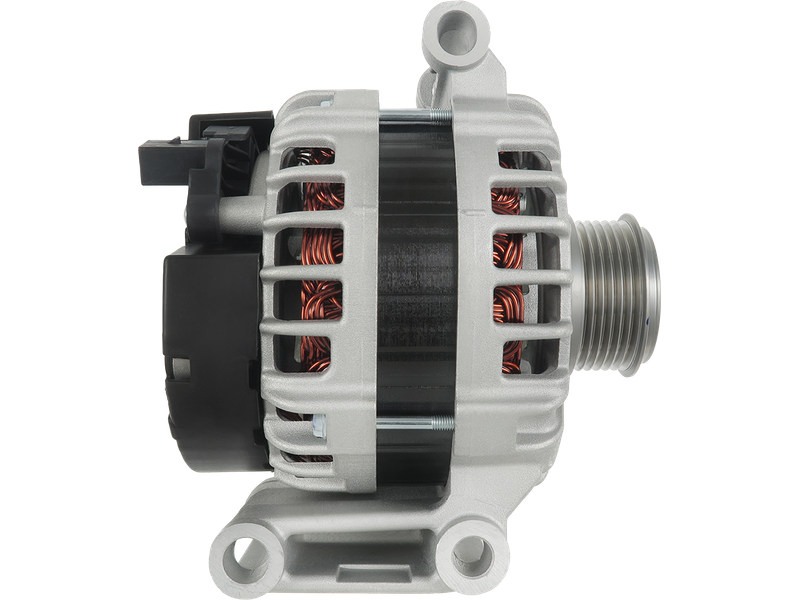

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 716.20 including GST
NZ$ 622.78 excluding GST
or four payments of $179.05
with
Learn More
each
AGB-C6047
A0768S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 210 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 13.5 mm |
| Length (L.1) | 189 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 97 mm |
| Pad mount thickness (E.2) | 97 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 58.5 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Jumper 2.0 HDi 110 | [4HG] | 01.2011- |
| CITROEN | Jumper 2.0 HDi 130 | [4HH] | 01.2011- |
| CITROEN | Jumper 2.0 HDi 150 | [4HJ] | 01.2011- |
| CITROEN | Relay 2.2 HDi 110 | [4HG] | 01.2011- |
| CITROEN | Relay 2.2 HDi 130 | [4HH] | 01.2011- |
| CITROEN | Relay 2.2 HDi 150 | [4HJ] | 01.2011- |
| FORD | Tourneo 2.2 TDCi | [CVFF] | 01.2011- |
| FORD | Tourneo 2.2 TDCi | [CYF] | 01.2011- |
| FORD | Tourneo 2.2 TDCi | [DRF] | 01.2011- |
| FORD | Tourneo V362 2.2 TDCi | [CVFF] | 09.2012-12.2015 |
| FORD | Transit 2.2 TDCi | [CVFF] | 01.2011- |
| FORD | Transit 2.2 TDCi | [CYF] | 01.2011- |
| FORD | Transit 2.2 TDCi | [DRF] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CVF5] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CY] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CY14] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CYF] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CYFA] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CYFB] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CYFC] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [CYFD] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [DR] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [DRF] | 01.2011- |
| FORD | Transit 2.2 TDCi FWD | [US] | 01.2011- |
| FORD | Transit V362 2.2 TDCi | [CVFF] | 09.2012-12.2015 |
| FORD | Transit V362 2.2 TDCi | [CYF4] | 09.2012-12.2015 |
| FORD | Transit V362 2.2 TDCi | [CYF4] | 09.2012-12.2023 |
| FORD | Transit V362 2.2 TDCi | [CYFF] | 09.2012-12.2015 |
| FORD | Transit V362 2.2 TDCi | [CYFF] | 09.2012-12.2023 |
| PEUGEOT | Boxer 2.2 HDi 110 | [4HG] | 01.2011- |
| PEUGEOT | Boxer 2.2 HDi 130 | [4HH] | 01.2011- |
| PEUGEOT | Boxer 2.2 HDi 150 | [4HJ] | 01.2011- |
Reference Information
F032116243 12090708 0125811083 1874991 442484 89215909 1768612 595.903.210.010 443402 2545293 DA2832 DRA1722 RMBK2T-10300-DB 125811084 554633RIS 0125811013 9091113 0125811014 0986085670 554633RIR 4100 20786N ALTJ131 10444482 554633RI QRA3286 116243 20010539OV 554633RIB 2010539.1 CAL10539GS 444207 32811013 L51580 20101935OE 20101935BN ALT2233CP BK2T-10300-DB 57517 BK2T-10300-DA BK2T-10300-DC 3123430 ALB2516 UD18525A 114446 ALT10016 LRA3699 595.903.210.280 UD13013A CAL10539AS 2415014 AEG1356 20786-OS A12BH1367 432061 A0768S BOS0125811083 AL03243 55101363G 209397 LRA03699 TP8062 SEG0125811083 SEG0125811084 2193152102 517ST75 595.903.210.461 CGB-86760 1986A00682 2010539 28-6760 ABO539Video/Publications
