Associated Numbers
104210-9870 8982258130 UD18944A 104210-9871 dxa4151 6586311 65-8631-1 8982258120 1042109860 104210-9860 TG104210-9860Specifications
This is a LAMP Alternator, If you require a LIN alternator you can change the regulator to ARE6146S
8982258120 / TG104210-9860 Requires Regulator Change to ARE6146S

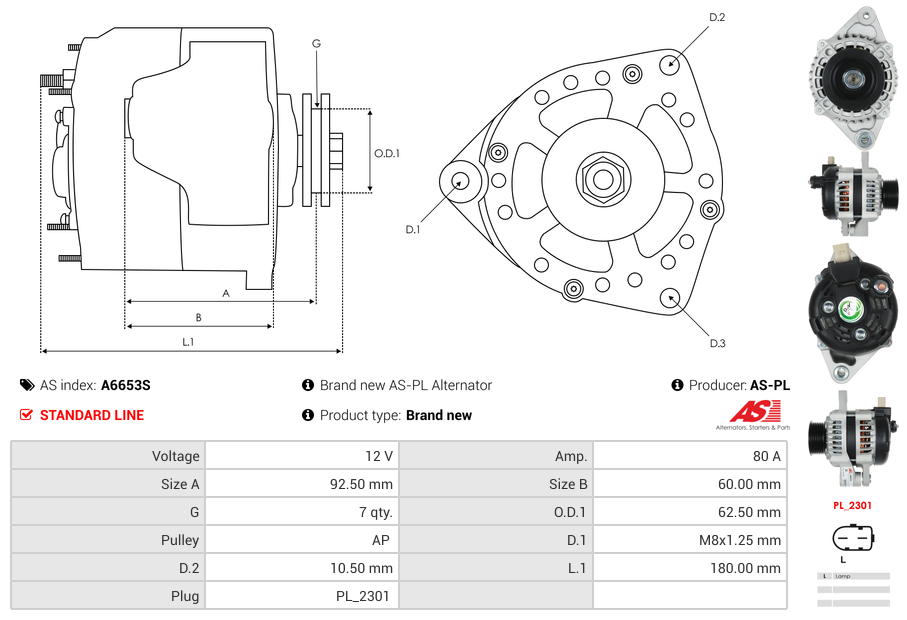

| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 60 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Length (L.1) | 180 mm |
| OEM Product | No |
| Plug Code | PL_2301 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 62.5 mm |
| Pulley to Mount Distance (A) | 92.5 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | D-Max 3.0 TF | [4JJ1-TC] | 01.2004-12.2011 |
Reference Information
104210-9870 UD18944A 8982258130Video/Publications
