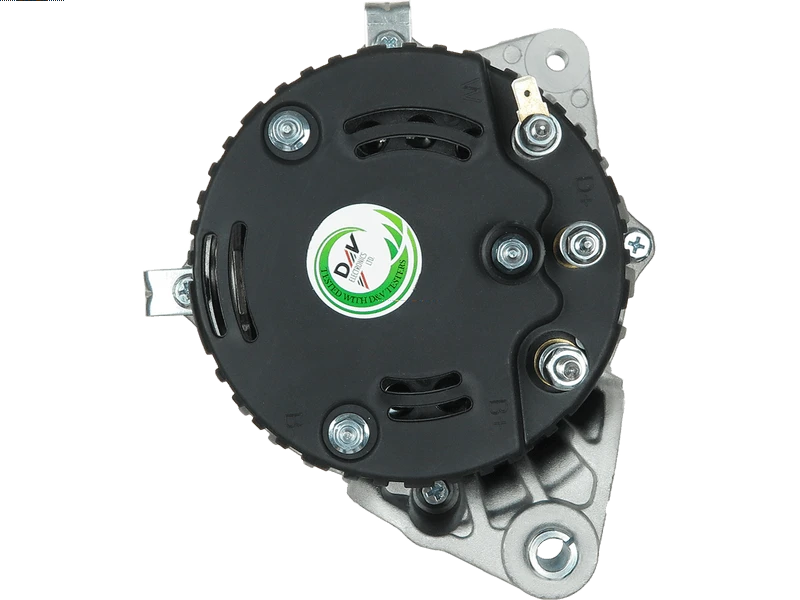

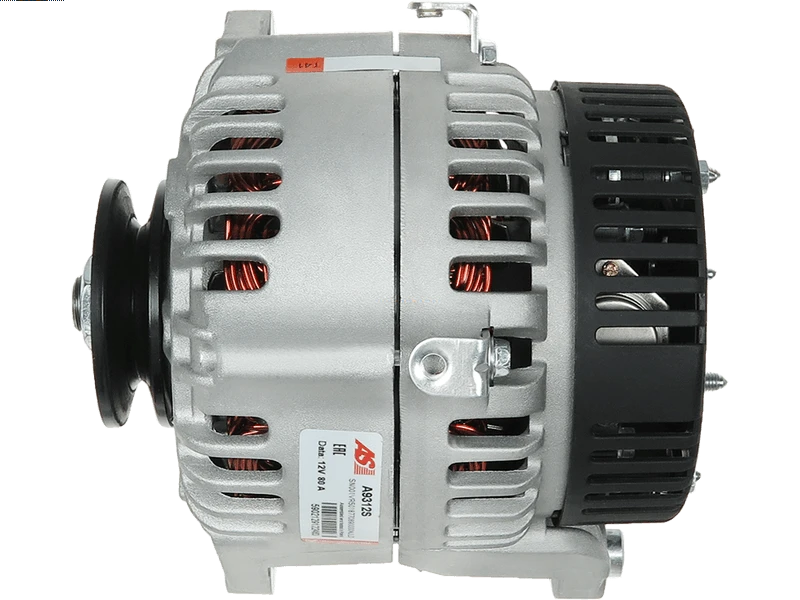

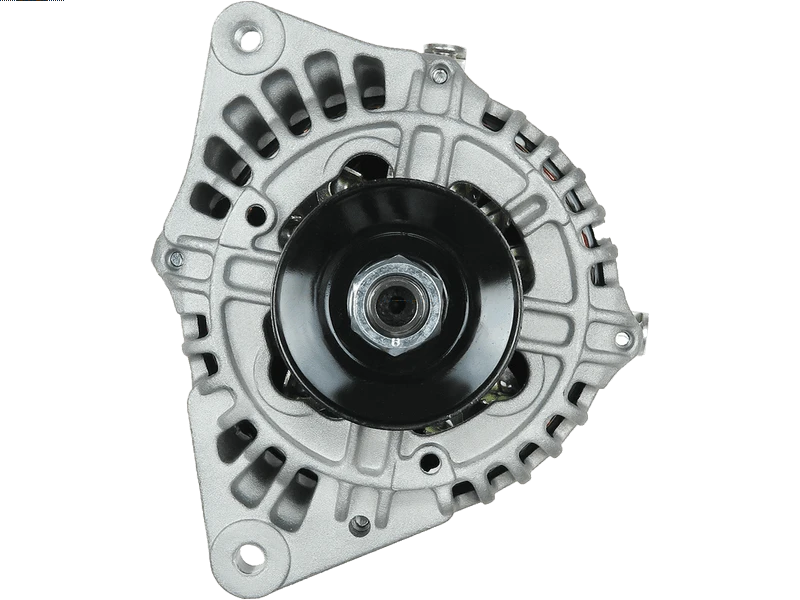

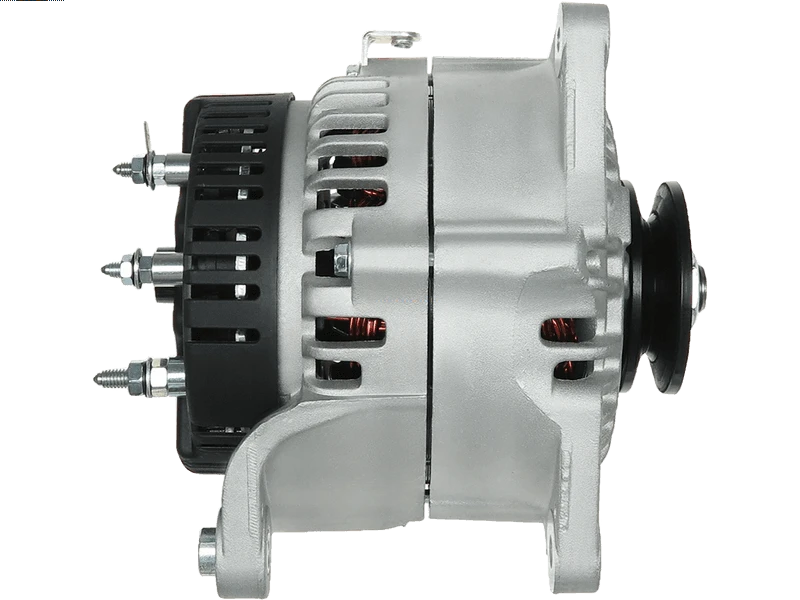

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 424.64 including GST
NZ$ 369.25 excluding GST
or four payments of $106.16
with
Learn More
each
A9312S
No stock in NZ
No stock in NZ
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10.5 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley Outside Diameter (O.D.2) | 67.5 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | SOLID |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GEHL | 4640 2.3 | [BF3M2011] | |
| GEHL | 4640 2.3 | [F3M2011] | |
| GEHL | 4640E 2.3 | [TD2009] | |
| GEHL | 4840 3.1 | [F4M] | |
| GEHL | 5240 2.3 | [TD2009] | |
| GEHL | 5640 3.1 | [BF4M2011] | |
| GEHL | 5640 3.1 | [F4M2011] | |
| GEHL | 6640 3.1 | [BF4M2011] |
Reference Information
4119003 IA1479 UD17138A MG265 MAHMG265 CAL21261GS AAK5839 DRA1051 20119162OE ALT232610 265 A-6678 282-30320 2021261.1 ALT79560 ALI2175 MG 565.507.080 ALTF865 4118830 11.204.456Video/Publications
