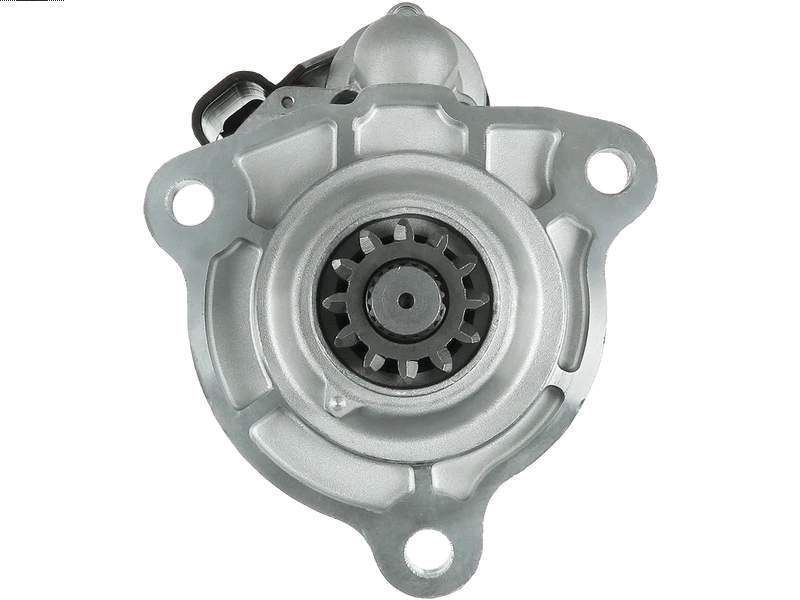

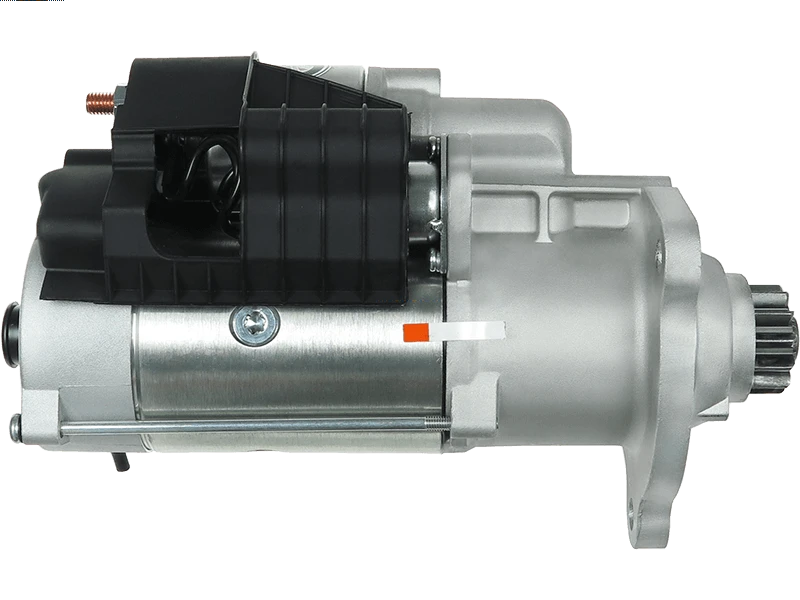

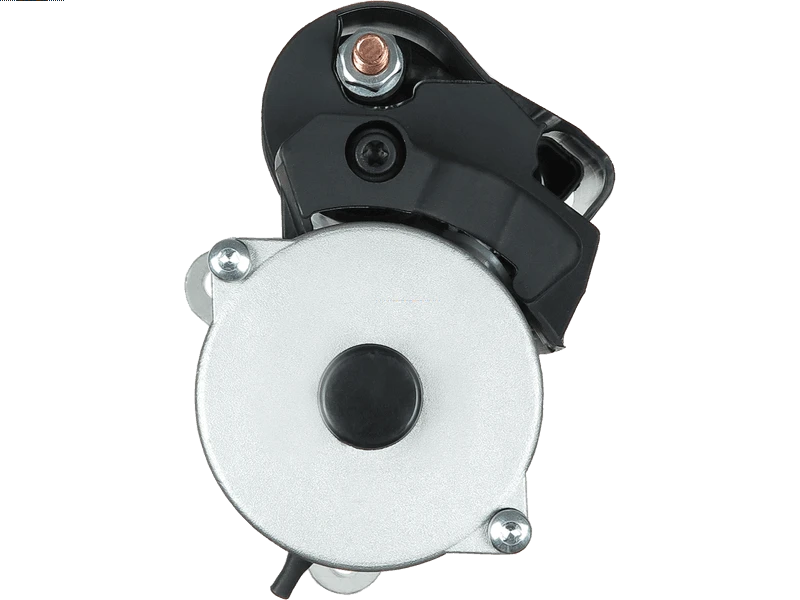

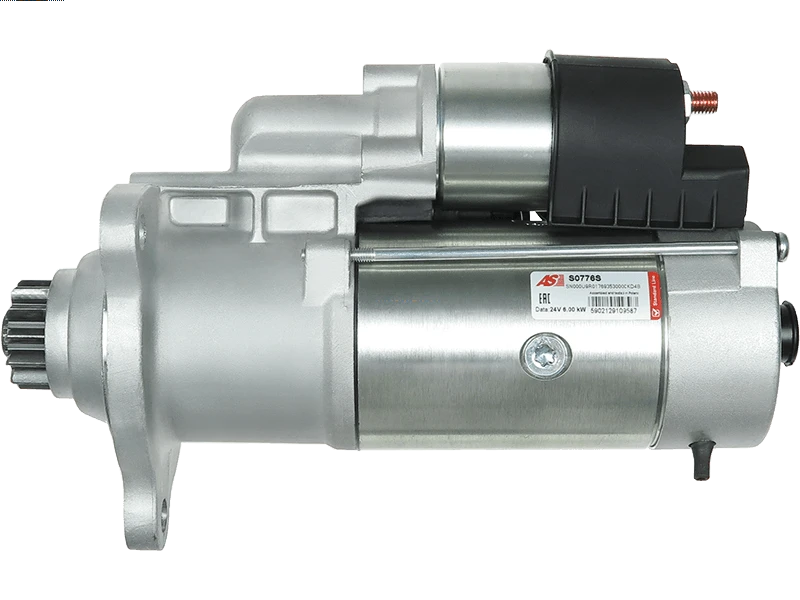

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 681.65 including GST
NZ$ 592.74 excluding GST
or four payments of $170.41
with
Learn More
each
S0776S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 6 kW |
| Length (L.1) | 325 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | CF FA 290 18.0 | [MX-11210] | 05.2013- |
| DAF | CF FA 330 18.0 | [MX-11240] | 05.2013- |
| DAF | CF FA 370 18.0 | [MX-11271] | 05.2013- |
| DAF | CF FA 400 19.0 | [MX-11291] | 05.2013- |
| DAF | CF FA 400 20.5 | [MX-11291] | 05.2013- |
| DAF | CF FA 410 19.0 | [MX-13303] | 05.2013- |
| DAF | CF FA 410 20.5 | [MX-13303] | 05.2013- |
| DAF | CF FA 440 19.0 | [MX-11320] | 05.2013- |
| DAF | CF FA 440 20.5 | [MX-11320] | 05.2013- |
| DAF | CF FA 460 19.0 | [MX-13340] | 05.2013- |
| DAF | CF FA 460 20.5 | [MX-13340] | 05.2013- |
| DAF | CF FA 510 19.0 | [MX-13375] | 05.2013- |
| DAF | CF FA 510 20.5 | [MX-13375] | 05.2013- |
| DAF | CF FAD 400 32.0 | [MX-11291] | 05.2013- |
| DAF | CF FAD 410 32.0 | [MX-13303] | 05.2013- |
| DAF | CF FAD 440 32.0 | [MX-11320] | 05.2013- |
| DAF | CF FAD 460 32.0 | [MX-13340] | 05.2013- |
| DAF | CF FAD 510 32.0 | [MX-13375] | 05.2013- |
| DAF | CF FAG 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAG 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAG 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAG 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAG 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAG 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAG 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAG 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAN 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAN 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAN 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAN 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAN 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAN 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAN 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAN 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAR 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAR 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAR 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAR 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAR 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAR 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAR 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAR 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAS 290 26.0 | [MX-11210] | 05.2013- |
| DAF | CF FAS 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAS 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAS 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAS 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAS 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAS 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAS 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FAT 290 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAT 330 26.0 | [MX-11240] | 05.2013- |
| DAF | CF FAT 370 26.0 | [MX-11271] | 05.2013- |
| DAF | CF FAT 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FAT 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FAT 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FAT 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FAT 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FT 290 19.5 | [MX-11210] | 05.2013- |
| DAF | CF FT 330 19.5 | [MX-11240] | 05.2013- |
| DAF | CF FT 370 19.5 | [MX-11271] | 05.2013- |
| DAF | CF FT 400 18.6 | [MX-11291] | 05.2013- |
| DAF | CF FT 400 19.5 | [MX-11291] | 05.2013- |
| DAF | CF FT 410 18.6 | [MX-13303] | 05.2013- |
| DAF | CF FT 410 19.5 | [MX-13303] | 05.2013- |
| DAF | CF FT 440 18.6 | [MX-11320] | 05.2013- |
| DAF | CF FT 440 19.5 | [MX-11320] | 05.2013- |
| DAF | CF FT 460 18.6 | [MX-13340] | 05.2013- |
| DAF | CF FT 460 19.5 | [MX-13340] | 05.2013- |
| DAF | CF FT 510 18.6 | [MX-13375] | 05.2013- |
| DAF | CF FT 510 19.5 | [MX-13375] | 05.2013- |
| DAF | CF FTG 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FTG 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTG 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTG 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTG 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTP 400 26.0 | [MX-11291] | 05.2013- |
| DAF | CF FTP 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTP 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTP 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTP 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTR 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTR 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTR 510 26.0 | [MX-13375] | 05.2013- |
| DAF | CF FTS 410 18.0 | [MX-13303] | 05.2013- |
| DAF | CF FTS 460 18.0 | [MX-13340] | 05.2013- |
| DAF | CF FTS 510 18.0 | [MX-13375] | 05.2013- |
| DAF | CF FTT 410 26.0 | [MX-13303] | 05.2013- |
| DAF | CF FTT 440 26.0 | [MX-11320] | 05.2013- |
| DAF | CF FTT 460 26.0 | [MX-13340] | 05.2013- |
| DAF | CF FTT 510 26.0 | [MX-13375] | 05.2013- |
| DAF | XF FA 410 18.0 | [MX-13303] | 10.2012- |
| DAF | XF FA 410 19.0 | [MX-13303] | 10.2012- |
| DAF | XF FA 410 20.5 | [MX-13303] | 10.2012- |
| DAF | XF FA 440 18.0 | [MX-11320] | 10.2012- |
| DAF | XF FA 440 19.0 | [MX-11320] | 10.2012- |
| DAF | XF FA 440 20.5 | [MX-11320] | 10.2012- |
| DAF | XF FA 460 18.0 | [MX-13340] | 10.2012- |
| DAF | XF FA 460 19.0 | [MX-13340] | 10.2012- |
| DAF | XF FA 460 20.5 | [MX-13340] | 10.2012- |
| DAF | XF FA 510 18.0 | [MX-13375] | 10.2012- |
| DAF | XF FA 510 19.0 | [MX-13375] | 10.2012- |
| DAF | XF FA 510 20.5 | [MX-13375] | 10.2012- |
| DAF | XF FAD 460 32.0 | [MX-13340] | 10.2012- |
| DAF | XF FAD 510 32.0 | [MX-13375] | 10.2012- |
| DAF | XF FAN 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAN 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAN 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAN 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FAR 410 25.3 | [MX-13303] | 10.2012- |
| DAF | XF FAR 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAR 440 25.3 | [MX-11320] | 10.2012- |
| DAF | XF FAR 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAR 460 25.3 | [MX-13340] | 10.2012- |
| DAF | XF FAR 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAR 510 25.3 | [MX-13375] | 10.2012- |
| DAF | XF FAR 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FAS 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FAS 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FAS 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FAS 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FT 410 18.0 | [MX-13303] | 10.2012- |
| DAF | XF FT 440 18.0 | [MX-11320] | 10.2012- |
| DAF | XF FT 460 18.0 | [MX-13340] | 10.2012- |
| DAF | XF FT 510 18.0 | [MX-13375] | 10.2012- |
| DAF | XF FTG 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTG 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTG 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTG 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTN 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTN 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTN 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTN 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTP 410 23.4 | [MX-13303] | 10.2012- |
| DAF | XF FTP 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTP 440 23.4 | [MX-11320] | 10.2012- |
| DAF | XF FTP 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTP 460 23.4 | [MX-13340] | 10.2012- |
| DAF | XF FTP 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTP 510 23.4 | [MX-13375] | 10.2012- |
| DAF | XF FTP 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTR 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTR 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTR 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTR 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTS 410 26.0 | [MX-13303] | 10.2012- |
| DAF | XF FTS 440 26.0 | [MX-11320] | 10.2012- |
| DAF | XF FTS 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTS 510 26.0 | [MX-13375] | 10.2012- |
| DAF | XF FTT 460 26.0 | [MX-13340] | 10.2012- |
| DAF | XF FTT 510 26.0 | [MX-13375] | 10.2012- |
Reference Information
1886891 1956091 UD90532S 72514359 2134699 1956091R 901.508.123.380 2165367 SBO811 2134699R CST10811AS 116378 S0776S LES0552 6010811 H5110078G 11.139.215 0001261046 0001261047 3127106 0001261088 0001261087 CGB-21095 STB4255 5.47077 11025900 M90R3564AM 10010811OV 6010811.1 STR50722 0986025900 19084255 8EA012586-741 8034 STR10264 255834P 2015154 F032116902 SEG0001261087 LRS04361 116902 901.508.123.281 901.508.123.282 CST10811GS 1854008 255834 MS998 IS9513 ST02980 S24BH0118 2015154R 646019124 AC-CBS5988 184923 5110078 2165367R 45-5523 901.508.123.010 203009 UD90387S AZF4916 20401118OE 1986S10046 30951N 20401118BN S24BH0118A2 438592 10438302 901.508.123.018 STR79627 901.508.123.210 255834B LRS4361 M90R3564SE 0001261071 0001261072 1886891R 10010811AVVideo/Publications
