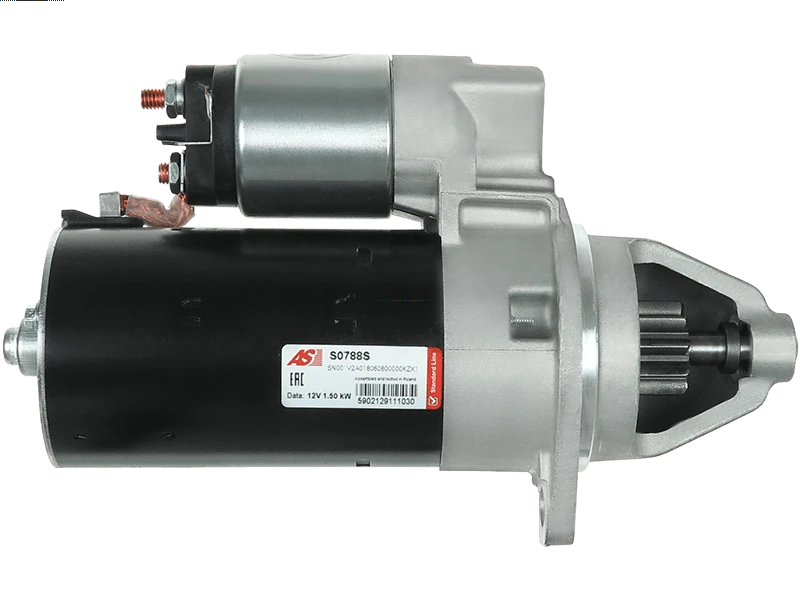

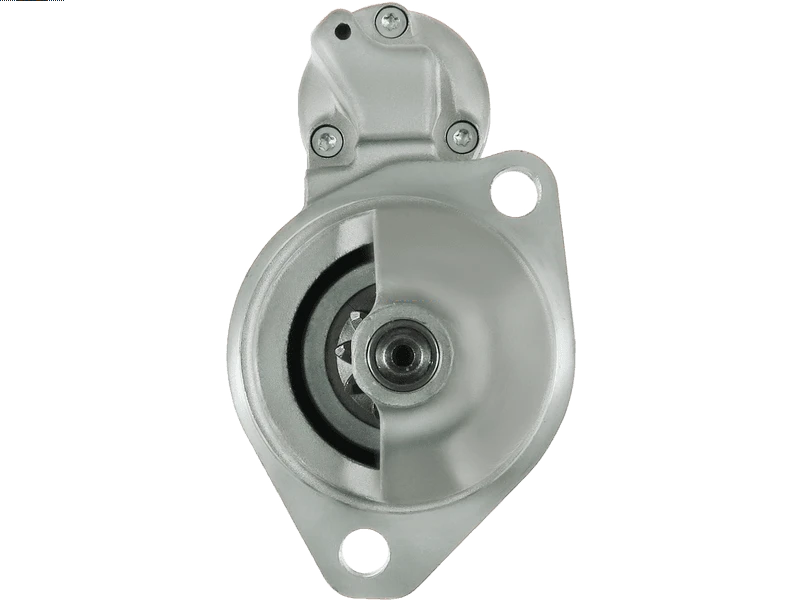

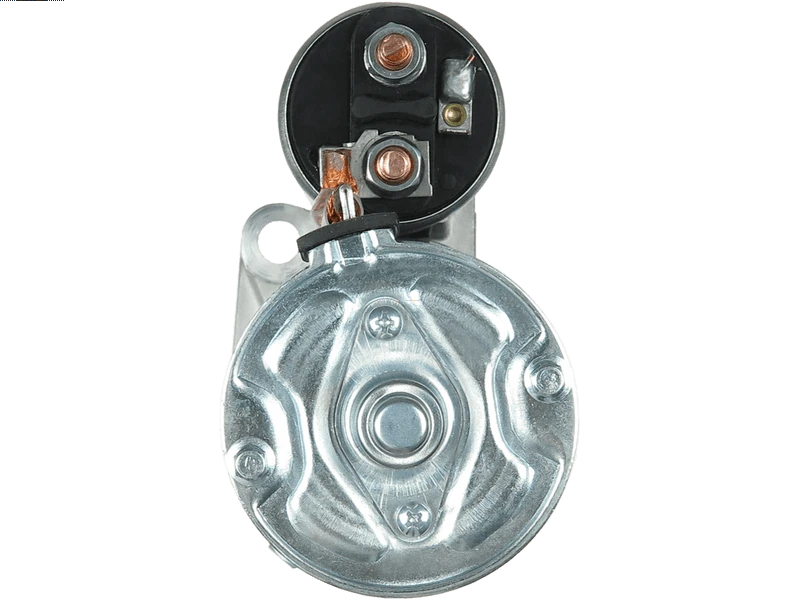

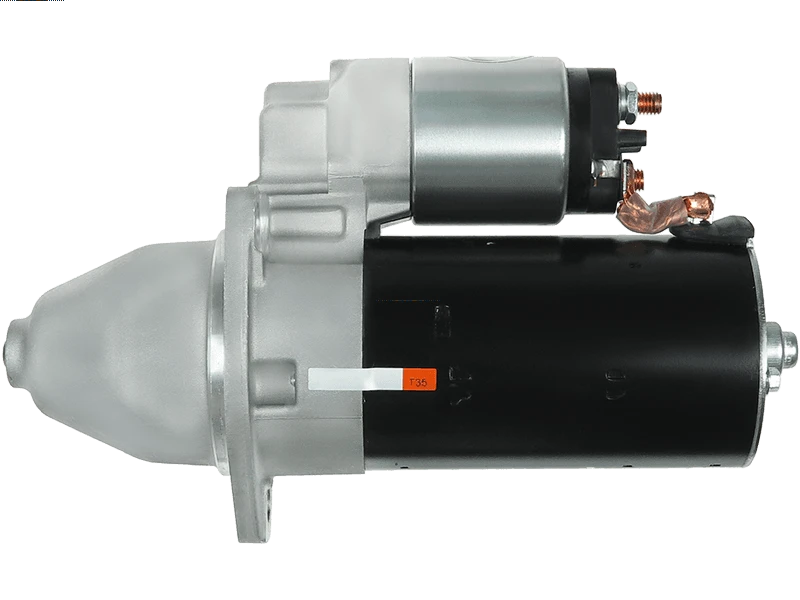

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 304.61 including GST
NZ$ 264.88 excluding GST
or four payments of $76.15
with
Learn More
each
S0788S
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109363Associated Numbers
69bx314047

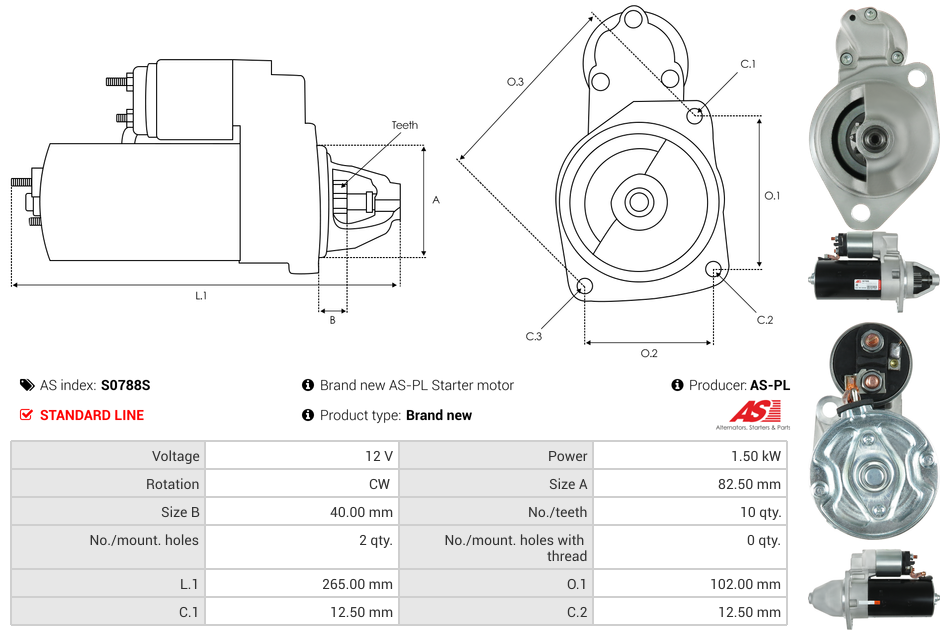

Specifications
| Kilowatt | 1.5 kW |
| Length (L.1) | 265 mm |
| Mount Hole Center - Center (O.1) | 102 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HATZ | Engine | [1D60] | 01.1990-12.1991 |
| HATZ | Engine | [1D80] | 01.1990-12.1991 |
Reference Information
8475 BREF032116333 0001109363-R 730.501.102.210 S100247 S100246 CST10314AS 730.501.102.011 50353420 S12BH0389 730.501.102.280 10440742 116333 UD16905S STRS530 20401413RC STR10171 6010314.0 8EA738-258-051 CST10314RS ST00976 BOS0001109363 6010314.2 PRSS530 TS-6176 680006102 STB1340 AC-CBS1340 0001314047 20401413BN CGB-28080 260-15101 0986018080 LRS01434 ANM10300X 10010314RV 1986S00753 CS1340 25-2347 ANM10300 DRS8080 0001109363 A18080 0001109442 112040 S12BH0389A2 LRS1434Video/Publications
