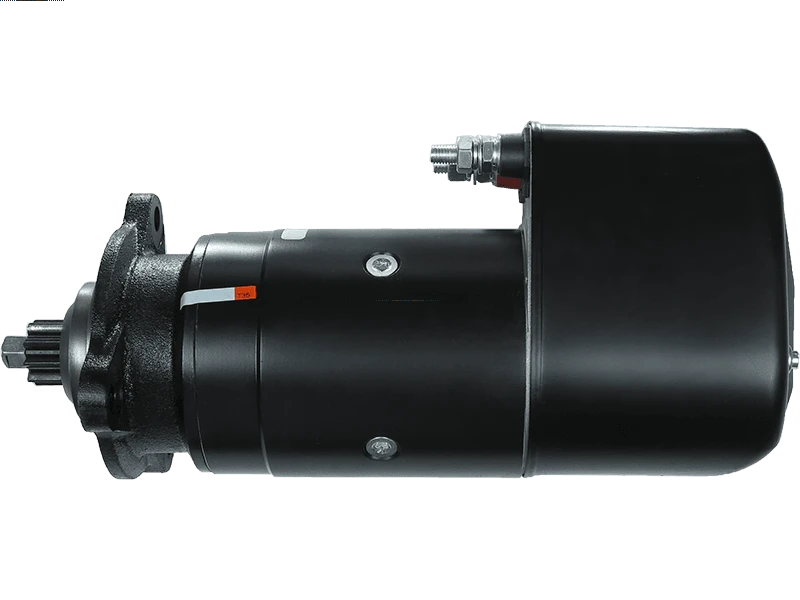

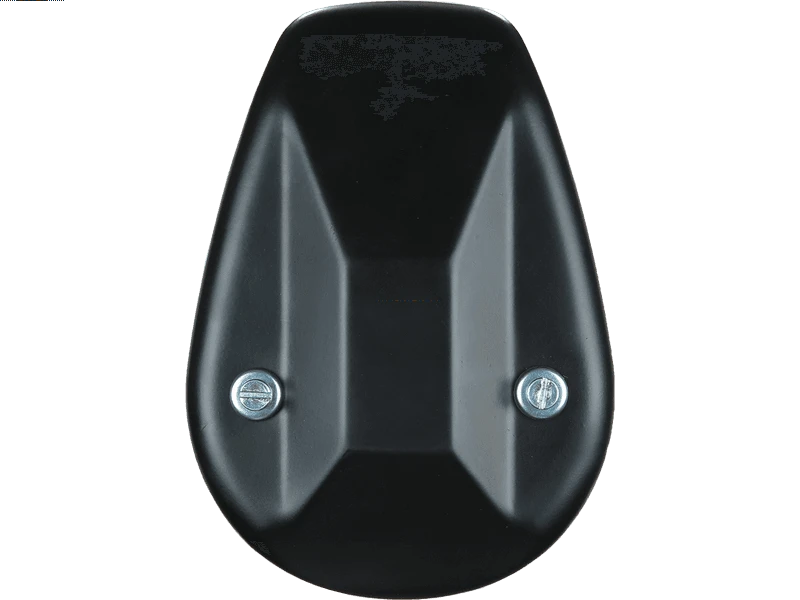

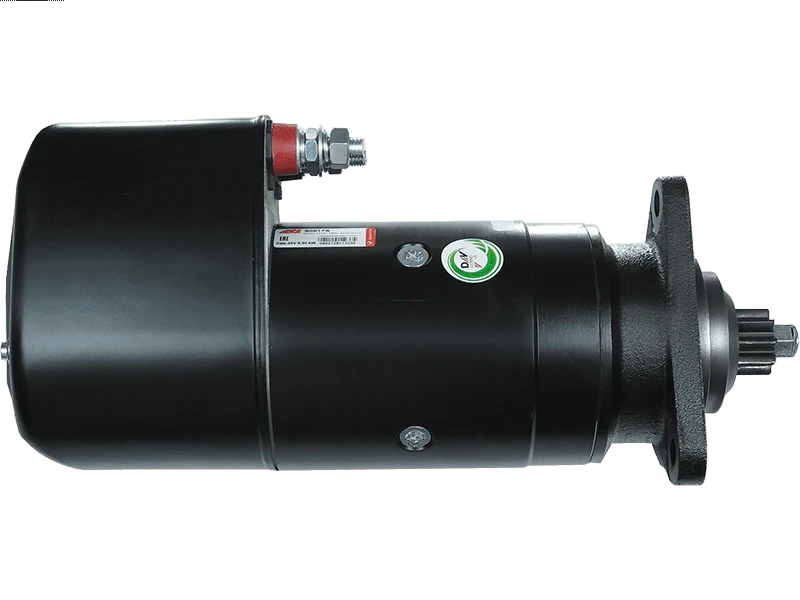

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 763.75 including GST
NZ$ 664.13 excluding GST
or four payments of $190.94
with
Learn More
each
S0817S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001417037Specifications
| Insulated Earth | Yes |
| Kilowatt | 6.60 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| Mount Hole Diameter (C.3) | 13 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ TRUCKS & BUSES | 1932 AK 16.0 | [OM403.916] | 08.1973-09.1983 |
| MERCEDES BENZ TRUCKS & BUSES | 1932 AK 16.0 | [OM403.931] | 08.1973-09.1983 |
Reference Information
| 0001330066 | BOSCH |
| 0001411022 | BOSCH |
| 0001411037 | BOSCH |
| 0001417037 | BOSCH |
| 0021512801 | MERCEDES |
| 0031516201 | MERCEDES |
| 0031516401 | MERCEDES |
| 11129122 | VOLVO |
| 11.139.091 | ISKRA / LETRIKA |
| 112120 | CARGO |
| 120-40122 | ROBERT'S |
| 1516711R | DAF |
| 15196711R | DAF |
| 18375N | WAI / TRANSPO |
| 19070004 | DELCO |
| 20401977BN | REAL |
| 254328 | KUHNER |
| 254328P | KUHNER |
| 260-47245 | DIXIE |
| 331907 | LOGISTIK |
| 33647 | EAI |
| 45-1403 | ELSTOCK |
| 51.26201-7091 | MAN |
| 51262017114 | MAN |
| 51262017124 | MAN |
| 51262017129 | MAN |
| 51262017137 | MAN |
| 51262017139 | MAN |
| 51262017271 | MAN |
| 551.205.093 | PSH |
| 6010779.0 | SANDO |
| 72736207 | MAHLE |
| 860698GB | PRESTOLITE |
| 8700 | CEVAM |
| 88213408 | POWERMAX |
| 91-15-7160 | WILSON |
| 943252236010 | MAGNETI MARELLI |
| A0021512801 | MERCEDES |
| A0031516201 | MERCEDES |
| A0031516401 | MERCEDES |
| AZK5443 | ISKRA / LETRIKA |
| CST10779AS | CASCO |
| F032112120 | CARGO |
| IS9082 | ISKRA / LETRIKA |
| LRS01877 | LUCAS |
| LRS1877 | LUCAS |
| MAV126020 | SIOM |
| MS579 | MAHLE |
| MS 579 | MAHLE |
| MSR718 | MAGNETI MARELLI |
| PRE860698GB | WOODAUTO |
| R22-01 | ELMOT |
| S0817S | AS-PL |
| S133.204 | PSH |
| S145.193 | PSH |
| STB2120 | KRAUF |
| STR1321 | ELECTROLOG |
| STR50670 | WOODAUTO |
| STR79524 | ELECTROLOG |
| UD16638S | AS-PL |
Video/Publications
