Associated Numbers
UD16656S AS-PL
0001413009 BOSCHList
0001418006 BOSCHList
CST10A04AS CASCO
8529 CEVAM
19024003 DELCOList
1170056 DEUTZ
1287136 DEUTZ
1298730 DEUTZ
2918433 DEUTZ
C1R12X4H7623 DEUTZ
TS-6002 DIXIE
11.139.142 ISKRA / LETRIKA
11.139.542 ISKRA / LETRIKA
AZK5489 ISKRA / LETRIKA
AZK5583 ISKRA / LETRIKA
IS9129 ISKRA / LETRIKA
STB0088 KRAUF
254838 KUHNER
72492704 MAHLE
72736162 MAHLE
MS 534 MAHLE
MS534 MAHLE
550.104.110 PSH
2040140ABN REAL
6010A04.0 SANDO
UNIT BOM 120-6003 WAI / TRANSPO
STR50558 WOODAUTO
0001400002 Bosch
0001401002 Bosch
0001401041 Bosch
0001413009 Bosch
0001418006 Bosch show
0001418006SEL +line
11139142 Mahle
11139542 Mahle
1170056 KHD
19024003 Remy
2918433
550104110 PSH
8529 CEVAM
A72480 ATL
AZK5489 Mahle
BNG2512DR9Z11 Bosch
BNG412CR9Z11 Bosch
IS9129 Mahle
MS534 Mahle
1170056, 2918433
11139142 AZK5489, IS9129
References:
Bosch 0001400002, 0001400013, 0001413009, 0001418006
Deutz 1170056, 2918433
MAHLE IS9129

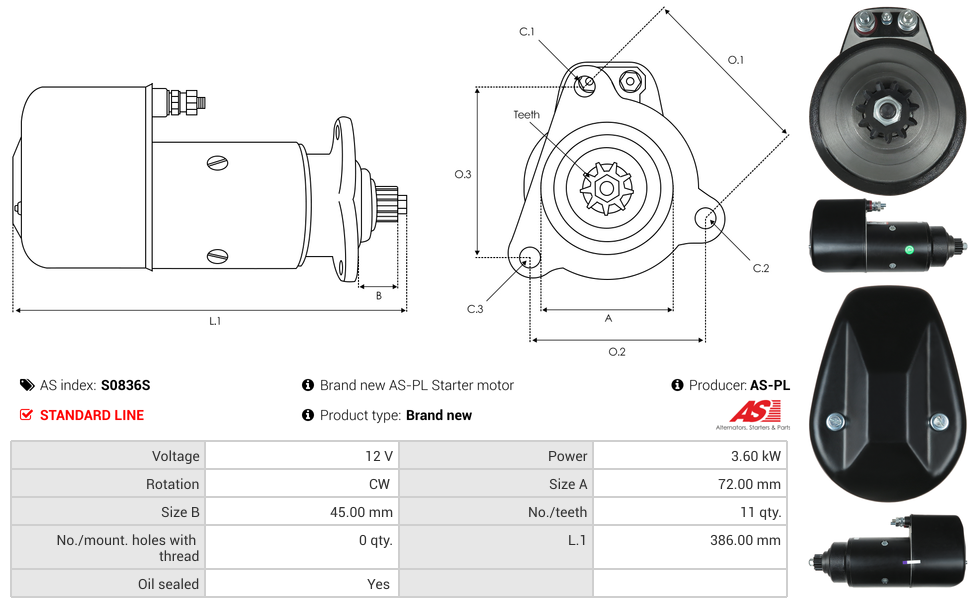

Specifications
| Kilowatt | 3.6 kW |
| Length (L.1) | 386 mm |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 45 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 72 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Various Models |
Reference Information
6010A04.0 C1R12X4H7623 UD16656S TS-6002 0001413009 AZK5583 0001418006 AZK5489 MS534 534 120-6003 STR50558 2040140ABN 8529 11.139.542 BOM UNIT 11.139.142 1287136 72492704 MS STR79570 STR1903 2918433 1170056 72736162 S0836S 1298730 STB0088 19024003 IS9129 STR79569 254838 CST10A04AS 550.104.110Video/Publications
