Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 422.81 including GST
NZ$ 367.66 excluding GST
or four payments of $105.70
with
Learn More
each
S0847S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

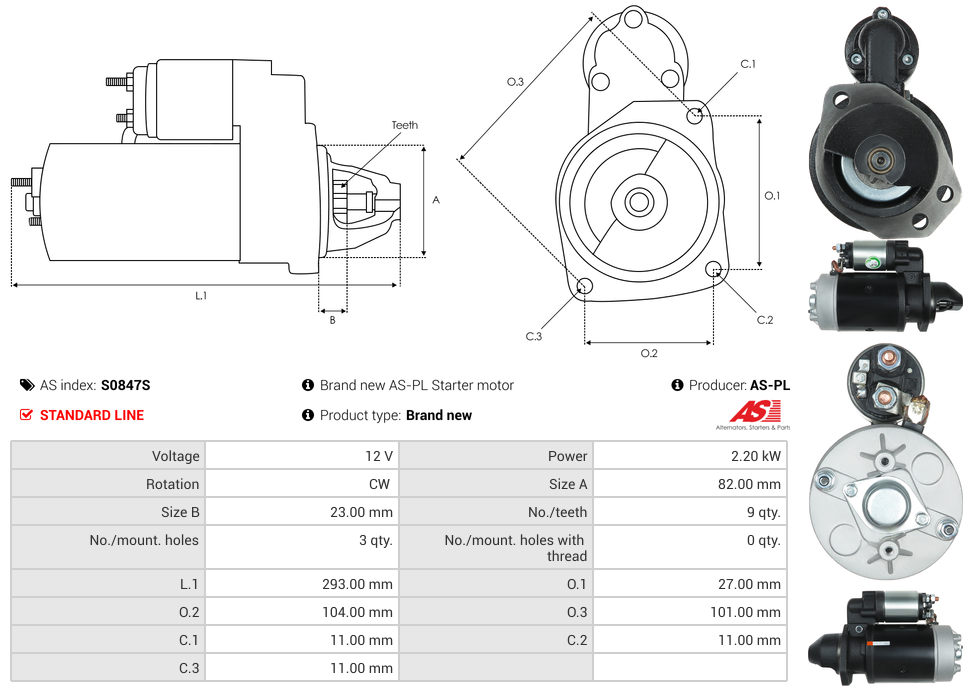

0001362705Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 27 mm |
| Mount Hole Center - Center (O.2) | 104 mm |
| Mount Hole Center - Center (O.3) | 101 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Various Models | 01.1989- |
Reference Information
8476 01182386KZ 560.007.093 LRS2639 331950 STR1812 25-4312 6010395.0 0001362705 254147 STB6556 CGB-22705 LRS02639 STRL824 114676 560.007.093.311 CST10395AS STR50204 01182386 260-62169 UD16926S 120-30189 01181877 20401593BN 88214009Video/Publications
