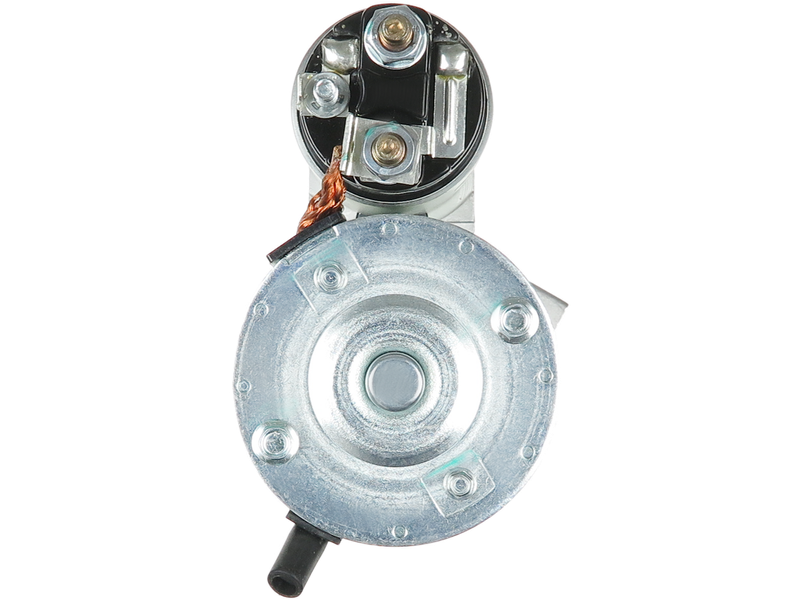

S1209S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S1209S
Price: 242.16 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

DELCO

Price:

NZ$ 242.16 including GST

NZ$ 210.57 excluding GST

UOM:

each

Product Code:

S1209S

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

57-072 57072 dxs554 SNJ300 70-8148-3

0986UR1243 Bosch ruil
10455513 Remy
10455516 Remy
112546 Cargo
12090457 EuroTec
1209803
1209803S Kohler
1280007480 Denso
22022DR PIC
2280002640 Denso show
2280007190 Denso show
2409801 Kohler
2409801S Kohler
2509808 Kohler
2509808S Kohler
2509809 Kohler
2509809S Kohler
2509811 Kohler
2509811S
2509817
2509820 Kohler
2509820S
252334 Elstock
255148 Elstock
5174720M030SM
600091092 DRI
600251102 DRI
630518092 PSH
8000335 Remy
8000869 Delco
8000870 Delco
8072 CEVAM
91295239N Wilson
9722809264 Denso
AM107631 John Deere
AM108390 John Deere
AM124993 John Deere
AM131296 John Deere
AM132702 John Deere
E719463010 Kubota
E719463012 Kubota
F042000214 Bosch
K0H2409801 New Holland
LRS01429 Lucas
LRS03986 Lucas
MIA11473 John Deere
SM51747
SR5044X Bosch (USA)
STR8276 Unipoint
WAI ECO Reman 6744R
WAI New 6744N
Bosch Remanufactured SR5044X
EGI S-6744f
Kohler 25-098-08, 25-098-08-S
Lester 6744
MFR Series - Family Type SD80
Our Part Number 6744N, 6744R
Power Select 6744N, 6744R
Raw Power 6744N, 6744R
Road Warrior 6744N, 6744R
ARROWHEAD410-12414
BOSCHSR5044X
CUB CADETKH-25-098-09-S, KH-25-098-11-S
DELCO1045513, 10455513, 10455516, 334-2522, 8000335, 8000869, 8000870
JANNCO 410-12182R
JOHN DEERE AM132702, MIA11473, MIA13172
KOHLER 25-098-08, 25-098-08S, 25-098-08-S, 25-098-09, 25-098-09S, 25-098-09-S, 25-098-11, 25-098-11S, 25-098-11-S, 25-098-14, 25-098-14-S, 25-098-20, 25-098-20S, 25-098-20-S, 25-098-21, 25-098-21-S
KUBOTA E7194-63010, E7194-63012
LESTER 6744
LUCAS ELECTRIC LRS03986

MAY Replace 9 Tooth Denso Starters #128000-7480 & 228000-2640 And Johnson Electric Starters #5174740

Kilowatt	0.8 kW
Length (L.1)	205 mm
Mount Hole Center - Center (O.1)	68 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	17 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Unit Type	DELCO
Voltage	12 V

Make	Model	Year
CUB CADET	2140
CUB CADET	2145
CUB CADET	2166	01.2000-12.2002
CUB CADET	2166	01.2000-12.2003
CUB CADET	2176	01.2000-12.2002
CUB CADET	2176	01.2000-12.2003
CUB CADET	2185	01.1994-12.2001
CUB CADET	2185
CUB CADET	2186	01.2000-12.2002
CUB CADET	2186	01.2000-12.2003
CUB CADET	2206	01.2000-12.2001
CUB CADET	2206	01.2000-12.2002
CUB CADET	2206	01.2000-12.2003
CUB CADET	2518	01.2000-12.2003
CUB CADET	2518	01.2002-12.2003
CUB CADET	3040	01.2001-12.2001
CUB CADET	3184	01.2000-12.2000
CUB CADET	3184	01.2001-12.2001
CUB CADET	3204	01.2002-12.2003
CUB CADET	3206	01.2000-12.2002
CUB CADET	3235	01.2000-12.2003
CUB CADET	5252	01.2004-12.2006
CUB CADET	5252E	01.2004-12.2006
CUB CADET	Big Country 4x2	01.2005-12.2006
CUB CADET	Big Country 4x4	01.2006-12.2006
CUB CADET	Big Country 6x4	01.2005-12.2006
CUB CADET	GT1554	01.2005-12.2006
CUB CADET	GT2186	01.2004-12.2004
CUB CADET	GT2523	01.2004-12.2004
CUB CADET	GT2542	01.2005-12.2006
CUB CADET	GT2544	01.2005-12.2006
CUB CADET	GT2550	01.2005-12.2006
CUB CADET	GT2554	01.2005-12.2006
CUB CADET	GT3100	01.2005-12.2006
CUB CADET	GT3200	01.2005-12.2006
CUB CADET	GT3204	01.2004-12.2004
CUB CADET	GT3235	01.2004-12.2004
CUB CADET	LT1050	01.2005-12.2006
CUB CADET	LT2042	01.2005-12.2005
CUB CADET	LT2138	01.2000-12.2004
CUB CADET	LT2138	01.2003-12.2004
CUB CADET	LT2542	01.2006-12.2006
CUB CADET	M48-KHS	01.2004-12.2004
CUB CADET	M50-KHS	01.2005-12.2006
CUB CADET	M54-KH	01.2004-12.2004
CUB CADET	M60-KH	01.2002-12.2006
CUB CADET	M60-KH	01.2004-12.2005
CUB CADET	Volunteer 4x2	01.2008-12.2014
CUB CADET	Volunteer 4x4	01.2008-12.2014
CUB CADET	Volunteer 4x4 EFi	01.2008-12.2014
CUB CADET	Z-Force 44	01.2004-12.2006
CUB CADET	Z-Force 48	01.2004-12.2006
CUB CADET	Z-Force 50	01.2005-12.2006
CUB CADET	Z-Force 60	01.2006-12.2006
GRASSHOPPER	225	01.2000-12.2004
GRASSHOPPER	720K	01.1993-12.1994
GRASSHOPPER	725K	01.1997-12.2001
JOHN DEERE	1948GV	01.2000-12.2002
JOHN DEERE	1948HV	01.2000-12.2002
JOHN DEERE	2148HV	01.2000-12.2002
JOHN DEERE	2354HV	01.2000-12.2002
JOHN DEERE	2554HV	01.1998-12.2002
JOHN DEERE	661R	01.2016-12.2016
JOHN DEERE	800	01.2009-12.2016
JOHN DEERE	A40	01.2015-12.2016
JOHN DEERE	F620	01.1998-12.1999
JOHN DEERE	F680	01.2000-12.2002
JOHN DEERE	F687	01.2003-12.2008
JOHN DEERE	G100	01.2003-12.2004
JOHN DEERE	G110	01.2004-12.2005
JOHN DEERE	L130	01.2003-12.2005
JOHN DEERE	LX266	01.2002-12.2003
JOHN DEERE	M653	01.2000-12.2002
JOHN DEERE	M655	01.2000-12.2002
JOHN DEERE	M665	01.2000-12.2002
JOHN DEERE	V40	01.2015-12.2016
JOHN DEERE	Z510A	01.2008-12.2009
JOHN DEERE	Z520A	01.2008-12.2009
JOHN DEERE	Z665	01.2011-12.2015
JOHN DEERE	Z710A	01.2011-12.2012
JOHN DEERE	Z915B	01.2013-12.2015
JOHN DEERE	Z925	01.2013-12.2015
JOHN DEERE	Z925M	01.2013-12.2016
JOHN DEERE	Z930M	01.2013-12.2016
KOHLER	CH13S
KOHLER	CH14S
KOHLER	CH15S
KOHLER	CH18S
KOHLER	CH20S
KOHLER	CH22S
KOHLER	CH23S
KOHLER	CH25S
KOHLER	CH26S
KOHLER	CH640
KOHLER	CH670
KOHLER	CH680
KOHLER	CH682
KOHLER	CH730
KOHLER	CH730S
KOHLER	CH732
KOHLER	CH740
KOHLER	CH740S
KOHLER	CH742
KOHLER	CH745S
KOHLER	CH750
KOHLER	CH750S
KOHLER	CH752
KOHLER	CH940
KOHLER	CH960
KOHLER	CH980
KOHLER	CV12.5S
KOHLER	CV15S
KOHLER	CV17S
KOHLER	CV18S
KOHLER	CV20S
KOHLER	CV22S
KOHLER	CV23S
KOHLER	CV25S
KOHLER	CV26S
KOHLER	CV460S
KOHLER	CV624S
KOHLER	CV675S
KOHLER	CV724S
KOHLER	CV730S
KOHLER	CV732
KOHLER	CV740S
KOHLER	CV742
KOHLER	CV745S
KOHLER	CV750S
KOHLER	ECH630
KOHLER	ECH650
KOHLER	ECH680
KOHLER	ECH730
KOHLER	ECH740
KOHLER	ECH749
KOHLER	ECH940
KOHLER	ECH980
KOHLER	ECV630
KOHLER	ECV650
KOHLER	ECV680
KOHLER	ECV730
KOHLER	ECV740
KOHLER	ECV850
KOHLER	ECV860
KOHLER	ECV870
KOHLER	ECV880
KOHLER	ECV940
KOHLER	ECV980
KOHLER	EZT715
KOHLER	EZT725
KOHLER	EZT740
KOHLER	EZT750
KOHLER	LH630
KOHLER	LH685S
KOHLER	LH775
KOHLER	LH775S
KOHLER	LV675S
KOHLER	PCV850
KOHLER	PCV860
KUBOTA	GR2000	01.1996-12.2005
KUBOTA	GR2000G	01.2005-12.2007
KUBOTA	GR2010G	01.2008-12.2009
KUBOTA	T1570	01.2002-12.2007
KUBOTA	T1570A	01.2002-12.2007
KUBOTA	T1670	01.2002-12.2007
KUBOTA	T1670A	01.2002-12.2007
KUBOTA	T2080	01.2008-12.2018
KUBOTA	T2080A	01.2008-12.2018
KUBOTA	T2380	01.2008-12.2018
KUBOTA	ZG20F	01.1996-12.2005
KUBOTA	ZG23F	01.1996-12.2005
TORO	Z148	01.2003-12.2004
TORO	Z150	01.2002-12.2004
TORO	Z153	01.2001-12.2004
TORO	Z200	01.2002-12.2003
TORO	Z253	01.2001-12.2003
TORO	Z255	01.2002-12.2003
TORO	Z257	01.2003-12.2003
TORO	Z286E	01.2002-12.2002
TORO	Z288E	01.2003-12.2003
TORO	Z350	01.2001-12.2002
TORO	Z355	01.2001-12.2004
TORO	Z400	01.2005-12.2006
TORO	Z450	01.2005-12.2006
TORO	Z500	01.2004-12.2004
TORO	Z500	01.2005-12.2005
TORO	Z500	01.2006-12.2006
TORO	Z500	01.2008-12.2008
TORO	Z550	01.2008-12.2008
TORO	Z553	01.2004-12.2005
TORO	Z557	01.2004-12.2006
TORO	Z557	01.2006-12.2006
TORO	Z560	01.2007-12.2007
TORO	Z588E	01.2004-12.2006

S12DR0375A2 71-01-6744 2509811S STR2009 E719463010 2509809 E719463012 2509808 2509808S S1209S STD2546 CST40405AS 10455516 STR80140 6744R 10455513 S-1484 6040405 255488 2509809S 201-06108 UD20598S AM132702 MIA11473 6744N

S1209S
