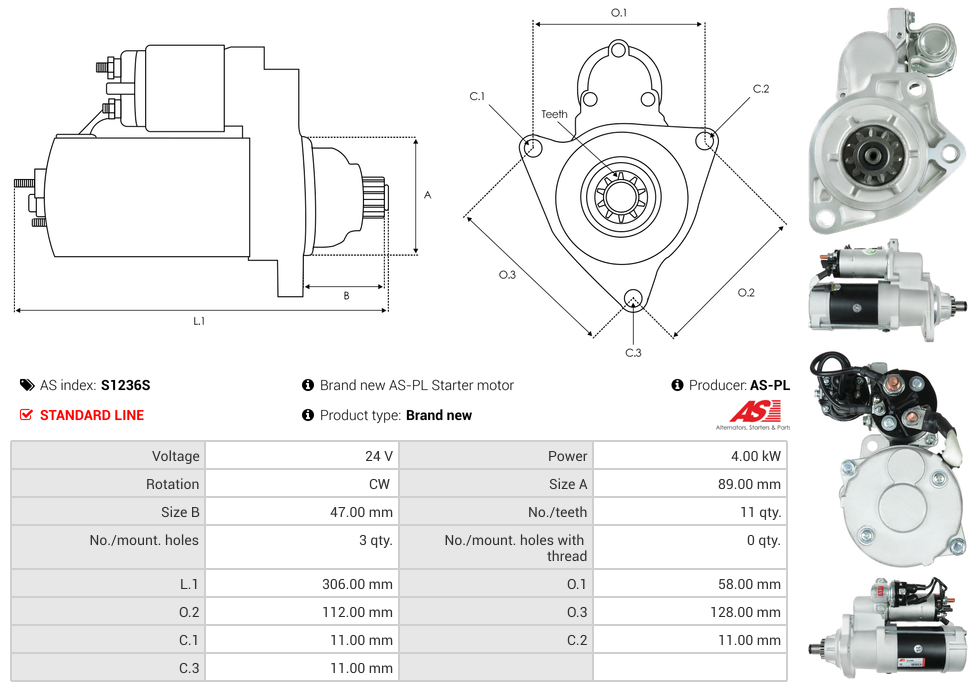

Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 306 mm |
| Mount Hole Center - Center (O.1) | 58 mm |
| Mount Hole Center - Center (O.2) | 112 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | DELCO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | County |
Reference Information
UD18487S STD5213 STR2226 36100-52000 300516-00040A 140-29147 8200141 256869Video/Publications
