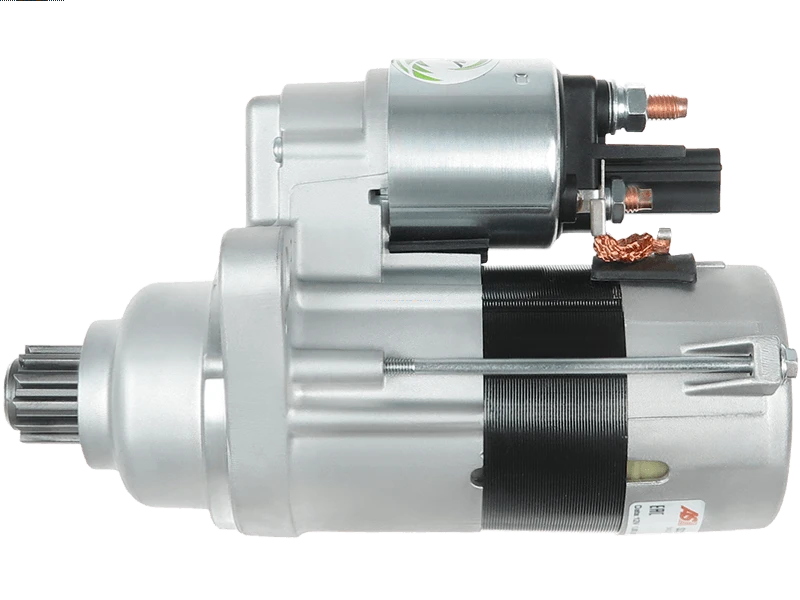

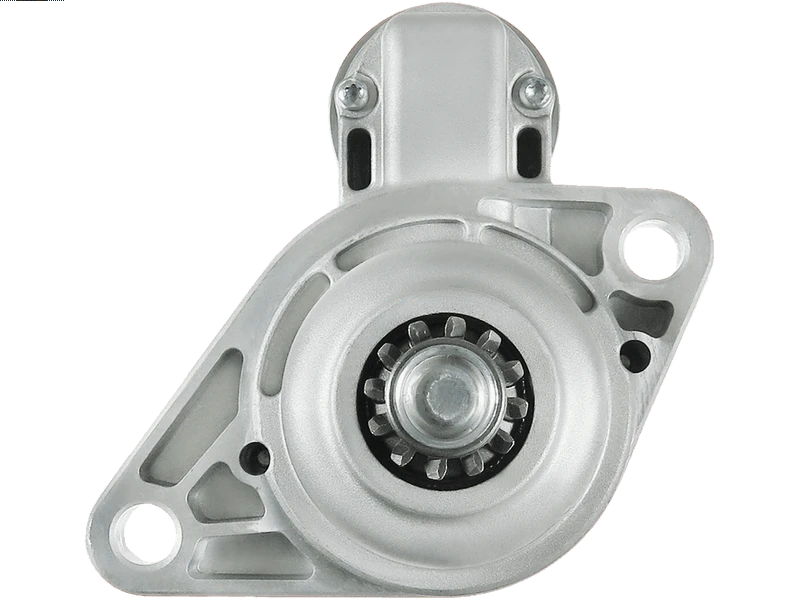

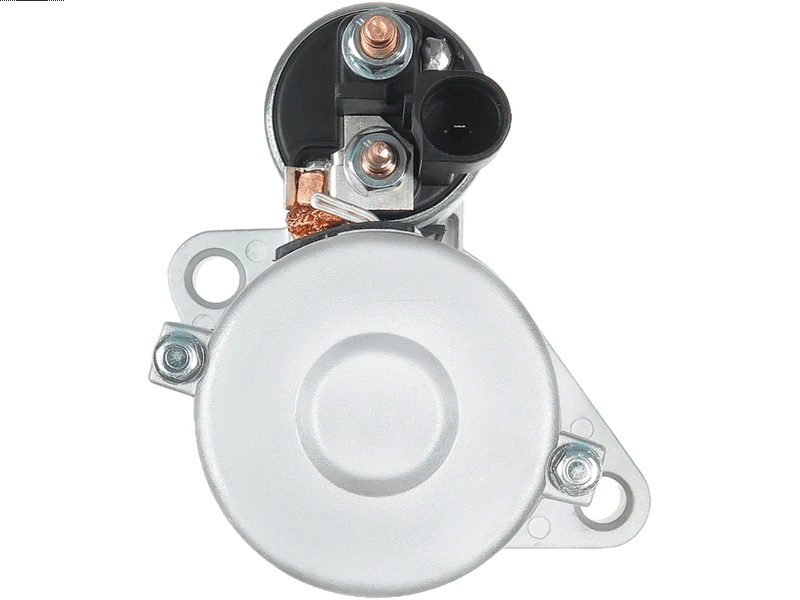

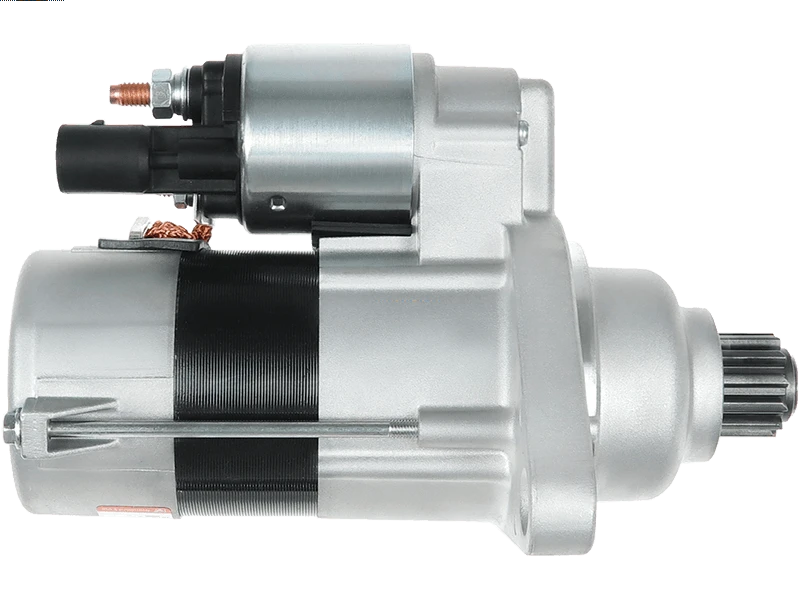

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 303.67 including GST
NZ$ 264.06 excluding GST
or four payments of $75.92
with
Learn More
each
S3095.
S3226S
No stock in NZ
No stock in NZ
Information
TS18ER22Specifications
| Kilowatt | 1.8 kW |
| Length (L.1) | 216.5 mm |
| Mount Hole Center - Center (O.1) | 122 mm |
| Mount Hole Diameter (C.1) | 12.5 mm |
| Mount Hole Diameter (C.2) | 12.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 62 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 79 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.6 TDi | [CAYB] | 01.2011-12.2015 |
| AUDI | A3 1.6 TDi | [CLHA] | 01.2012-12.2015 |
| AUDI | A3 1.6 TDi | [CLHA] | 01.2013- |
| AUDI | A3 1.6 TDi | [CRKB] | 01.2013- |
| AUDI | A3 1.6 TDi | [CRKB] | 01.2014- |
| AUDI | A3 1.6 TDi | [CXXB] | 01.2013- |
| AUDI | A3 1.6 TDi | [CXXB] | 01.2014- |
| AUDI | A3 1.6 TDi | [DBKA] | 01.2013- |
| AUDI | A3 1.6 TDi | [DBKA] | 01.2014- |
| AUDI | A3 1.6 TDi | [DDYA] | 01.2017- |
| AUDI | A3 1.6 TDi Sportback | [CLHA] | 01.2012- |
| AUDI | A3 1.6 TDi Sportback | [CRKB] | 01.2013- |
| AUDI | A3 1.6 TDi Sportback | [CXXB] | 01.2013- |
| AUDI | A3 1.6 TDi Sportback | [DBKA] | 01.2013- |
| AUDI | A3 1.6 TDi Sportback | [DDYA] | 01.2017- |
| AUDI | Q2 1.4 TFSi | [CZEA] | 01.2016- |
| AUDI | Q2 1.6 TDi | [DDYA] | 01.2016-12.2018 |
| AUDI | Q2 2.0 TDi | [DFGA] | 01.2016- |
| AUDI | Q2 2.0 TDi Quattro | [DFGA] | 01.2016- |
| AUDI | Q2 2.0 TDi Quattro | [DFHA] | 01.2016- |
| AUDI | Q2 30 TDi | [DGTE] | 01.2018- |
| AUDI | Q2 35 TFSi | [DADA] | 01.2018- |
| AUDI | Q2 35 TFSi | [DPCA] | 01.2018- |
| AUDI | Q2 SQ2 TFSi Quattro | [DNUE] | 01.2018- |
| SEAT | Altea 1.6 TDi | [CAYC] | 01.2009- |
| SEAT | Altea 1.8 TFSi | [BYT] | 01.2007- |
| SEAT | Altea 1.8 TFSi | [BZB] | 01.2007- |
| SEAT | Altea 1.8 TFSi | [CDAA] | 01.2007- |
| SEAT | Altea XL 1.6 TDi | [CAYC] | 01.2009- |
| SEAT | Altea XL 1.8 TFSi | [BYT] | 01.2007- |
| SEAT | Altea XL 1.8 TFSi | [BZB] | 01.2007- |
| SEAT | Altea XL 1.8 TFSi | [CDAA] | 01.2007- |
| SEAT | Ateca 2.0 TDi | [CRVC] | 01.2016- |
| SEAT | Ateca 2.0 TDi | [DFFA] | 01.2016- |
| SEAT | Ateca 2.0 TDi 4Drive | [DFHA] | 01.2016- |
| SEAT | Leon 1.4 TSi | [CMBA] | 01.2012- |
| SEAT | Leon 1.4 TSi | [CXSA] | 01.2012- |
| SEAT | Leon 1.4 TSi | [CZDA] | 01.2014- |
| SEAT | Leon 1.4 TSi | [CZEA] | 01.2014- |
| SEAT | Leon 1.6 TDi | [CAYC] | 01.2010-12.2012 |
| SEAT | Leon 1.6 TDi | [CLHA] | 01.2012- |
| SEAT | Leon 1.6 TDi | [CLHB] | 01.2012- |
| SEAT | Leon 1.6 TDi | [CRKB] | 01.2013- |
| SEAT | Leon 1.6 TDi | [CXXA] | 01.2012- |
| SEAT | Leon 1.6 TDi | [CXXB] | 01.2013- |
| SEAT | Leon 1.6 TDi | [DBKA] | 01.2013- |
| SEAT | Leon 1.6 TDi | [DDYA] | 01.2016- |
| SEAT | Leon 1.6 TDi | [DDYB] | 01.2012- |
| SEAT | Leon 1.6 TDi | [DGTE] | 01.2016- |
| SEAT | Leon 1.8 TSi | [CJSA] | 01.2013- |
| SEAT | Leon SC 1.4 TSi | [CMBA] | 01.2013-12.2015 |
| SEAT | Leon SC 1.4 TSi | [CXSA] | 01.2013-12.2015 |
| SEAT | Leon SC 1.4 TSi | [CZEA] | 01.2014-12.2018 |
| SEAT | Leon SC 1.6 TDi | [CLHA] | 01.2013-12.2018 |
| SEAT | Leon SC 1.6 TDi | [CRKB] | 01.2013-12.2016 |
| SEAT | Leon SC 1.6 TDi | [CXXB] | 01.2013-12.2016 |
| SEAT | Leon SC 1.6 TDi | [DBKA] | 01.2013-12.2016 |
| SEAT | Leon SC 1.6 TDi | [DDYA] | 01.2016-12.2018 |
| SEAT | Leon SC 1.8 TSi | [CJSA] | 01.2013-12.2018 |
| SEAT | Leon ST 1.4 TSi | [CMBA] | 01.2012- |
| SEAT | Leon ST 1.4 TSi | [CXSA] | 01.2012- |
| SEAT | Leon ST 1.4 TSi | [CZEA] | 01.2014- |
| SEAT | Leon ST 1.6 TDi | [CLHA] | 01.2013- |
| SEAT | Leon ST 1.6 TDi | [CRKB] | 01.2013- |
| SEAT | Leon ST 1.6 TDi | [CXXB] | 01.2013- |
| SEAT | Leon ST 1.6 TDi | [DBKA] | 01.2013- |
| SEAT | Leon ST 1.6 TDi | [DDYA] | 01.2016- |
| SEAT | Leon ST 1.6 TDi | [DGTE] | 01.2016- |
| SEAT | Leon ST 1.8 TSi | [CJSA] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [CKFC] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [CRBC] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [CRLB] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [CRMB] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [DFFA] | 01.2013- |
| SEAT | Leon ST 2.0 TDi | [DFGA] | 01.2013- |
| SEAT | Toledo 1.6 TDi | [CAYB] | 01.2013-12.2015 |
| SKODA | Karoq 1.6 TDi | [DDYA] | 01.2017- |
| SKODA | Karoq 1.6 TDi | [DGTE] | 01.2017- |
| SKODA | Karoq 2.0 TDi 4x4 | [DFFA] | 01.2017- |
| SKODA | Octavia 1.4 TSi | [CHPB] | 01.2014- |
| SKODA | Octavia 1.4 TSi | [CZDA] | 01.2014- |
| SKODA | Octavia 1.6 TDi | [CAYC] | 01.2009-12.2013 |
| SKODA | Octavia 1.6 TDi | [CLHA] | 01.2012- |
| SKODA | Octavia 1.6 TDi | [CRKB] | 01.2013- |
| SKODA | Octavia 1.6 TDi | [CXXB] | 01.2013- |
| SKODA | Octavia 1.6 TDi | [DBKA] | 01.2013- |
| SKODA | Octavia 1.6 TDi 4x4 | [CLHA] | 01.2014- |
| SKODA | Octavia 2.0 TDi | [CKFB] | 01.2012- |
| SKODA | Octavia 2.0 TDi | [CRVC] | 01.2012- |
| SKODA | Octavia 2.0 TDi 4x4 | [CKFC] | 01.2014- |
| SKODA | Octavia 2.0 TDi 4x4 | [CRMB] | 01.2014- |
| SKODA | Octavia 2.0 TDi 4x4 | [CUNA] | 01.2013- |
| SKODA | Octavia 2.0 TDi 4x4 | [CUPA] | 01.2013- |
| SKODA | Octavia 2.0 TDi 4x4 | [DCYA] | 01.2014- |
| SKODA | Octavia 2.0 TDi 4x4 | [DFFA] | 01.2014- |
| SKODA | Octavia 2.0 TDi 4x4 | [DJGA] | 01.2013- |
| SKODA | Octavia 2.0 TDi RS 4x4 | [CUNA] | 01.2013- |
| SKODA | Octavia 2.0 TDi RS 4x4 | [CUPA] | 01.2013- |
| SKODA | Octavia 2.0 TDi RS 4x4 | [DJGA] | 01.2013- |
| VW | Beetle 1.6 TDi | [CAYC] | 01.2011-12.2016 |
| VW | Caddy 1.2 TSi | [CBZA] | 01.2010-12.2015 |
| VW | Caddy 1.2 TSi | [CBZB] | 01.2010-12.2015 |
| VW | Caddy 1.6 Bifuel | [CHGA] | 01.2011-12.2015 |
| VW | Caddy 1.6 TDi | [CAYD] | 01.2010-12.2015 |
| VW | Caddy 1.6 TDi | [CAYD] | 01.2015- |
| VW | Caddy 1.6 TDi | [CAYE] | 01.2010-12.2015 |
| VW | Caddy 2.0 EcoFuel | [BSX] | 01.2006-12.2015 |
| VW | Caddy 2.0 TDi | [CFJA] | 01.2012-12.2015 |
| VW | Caddy 2.0 TDi 16V | [CFHC] | 01.2010-12.2015 |
| VW | Caddy 2.0 TDi 16V | [CLCB] | 01.2010-12.2015 |
| VW | Caddy 2.0 TDi 16V 4-Motion | [CFHC] | 01.2010-12.2015 |
| VW | Caddy 2.0 TDi 4-Motion | [CFHF] | 01.2010-12.2015 |
| VW | Golf Plus 1.4 TSi | [CAXA] | 01.2007-12.2013 |
| VW | Golf Plus 1.6 TDi | [CAYC] | 01.2009-12.2013 |
| VW | Golf Sportsvan 1.6 TDi | [CRKB] | 01.2014- |
| VW | Golf Sportsvan 1.6 TDi | [CXXB] | 01.2014- |
| VW | Golf Sportsvan 1.6 TDi | [DBKA] | 01.2014- |
| VW | Golf Sportsvan 1.6 TDi | [DDYA] | 01.2016- |
| VW | Golf Sportsvan 1.6 TDi | [DGTE] | 01.2016- |
| VW | Golf Sportsvan 2.0 TDi | [CRLB] | 01.2014- |
| VW | Golf Sportsvan 2.0 TDi | [DCYA] | 01.2014- |
| VW | Golf Sportsvan 2.0 TDi | [DFGA] | 01.2014- |
| VW | Golf VII 1.6 TDi | [CLHA] | 01.2012- |
| VW | Golf VII 1.6 TDi | [CLHA] | 01.2013- |
| VW | Golf VII 1.6 TDi | [CLHB] | 01.2013- |
| VW | Golf VII 1.6 TDi | [CRKA] | 01.2013- |
| VW | Golf VII 1.6 TDi | [CRKB] | 01.2013- |
| VW | Golf VII 1.6 TDi | [CXXA] | 01.2013- |
| VW | Golf VII 1.6 TDi | [CXXB] | 01.2013- |
| VW | Golf VII 1.6 TDi | [DBKA] | 01.2013- |
| VW | Golf VII 1.6 TDi | [DDYA] | 01.2016- |
| VW | Golf VII 1.6 TDi | [DDYB] | 01.2013- |
| VW | Golf VII 1.6 TDi | [DGTE] | 01.2016- |
| VW | Golf VII 1.6 TDi 4-Motion | [CLHA] | 01.2013- |
| VW | Golf VII 1.6 TDi 4-Motion | [CRKB] | 01.2013- |
| VW | Golf VII 1.6 TDi 4-Motion | [CXXB] | 01.2013- |
| VW | Jetta 1.2 TSi | [CBZB] | 01.2010- |
| VW | Jetta 1.6 TDi | [CAYC] | 01.2010-12.2015 |
| VW | Jetta 2.0 TDi | [CLCA] | 01.2010- |
| VW | Jetta 2.0 TDi | [CUUA] | 01.2010- |
| VW | Polo 1.2 TSi | [CBZB] | 01.2009- |
| VW | Polo 1.4 | [CDDA] | 01.2009-12.2014 |
| VW | Polo 1.4 | [CGGB] | 01.2009-12.2014 |
| VW | Polo 1.4 | [CLPA] | 01.2009-12.2014 |
| VW | Polo 1.4 GTi | [CAVE] | 01.2010- |
| VW | Polo 1.4 GTi | [CTHE] | 01.2010- |
| VW | Polo 1.6 TDi | [CAYB] | 01.2009- |
| VW | Touran 1.4 TSi | [BMY] | 01.2006-12.2010 |
| VW | Touran 1.4 TSi | [CAVC] | 01.2006-12.2010 |
| VW | Touran 1.4 TSi EcoFuel | [CDGA] | 01.2009-12.2010 |
| VW | Touran 1.6 TDi | [CAYC] | 01.2010-12.2015 |
| VW | Touran 2.0 TDi | [BMN] | 01.2005-12.2010 |
| VW | Touran 2.0 TDi | [CFHC] | 01.2010-12.2015 |
| VW | Touran 2.0 TDi | [CFJA] | 01.2005-12.2010 |
Reference Information
5015869 8214606 TS18ER22 0AM911023LX 115634 PRSL736 254556V CST15255GS 300.591.122.000 LRS02476 MAV172550 S3226S 300.591.122.500 LRS2476 458412 UD18545S 220586 AM911023L 254556 0AM911023L 25-4148 STR00148 3349 438252 6015255.1 0986026330 201174 8EA012140-091 12145 20479552OE 30454R 88214606 STRL736 STR54144 S12VA0447A2Video/Publications
