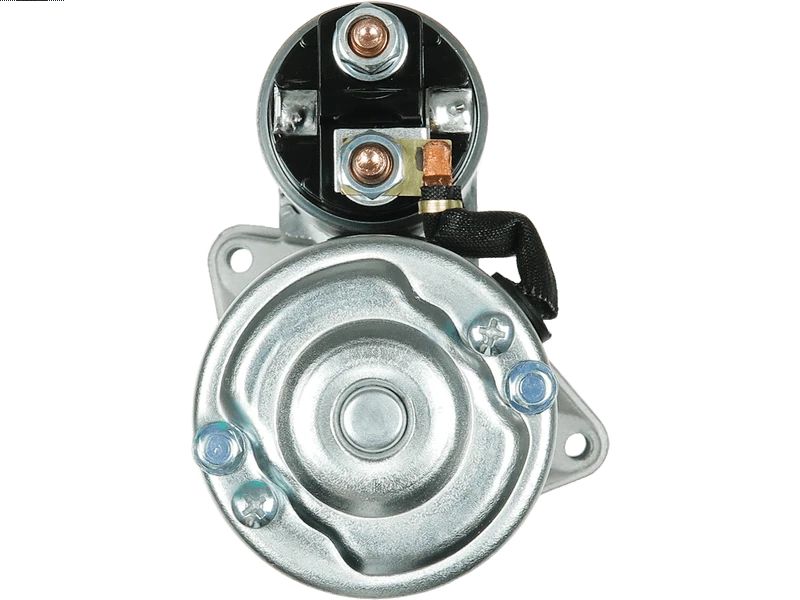

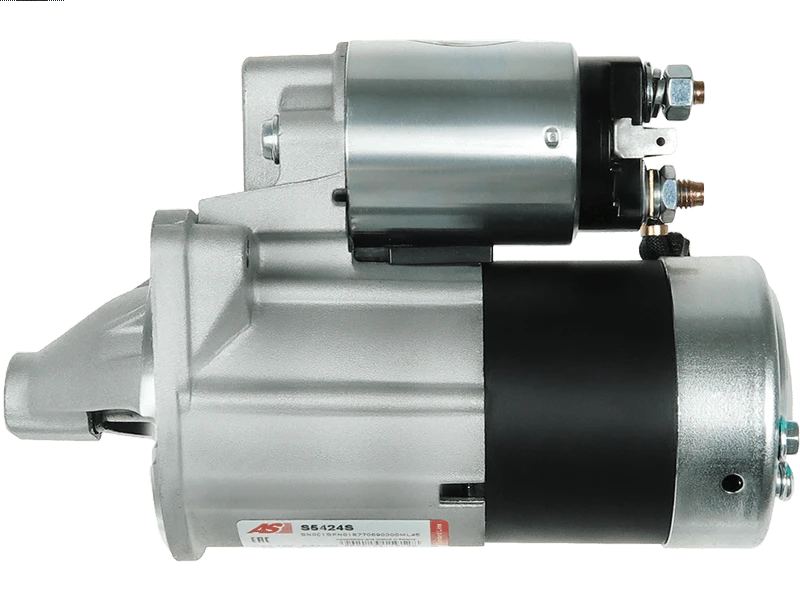

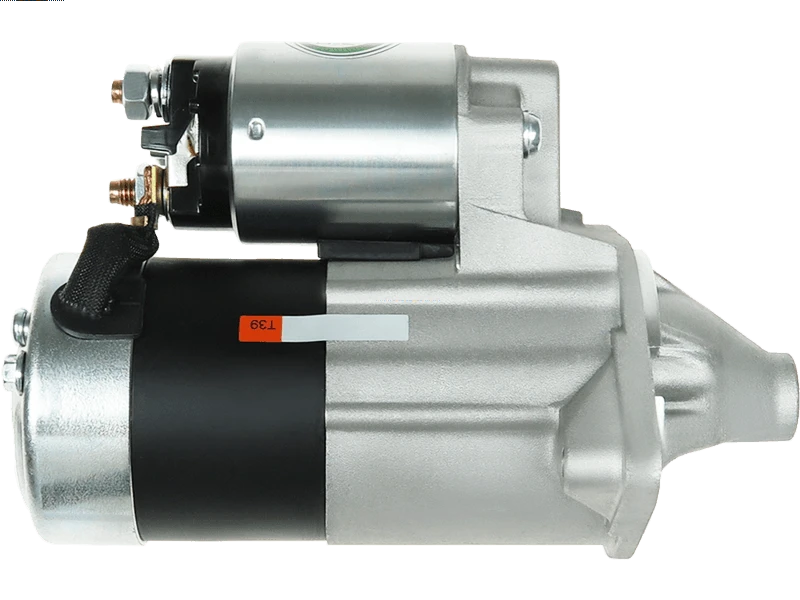

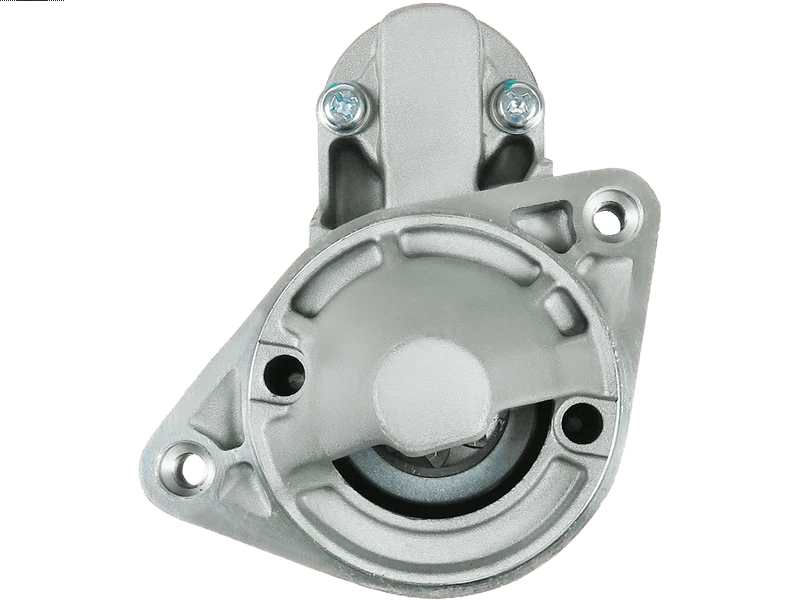

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 243.95 including GST
NZ$ 212.13 excluding GST
or four payments of $60.99
with
Learn More
each
S5040
S5424S
No stock in NZ
No stock in NZ
Information
M0T84781Specifications
| Kilowatt | 0.8 kW |
| Length (L.1) | 195 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Metro 1.0 | 01.1998-01.1998 | |
| CHEVROLET | Metro 1.0 | 01.1999-01.2000 | |
| CHEVROLET | Metro 1.3 | 01.1999-01.2000 | |
| CHEVROLET | Metro 1.3 LSi | 01.1998-01.1998 | |
| CHEVROLET | Metro 1.3 LSi | 01.2001-01.2001 | |
| CHEVROLET | Sprint 1.0 | 01.1985- | |
| CHEVROLET | Sprint 1.0 | 01.1986-01.1988 | |
| CHEVROLET | Sprint 1.0 ER | 01.1987-01.1988 | |
| CHEVROLET | Sprint 1.0 Plus | 01.1986- | |
| CHEVROLET | Sprint 1.0 Turbo | 01.1987-01.1988 | |
| SUZUKI | Alto 1.1 | [F10D] | 09.2004- |
| SUZUKI | Alto 1.1 | [F10DN] | 09.2004- |
| SUZUKI | Baleno 1.3 | [G13BA] | 09.1996-05.2002 |
| SUZUKI | Baleno 1.3 16V | [G13BB] | 03.1997-05.2002 |
| SUZUKI | Baleno 1.3 i 16V | [G13BB] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V | [G16B] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V | [G16B] | 08.1996-05.2002 |
| SUZUKI | Baleno 1.6 i 16V 4WD | [G16B] | 07.1995-05.2002 |
| SUZUKI | Baleno 1.6 i 16V 4WD | [G16B] | 08.1996-05.2002 |
| SUZUKI | Swift 1.0 | [G10] | 10.1983-03.1989 |
| SUZUKI | Swift 1.0 | [G10A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.0 | [G10A] | 10.1983-03.1989 |
| SUZUKI | Swift 1.0 i | [G10A] | 03.1989-12.1991 |
| SUZUKI | Swift 1.0 i | [G10A] | 09.1991-05.2001 |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989- |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 | [G13A] | 03.1989-12.1991 |
| SUZUKI | Swift 1.3 | [G13A] | 08.1986-03.1989 |
| SUZUKI | Swift 1.3 | [G13A] | 10.1984-03.1989 |
| SUZUKI | Swift 1.3 | [G13BA] | 09.1991-10.1996 |
| SUZUKI | Swift 1.3 | [G13BB] | 06.2001-12.2003 |
| SUZUKI | Swift 1.3 4WD | [G13A] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 4WD | [G13A] | 10.1989-12.1991 |
| SUZUKI | Swift 1.3 GTi | [G13B] | 03.1989-05.2001 |
| SUZUKI | Swift 1.3 GTi | [G13B] | 08.1985-03.1989 |
| SUZUKI | Swift 1.3 GXi | [G13B] | 08.1985-03.1989 |
| SUZUKI | Swift 1.6 | [G16B] | 11.1989-12.1991 |
| SUZUKI | Swift 1.6 4WD | [G16B] | 11.1989-12.1991 |
| SUZUKI | Swift 1.6 i | [G16B] | 01.1990-05.2001 |
| SUZUKI | Swift 1.6 i 4WD | [G16B] | 01.1990-05.2001 |
| SUZUKI | Wagon 1.0 | [G10A] | 07.2003-08.2005 |
| SUZUKI | Wagon 1.3 | [G13BB] | 05.2000-12.2004 |
| SUZUKI | Wagon 1.3 4WD | [G13BB] | 10.2001- |
Reference Information
31100-826A0 028000-9900 31100-826A1 028000-9903 180.003.082.415 31100-86130 3110092330 028000-9901 028000-9902 M0T84781 M2T30385 31100800000000000 M2T30381 3110060851 31100-M82020 31100-M82021 3110082641 M3T33585 3Z212 JS512 3Z213 25-2071 M002T33781 M003T33871 31100-M70F00 M002T33785 31100-60B50 31100-60B51 DRS3043 31100-60B52 LRS1311 3110060G11000 31100-62030 31100-60G10-000 M3T41881 20432411BN CST40114AS M3T41885 228000-4640 228000-4643 31100-79F00 31100M70F00 228000-4641 228000-4642 31100-82610 31100-82612 M3T33871 31100-82611 220194 31100M82020 31100M82021 3110080E10000 STX200316 M2T41381 M002T46081ZE STX200316R J5218004 M003T41885 STR5433 31100-83E00-000 M3T33781ZC 3110083 M003T41881 31100-86033 STRS032 MTZ212 MTZ213 228000-7162 228000-7161 228000-7160 228000-9062 228000-9063 63103019 30005563 228000-7163 228000-9060 228000-9061 UD20428S STX200366 31100-60B51-000 31100-826D2 128000-6213 M002T41381 LRS01311 31100-82632 31100-M82011 31100-M82012 M2T41885 31100-M82013 ANM15263X M000T84781 M002T30381 31100-80E10-000 M2T41881 31100-64G00 S5424S 31100820D0 M002T30385 M2T46081ZE 31100-80E00 31100-92330 3110060B52 111310 3110060B50 31100-82010 M003T33781ZC 3110086130 31100-82011 31100826A1 3110083E00000 3110682010 M3T33785 30005226 31000-82631 31100-69G00 31100-60851 M3T33781 228000-5482 228000-5483 228000-5480 SG0872 228000-5481 003-Z213 003-Z212 12118 31100M82013000 31100-83E00 31100-80E10 M002T41881 M2T46081 31100-60G11-000 31100M79F00 MAV6070 M002T41885 31100-82016 31100M79F00000 M0T86481 3110082330 8EA011-610-831 M003T33785 M3T44281 3110079F00 3110082610 M003T33781 STM0512 3110082611 3110082612 128000-2860 128000-2862 128000-2863 CGB-23043 31100-60G10 31100-60G11 31100-82030 S12MH0824A2 31100-60B50-000 31100-79F00-000 128000-0600 M000T86481 31100-82031 20512 31100M82011 31100M82013 M003T44281 3110062011 STX200566 31100826D2 M2T33785 MT86481 M2T33781 M002T46081 31100-64G00-000 180.003.082 3110082631 31100-M79F00 335473 3110082230 31100-820D1 PRSS032 88212746 6040114.0Video/Publications
