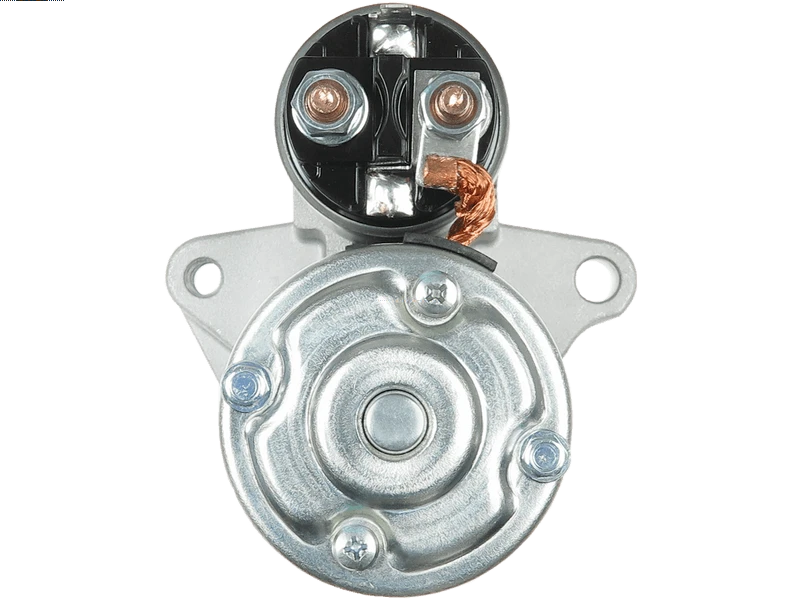

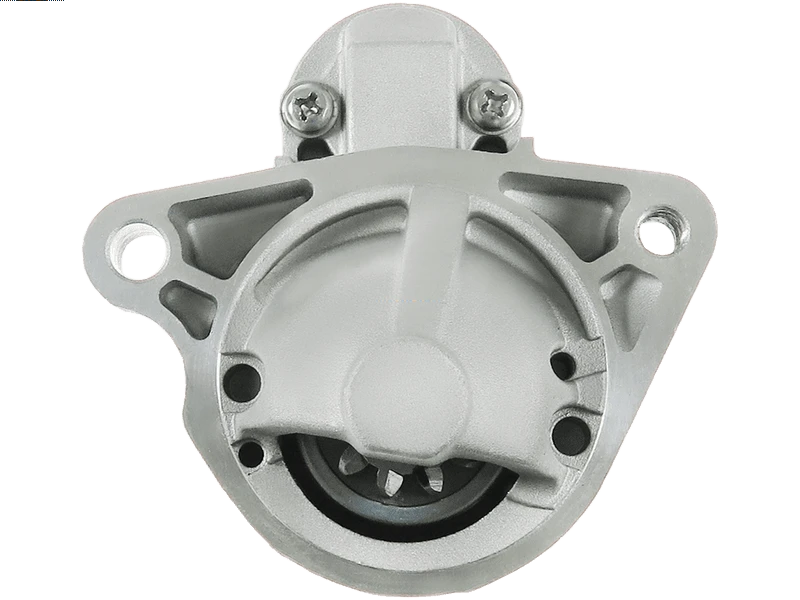

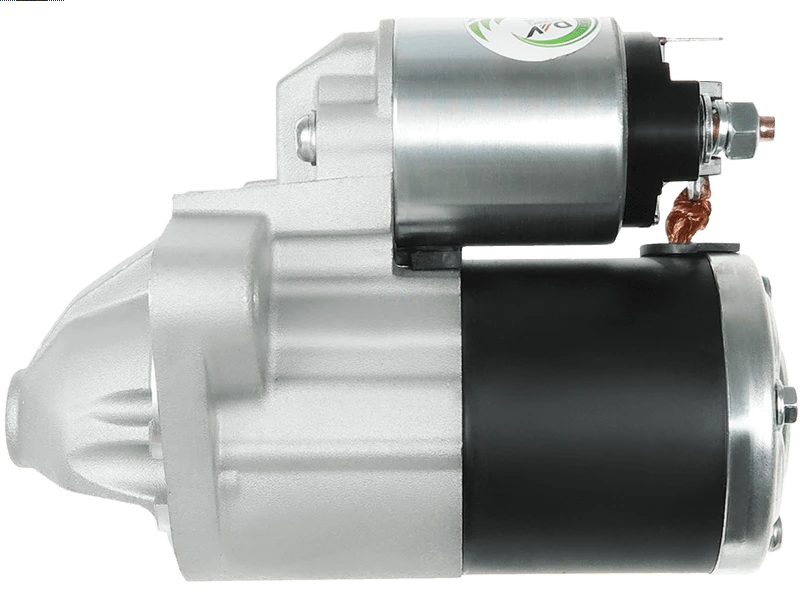

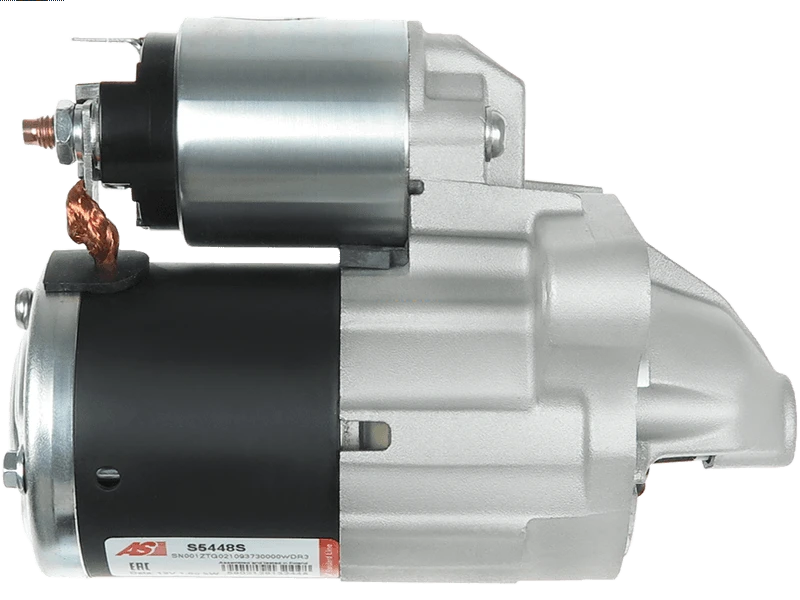

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 245.79 including GST
NZ$ 213.73 excluding GST
or four payments of $61.45
with
Learn More
each
S5461S
S5448S
No stock in NZ
No stock in NZ
Information
M0TD0071Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 175 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | 10.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 75 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 2 1.5 | [P5Y..] | 01.2014- |
| MAZDA | 2 1.5 4WD | [P5Y..] | 01.2014- |
| MAZDA | 3 2.0 | [PEY7] | 01.2013- |
| MAZDA | 6 2.0 | [PEXL] | 01.2012- |
| MAZDA | 6 2.0 | [PEY5] | 01.2012- |
| MAZDA | 6 2.0 | [PEY7] | 01.2012- |
| MAZDA | 6 2.0 | [PEY7] | 01.2013- |
| MAZDA | 6 2.5 | [PYY1] | 01.2013-12.2018 |
| MAZDA | 6 2.5 | [PYY1] | 01.2015-12.2016 |
| MAZDA | CX-3 2.0 | 01.2015- | |
| MAZDA | CX-3 2.0 AWD | 01.2015- | |
| MAZDA | CX-5 2.0 | [PE-VPS] | 01.2012- |
| MAZDA | CX-5 2.0 | [PEX..] | 01.2017- |
| MAZDA | CX-5 2.0 | [PEY4] | 01.2012- |
| MAZDA | CX-5 2.0 | [PEY5] | 01.2012- |
| MAZDA | CX-5 2.0 | [PEY6] | 01.2012- |
| MAZDA | CX-5 2.0 | [PEY7] | 01.2012- |
| MAZDA | CX5 2.0 | [PEVPS] | 01.2012-12.2017 |
| MAZDA | CX5 2.0 | [PEX3] | 01.2017- |
| MAZDA | CX5 2.0 | [PEX3] | 01.2017-12.2018 |
| MAZDA | CX5 2.0 | [PEXB] | 01.2017- |
| MAZDA | CX5 2.0 | [PEXP] | 01.2017- |
| MAZDA | CX5 2.0 | [PEY4] | 01.2011-12.2017 |
| MAZDA | CX5 2.0 | [PEY5] | 01.2011-12.2017 |
| MAZDA | CX5 2.0 | [PEY5] | 01.2012-12.2017 |
| MAZDA | CX-5 2.0 AWD | [PE-VPS] | 01.2012- |
| MAZDA | CX-5 2.0 AWD | [PEX..] | 01.2017- |
| MAZDA | CX-5 2.0 AWD | [PEY4] | 01.2012- |
| MAZDA | CX-5 2.0 AWD | [PEY5] | 01.2012- |
| MAZDA | CX-5 2.0 AWD | [PEY6] | 01.2012- |
| MAZDA | CX-5 2.0 AWD | [PEY7] | 01.2012- |
| MAZDA | CX-5 2.5 | [PV-VPS] | 01.2013- |
| MAZDA | CX-5 2.5 | [PYY1] | 01.2015- |
| MAZDA | CX-5 2.5 AWD | [PV-VPS] | 01.2014- |
| MAZDA | CX-5 2.5 AWD | [PYY1] | 01.2015- |
Reference Information
LRS3843 9698 PE07-18-400 M0TD0071ZC M000TD0071ZC 6035390.0 25-5016 LRS03843 PRSE427 CST35390AS 116431 M000TD0071 J5213059 S-80588 UD18549S DS2295 PE07 STRE427 91-27-3546 M0TD0071 20437093BN DRS1185 19981NVideo/Publications
