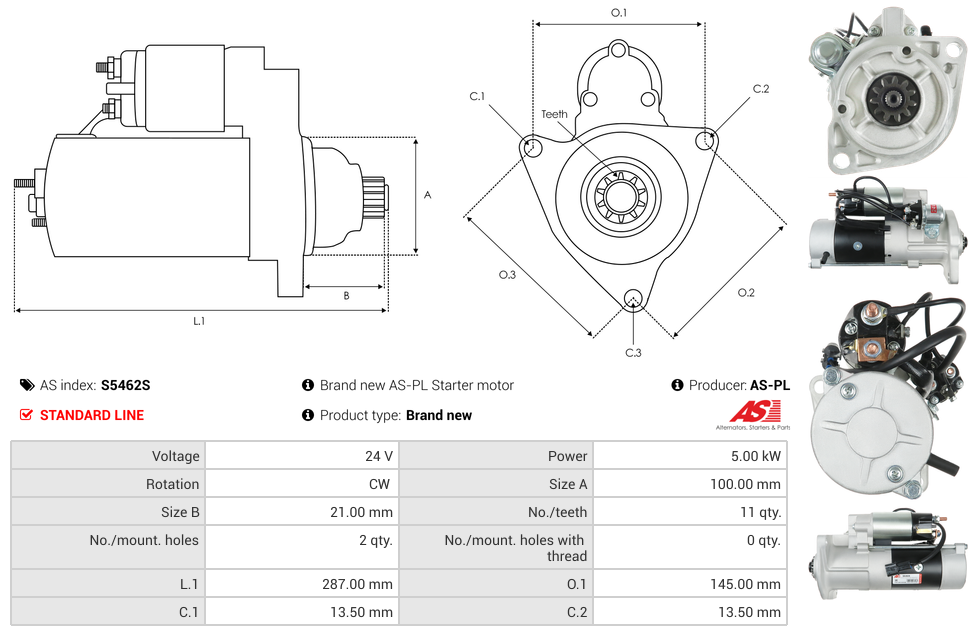

Specifications
| Kilowatt | 5 kW |
| Length (L.1) | 287 mm |
| Mount Hole Center - Center (O.1) | 145 mm |
| Mount Hole Diameter (C.1) | 13.5 mm |
| Mount Hole Diameter (C.2) | 13.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 100 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOBELCO | SK200-3 | [6D34] | |
| MITSUBISHI | Fuso | [6D32] |
Reference Information
130-80182 STM3889 M008T87071 UD18646S ME087775 M8T87071Video/Publications
