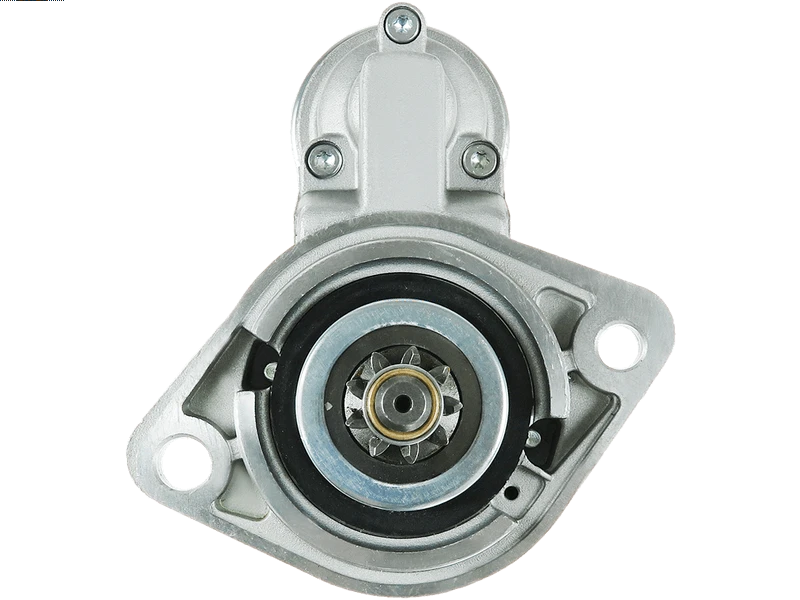

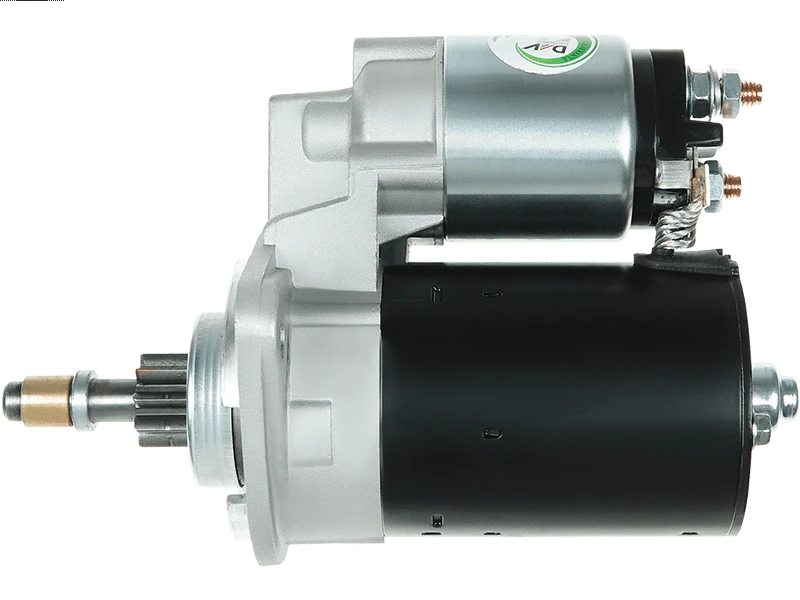

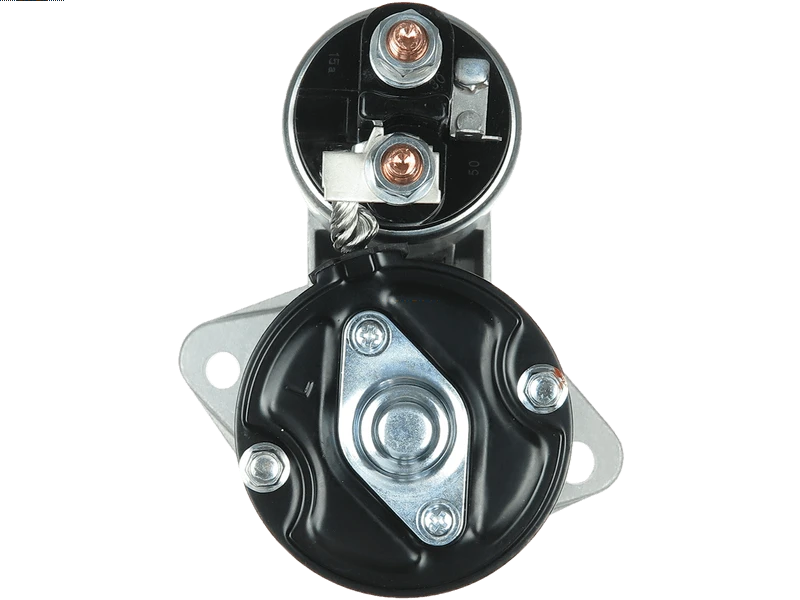

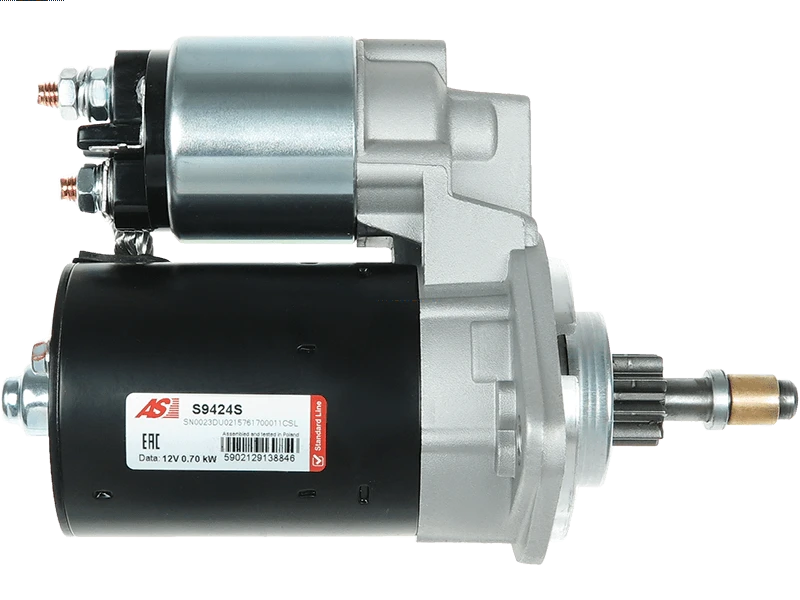

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
PRESTOLITE
Price:
NZ$ 234.74 including GST
NZ$ 204.12 excluding GST
or four payments of $58.69
with
Learn More
each
S0046
S9424S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
66925157Associated Numbers
50-076
Specifications
| Kilowatt | 0.7 kW |
| Length (L.1) | 214 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 33 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | PRESTOLITE |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| PORSCHE | 914 1.7 | [W] | 01.1969-10.1973 |
| PORSCHE | 914 1.8 | [AN] | 08.1973-08.1974 |
| VW | 1500 1.5 | [K] | 08.1966-07.1973 |
| VW | 1600 1.5 | [K] | 08.1966-07.1973 |
| VW | 1600 1.6 | [T] | 08.1966-07.1973 |
| VW | 1600 1.6 | [U] | 08.1966-07.1973 |
| VW | 1600 1.6 TL | [T] | 08.1966-07.1973 |
| VW | 1600 1.6 TL | [U] | 08.1966-07.1973 |
| VW | 181 1.5 | [H] | 09.1969-07.1970 |
| VW | 181 1.6 | [AG] | 08.1970-03.1973 |
| VW | 411 1.7 | [V] | 08.1969-07.1973 |
| VW | 411 1.7 | [Z] | 08.1969-07.1973 |
| VW | 411 1.7 E | [W] | 08.1969-07.1972 |
| VW | 412 1.7 | [W] | 08.1969-07.1972 |
| VW | 412 1.8 E | [AN] | 08.1973-07.1974 |
| VW | 412 1.8 E | [AT] | 08.1973-07.1974 |
| VW | Kaefer 1.2 | [D] | 08.1969-12.1985 |
| VW | Kaefer 1.2 1303 | [D] | 04.1975-07.1975 |
| VW | Kaefer 1.3 | [AB] | 08.1970-07.1975 |
| VW | Kaefer 1.3 | [AR] | 08.1972-07.1975 |
| VW | Kaefer 1.3 | [F] | 08.1969-07.1970 |
| VW | kaefer 1.3 1302 | [AB] | 08.1970-07.1972 |
| VW | Kaefer 1.3 1303 | [AB] | 08.1970-07.1975 |
| VW | Kaefer 1.3 Karmann | [F] | 08.1969-07.1970 |
| VW | Kaefer 1.5 | [H] | 08.1969-07.1970 |
| VW | Kaefer 1.6 | [ACD] | 10.1992-07.2003 |
| VW | Kaefer 1.6 | [AD] | 07.1970-12.1979 |
| VW | Kaefer 1.6 | [AF] | 05.1973-09.1992 |
| VW | Kaefer 1.6 | [AJ] | 08.1972-12.1979 |
| VW | Kaefer 1.6 | [AS] | 08.1972-12.1979 |
| VW | Karmann Ghia 1.6 1600 | [AD] | 01.1970-07.1974 |
| VW | Transporter 1.5 | 07.1966-07.1967 | |
| VW | Transporter 1.6 | [AD] | 08.1970-06.1975 |
| VW | Transporter 1.6 | [AF] | 08.1970-07.1975 |
| VW | Transporter 1.6 | [AH] | 08.1970-07.1975 |
| VW | Transporter 1.6 | [AS] | 08.1968-06.1975 |
| VW | Transporter 1.6 | [B] | 08.1964-12.1968 |
| VW | Transporter 1.7 | [CA] | 08.1971-07.1973 |
| VW | Transporter 1.7 | [CB] | 08.1971-12.1973 |
| VW | Transporter 1.8 | [AP] | 11.1973-07.1975 |
Reference Information
8212224 23300-BG3G1 1062 9000020027 R007042024 42100165 LRS00133 1516787R 8EA012528-201 0111911023BT 72735754 11.139.440 S1036B 9000082060 SS180 CS62 126 3521 RNL1053ND S9424S 9000082009 22.0062 S12BH0126A2 110363 0111911023D MAV121880 211911023B BAA911023B STR50117 25286 9000042034 UD19359S 23300-BG3G 111911023 9007042024 300.008.092.010 111911023BT AZE1243 0001208017 220092 9000042027 AES1133 9000042021 0001211014 0001211013 0001211012 11262 20401881BN F000AL0335 STB0062 STB8062 STR4084 STX200238R RNL1053 25-0134 311911023DX DRS0530 211911023 331911023C D8E158 16450R MS 16450N 20401881RC 0986010530 111911023D 111911023C 8EA726227-001 111911023B 111911023A 113911023E 0001211998 STX200238 0001211997 6010188 66925157 0001211993 3059110233 0001211992 EL25157 433269 F000AL0313 VS193 22.0062M 311911023 6010188.2 CST10188AS 6010188.0 STRS114 8010530 SG0535 IS9433 CST10188RS 311911023C 311911023D 25257 311911023B 91-15-6832 S-6039 11538 9000082046 6004AA0021 88212224 STM1021 LRS133Video/Publications
