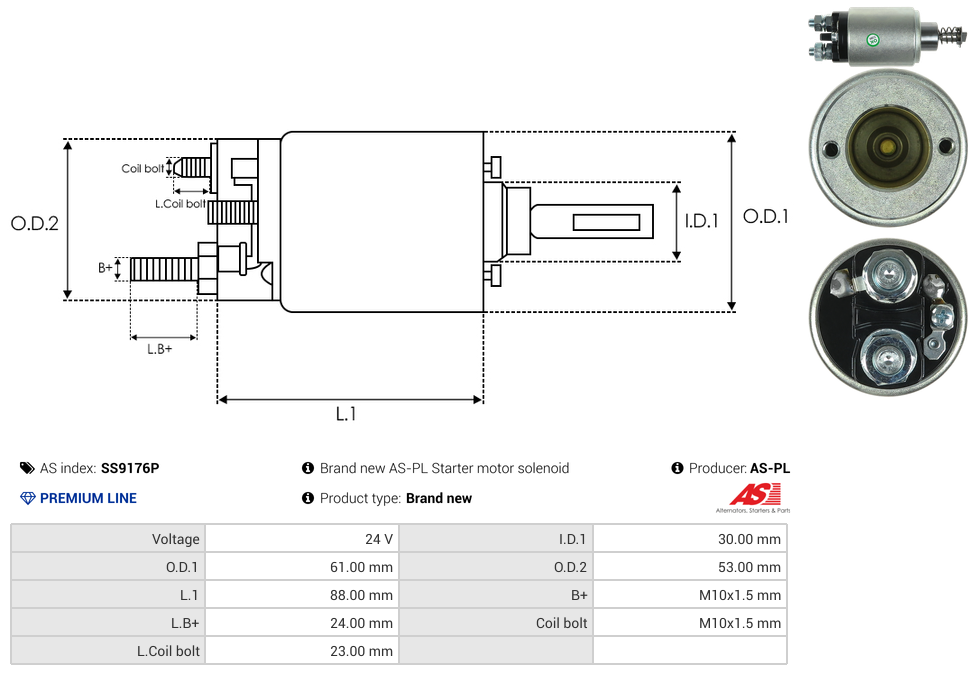

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M10x1.5 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M10x1.5 mm |
| Coil Bolt Length | 23 mm |
| Inside Diameter (I.D.1) | 30 mm |
| L.B+ | 24 mm |
| Length (L.1) | 88 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 61 mm |
| Outside Diameter (O.D.2) | 53 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | UNIVERSAL |
| Voltage | 24 V |
Reference Information
44010200 SS9176P ZM635Video/Publications
